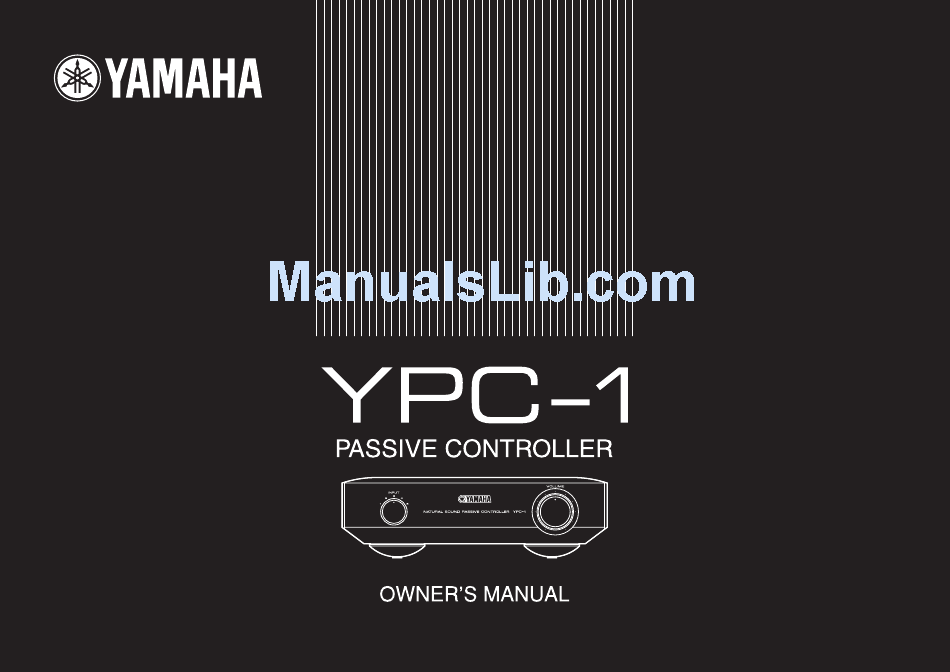

Yamaha YPC-1 Owner's Manual
Hide thumbs Also See for YPC-1:

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Summary of Contents for Yamaha YPC-1

  • Page 2 • Do not attempt to modify or fix this unit. Contact qualified or transformers to avoid humming sounds. YAMAHA service personnel when any service is needed. The • Do not expose this unit to sudden temperature changes from cabinet should never be opened for any reasons.
  • Page 3 Typically, you can connect the YPC-1 prior to the power amplifier to select the input source and adjust the volume level. It also features two identical output jacks that enable bi-amp connection.
  • Page 4: Controls And Functions

    CONTROLS AND FUNCTIONS INPUT selector Selects the signal source from five AUDIO INPUT jacks (1-5) on the rear panel. VOLUME control Adjusts the signal level at the AUDIO OUTPUT jacks. Turn the volume to minimum before playing the sources.
  • Page 5 AUDIO OUTPUT jacks Connect a power amplifier to these jacks. The same signal is output to these two jacks (1 and 2). AUDIO INPUT jacks Connect external components to these jacks to input analog signals. Use the INPUT selector on the front panel to select an input source from jacks 1 through 5.
  • Page 6 CONNECTIONS MX-D1 CD player etc. YPC-1 Turn off the power of the power amplifier, You can connect up to five components that and then use high-quality, short audio pin feature analog audio output jacks. cables to connect the power amplifier.
  • Page 7 <Bi-amp connection example using MX-D1> High-range High-range speaker (right) speaker (left) Mid/low-range speaker Mid/low-range (right) speaker (left) MX-D1 MX-D1 (for mid/low-range) (for high-range) CD player etc.
  • Page 8: Block Diagram

    BLOCK DIAGRAM AUDIO INPUT AUDIO OUTPUT INPUT VOLUME...
  • Page 9 The VOLUME control features a precut brass The INPUT selector features a rotary switch case, gold plated multi-contact brush, and low- designed specifically for the YPC-1. The resistance, low-distortion carbon ink, which contact resistance is less than 5mΩ, which together provide very smooth operation and an contributes to signal transmission with less L/R linkage error of ±1 dB or less.
  • Page 10: Specifications

    SPECIFICATIONS Input Connectors : Five stereo pairs (RCA pin jacks) Max. input : 30 V Impedance : 10 kΩ Volume Max. attenuation : 120 dB LR linkage tolerance: ±1 dB (-100 dB to 0 dB) Output Connectors : Two stereo pairs (RCA pin jacks) Impedance : 10 kΩ...
  • Page 11 YAMAHA ELECTRONIQUE FRANCE S.A. RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD18 7GQ, ENGLAND YAMAHA SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN Printed in Japan WC04310 YAMAHA MUSIC AUSTRALIA PTY, LTD.
