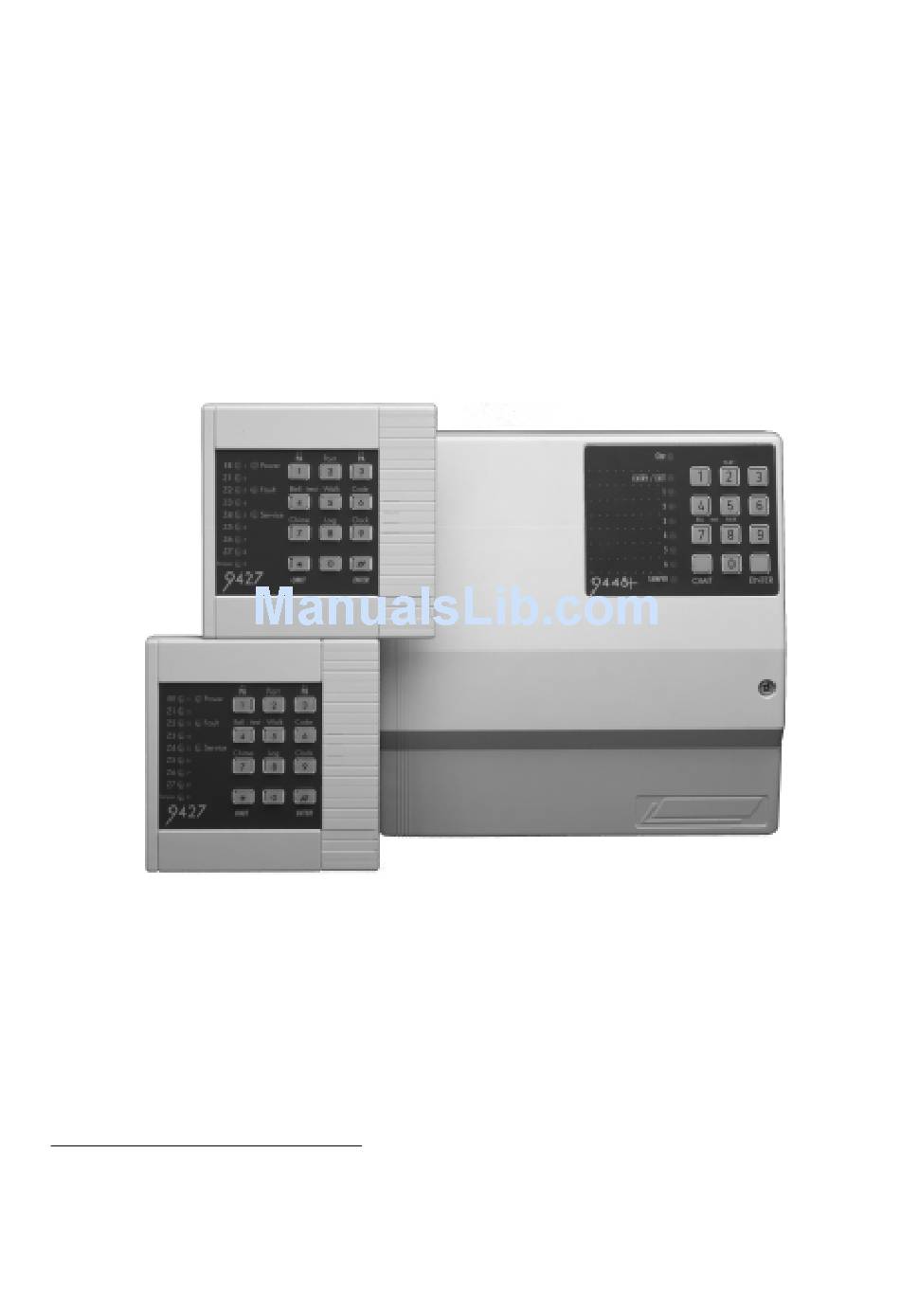

- Page 1 9448+/9448ES Installation and User Guide Compatible Equipment 9427 Remote Keypad 9040 Internal Sounder Speech communicator 496328 Issue 2 1 of 12...
- Page 2 9448+/9448ES INTRODUCTION The 9448+ and 9448ES Alarm Control Panels are fully programmable 7 zone control panels with Full and Part Set, designed for domestic installations. The 9448ES is an end station version designed for domestic and small commercial installations. In the 9448+ the control panel comprises a single printed circuit board, with microprocessor electronics, mounted in a Polycarbonate casing with a hinged lid.
- Page 3 9448+/9448ES Technical Specification Outputs Bell, Strobe, O/P and AUX are open collector transistor outputs. Bell 500mA, 12VDC. negative applied. Strobe 500mA, 12VDC. negative applied. 100mA, 12VDC. negative applied. 9448+ AUX (for detectors) 300mA, 12VDC. Communicator Outputs PA and Intruder, 12V positive removed. 9448ES AUX (for detectors) = 500mA, 12VDC.
- Page 4 9448+/9448ES Wiring Keypad Addressing and Backlighting Each remote keypad must be given a separate "address". Link LK1 sets the keypad address, as shown in Figure 1. Use LK4 to switch the remote keypad backlights on or off. Keypad 1 Keypad 2 SOUNDER Keypad 3 Keypad 4...
- Page 5 Main Connector 9448+ Wiring Example 9448+ Main Connector 9448+ Figure 3 shows an example system wired for a door contact and a detector. Note that mains and battery connections are not shown. DATA -ve Apply trig +ve Hold Off -ve TR -ve Hold Off BELL Bell...
- Page 6 Main Connector 9448+ES 9448+/9448ES Main Connector 9448ES 16 Ohm Loudspeaker (Fit at least one. Max. of two in parallel) Bell Strobe Typical SAB BELL Bell 6-core -ve Hold Off -ve Tamper Return +ve Hold Off -ve Apply trig Normally open contacts e.g.
- Page 7 9448+/9448ES Programming Initial Start Up 9448+ Before applying power to the control panel, ensure that any remote keypad and all zone circuits are connected. DO NOT connect the 12V terminal to the external sounder or 12VAUX terminals to the detectors at this stage. Apply mains to the control panel.
- Page 8 Changing Default Programming 9448+/9448ES Changing Default Programming To change the factory defaults, the panel must be in programming mode. Then: Key in a two digit programming command followed by "ENTER". (See "Engineer Program Command List".) On commands 35 to 68 a LED will glow to show you the current option used in the command.
- Page 9 9448+/9448ES Engineer Program Command List Entry time 10 seconds ENTER ENTER 20 seconds ENTER 30 seconds ENTER 45 seconds ENTER 1 minute ENTER Exit time 10 seconds ENTER ENTER 20 seconds ENTER 30 seconds ENTER 45 seconds ENTER 1 minute ENTER Zone 6 Normal Alarm...
- Page 10 To Re-enter Programming Mode 9448+/9448ES To Re-enter Programming Mode You can re-enter programming mode at any time when the panel is not set or in alarm: Key-in 0 then ENTER followed by the engineer access code. All LEDs, except for Power, flash. You are now in programming mode.
- Page 11 9448+/9448ES Engineer Walk Test Engineer Walk Test Allows the engineer to test all devices on the system. Enter programming mode. Key in "97 ENTER". The panel gives a continuous tone. Open and close each detector contact in turn. When a detector contact is open the panel gives an interrupted tone and flashes the zone LED.
- Page 12 12 of 12 496328 Issue 2...
