- Page 1 9452/9453 Installation and User Guide Compatible Equipment 9425 Remote Keypad 9040 Internal Sounder Speech Communicator 8440 4-Channel ‘Minicom’ 496330 Issue 1 1 of 10...
-
Page 2: Technical Specification

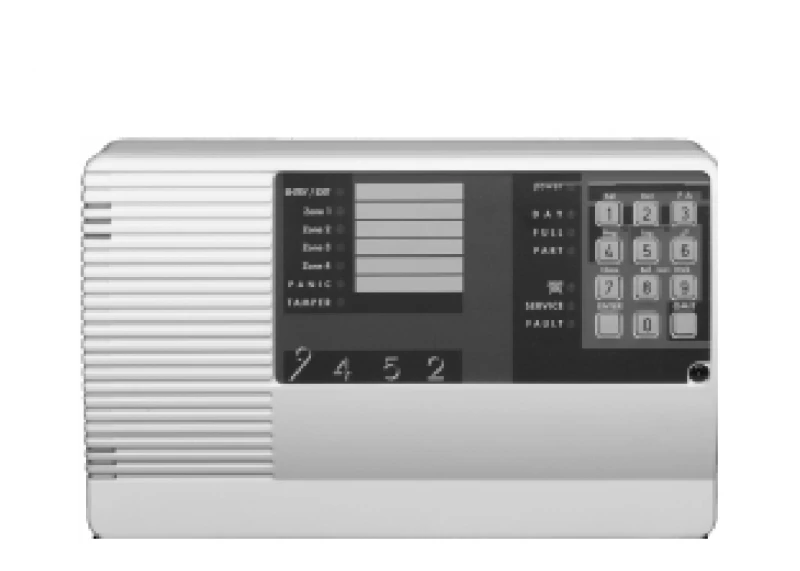

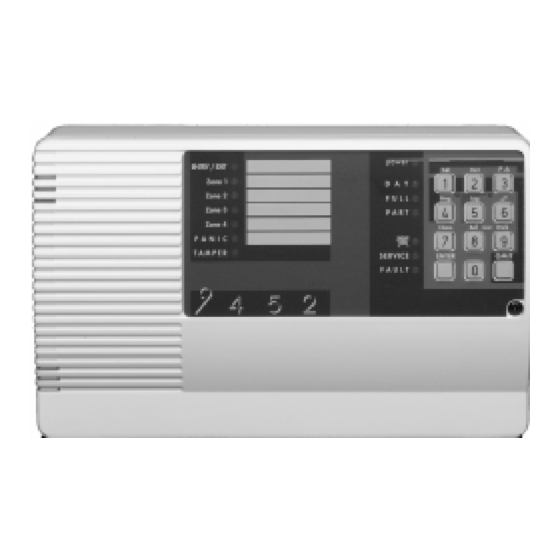

9452/3 Introduction The 9452 and 9453 are fully programmable 4 zone control units designed to meet the requirements of both domestic and small commercial installations. The basic 9452 system comprises a main control panel complete with built-in keypad, while the 9453 system comprises a blank end station and one remote keypad. - Page 3 9452/3 Wiring Figure 1. 9452/3 PCB Layout Communicator Output Pins Pin on panel Function Colour Pin on communicator Pin 1 Pin2 Line Monitor Input Blue Pin 3 Intruder Yellow Pin 4 Open/Close Black Pin 5 +12V Brown Pin 6 Orange Notes: 1.
-
Page 4: Keypad Wiring
Programming 9452/3 Keypad Wiring Figure 2. Keypad Connection. Notes: 1. Maximum cable distance: Daisy chain = 300m, Star Wire = 100m per leg. 2. Do not wire the extension speaker or circuit wiring within the same cable as the remote keypad. -
Page 5: Programming Commands
9452/3 Programming Commands Key-in the factory default engineer code, “0” followed by “ENTER” then “7890”. The “Fault” and ”Service” LEDs will flash and the internal sounder will be bleeping. Open the control panel or end station lid. The internal sounder stops bleeping and the “Service”... -
Page 6: Engineering Program Commands Table
Engineering Program Commands 9452/3 To change Key in: Followed by + ENTER Default Entry/exit zone options 07 0 = Reset to none 5 = Chime 6 = Part set zone Programmable Output 11 18 = PIR set latch 29 = Shock sensor reset... -
Page 7: Refresh Nvm
Leave Engineering Mode Refresh NVM (System Memory Chip) The 9452/3 control panels have a Non Volatile Memory chip which retains all programmed information and access codes. If the system suffers a total power failure, the NVM will retain all information and the panel will only require powering up and resetting. -
Page 8: Engineer Reset
Fault Finding 9452/3 Power down the control panel, mains and battery. Find the RST pins, located to the middle of the control pcb. Place a small screwdriver blade to short between the “RST” pins. With the blade still across the pins, power up the control panel battery first, then Mains. - Page 9 9452/3 Fault Finding 496330 Issue 1 9 of 10...
-
Page 10: User Commands
9452/3 User Commands Full Set System 1 + ENTER + User code Part Set System 2 + ENTER + User code Unset/Reset System User code Omit zone 1 (or 2) + ENTER + User code + OMIT + zone number (repeat OMIT + zone number for other zones as required).
