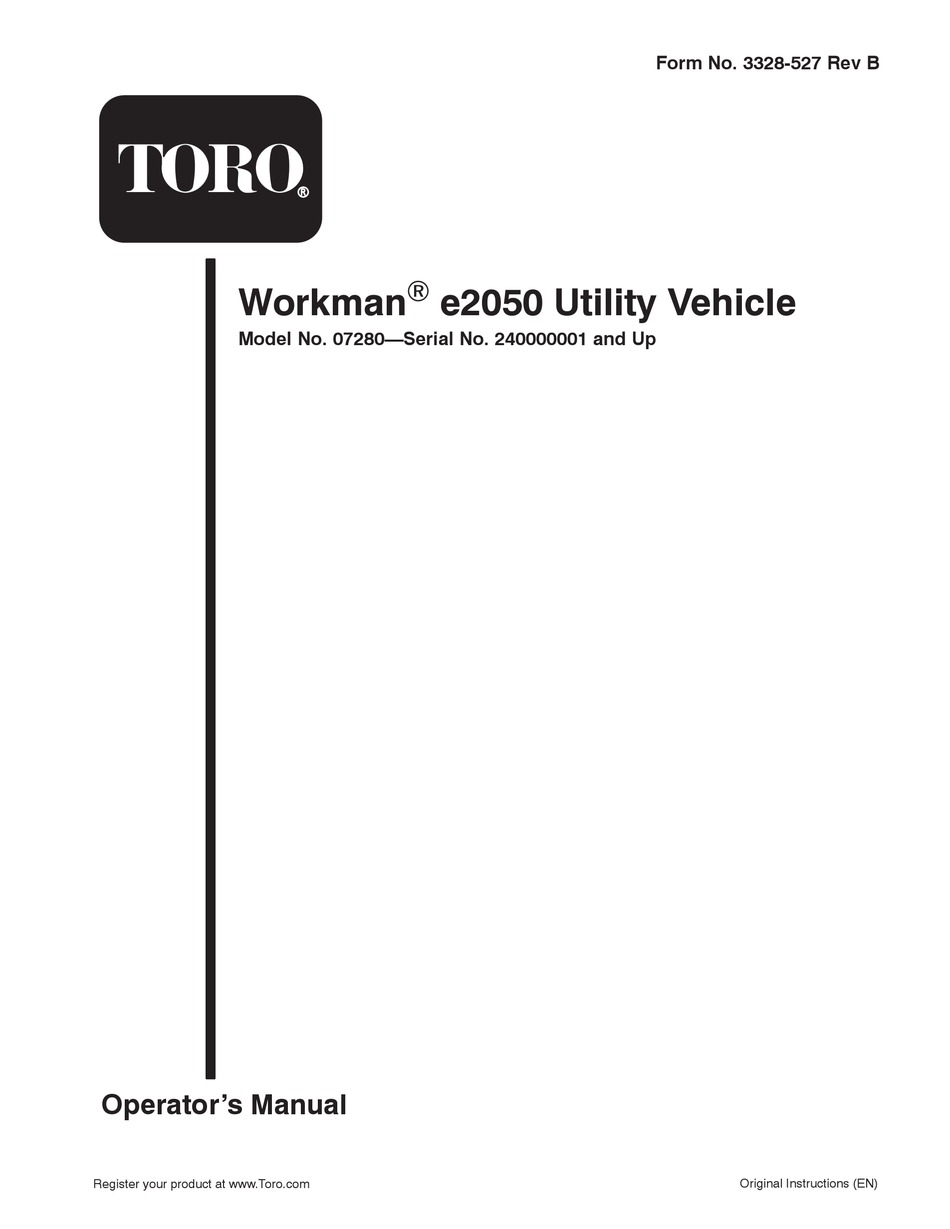

- Page 1 Form No. 3328-527 Rev B Workman e2050 Utility Vehicle Model No. 07280—Serial No. 240000001 and Up Operator’s Manual Register your product at www.Toro.com Original Instructions (EN)
-
Page 2: Table Of Contents
........additional information, contact an Authorized Service Dealer or Toro Customer Service and have the model and Loose Parts . -
Page 3: Safety
Warning signals a hazard that may cause serious injury or • Never allow children to operate the vehicle. Anyone death if you do not follow the recommended precautions. who operates the vehicle should have a motor vehicle license. Caution signals a hazard that may cause minor or moderate •... - Page 4 • Drive slower and turn less sharply when you are • Before getting off of the seat: carrying a passenger. Remember your passenger may A. Stop the movement of the vehicle. not be expecting you to brake or turn and may not be ready.
- Page 5 • Do not carry loads which exceed the load limits These extra cautions need to be taken when operating the vehicle on a hill: described on the vehicle weight label; refer to Specifications, page 11, for vehicle weight limits. The •...
-
Page 6: Handling And Servicing Batteries
• If major repairs are ever needed or assistance is followed by milk of magnesia, beaten raw eggs, or required, contact an Authorized Toro Distributor. vegetable oil. Get medical attention immediately. • To be sure of optimum performance and safety, always –... -
Page 7: Slope Chart
Slope Chart ALIGN THIS EDGE WITH A VERTICAL SURFACE (TREE, BUILDING, FENCEPOST, POLE, ETC.) -
Page 9: Safety And Instruction Decals
Safety and Instruction Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or lost. 104-7214 1. Horn 3. Battery/hour meter 5. Light blinking, read the 7. - Page 10 107-0356 1. Warning—Do not touch moving objects, fan; do not touch the 104-7131 hot surfaces; read the Operator’s Manual. 1. Read the Operator’s Manual. 2. The maximum combined operator and passenger weight is 400 lb. (181 kg.). 3. The maximum cargo weight is 800 lb. (362 kg). 4.
-
Page 11: Specifications
Cargo box height 10 in (25.4 cm) inside Optional Equipment The Toro Company has optional equipment and accessories that you can purchase separately and install on your vehicle. Contact your Authorized Service Dealer for a complete list of optional equipment that is currently... -
Page 12: Setup
Complete and file in your customer history portfolio. Refer to the Parts Manual for the available power cords for the voltage used in the region or country where operating the charger. Contact your Authorized Toro Dealer to obtain the appropriate power cord. Checking the Tire Pressure Always use the appropriate power cord for the power outlet of the country or region charging will occur. -
Page 13: Operation
Operation Parking Brake The parking brake is a small plate at the top of the brake pedal (Fig. 3). Whenever you stop the vehicle, engage the Note: Determine the left and right sides of the vehicle from parking brake to prevent accidental movement of the the normal operating position. -
Page 14: Pre-Operating Checks
Vehicle Direction Switch Passenger Hand Holds Use this switch (Fig. 4) to toggle between forward and The passenger hand holds are located on the right side of reverse operation. the dash panel and at the outside of each seat (Fig. 6). Vehicle Status Light This light communicates the status of the vehicle as determined by the on board computer. -
Page 15: Stopping The Vehicle
Important When driving up slopes, do not stop the m–7220 vehicle using the accelerator pedal to hold it in place. This will damage the motor. Instead use the brake or parking brake to stop the vehicle and hold it in place. Stopping the Vehicle To stop the vehicle, remove your foot from the accelerator pedal and slowly press the brake pedal. -
Page 16: Operating The Cargo Box
Using the Battery System When only one bar is left, the warning light will begin flashing and the vehicle will go into an energy saving mode When your batteries are fully charged, the battery meter (Fig. 10). In this mode, the vehicle will only drive at 3 mph. will have ten bars showing from left to right (Fig. - Page 17 Adjusting the Box Latches 1. Lift the lever on either side of the box and lift the box up (Fig. 11). If the box does not latch tightly, vibrating up and down as you drive the vehicle, you can adjust the latch posts to make the latches fit snuggly.
-
Page 18: Breaking-In A New Vehicle
Transporting the Vehicle 2. To close the tailgate latches, lift the handles upward and slide them toward the outside of the vehicle. For moving the vehicle long distances, a trailer should be 3. Push the latch handles downward to secure the latch and used. -
Page 19: Towing A Trailer
Towing a Trailer The vehicle is capable of pulling trailers. Two types of tow hitches are available for the vehicle, depending on your application. Contact your Authorized Toro Distributor for details. When hauling cargo or towing a trailer, do not overload your vehicle or trailer. - Page 20 Duplicate this page for routine use. For the week of: Mon. Tues. Wed. Thurs. Fri. Sat. Sun. Maintenance Check Item Charge the batteries. Check the brake and parking brake operation. Check any unusual operating noises. Check the tire pressure. Check for fluid leaks. Check the instrument operation.
-
Page 21: Heavy Duty Operation
Caution If you leave the key in the On/Off switch, someone could accidently start the vehicle and seriously injure you or other bystanders. Remove the key from the On/Off switch before you do any maintenance. Heavy Duty Operation Important If the vehicle is subjected to any of the conditions listed below, maintenance should be performed twice as frequently: •... -
Page 22: Maintaining The Batteries
Contact your 1. Ensure that all of the battery caps are tight. Authorized Toro Dealer to obtain the correct power cord if necessary. 2. Use a paper towel to clean the batteries. - Page 23 4. Replace the filler caps on all batteries. Warning 5. Charge the batteries for 16 hours; refer to Charging the Batteries, page 22. Charging the battery produces gasses that can 6. Remove the filler caps from each battery. explode. 7. Add just enough distilled water to bring the electrolyte Never smoke near the batteries and keep sparks level to 1/8 inch (3 mm) below the bottom of each fill and flames away from them.
-
Page 24: Greasing The Vehicle
(13.5 to 21 N⋅m). terminal and a negative terminal at the same time. 13. Coat the battery terminals with Toro battery terminal protector. 14. Ensure that the rubber boots on each battery cable are securely seated over the battery terminals. -
Page 25: Servicing The Brakes
Adjusting the Brake Pedal 3. Wipe off excess grease. Adjust the brake if the parking brake does not hold, the brake pedal travel is excessive, or braking power is not sufficient when the brake pedal is depressed. Check the adjustment every 200 hours. 1. -
Page 26: Inspecting The Tires
Inspecting the Tires Check the tire condition at least every 100 hours of operation. Operating accidents, such as hitting curbs, can damage a tire or rim and also disrupt wheel alignment, so inspect tire condition after an accident. Check the wheels to ensure that they are mounted securely. Torque the center bolts on the front wheels to 135–165 ft-lb (183–224 N⋅m) and the front and rear lug nuts to 45–65 ft-lb (61–88 N⋅m). -
Page 27: Adjusting The Front Wheel Toe-In
Note: The vehicle may need to be lowered to the ground on height. Use the same fixture or alignment gauge to that side to install the bolt. accurately measure the front of the front tires at axle height (Fig. 27). 8. -
Page 28: Checking The Transaxle Oil Level
Figure 30 1. Vehicle Fuse 2. Accessories Fuse Replacing the Headlights m–7445 Specification: Toro #104-7312, 28 volt Figure 29 Note: The headlights are wired in series; therefore, when 1. Transaxle 2. Check bolt one headlight burns out, neither will illuminate. If possible, change both headlights at the same time. -
Page 29: Washing The Vehicle
Figure 31 1. Rubber seal 3. Outside notch—align with notch in hood 2. Inside notch—align with notch on headlight 4. Headlight 6. Attach the headlight to the wire harness using the previously removed screws. 7. Align the notch on the outside of the seal with the notch in the hood. -
Page 30: Electrical Schematic
Electrical Schematic... -
Page 31: Troubleshooting
Troubleshooting vehicle status light. When the vehicle is functioning properly, the light will be on. When there is a problem, the light flashes. The number of flashes changes depending on The vehicle contains a computer that monitors the state of the problem. -
Page 32: The Toro General Commercial Products Warranty
If for any reason you are dissatisfied with your Distributor’s service or have difficulty obtaining guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company.
