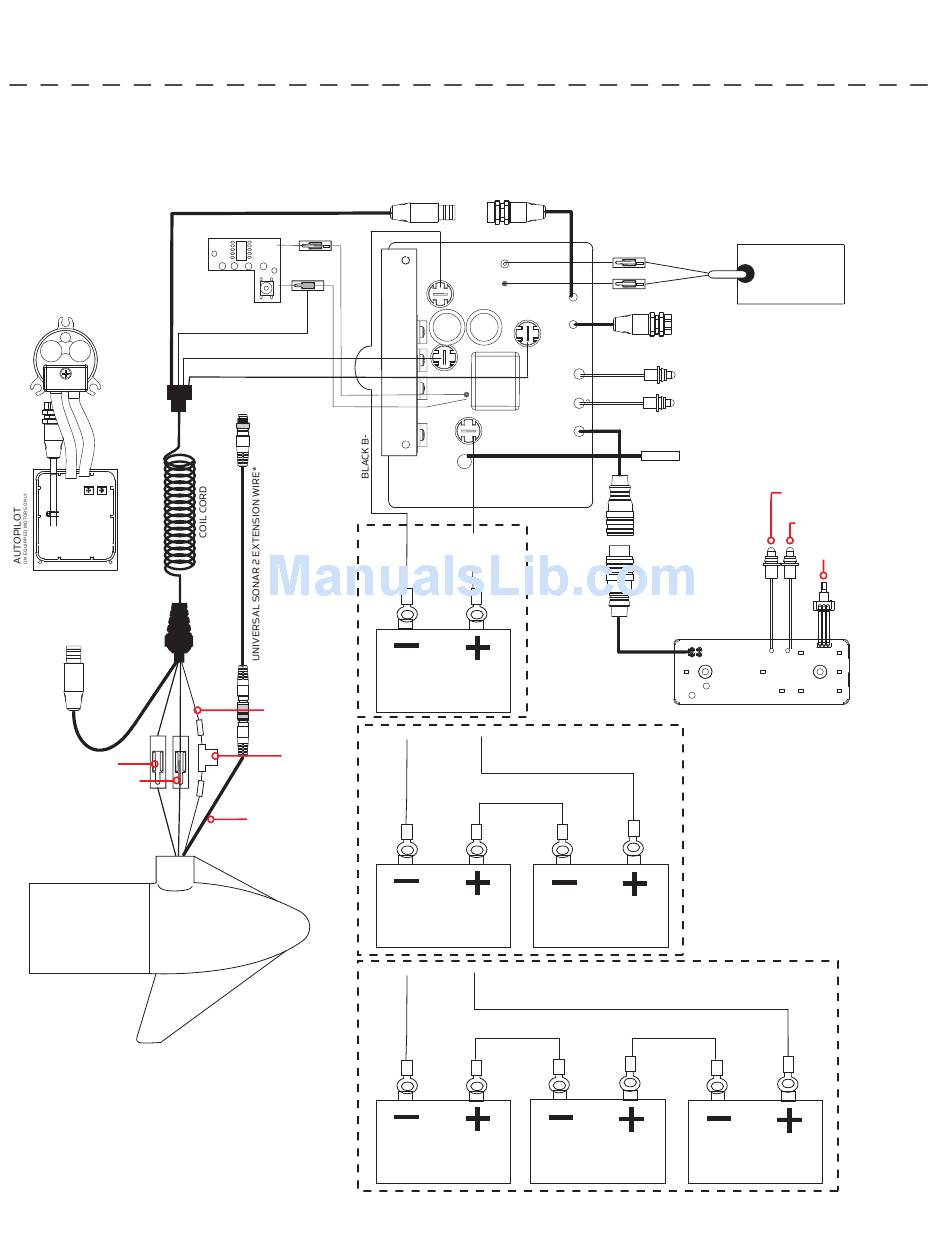

MOTOR WIRING DIAGRAM

NOTE: This is a universal, multi-voltage diagram. Double check your motor's voltage for proper connections. Over-Current
Protection Devices not shown in this illustration.
BATTERY GAUGE
COMPASS
SENSOR
BOARD
ACCESSORY PLUG
RED M+
BLACK M-
MOTOR
* UNIVERSAL SONAR2 MOTORS ONLY
RED
BLACK
BROWN
BLACK M-
RED M+
BROWN*
FUSE*
UNIVERSAL
SONAR 2 WIRE*
CONTROL BOARD
B-
M+
M-
B+
RED B+
12v
BATTERY 1
24v
BATTERY 1 BATTERY 2
36v
BATTERY 1 BATTERY 2
STEERING MOTOR
WHITE
BLACK
ACCESSORY PLUG
AUTOPILOT INDICATOR, RED
SYSTEM READY, INDICATOR, GREEN
REED SWITCH
AUTOPILOT INDICATOR, RED
FOOT PEDAL
CONTROL BOARD
BATTERY 3
MOMENTARY/CONSTANT
INDICATOR, GREEN
SPEED ADJUSTMENT
KNOB
