- Page 1 MinarcTig 180, 180MLP, 250, 250MLP Operating manual Brugsanvisning Gebrauchsanweisung Manual de instrucciones Käyttöohje Manuel d’utilisation Gebruiksaanwijzing Bruksanvisning Instrukcja obsługi Инструкции по эксплуатации Bruksanvisning 操作手册...
- Page 3 Operating manual english...
-
Page 4: Table Of Contents
............Troubleshooting ............. .. Technical data ..............MinarcTig 180, 180MLP, 250, 250 MLP... -
Page 5: Preface
While every effort has been made to ensure that the information contained in this guide is accurate and complete, no liability can be accepted for any errors or omissions. Kemppi reserves the right to change the specification of the product described at any time without prior notice. Do not copy, record, reproduce or transmit the contents of this guide without prior permission from Kemppi. -
Page 6: About Welding
TIG welding torch’s ceramic nozzle at a rate of approximately 8–15 litres per minute. (Gas regulator, flow meter and pure argon shielding gas are not provided in this package.) MinarcTig 180, 180MLP, 250, 250 MLP... -
Page 7: Machine Use
The recommended operating temperature range is –20 to +40 degrees centigrade. Site the machine so that it does not come into contact with hot surfaces, sparks and welding spatter. Make sure the airflow to and from the machine is unrestricted. © Kemppi Oy / 1339... -
Page 8: General View Of The Machine
Welding torch Earthing cable and earthing clamp Main switch Mains cable (MinarcTig 180 in the picture) Shielding gas hose connector Distribution network All regular electrical devices without special circuits generate harmonic currents into distribution network. High rates of harmonic current may cause losses and disturbance to some equipment. -
Page 9: Cable Connections
The welding torch is used to supply shielding gas and electrical arc energy to the weld piece. When you press the welding torch switch, the shielding gas begins to flow and the arc is established. The TIG torch is connected to the negative pole. © Kemppi Oy / 1339... -
Page 10: Shielding Gas
Adjust the shielding gas flow rate with the flow regulation adjustment screw. A suitable gas flow rate is 8–15 l/min Close the cylinder valve after use. MinarcTig 180, 180MLP, 250, 250 MLP... -
Page 11: Welding Power Selection And Electrodes
1.6 mm 2.0 mm 2.5 mm 3.25 mm 4.0 mm 5.0 mm diameter Fe-Rutile 30-60 A 40-80 A 50-110 A 80-150 A 120–210 170–220 Fe-Basic 30-55 A 50-80 A 80-110 A 110-150 A 140–200 200–220 © Kemppi Oy / 1339... -
Page 12: Adjustments And Indicators (180 And 250)
The light switches off again, when the machine is ready for operation. Make sure that there is enough space around the machine to allow the air to freely circulate and flow into and out off the machine. MinarcTig 180, 180MLP, 250, 250 MLP... -
Page 13: Welding Current Regulation And Remote Control
For HF ignition, press the HF button so that the indicator is on (item 6). Press the TIG torch trigger and hold or release, depending on whether 2T or 4T is selected. The shielding gas flows and the HF (High Frequency arc) ignites the welding arc. © Kemppi Oy / 1339... -
Page 14: Additional Features For Mlp Models
Minilog current. When you press the switch for 1 second and then release it, the current starts to decrease. After a predetermined downslope time, the arc is disconnected. MinarcTig 180, 180MLP, 250, 250 MLP... -
Page 15: Setup Features
Minimum setting for pre-gas time 0,0…10,0 s 1.0 s Minumum setting for post-gas time 5.0…20.0 s 10.0 s Maximum setting for pre-gas time 15…99 s 30 s Maximum setting for post-gas time -3…5 Arc dynamics (Arc Force) © Kemppi Oy / 1339... -
Page 16: Error Codes
Other error codes: The machine can show codes not listed here. In the event of an unlisted code appearing, contact an authorised Kemppi service agent and report the error code shown. MinarcTig 180, 180MLP, 250, 250 MLP... -
Page 17: Maintenance
We recommend that you schedule a service inspection of your welding machine every six months. An authorised Kemppi service agent will inspect and clean your machine, ensuring that all power connections are tight and secure. Power connections can become loose and oxidised with frequent and high changes in temperature. -
Page 18: Ordering Numbers
Part number Power Sources MinarcTig 180, TTC 160 4 m MINARC180TTC4 MinarcTig 180, TTC 160 8 m MINARC180TTC8 MinarcTig 180 MLP, TTC 160 4 m MINARC180MLPTTC4 MinarcTig 180 MLP, TTC 160 8 m MINARC180MLPTTC8 MinarcTig 250, TTC 160 4 m MINARC250TTC164... -
Page 19: Troubleshooting
• Ensure that cooling air has unrestricted flow. • The machine’s duty cycle has been exceeded. Wait for indicator to turn off. • Too low or high supply voltage. If the machine’s malfunction is not eliminated with these measures, contact KEMPPI service. © Kemppi Oy / 1339... -
Page 20: Technical Data
10 kV Stick electrodes Ø 1.5-3.25 mm External dimensions (L × W × H) 400 × 180 × 340 Weight 7.8 kg (8.4 kg with connection cable) Temperature class H (B) Degree of protection IP23S MinarcTig 180, 180MLP, 250, 250 MLP... - Page 21 Efficiency at max. current 0,80 0,86 Striking voltage 10 kV MMA welding electrodes Ø 1.5-5.0 mm External dimensions (L × W × H) 400 × 180 × 340 Weight 10.7 kg (11.6 kg with connection cable) © Kemppi Oy / 1339...
- Page 22 Degree of protection IP23S EMC class Minimun short circuit power S 1.5 MVA supply network* Operating temperature range -20 °C...+40 °C Storage temperature range -40 °C...+60 °C Recommended generator > 15 kVA * See paragraph 2.3. MinarcTig 180, 180MLP, 250, 250 MLP...
- Page 24 P.O. Box 5256, Greystanes NSW 2145 sales.india@kemppi.com KEMPPI DANMARK A/S SMITHFIELD NSW 2164 Literbuen 11 AUSTRALIA KEMPPI WELDING SOLUTIONS SDN BHD DK-2740 SKOVLUNDE Tel. +61 2 9605 9500 No 12A, Jalan TP5A, DANMARK Telefax +61 2 9605 5999 Taman Perindustrian UEP, Tel +45 4494 1677 info.au@kemppi.com...
Need help?
Do you have a question about the MinarcTig 180 and is the answer not in the manual?
Questions and answers

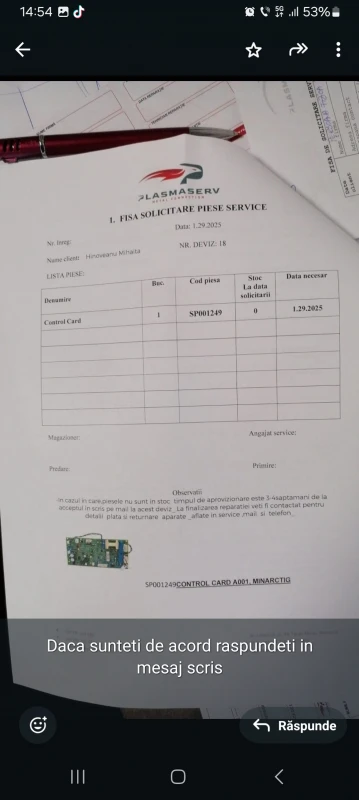

Doresc sa cumpăr o piesă pt un aparat Kemppi minartig 180
