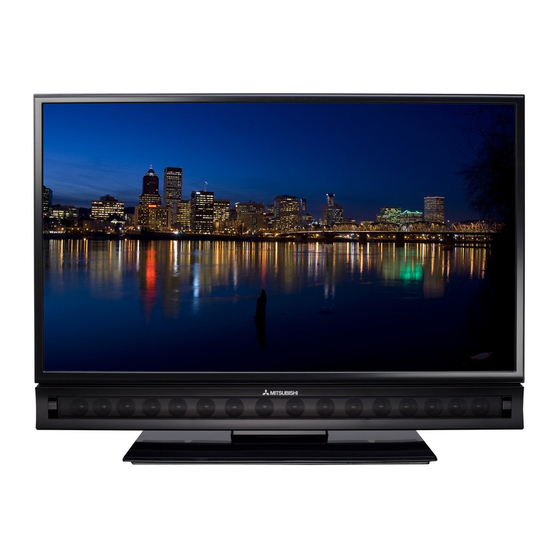

IMMERSIVE SOUND LCD HDTV
with Integrated Sound Projector
MODELS
151 Series
LT-40151, LT-46151, LT-52151
153 Series
LT-40153, LT-46153, LT-52153
249 Series
LT-46249, LT-52249
OWNER'S GUIDE
•
Guidelines for setting up and using your new widescreen TV start on
•
For questions:
-
Visit our website at www.mitsubishi-tv.com.
-
E-mail us at MDEAservice@mdea.com.
-
Call Consumer Relations at
•
For information on
•
To order replacement or additional remote controls, visit our website at www.mitsuparts.com or call
800-553-7278.
•
153 and 249 Series.
from Mitsubishi. Call 800-553-7278 and request either part number 242D483020 (two-ended cable) or part
number 299P254020 (four-ended cable).
Downloaded From TV-Manual.com Manuals
800-332-2119.
System Reset, please see the back cover.
IR emitter cables for NetCommand home-theater control are available for purchase
page 7.

Advertisement

Table of Contents
loading

Related Manuals for Mitsubishi Electric 151 Series

Summary of Contents for Mitsubishi Electric 151 Series

  • Page 1 IMMERSIVE SOUND LCD HDTV with Integrated Sound Projector MODELS 151 Series LT-40151, LT-46151, LT-52151 153 Series LT-40153, LT-46153, LT-52153 249 Series LT-46249, LT-52249 OWNER’S GUIDE • Guidelines for setting up and using your new widescreen TV start on page 7. • For questions: Visit our website at www.mitsubishi-tv.com. E-mail us at MDEAservice@mdea.com. Call Consumer Relations at 800-332-2119. System Reset, please see the back cover.
  • Page 2 FCC Declaration of Conformity For Your Records Record the model number, serial number, and Product: LCD Flat Panel HDTV purchase date of your TV. The model and serial Models: LT-40151, LT-46151, LT52151 numbers are on the back of the TV. Refer to this LT-40153, LT-40153, LT-52153 page when requesting assistance with the TV. LT-46249, LT-52249 MODEL NUMBER Responsible Mitsubishi Digital Electronics SERIAL NUMBER Party: America, Inc. PURCHASE DATE 9351 Jeronimo Road Irvine, CA 92618-1904 RETAILER NAME Telephone: (800) 332-2119 LOCATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, CAUTION (2) This device must accept any interference received, including interference that may cause RISK OF ELECTRIC SHOCK undesired operation.

  • Page 3: Table Of Contents

    Contents Important Safety Instructions ....4 TV Menus Important Information About Your TV ..Main Menu Special Features of Your TV ......

  • Page 4: Important Safety Instructions

    Important Safety Instructions Please read the following safeguards for your TV and E XAMP LE OF ANT E NNA G R OUNDING retain for future reference. Always follow all warnings and instructions marked on the television. 1) Read these instructions. ANT E NNA LE AD IN WIR E 2) Keep these instructions. G R OUND C LAMP ANT E NNA 3) Heed all warnings. DIS C HAR G E UNIT (NE C AR T IC LE 810-20) E LE C T R IC 4) Follow all instructions.

  • Page 5: Important Information About Your Tv

    Important Information About Your TV If Your TV Gets Damaged Installation Notes Crystalline liquid may leak from the LCD panel and For stand installation and wall-mounting, see page 8. broken glass may be scattered. Use with other than the authorized accessories CAUTION: The crystalline liquid is toxic. Avoid may cause the TV to become unstable, which can contact with your skin, eyes, or mouth. DO NOT cause damage to the product or possible injury.

  • Page 6: Special Features Of Your Tv

    Special Features of Your TV Easy Connect Auto Input Sensing Your new high-definition widescreen television has many special features that make it the perfect center of Easy Connect™ Auto Input Sensing automatically rec- your home entertainment system, including: ognizes when you plug in a device and prompts you to assign a name to it. 1080p High-Definition LCD Display System Your Mitsubishi LCD Flat Panel HDTV uses a full 1920 Home-Theater Control x 1080 LCD panel to create the picture you see on the screen. All images are displayed at 1080p. The TV uses HDMI Control new Plush 1080p ® 5G digital video processing to convert Available for all models. HDMI devices with Consumer lower-resolution signals to 1080p for display. Electronics Control (CEC) capabilities may be compatible with the TV’s HDMI Control feature. Compatible devices Smooth120Hz™ Film Motion can receive control signals through the HDMI connection, Smooth120Hz™ Film Motion makes fast-moving images allowing the TV’s remote control to operate some func-...

  • Page 7: Basic Setup And Operation

    Basic Setup and Operation Package Contents Remote Control Batteries Please take a moment to review the following list of accessory items to ensure that you have received Remove the remote control back cover. everything. Remote Control Two AA Batteries Emitter Basic Owner’s Bulb Guide Load the batteries, making sure the polarities (+) and (-) are correct. Insert the negative (-) end first. HDTV Quick Setup Guide Product Registra- tion Card Power Cord Slide the cover back into place. Cable Tie Stand Screws 153 and 249 Series.

  • Page 8: Stand Installation

    1. Basic Setup and Operation CAUTION: Using this TV with other than the authorized accessories may cause the TV to become unstable, which can cause damage to the product or possible injury. Stand Installation Required: Phillips Screwdriver Extension pieces on back of stand Extension pieces on back of stand Back...

  • Page 9: Before You Begin

    1. Basic Setup and Operation Before You Begin First-Time Power-On Review the important safety, installation, and oper- Confirm that the remote ating information at the beginning of this book. control is in TV mode. Choose a location for your TV. • Press the side button once to light the mode • See the stand-installation or wall-mounting indicator and confirm requirements on the opposite page. that TV mode is active. • Allow at least four inches of space on all sides • To change, press the of the TV to help prevent overheating. Over- side button additional heating may cause premature failure of the TV. times to activate TV GUIDE MENU INFO BACK...

  • Page 10: Tv Controls

    1. Basic Setup and Operation TV Controls Remote Control VCR CABL/SAT TV DVD AUDIO Press to select a TV activity and input. See page 25. Control-mode indicator for device type to control. Use the side button to GUIDE ChannelView listings, page 26. change. MENU TV main menu, page 40 Powers TV on or off ACTIVITY INFO TV status (page 27) or TV help. Side button sets the control mode for the type of device to operate. Set Steps back one menu; clears GUIDE MENU INFO BACK BACK mode to TV for normal TV viewing. the top menu or Status Display. CHANNEL UP VOLUME UP LAST. Returns to the previously tuned channel. MUTE CHANNEL DOWN VOLUME DOWN PAGE UP Record/Playback controls for external devices...

  • Page 11: Tv Control Panel

    1. Basic Setup and Operation TV Controls, continued TV Control Panel Buttons on the control panel duplicate some keys on the remote control. • ACTIVITY , CH, and VOL are available when no TV menus are displayed. • and ENTER are available when using TV menus or after activating a special function. System Reset If the TV fails to respond to the remote control, the control-panel buttons, or will not power on/off, perform System Reset. Recent setting changes made before using System Reset may be lost. The TV control panel is located To perform System Reset, press and hold the POWER on the side. button on the control panel for ten seconds. Panel-Lock Release IR Sensor •...

  • Page 12: Setting Up Tv Inputs

    1. Basic Setup and Operation Setting Up TV Inputs Channel Scan for Digital Channels Setting Up Other Inputs If you skip this step, the TV cannot receive digital Connect your devices to the TV, making note of channels. which TV input jack is used for each device. See If using an antenna or direct cable service (no cable “TV Connections,” page 16, for recommendations. box), connect the incoming coaxial cable to the TV’s Power on the devices to ensure detection. ANT input. Refer to page 21. Power on the TV. You must perform a channel scan to enable reception The TV will display the New Device Found screen of all available high-definition and standard-definition for each new connection it detects Learn more digital channels. The channel scan will search for...
  • Page 13 1. Basic Setup and Operation Setting Up TV Inputs, continued About Auto Input Sensing/ Auto Output Sensing This TV’s Easy Connect™ Auto Input Sensing feature detects most connections automatically. The excep- tions are: • A connection on the ANT input • An HDMI device that is powered off. Power on the device to ensure detection. Auto Sensing for Most Devices When you first connect a device, the TV will: a. Detect the connected device and automatically New Device Found screen for a device with HDMI switch to it.

  • Page 14: Basic Tv Operation

    1. Basic Setup and Operation Basic TV Operation Watching Broadcast TV Watching DVDs or Videos TV Connected to an Antenna, Direct Cable Service, TV Connected to a DVD Player, DVR, or VCR Cable Box, Set-Top Box, or Satellite Receiver Press ACTIVITY.

  • Page 15: Audio Settings

    1. Basic Setup and Operation Basic TV Operation, continued Making Picture Adjustments Other TV Features To get the best picture under different viewing condi- • To set the TV Clock see page 47. Set the TV tions, set the Picture Mode before changing other video Clock if you plan to use the TV Timer (page 47) or settings. Basic picture adjustments are described on ChannelView (page 26) features. page 41. • To set parental controls, see the Lock menu, page Press MORE. 8 (VIDEO). Note: 249 Series. To set parental controls for Press VUDU ™ service, use the VUDU Info & Settings Press to display the Picture Mode adjust- menu.

  • Page 16: Tv Connections

    TV Connections Before You Begin Surround Sound Auto Input/Auto Output Sensing For best surround sound audio quality, route audio or The TV’s Auto Sensing feature automatically recognizes HDMI cables from the source device directly to your TV most connections and prompts you to identify the type (for Sound Projector) or directly to your A/V receiver if of device connected. See page 13 for more on Auto using an external sound system. Sensing. Connection Types IMPORTANT Use the connection types available on your input Accessory items such as cables, adapters, devices that will give the best video quality. For splitters, or combiners required for TV example, choose HDMI over component video, and connections are not supplied with the TV. choose component video over composite video.

  • Page 17: Inputs And Outputs

    2. TV Connections Inputs and Outputs Connector Panels DIGITAL AUDIO INPUT AVR AUDIO (page 20) OUTPUT HDMI SUBWOOFER (page 23) (pages 20, 23) – NetCommand Output/ OUTPUT External Controller Input (page 24) 153 and 249 series DIGITAL NetCommand, page 56 AUDIO External Controller Input, OUTPUT page 19 (page 23) RS-232C AVR AUDIO OUTPUT RS-232C 249 series DVI/PC AUDIO...

  • Page 18: Digital Audio Output

    2. TV Connections Inputs and Outputs, continued 3. Y Pb Pr (Component Video) 1. ANT (Antenna) Connect devices with component video outputs to this Connect your main antenna or direct cable service (no jack. Use the adjacent AUDIO R and L jacks if you wish cable box) to ANT. The ANT input can receive digital to send audio to the TV. and analog over-the-air channels from a VHF/UHF antenna or non-scrambled digital/analog cable source. 4. VIDEO (Composite Video) 2. HDMI™ Inputs (High-Definition Connect a VCR, DVD player, standard satellite receiver, Multimedia Interface) or other A/V device to the TV. Use the adjacent AUDIO R and L inputs if you wish to send audio to the TV. The HDMI inputs support uncompressed standard and high-definition digital video formats, PCM digital stereo 5. AVR AUDIO OUTPUT audio, and digital 5.1 surround sound. These inputs are HDCP (High-Bandwidth Digital Copy Protection) Use AVR AUDIO OUTPUT to send analog audio of the...
  • Page 19 2. TV Connections Inputs and Outputs, continued 10. IR–NetCommand Output/External Controller Input 153 and 249 Series. Use an IR emitter cable with this jack to send control signals to external IR remote-con- trolled devices. Alternatively, your professional installer can use this jack as the input for an external controller. Connect to this jack and when the New Device Found screen appears, select operation of the jack as either an input (for an external controller) or as an output (for NetCommand IR control). See page 56. 11. USB The TV can read JPEG photo files and mp3 music files from a USB device. 12. RS-232C 249 Series. Use the RS-232C interface to receive control signals from compatible home-theater control devices. See www.mitsubishi-tv.com for a list of control signals for this interface. 13. LAN 249 Series. Use the LAN Ethernet jack for streaming internet video to the TV. See page 37 for setup. Visit www.VUDU.com for details about VUDU ™...

  • Page 20: Y Pb Pr Component Video Device

    2. TV Connections HDMI Device Y Pb Pr Component Video Device HDTV Cable Box, Satellite Receiver, DVD/ HDTV Cable Box, Satellite Receiver, DVD/ Blu-ray Player Blu-ray Player Suitable for use with Sound Projector surround Suitable for use with Sound Projector surround sound sound.

  • Page 21: Dvi Video Device

    2. TV Connections DVI Video Device Antenna or Cable TV Service Cable Box, Satellite Receiver, DVD Player Connect the incoming cable to the TV’s ANT input. Connect DVI devices (digital only) to the TV’s HDMI input jacks. antenna Required: Cable TV 1. DVI-to-HDMI cable or DVI/HDMI adapter and HDMI service cable 2. Left/right analog audio cables. antenna Some devices require connection to an analog input first in order to view on-screen menus and to select DVI as the ouput. Please review your equipment instruc- tions for DVI connectivity and compatibility. 300-ohm-to75- ohm combiner Note: The HDMI connection supports copy protection (side view) (HDCP).

  • Page 22: Vcr Or Dvd Recorder To An Antenna Or Wall Outlet Cable

    2. TV Connections VCR or DVD Recorder to a Cable Box VCR or DVD Recorder to an Antenna or Wall Outlet Cable Required: Video cables 1a. Component video cables (red/blue/green) Required: 1. Video cables 1b. Composite video cable (usually yellow) 1a. Component video cables (red/blue/green) 2. Left/right analog audio cables. 1b. Composite video cable (usually yellow) 3. Two-way RF splitter 2. Left/right analog audio cables. 4. Three coaxial cables 3. Two-way RF splitter 5. Video and audio cables required to connect the TV...

  • Page 23: A/V Receiver

    2. TV Connections A/V Receiver A/V Receiver with HDMI Output Most setups require either a digital audio cable or Required: One HDMI-to-HDMI cable analog stereo audio cables. To send audio from TV This option allows you to view content from devices channels received on the ANT input or devices con- connected to an A/V receiver over a single HDMI cable nected directly to the TV, you must use one of the going to the TV. The HDMI cable can transmit both connections shown below. Usually, only one of these audio and video to the TV. connections is required. You can use an HDMI connection as described here The TV makes all audio available in digital and analog in addition to an audio connection from the TV’s audio formats: output. The optional audio connection allows you to • Analog audio coming into the TV is available as hear, through the A/V receiver, devices connected to output in digital stereo format on the DIGITAL the TV only, e.g., an antenna on the ANT input. AUDIO OUTPUT jack. You may be able to use the TV’s remote control (in • Digital incoming audio is available as analog output TV mode) to operate connected CEC-enabled HDMI on the AVR AUDIO OUTPUT L and R jacks. devices. Experiment with your equipment to determine which functions are available to the TV’s remote control.

  • Page 24: Subwoofer

    2. TV Connections Subwoofer Audio-Only Device Keep an unused RCA-style con- Required: Audio cable with RCA-style plug nector in the Y/VIDEO jack while using an audio-only device such as an MP3 or CD player. AVR AUDIO OUTPUT Unused RCA-style plug (plug in first) Audio-only VIDEO device Subwoofer Downloaded From TV-Manual.com Manuals...

  • Page 25: Using Tv Features

    Using TV Features Selecting an Input Sleep Timer The Activity menu lets you switch TV inputs. If you The Sleep Timer turns the TV off after the length of time named devices during Auto Input Sensing, the inputs you set. are organized into groups based on possible ways to To set the TV to turn on at a certain time of day, see the Initial > Timer menu on page 47. use each device. ACTIVITY key. Setting the Sleep Timer Press the MORE on the remote control. The TV’s MORE Use to move through groups of TV inputs. Press menu will display. to select an input. CANCEL (SLEEP) repeatedly to increase the Press Press ENTER to switch to the input. time in 30-minute increments. The maximum is 120 minutes. Press BACK or wait five seconds without pressing any keys for the message to disappear. Viewing or Changing the Sleep Timer Press MORE.

  • Page 26: Channelview Channel Listings

    3. Using TV Features ChannelView Channel Listings Redirecting Audio Output Selecting an Audio Output Device Press MORE and then 9 (AUDIO). Press to show the Speakers option. The Speak- ers option will display only if there is a recognized audio device on an audio or HDMI output. to select either AV Receiver, Head- Press phones, or TV. Adjusting an External Subwoofer Play sample video or music containing low-fre- quency bass sound. Press MORE and then 9 (AUDIO). Use to ChannelView. Programs for the tuned channel are display the Subwoofer option.

  • Page 27: Status Display

    3. Using TV Features Status Display Press the INFO key to see 402-101 KABC Monday Night Football the on-screen status TV-PG DLSV St. Louis vs. Tampa Bay, played in Tampa for display. The most common displays are shown here. Sleep 30 min Sample information Tuesday 9:10 PM Surround English from the on-screen HD 1080i Standard status display About Channel Numbers...

  • Page 28: Tv Signals And Display Formats

    3. Using TV Features TV Signals and Display Formats Original Signal This is a 16:9 widescreen TV suitable for images available Display Anamorphic DVD Non-anamorphic or SD 4:3 from HDTV and many DVDs. You can view older-style, squar- Standard Distorted. Recommended ish images (4:3 aspect ratio) using one of the display formats Not recom- described on this page. Press the MORE key and then the mended. 0 key (FORMAT) to cycle through available display formats. Expand Recom- Distorted; not The TV remembers the format you last used for each input. mended for recommended. letterbox. See See Note 1. DVD Image Definitions Note 1. Zoom Distorted.

  • Page 29: Using The Tv With A Personal Computer

    3. Using TV Features Using the TV with a Personal Computer Connecting a Computer to the TV Use one of the connection methods listed below based on your computer’s video output. Computer Audio AVR AUDIO OUTPUT Video Connection Video Output Connection Digital DVI DVI-to-HDMI cable Stereo audio or an HDMI cable cables with an HDMI-to- DVI adapter Computer with Note: If the computer’s audio output HDMI audio and is a single mini jack, a mini audio-to- video output...
  • Page 30 3. Using TV Features Using the TV with a Personal Computer Computer Video Adjustments Power on the computer. Set the computer’s screen saver to display a pattern after several minutes of inactivity. This acts as a PC from the Activity menu. To do this, Select reminder that the TV is powered on press ACTIVITY to open the Activity menu, move the highlight to the PC icon, and press ENTER. Working from the computer, change the resolution of the computer image. View the computer image on the TV and maximize the computer resolution while maintaining a suitable aspect ratio for the image. Computer Display Formats Perform TV video adjustments. Press MORE then press 8 (VIDEO) repeatedly Press MORE then press 0 (FORMAT) repeatedly to cycle through the to access video-adjustment options. TV displays available for your computer’s video signal. Press MORE then press 0 (FORMAT) repeatedly to find the picture format Computer Signal As Displayed on TV Screen (aspect ratio) best suited to the image.

  • Page 31: Camera Images And Music Files

    3. Using TV Features Camera Images and Music Files • The TV can read photo or music files from a USB From the USB Menu you can: drive. Photos must be in JPEG format and music Activate any of the Highlight an icon and press files must be in mp3 format. To play music files menu options ENTER. while displaying a photo slide show, see “USB Media Setup Menu” on the next page. Display the Activity Press ACTIVITY. Press again to menu. clear. • The TV can display files of still or moving images from a camera through the Y/VIDEO port. Display the main Press MENU. Press again to menu. clear. Display status for the Press INFO. Press BACK to file source. clear. The USB Media Player Menu To resume use of the USB port after switching the TV to a different input, press ACTIVITY, choose View Photos, and select the USB port.
  • Page 32 3. Using TV Features Camera Images and Music Files, continued Thumbnail and Playlist Menus USB Media Setup Menu Use the USB Media Setup menu set up play of a slide show or playlist. • If JPEG image files and mp3 files are on the USB device, choose: JPEG Thumbnail Menu Slideshow + Music Slideshow Use these keys while viewing JPEG thumbnail images Music only or the music tracks in a playlist. Slideshow. • Select either Auto or Manual advance for the slide show. During manual operation, press Moves the highlight from item to item. ENTER to advance to the next slide.
  • Page 33 3. Using TV Features When the New Device Found screen displays, Photos and Moving Video assign the name Camcorder. as Composite Video Press BACK to close the New Device Found screen. Connect the camera to the TV using a composite video Press ACTIVITY, select Watch Movie > Cam, and cable if: press ENTER. • You are unable to see images using the USB port. • You wish to view moving video from the camera. Control the slide show or movie through the camera as the TV’s USB Media Player menu will be unavailable. The display resolution will be standard-definition (480i). Refer to the owner’s manual supplied with the If viewing photos, advance through the images camera for instructions needed for this setup. manually or set the camera to advance automati- NTSC and Set the camera’s output signal type to...

  • Page 34: Sound Projector

    3. Using TV Features Sound Projector Sound Projector Technology Connecting the TV To get the full benefit of the TV’s Sound Projector, the The TV’s bank of speakers can be adjusted to reflect TV must be connected to a source input providing sound off the room walls to create a surround sound digital surround sound. The TV can receive digital sur- effect. round sound on: Setup can be performed manually and/or automatically, • Any HDMI jack depending on your TV model: • The DIGITAL AUDIO INPUT jack (when used in conjunction with INPUT 2) Manual setup only 151 series • The ANT input (from some digital broadcasts) Manual or Auto setup 153 and 249 series See page 20 for suggestions on connecting your • To create the surround sound effect, the room walls devices.
  • Page 35 3. Using TV Features Sound Projector, continued Close the curtains. How to Make Adjustments in the Custom Menu Set levels by performing the procedure in • Press to select an audio beam; colors of the “Adjusting Levels.” adjusters correspond to audio beams in the on- screen diagram. Initial > SoundPro menu go to the From the • Press to redirect the audio beam or change Custom menu. the sound level. Position yourself in your usual viewing location. Remain in this position, looking at the TV, while making the following adjustments. Adju sting Beam Angles a. Adjust Center Beam Angle until sound is about equal in both ears.

  • Page 36: Auto Setup

    3. Using TV Features Sound Projector, continued Auto Setup Microphone Placement 153 and 249 Series • Make sure there are no large obstacles between Auto setup uses a calibration microphone to optimize the TV and microphone. Sound Projector performance for most room condi- • Place the microphone tions. If the room is very large or has many obstacles affecting the sound beams, you may wish to try manual On a flat, level surface at least six feet away setup, which is done without the microphone. from the front of the TV. On a tripod or on the backrest of your Initial Preparation seating. Position and connect the TV as described under At the same height yours ears would be “Before You Begin,” page 34. when watching TV. The height must be Power on the TV and external subwoofer, if any. within 3 vertical feet of the height of the TV’s speaker array. Plug the microphone cable into the TV’s INPUT 3 left audio jack.

  • Page 37: Streaming Internet Movies With Vudu

    3. Using TV Features Streaming Internet Movies with VUDU 249 Series. This TV’s built-in VUDU ™ capabilities Visit www.VUDU.com to learn more about available allow you to access your own personal home video titles, prices, recommended bandwidth, and services store right on your TV. VUDU’s service offers you: offered. At the time of this writing, VUDU requires an internet bandwidth of 4.0 Mbps or higher for instant • The largest on-demand HD movie selection any- HD video and 2.0 Mbps or higher for instant SD video. where, featuring full 1080p and 5.1 surround sound. These specifications are subject to change. For a list of • All of Hollywood’s latest hits and classics. Movies recommended routers and switches, see the Support > are available to rent or buy the same day the movie FAQ section at VUDU.com. comes out on DVD. Required for VUDU Service • VUDU allows you to enjoy movies with no store visits, no mailing, no late fees and no subscriptions. • Broadband internet service •...

  • Page 38: Getting Started

    3. Using TV Features Streaming Internet Movies with VUDU, continued Getting Started Troubleshooting To start using VUDU, connect your TV to the inter- If the VUDU Screen Is Not Responding net as described in the previous section. Press MORE and then 2 (RESET) to reset VUDU. This Power on the TV. resets VUDU only and does not affect TV settings. Press ACTIVITY to display the Activity menu. If You Are Unable to Connect to VUDU • Check all power and data connections. • If you can reach the internet with a computer or other device on the same internet service used by the TV, consult the router or modem owner’s guide for reset instructions.

  • Page 39: Introduction To Home-Theater Control

    3. Using TV Features Introduction to Home-Theater Control This summary offers some examples of control methods available using the TV’s remote control. You may wish to use one or more of these methods in your home theater after completing Auto Input Sensing. Source device connected directly to the TV Remote Control Programming (Any Connection Type) Any Connection Type Program the remote control to operate the A/V device. To control the device, set the remote control to the correct mode for the device type. See Appendix A, “Pro- gramming the Remote Control.” In the case of an A/V receiver, use the Audio Lock Device feature, page 69. HDMI Cable CEC-Enabled HDMI Device (HDMI Connection Only) See Appendix B, “HDMI Control of CEC Devices,” page 75.

  • Page 40: Tv Menus

    TV Menus Main Menu Press MENU on the remote control to open the main menu and then select from one of these categories. Adjust Customize picture and sound settings. Captions Turn closed captions on and off; customize caption displays. Perform basic TV setup. Set language, scan (memorize) channels and edit Initial channel options, set the TV clock, set Energy Mode, set auto-on TV Timer, set up Sound Projector. Assign names to TV inputs, enable HDMI Control, assign activities to inputs. Input 153 and 249 Series. Perform NetCommand IR “learning.” Lock Restrict TV use. Disable the control-panel buttons. Set a pass code. Menu Navigation Displays or clears the main menu. • Moves navigation into the options area. • Selects an item. • Moves up one menu level. • Clears the current menu. Moves the highlight within menus. Makes adjustments in some menus. Look for the key guide at the bottom of each menu.

  • Page 41: Adjust

    4. TV Menus Adjust While watching TV: Assign names to TV inputs before making • Press the MORE key and then video adjustments (New Device Found or 8 (VIDEO) in the on-screen menu. Press to Inputs > Name menu). Adjustments will be select the video option you want to change. Press reset to the defaults if you name or rename to change settings. Picture inputs afterwards. To make picture adjust- ments: Note: Changing Picture settings from the default val- ues used in Home mode may increase energy From the Adjust > Picture menu: • ® use above ENERGY STAR guidelines. Press to highlight an option. Press to adjust.
  • Page 42 4. TV Menus Adjust, continued • While watching TV: Press the MORE key and then To make audio adjustments: 9 (AUDIO) in the on-screen menu. Press to • From the Adjust > Audio menu: select the audio option you want to change. Press Press to highlight an option Audio to change settings. Press to adjust. Speakers The Speakers option displays only if an A/V receiver or headphone connection has been detected. Detection occurs on the right AVR AUDIO OUTPUT jack or the DIGITAL AUDIO OUT jack. An A/V receiver can also be detected on an HDMI jack. Turns on the internal TV speakers. AV Receiver Turns off the TV speakers so you hear sound only from a connected A/V receiver. Note: When you disconnect an analog A/V receiver, be sure to change the Speakers setting to TV to hear sound from the TV speakers.
  • Page 43 4. TV Menus Adjust, continued Audio, continued Listen To Stereo The TV plays stereo broadcasts in stereo and mono broadcasts in mono. The word Stereo is displayed when you tune to a channel broadcasting in stereo. Applies only to Mono Reduces background noise. Use when receiving a weak stereo audio signal. All analog chan- audio is played as mono with this setting. nels from the ANT input Selects an additional monaural sound track not audible during normal TV viewing. (Second The SAP signal might be related to the program (such as a sound track in a foreign Audio language), or it might be unrelated (such as a weather report). If an SAP signal is Program) broadcast, the letters SAP are displayed when you tune to the channel. Language Selects the current language for a digital program from the ANT input. Each digital program may include from zero to seven language choices. Applies only to digital channels from the ANT input. Level Sound On, Off Reduces differences in sound volume between programming segments, such as the difference between regular broadcast programs and commercial segments. Downloaded From TV-Manual.com Manuals...
  • Page 44 4. TV Menus Adjust, continued Reset • Resets audio and picture adjustments for the current input. Highlight the Reset icon and press ENTER twice. • Reset has no effect on global settings (Balance, Listen To, Language, Film Mode, and Advanced Picture). Global Global settings apply to all inputs. Video Mute Displays a solid colored background when there is no video signal (non-antenna from the current input. The colored screen reminds you that the inputs only) TV is powered on when there is no picture. The TV will power off after five minutes without receiving a video signal. The screen appears black when there is no video signal from the current input. Screensaver On, Off Select On to display a random pattern while playing an audio-only input. To use this feature, the input must be either CD or MP3 Player) • Named as an audio source (e.g., • Be the ANT input.
  • Page 45 4. TV Menus Adjust, continued Picture+ PerfectColor Sliders Adjusts the saturation (intensity) of six colors for the current image source. PerfectTint Sliders Adjusts six hues for the current image source PerfectColor (153 or 249 series) Using PerfectColor: Highlight the PerfectColor™ icon and press ENTER to display the PerfectColor menu. Settings are retained independently for each TV input. • Press to move from one color bar to the next. • Press to change settings. • Press CANCEL to restore default settings. • Press MENU to return to the main menu. Using PerfecTint (153 or 249 Series): To switch between PerfectColor™ and PerfecTint™ adjustments, highlight Adjust Mode and press .

  • Page 46: Captions

    4. TV Menus Captions IMPORTANT Captions on Analog Channels • Analog text-service options display a large The TV can decode captions from the ANT INPUT and black or gray box on the screen when no the composite VIDEO jacks. Broadcasters can send signal is being broadcast. either standard closed captions or text service. Standard • The content of captions is determined by the closed captions follow the dialogue of the program and broadcaster. If captions show strange char- display in a small section of the screen. Text-service closed acters, misspellings, or odd grammar, it is not captions often contain information such as weather or...

  • Page 47: Initial

    4. TV Menus Initial Language English Displays on-screen menus in either English or Spanish. Spanish Note: To listen to audio in other languages (when available), see Adjust > Audio > Listen To > SAP (analog signal) or Language (digital signal) on page 43. Clock Set the TV clock to: • Use the TV Timer to power on the TV automatically at a preset time • Receive correct updates to ChannelView listings Note: When the Daylight Savings Time change occurs, you must open this menu and set the TV’s clock ahead or back. Time With the hour highlighted, press to change the hour and the AM/PM indicator. Press and hold to change the hour display quickly. Press ENTER to set the hour. With the minutes highlighted, press to change the minutes. Press and hold to change the minutes display quickly. Date With the month highlighted, press to select. Press ENTER to set. With the day highlighted, press to select. Press ENTER to set. With the year highlighted, press to select the current year. Time Zone Eastern, Central, Mountain, Pacific, etc. The correct time zone is required for accurate ChannelView updates.
  • Page 48 4. TV Menus Initial, continued Channel Ant Air, You must perform a channel scan to receive digital channels. Scan searches for broad- Ant Cable cast channels and adds them to TV memory. To start channel scan: Highlight one of the input selections based on your connection to the ANT input: Scan • when connected to an indoor or outdoor antenna. • Cable when connected to direct cable (no cable box) (Channel Press to highlight SCAN. Manage- Press ENTER to start channel memorization. ment) Edit After channel scan, Edit lets you add and delete memorized channels. • Press PAGE DN/UP to jump to the next or previous page of channel numbers. • Press to move through all channel numbers, one at a time.
  • Page 49 4. TV Menus Initial, continued Sound Projector For full setup instructions, see page 34. Basic Screen Mode Auto START Perform Auto setup using the supplied calibration (153, 249 series) microphone. See page 36. SoundPro Manual Custom To perform manual setup, see page 34. Note: Do not perform manual adjustments after running Auto setup. Doing so will erase all settings created during Auto setup. TV Location Center, Left, L Highlight the item that best describes the TV’s loca- Corner, Right, R tion relative to the wall. Required for Manual setup. Corner TV Wall Length [Enter digits] Press to change the number or enter digits.

  • Page 50: Inputs

    4. TV Menus Inputs Name Cablebox, Cam(corder), CD, DVD • Lets you assign or change names of inputs appearing in (DVD, DVD2, Blu-ray), DVR, Game the Activity menu. (Game, PS, Xbox, Wii), MP3 Player, Press to move between inputs. PC, Satellite, VCR, AVR Press to select a name. You cannot change the name of the current input; you Delete (deactivated HDMI only) must first switch to another input. If you have only one On/Off (ANT only) input, such as a cable box, make sure the Ant input is On and switch to Antenna in the Activity menu before renaming the single input.
  • Page 51 4. TV Menus Inputs, continued How is the Activity Menu Generated? The TV automatically generates the Activity menu. The TV groups recognized device types based on how they can be used. The device names used for the group- ings are those you assigned in the New Device Found menu or the Inputs > Name menu, or in some cases, the name the device itself communicated to the TV. The table below summarizes the device groupings that can appear in the Activity menu. Activity assignments made automatically by the TV. X Activity assignments you can make using the Inputs > Activity menu. Watch Watch Play View Listen Movie Game Photos Music  Antenna ...

  • Page 52: Lock

    4. TV Menus Lock TV Locks Parental Menu The TV comes from the factory with the rating locks Parental Lock by Program Ratings turned off and with pre-set U.S. ratings TV-PG and Restricts access using U.S.-based ratings movie rating PG. Turn on blocking for U.S. ratings sent by broadcasters. to activate these rating restrictions. Use the Lock > Parental menu to change the level of blocking with U.S. Time Lock by Time ratings. Restricts TV use by time of day. Any time you change the channel or device, it may take up to five seconds for the rating restrictions to take effect. Panel Lock Control Panel Disables the buttons on the TV’s control Note: 249 Series. To set parental controls for panel. Use this option if small children VUDU ™ service, use the VUDU Info & Set- in the home try to press control-panel tings menu. The TV’s Parental menu does not buttons.
  • Page 53 4. TV Menus Lock, continued Parental Lock Off, On Disables or enables blocking based on V-Chip signals and the U.S. rating system. Start Sets the time of day for enforcement of rating restrictions set in the Parental menu. Time Highlight the hour digits for Start Time. Stop Press repeatedly to change the hour and associated AM/PM indicator. You can also just press Time and hold to move quickly through the numbers. Press ENTER to highlight the minutes. With the minutes digits highlighted, press repeatedly to change the minutes. You can also just press and hold to move quickly through the numbers. Highlight the Stop Time digits and set the time as described above. Note: To make rating restrictions active 24 hours a day, make Start Time and Stop Time the same. TV-Y Youth. For children under 7. Highlight the rating level Rating you wish to change and TV-Y7 Youth 7 and older. press ENTER to block it TV-G General Audience. For the entire family.
  • Page 54 4. TV Menus Lock, continued Blocks all use of the TV during the time period you specify. You must enter a pass code to use the TV when the time lock is in effect. Time Lock by Time Enables/disables Lock by Time. Lock Time, To set the lock and unlock times: Unlock Time Highlight the hour digits for the Lock Time. Press repeatedly to change the hour and associated AM/PM indicator. To move quickly through the numbers, just press and hold. ENTER to set the hour and highlight the minutes. Press With the minutes highlighted, press repeatedly to change the minutes. To move quickly through the numbers, just press and hold. Highlight the Unlock Time digits and set the time as described above. Note: To make Lock by Time active 24 hours a day, make Start Time and Stop Time the same. Off, On On locks and Off unlocks the buttons on the TV’s control panel. Use this option if small children try to press TV buttons.

  • Page 55: Netcommand Ir Control

    NetCommand IR Control About NetCommand IR Control • NetCommand IR home-theater control is avail- • NetCommand operates by sending remote control able on 153 and 249 series TVs. signals from the TV to your other devices via the IR (infrared) emitters, telling the devices to play, IR emitter cables are available for purchase • record, change inputs, adjust volume, change chan- from Mitsubishi. Visit www.mitsuparts.com or call nels, or perform other functions. All this is accom- 800-553-7278 and request one of the following: plished with the TV’s remote control left in TV mode. 242D483020 (two-ended cable) •...

  • Page 56: Ir Emitter Placement

    IR sensor IR sensor On top of a single tall device 5. NetCommand IR Control IR Emitter Placement In front, shared by two IR sensor average-sized devices The NetCommand system uses emitters connected IR sensor to the IR–NetCommand Output jack to control other devices such as DVD players, cable boxes, satellite receivers, and VCRs. ront of a gle average- IR emitter cables are available for purchase from ed device Mitsubishi. Call (800) 553-7278 and request either part number 242D483020 (two-ended cable) or part number...

  • Page 57: Initial Netcommand Setup

    5. NetCommand IR Control Initial NetCommand Setup To perform this procedure, you need: • The remote controls for both the TV and the device you want to control. • An IR emitter cable available from Mitsubishi Note: To set up an A/V receiver, see “Setting Up A/V Receiver Control,” page 62. Connect and position the IR emitters for the devices you wish to control. See “IR Emitter Place- ment” on the opposite page. Set the TV’s remote control to TV mode and power From the New Device Found screen, highlight on the TV. NetCommand and press ENTER to open the Learn Open the NetCommand Learn screen as follows: screen. New Device Found screen •...

  • Page 58: Operating Netcommand-Controlled Devices

    5. NetCommand IR Control Operating NetCommand-Controlled Devices Controlling Most Device Types Note: if you have set up automatic input switching for the A/V receiver, the A/V receiver will automati- As an example of NetCommand control, if you are cally switch to the correct input for the device. watching your cable box and you wish to tune to the TV’s remote next channel higher, press CHANNEL UP. NetCommand To operate the device using the control, press the side button to put the remote then sends the “learned” channel-up control signal to control into TV mode. the cable box. Point the remote control at the TV (not the device) Perform NetCommand setup for the device as and press the key for the desired function. described in this chapter. Press the MORE key to access additional key func- When you wish to use the device, press ACTIVITY. tions you may have “learned” for the device. Press to highlight the icon for the device. Press ENTER to switch the TV to the device. Special Operation Methods Key Name in Special Operation Description and Setup How to Use...
  • Page 59 5. NetCommand IR Control Key Name in Special Operation Description and Setup How to Use Learning Screen Enter ENTER-Key Functions (cable boxes, satellite receivers, etc.) Some devices have two keys that have “enter” functions. One key is for menus and is often labelled SELECT or OK. A second key is for use with number keys for direct channel selection. NetCommand uses the same ENTER key for both operations. When ENTER has a menu or guide function or Press MENU or GUIDE to display the device’s when the original remote control uses the same menu or guide. key for menus and channel selection: Press ENTER within the menu and Learn the ENTER, SELECT, or OK key in the NetCommand will send the Enter signal for NetCommand Enter learning position. menus.

  • Page 60: Netcommand Specialized Device Keys

    5. NetCommand IR Control Operating NetCommand-Controlled Devices, continued NetCommand Specialized Device Keys Refer to this chart when “learning” device keys. “Learn” some, all, or none of the keys used for each device type. See page 58 for more on keys marked in the “Special Operation Method” column. See Special Key Name in Name on TV Function Operation Learning Screen Remote Control Method Table Power On Power On or Power ON/OFF (toggle)  Guide On-Screen Program Guide or DVD Disc Menus  Channel +/Skip + Next Channel Higher/ Skip Forward (Disc) Channel –/Skip -...

  • Page 61: Netcommand Ir Control Of An A/V Receiver

    NetCommand IR Control of an A/V Receiver Controlling an A/V Receiver NetCommand IR home-theater control is available on 153 and 249 series TVs. after NetCommand Setup Several types of A/V receiver control can be set up using the Inputs > AVR menu. Switching Audio to and from the A/V Power and volume. • See the next page.

  • Page 62: Setting Up A/V Receiver Control

    6. NetCommand Control of an A/V Receiver Setting Up A/V Receiver Control Power and Volume Perform this setup to control the A/V receiver power and volume with the TV’s remote control. To perform this setup you need: • The remote controls for both the TV and the A/V receiver. • An IR emitter cable available from Mitsubishi. Before You Begin Inputs > AVR screen. Perform Connect your A/V receiver to the TV and any addi- NetCommand IR “learning” for A/V tional devices. See “Setting Up TV Inputs,” page 12 receiver power and volume keys. and “TV Connections,” page 16.

  • Page 63: Automatic Switching (Audio Or Audio/Video)

    6. NetCommand Control of an A/V Receiver Setting Up A/V Receiver Control, continued Automatic Switching (Audio or Audio/Video) Audio Available from TV only. • Send audio from the ANT input to the A/V receiver from the TV’s The following setups enable the A/V receiver to switch analog or digital audio output. automatically to the correct input when you select a Use this setup to make the A/V receiver switch to its device in the TV’s Activity menu. designated TV audio input when viewing programming Three different connection arrangements are described from the ANT input. here. Review the descriptions to find the setup needed • HDMI Digital Stereo Audio. Digital stereo audio for your equipment.
  • Page 64 6. NetCommand Control of an A/V Receiver Setting Up A/V Receiver Control, continued Case 2: Automatic A/V Receiver Switching to a Surround Sound Device Note: Use this setup to send digital surround sound from a source device directly to your external sound system.
  • Page 65 6. NetCommand Control of an A/V Receiver Setting Up A/V Receiver Control, continued Case 3: Automatic Audio and Before You Begin Video Switching via HDMI To complete these steps you will need: If your A/V receiver has an HDMI output, it may be • The remote controls for both the TV and the convenient to route video signals from multiple devices A/V receiver. over a single cable to the TV. Use this procedure to set digital surround sound • An IR emitter cable available from Mitsubishi. up NetCommand control of the A/V receiver’s audio • An HDMI-to-HDMI cable to connect the A/V and video switching over a single HDMI cable. The receiver to the TV and cables necessary to connected source devices can be analog, digital, or a...
  • Page 66 6. NetCommand Control of an A/V Receiver Setting Up A/V Receiver Control, continued NetCommand Control of a Device Con- If using an optional audio cable between the TV and nected to an HDMI A/V Receiver A/V receiver, connect it. Connect the IR emitter cable to the TV and position Use this setup to have NetCommand control a device the IR emitter where it can send signals to the A/V sending audio and video through the A/V receiver to the receiver. See “IR Emitter Placement,” page 56. TV via HDMI. You must have already completed the procedure under Setup to Control Automatic Audio “Setup to Control Automatic Audio and Video Switching and Video Switching via HDMI via HDMI” on this page. That procedure places an icon When this setup is complete, the “learned” A/V receiver...

  • Page 67: Appendices

    Appendices Appendix A: Programming the Remote Control ... Appendix B: HDMI Control of CEC Devices ....Appendix C: TV Care ......Appendix D: Bypassing the Parental Lock .

  • Page 68: Appendix A: Programming The Remote Control

    Appendices Appendix A: Programming the Remote Control This appendix explains programming the TV’s remote VCRs and DVRs control to operate other A/V devices. This is distinct • CHANNEL UP/DN (RECORD) • from NetCommand control. • POWER (REVERSE) • • SLEEP (from MORE menu) (STOP) • Functions Available for Other A/V Devices (FAST FORWARD) • • GUIDE (DVR only) The TV’s remote control can be programmed to operate (PAUSE) • • MENU (DVR only) other types and brands of A/V products. The functions (PLAY)

  • Page 69: Programming The Remote Control

    Appendices Appendix A: Programming the Remote Control, continued Programming the Remote Control Mode Device Type Code Press the side button on the remote control to CABLE/SAT change to the correct mode for the product you want to control. Refer to the table below. Only one of each device type can be controlled in each mode. AUDIO Mode Affected Device IMPORTANT CABLE/SAT Cable Box DTV Receiver You may need to reprogram the remote control after Satellite Receiver changing the batteries.

  • Page 70: Programming Codes

    Appendices Appendix A: Programming the Remote Control, continued Programming Codes Audio Amplifiers Cable Boxes CD Players Adcom 41100, 40577 Paragon 10525, 10008, 10000 Parasound 40420 Altec Lansing 41742 Penney 10000 Penney 40029 Bel Canto 41583 Philips 11305 Philips 40626 Pioneer 11877, 10877, 10533, Pioneer 41087 Design Proceed 40420 Bose 40674...
  • Page 71 Appendices Appendix A: Programming the Remote Control, continued Programming Codes, continued A/V Receivers A/V Receivers Satellite Receivers Integra 41805, 41320, 41298, Technics 41518, 41308 10099 Thorens 41189 Sony 11640, 11639, 10639 40842 Toshiba 41788, 41123, 40842 Thomson 10566, 10392 41306, 40110 Venturer 41390 Tivo 11442, 11142 42331, 41643, 41495, Wards 40189, 40014 Toshiba 11749, 10790, 10749 41374, 41282, 41058 Yamaha...
  • Page 72 Appendices Appendix A: Programming the Remote Control, continued Programming Codes, continued VCRs VCRs VCRs Daytron 20278, 20037 21944 Nikkodo 20278, 20037 Dell 21972 Hughes 20739, 20042 Niveus 21972 Denon 20081, 20042 Network Media DirecTV 20739 Northgate 21972 Systems Dish 21944 Olympus 20162, 20035 Humax 21988, 21797, 20739 Network Onkyo 20222...
  • Page 73 Appendices Appendix A: Programming the Remote Control, continued Programming Codes, continued VCRs VCRs DVD and Blu-ray Players Sansui 20479, 20209, 20067, Touch 21972 B & K 30662, 30655 Trix 20037 31224 20000 Ultra 20278, 20045 Bel Canto 31571 Sanyo 20479, 20159, 20047, Vector 20045 Design 20046, 20000 Vector 20184, 20038 Blaupunkt 30717 Scott 20184, 20121, 20045,...
  • Page 74 Appendices Appendix A: Programming the Remote Control, continued Programming Codes, continued DVD and Blu-ray Players DVD and Blu-ray Players DVD and Blu-ray Players 31268, 30675 Myryad 30894 Sharp 32250, 31256, 30752, Go Video 31730, 31304, 31158, 30741 30675, 30630 Naiko 30770 31144, 31099, 31075, Sharper 31117 30869, 30785 31044, 30869, 30833, Image Nesa 30717 Sherwood...

  • Page 75: Appendix B: Hdmi Control Of Cec Devices

    Appendices Appendix B: HDMI Control of CEC Devices Many new HDMI devices have a feature called Con- If prompted for a name, sumer Electronics Control (CEC) or HDMI Control. highlight the name you want HDMI Control allows one device, such as the TV, to to assign the device. control other devices, such as an A/V receiver or disc player. Use of CEC is optional. Each manufacturer chooses which CEC functions to Highlight support so it is difficult to predict which devices and features are compatible with Mitsubishi’s HDMI Control. You may find that CEC functions for a specific device are limited. To use HDMI Control, you must enable it in both the TV and the device. Highlight EXIT and press ENTER to close the New In the TV. •...
  • Page 76 Appendices HDMI Control of an HDMI A/V Receiver and Connected Devices Note: Connect the A/V receiver to the TV with an HDMI cable before making other connections. AVR AUDIO OUTPUT Enable HDMI Control for the A/V receiver as described in “Enabling HDMI Control of CEC Devices” on the previous page. Power on the HDMI device you wish to connect to Optional the A/V receiver (such as a disc player, cable box, digital audio HDMI cable cable or satellite receiver). Allow the device to complete the power-on sequence (boot up). Stop playback if AUDIO the device starts playing. Connect the device to the A/V receiver with an A/V receiver HDMI cable. with HDMI output Select the device’s HDMI input on the A/V receiv- er’s front panel controls or remote control.

  • Page 77: Using Hdmi Control

    Appendices Resolving CEC Conflicts Using HDMI Control Because each manufacturer selects which CEC func- As an example of using HDMI Control, press PLAY on tions to support, some devices can conflict with other the device itself to: devices. If control conflicts arise, you can: • Power on the TV • Turn off TV control of an individual CEC-enabled • Switch to the device (no need to display the device (see below). Activity menu) • Begin play of the device • Turn off CEC in the setup menu of one of the devices. Direct Keys Turning Off the TV’s HDMI Control of a CEC Device Test your equipment with the TV’s remote control to find additional supported commands. See the table MENU on the TV remote control. Press below for commands that may be available, depending Highlight...

  • Page 78: Appendix C: Tv Care

    Appendices Appendix C: TV Care Cleaning Recommendations General Cleaning Precautions Normally, light dusting with a dry, non-scratching duster • DO NOT allow liquid to enter the TV through the will keep your TV clean. If cleaning beyond this is ventilation slots or any crevice. needed, please use the following guidelines: • DO NOT use any strong or abrasive cleaners, as these can scratch the surfaces. First, turn off the TV and unplug the power cord from the power outlet. • DO NOT use any cleaners containing ammonia, bleach, alcohol, benzene, or thinners, as these can Top and Sides of the TV dull the surfaces. • Occasionally clean dust build-up from the air-intake • DO NOT spray liquids or cleaners directly on the grilles on the back and sides of the TV. Clean using TV’s surfaces. a vacuum cleaner with a brush attachment. • DO NOT scrub or rub the TV harshly. Wipe it gently. •...

  • Page 79: Appendix D: Bypassing The Parental Lock

    Appendices Appendix D: Bypassing Mitsubishi Unisen LCD HDTV the Parental Lock 151 Series 153 Series 249 Series Bypassing the Parental Lock After you set the lock, you must use your pass code to: • View a locked program • View the locked TV • Cancel the lock • Enter the Lock menus If you forget your pass code, you can view the locked TV without entering your pass code. When prompted for the pass code, press the number 9 and (LAST) keys on the TV remote control at the same time. This process temporarily unlocks the TV. When entering the Lock menu, you are prompted to enter a pass code. • To change the pass code, press 9 and (LAST) at the same time. Either enter a new pass code to...
  • Page 80 Appendices This page intentionally left blank Downloaded From TV-Manual.com Manuals...

  • Page 81: Appendix E: Troubleshooting

    Appendices Appendix E: Troubleshooting TV Reset Comparison Guide (a channel from the ANT input, a cable box, or satellite receiver), first check other channels from the same input You can resolve many common TV problems using the reset before changing settings. If most other channels from the functions described in the following table. See also the same input seem correct, there is likely a problem with the troubleshooting suggestions later in this appendix. broadcast rather than with the TV. Use care in this case, as IMPORTANT changes you make to fix problems on individual channels Before you change sound or picture settings: If picture also affect all other channels on the same input. or sound settings seem wrong for a broadcast channel Reset Name When to Use How to Use Resulting Action Format When the picture Press the MORE key and then repeat- The last-used format for a signal shape seems...
  • Page 82 Appendices Appendix E: Troubleshooting, continued Reset Name When to Use How to Use Resulting Action Channel To erase and While viewing the TV, press All previously memorized chan- Memorization re-memorize channels MENU to display the main menu. nels for the antenna input are on the ANT input. Navigate to the Initial> Channel erased and a new set of memo- menu. rized channels is created. To Press ENTER. add or delete individual chan- Highlight the reception mode, nels, see Initial > Channel > e.g. Ant Air. Edit menu instructions on page Highlight Scan.
  • Page 83 Appendices Appendix E: Troubleshooting, continued Reset Name When to Use How to Use Resulting Action VUDU You have forgotten Using a computer, go to Reset your account password Reset VUDU your account pass- www.VUDU.com. from the VUDU website (requires Account word. access to e-mail). Password (249 Series) VUDU You have forgotten Call VUDU Customer Care at VUDU Customer Care will reset Reset Parental your passcode. 1-888-554-VUDU (8838). your passcode. Controls Passcode (249 Series) General TV Operation...
  • Page 84 Appendices Appendix E: Troubleshooting, continued TV Channels Symptom Remarks The TV takes several seconds to respond to • It is normal for digital channels to take longer to tune in. channel changes. • Press ENTER after entering a channel number to avoid delays. • Use a 4-digit number for an over-the-air digital channel. • Use a 6-digit number for digital cable channels if your cable service is able to recognize 6-digit channel numbers. You cannot access a channel. • Use number keys instead of CHANNEL Up/Down. • Be sure the channel you want to view is in memory. • Check that the TV is switched to the correct device or antenna for that channel by pressing the ACTIVITY key. • Make sure the Lock > Parent menu lock is set to Off. • If you cannot tune to a virtual digital channel even though the TV has already memorized digital channels, tune to the physi- cal channel number used by the broadcaster. The virtual channel will then be automatically added to memory. • You may be trying to tune to an analog channel that is no longer broadcasting. When ChannelView list is displayed, informa- •...
  • Page 85 Appendices Appendix E: Troubleshooting, continued Picture Symptom Remarks Picture does not look like a high-definition Not all signals are high-definition signals. To receive high-defini- picture. tion programming from your cable or satellite provider, you must subscribe to the provider’s high-definition service. Some over- the-air broadcasts are in high-definition and can be received with a high-quality antenna suited to your location. TV has sound but no picture. • Check that all video inputs are plugged in firmly. • Press and hold the POWER button on the control panel for ten seconds to perform System Reset. Picture has become dimmer. Adjust picture brightness and contrast to maximum levels. There is a large black or gray rectangle on The TV’s analog closed captioning has been set to “text” mode the screen. in the Captions menu. Turn off because there is no text informa- tion being broadcast. You cannot view a picture when playing a Check your VCR’s owner’s guide for further troubleshooting. VHS tape. VCR or DVD player’s on-screen menus jitter Stop playback. Possible cause: Many VCRs and DVD players up and down. provide on-screen menus at only half-resolution that may appear to jitter up and down. 7. When viewing a stopped VCR, white lines • Turn off video mute for the VCR. are rolling on the screen.
  • Page 86 Appendices Appendix E: Troubleshooting, continued Sound Symptom Remarks The sound does not match the screen The TV’s “Listen to:” setting may be set to SAP (analog program from picture. the ANT input). The sound from my A/V receiver does • Check that DIGITAL AUDIO OUTPUT and/or AVR AUDIO not match the screen picture (I should OUTPUT on TV’s main panel is connected to the A/V receiver. hear the correct audio from my A/V Without this connection, devices connected only to the TV (and receiver). not the A/V receiver) can be heard only from the TV speakers. Note that this includes the ANT input, a device (such as a camcorder) connected to the convenience panel, and any other device sending audio to the TV only. • If using a NetCommand-controlled A/V receiver, NetCommand may be selecting the wrong A/V receiver audio input. Check the A/V receiver’s NetCommand setup in the Inputs > AVR menu. Cannot select an audio-only device; it Plug an unused video plug into the Y/VIDEO jack to activate Auto does not appear in the Activity menu. Input Sensing and make the audio device selectable in the Activity menu. Sound is coming from the TV speakers Disconnect headphones. Connect the TV’s AUDIO OUT to the A/V instead of the A/V receiver. receiver and select AV Receiver from the New Device Found screen. NetCommand IR Control (NetCommand-equipped models only) Symptom Remarks Cannot see the menu from the A/V Receiver.
  • Page 87 Appendices Appendix E: Troubleshooting, continued NetCommand IR Control (NetCommand-equipped models only) Symptom Remarks The A/V receiver is the selected audio source • A/V Receiver Set Up for Audio-Only Switching but there is no sound. Check to see if the A/V Receiver power is turned on. With A/V receiver power turned on, redisplay the Activ- ity menu and press ENTER to allow NetCommand to correctly select the A/V Receiver input. Incorrect setup in the Inputs > AVR menu. Check the device connection assigned in the AVR menu. • A/V Receiver Set Up for Audio and Video Switching over HDMI Check to see if the A/V Receiver power is turned on. If the device is connected only to the TV (e.g., on ANT or a front panel input), verify that the TV’s AUDIO OUTPUT is connected to the A/V receiver. The A/V receiver is not switching properly because you have not learned the IR codes for the A/V receiver inputs to which your devices are connected. There is no sound from the A/V receiver NetCommand A/V receiver setup for the DVD player or digital for my DVD player or other surround sound surround sound device or other device is not switching prop- device even though I learned the IR code for erly. See “Automatic Switching (Audio or Audio/Video),” page the A/V receiver’s DVD input or other input. 63, and perform A/V receiver setup for a digital surround sound (A/V Receiver Set Up for Audio-Only Switch- device.

  • Page 88: Trademark And License Information

    Trademark and License Information Trademark and License Information LICENSOR’S SUPPLIERS DO NOT MAKE OR PASS ON TO END USER OR ANY OTHER THIRD PARTY, ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY OR REPRESENTATION ON BEHALF OF SUCH SUPPLIERS, INCLUDING, BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, TITLE, MERCHANTABIL- ITY OR FITNESS FOR A PARTICULAR PURPOSE. Manufactured under license from Cambridge Mechatronics Ltd. Rapidfire and the 1... logo are trademarks of Cambridge Mechatronics Ltd Manufactured under license from Dolby Laboratories. Dolby is a trademark of Dolby Laboratories. ENERGY STAR ® and the ENERGY STAR mark are registered U.S. marks. ENERGY STAR is a registered mark owned by the U.S. government. HDMI the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI ™ Licensing LLC. Imaging Science Foundation Certified Calibration Controls The software in this TV is based in part on the work of the Independent JPEG Group, copyright © 1991-1998, Thomas G. Lane, all rights reserved. x.v.Color and the x.v.Color logo are trademarks of Sony Corporation. VUDU is a trademark of VUDU, Inc. ™ ChannelView™, DeepField™ Imager, Easy Connect™, NetCommand®, PerfectColor™, PerfecTint™, Plush 1080p® 5G, SharpEdge™, Smooth120Hz™ Film Motion, Unisen™ are trademarks of Mitsubishi Digital Electronics America, Inc. Network Service Disclaimer Third party content and services, including without limitation home entertainment services by VUDU, Inc., are provided in accordance with whatever terms and conditions are established by the third party providers and agreed to by you. Mitsubishi Digital Electronics America (“MDEA”) has no control over any such third parties or any agreement you reach with them. MDEA has no control over the networks or transmission facilities by which content and services are provided by third parties. Your connection to the internet may vary in availability and quality. Customer service questions are to be directed to the third-party provider, not MDEA.

  • Page 89: Mitsubishi Tv Software

    Trademark and License Information Mitsubishi TV Software END-USER LICENSE AGREEMENT FOR EMBEDDED SOFTWARE IMPORTANT – READ CAREFULLY: This License Agreement is a legal agreement between you (either an individual or an entity) and Mitsubishi Digital Electronics America, Inc. (MDEA) for all software pre installed and/or provided along with this television (“Software”). By utilizing this television and Software, you agree to be bound by the terms of this License Agreement. The Software is protected by United States copyright laws and international treaty provisions, as well as other intellectual property laws and treaties. The Software is licensed, not sold. LICENSE GRANT. MDEA grants you a non-exclusive, non-transferable, limited right and license to use one copy of the Software only with the Mitsubishi television model that included this owner’s guide and owned by you. RIGHTS AND LIMITATIONS. Software Not for Resale. You may not resell or otherwise transfer for value the Software, except in conjunction with a sale of the TV that Software has been pre installed. Prohibition on Reverse Engineering, Decompilation and Disassembly. The Software contains trade secrets or other proprietary material in its human perceivable form and to protect them, you may not reverse engineer, decompile, or disassemble, or otherwise reduce the Software to any human perceivable form, except to the extent that the foregoing restriction is expressly prohibited by applicable law. Separation of Components. The Software is licensed as a single product. Its component parts may not be separated for use on more than one TV. No Rental. You may not rent, lease, lend, or sublicense the Software. Trademarks. This License Agreement does not grant you any rights to any trademarks of MDEA. VIOLATIONS. You understand that any use, copying or transfer of the Software, except as permitted pursuant to this License, may subject you to serious criminal and civil penalties including damages and an award to MDEA of attorneys’ fees in connection with any violation of this License. You further understand that you may be held legally responsible for any copyright infringement or other violation of intellectual property rights that is caused, encouraged, or induced by your failure to abide by the terms of the License. This license is effective until terminated, and will terminate immediately without notice from MDEA or judicial resolution if you fail to comply with any provision of this License.

  • Page 90: Gnu General Public License

    Trademark and License Information GNU General Public License Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 675 Mass Ave, Cambridge, MA 02139, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation’s software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License instead.) You can apply it to your programs, too. When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to dis- tribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things. To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it. For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights. We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software. Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors’ reputations. Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone’s free use or not licensed at all. The precise terms and conditions for copying, distribution and modification follow. GNU GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION 0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The “Program”, below, refers to any such program or work, and a “work based on the Program” means either the Program or any deriva-...
  • Page 91 Trademark and License Information GNU General Public License, continued a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.) The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the execut- able. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code. 4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance. 5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it. 6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License. 7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/ donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

  • Page 92: Warranty

    Warranty Mitsubishi LCD Flat Panel HDTV Limited Warranty MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC. (“MDEA”) warrants to the original purchaser of this LCD Flat Panel HDTV that if purchased from an authorized MITSUBISHI Audio/Video Dealer, should it prove defective by reason of improper work- manship and/or material: a. Parts. All parts (except any software incorporated into this HDTV) are warranted for a period of one year from the date of the original purchase at retail. We will repair or replace, at our option, any defective part without charge for the part. Parts used for replacement may be replaced with those of like kind and quality and may be new or remanufactured. Parts used for replace- ment are warranted for the remainder of the original warranty period. b. Embedded Software. MDEA warrants that all software incorporated into this HDTV (the “Embedded Software”) will perform in accordance with the functional description of Embedded Software in all material respects, but MDEA does not warrant that the Embedded Software is error-free. The warranty contained in this section shall continue for a period of one year, from the date of the original purchase from the authorized dealer. If, after prompt notice within the warranty period, MDEA determines that the Embedded Software has failed to perform in accordance with such functional description in all material respects and if such failure is not due to accident, misuse, modification or misapplication of the Embedded Software, then MDEA shall modify or replace the nonconforming Embedded Software at no charge to you, which at MDEA’s sole discretion may be fulfilled by means of modification or replacement software contained on a replacement memory card for Consumer installation. The foregoing shall be MDEA’s sole obligation to you under this limited warranty. All rights under this limited war- ranty on the Embedded Software also subject to your compliance with the terms of the Software License Agreement appli- cable to this HDTV, and this limited warranty on the Embedded Software shall be null and void if the Embedded Software is modified or changed in any manner except as specifically authorized by MDEA. c. Labor. For certain items that are designed to be replaced by the consumer, including (but not limited to) some Embed- ded Software, the consumer is solely responsible for any replacement labor. For all other parts, we will provide the labor for a warranty repair by an authorized MITSUBISHI service center without charge for one year from the original date of purchase at retail. d. Notice. To obtain warranty service, you must notify an authorized MITSUBISHI service center of any defect within the appli- cable warranty time period. BEFORE REQUESTING SERVICE, please review the TV owner’s guide to insure proper installation and correct cus- tomer control adjustment.
  • Page 93 Warranty wall mountings, or set-ups, any adjustments of user controls (including contrast, brightness, color, tint, fine tuning, sharpness), other adjustment necessary to prepare the unit for display or use, connection with any external audio receiver, antenna, cable or satellite systems, or service of products purchased or serviced outside the U.S.A. Please consult the operating instructions contained in the Owner’s Guide furnished with the product for information regarding user controls. 3. ANY EXPRESS WARRANTY NOT PROVIDED HEREIN, AND ANY REMEDY WHICH, BUT FOR THIS PROVISION, MIGHT ARISE BY IMPLICATION OR OPERATION OF LAW, IS HEREBY EXCLUDED AND DISCLAIMED. THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR ANY PARTICULAR PURPOSE ARE EXPRESSLY LIMITED TO A TERM OF ONE YEAR. 4. UNDER NO CIRCUMSTANCES SHALL MDEA BE LIABLE TO PURCHASER OR ANY OTHER PERSON FOR ANY INCI- DENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, WHETHER ARISING OUT OF BREACH OF WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. 5. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental, special, or consequential damages, so the above limitations or exclusions may not apply to you. 6. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. 7. In the event of any dispute under this limited warranty, jurisdiction and venue for resolving that dispute will be in the state where the television was purchased and the laws of such state will govern. In no event shall Mitsubishi have any liability, includ- ing with out limitation, for general, consequential, incidental, or special damages for loss, destruction, damage or corruption of recorded data, media or software resulting from use of this television, or cost of recovery of lost data, media or software therefore. MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC. 9351 Jeronimo Road Irvine, CA 92618-1904 Downloaded From TV-Manual.com Manuals...

  • Page 94: Index

    Index Index Clock, Set Date and Time 47 Closed Captions 46 INFO Key Color Adjustments 45 ChannelView 26 Reset Color 45, 81 Status Display 27 Accent Lighting 44 Computer USB Menu 31 Activity Menu 25 and Display Formats 30 Internet Video 37 Automatic Generation 51 Connecting 29 IR Emitter Placement 56 Change Input Name 50 Contrast 41 IR NetCommand Output (jack) 19 Customizing 50 Control Panel 11 NetCommand-Controlled Switch- Control Panel Lock 11, 54 ing of A/V Receiver Inputs 58 Language Removing a Disconnected HDMI Changing the Menu Language Device 50 Date. See Clock Anamorphic Picture Format 28 Default Settings, Returning to 81 in Digital Programs 43 Antenna Input (ANT) 17, 18 DIGITAL AUDIO INPUT 18 SAP (Second Audio Program) 43 Signal Strength for Digital Chan- DIGITAL AUDIO OUTPUT 18 Learn 50. See also NetCommand IR nels 27 Digital Camera Video Output 33 Control...
  • Page 95 Index Photo Viewing 32 Subwoofer 26, 42 Picture Surround Sound Global Picture Adjustments 44 External Sound System 23 Picture+ Adjustments 45 Simulated Surround Sound 42 Picture Menu Adjustments 41 Sound Projector 34 Picture Quality and Film Mode TV Audio Outputs 18 System Reset 11, 82 Troubleshooting 85 Test Picture 44 Ratings (TV and Movie) 53 Time. See Clock Remote Control Timer (auto-on) 47 Batteries 7 Time Zone. See Clock Keys and Functions 10 Troubleshooting 81 Programming Codes (reference chart) 70 USB Menu 31, 32 Programming Instructions 69 Reset 78 Reset V-Chip Ratings A/V Memory Reset (for the cur- Definitions 53 rent input) 81 In Status Display 27 A/V Reset (for all inputs) 81 HDMI Auto Input Sensing 13 Connecting 22 Pass Code 79 Troubleshooting 85 PerfectColor/PerfecTint 81 Video Game. See Game Remote Control 78...
  • Page 96 Website: www.mitsubishi-tv.com E-mail: MDEAservice@mdea.com For questions, call Consumer Relations at 800-332-2119 To order replacement or additional remote controls or IR emitter cables, Visit our website www.mitsuparts.com or call 800-553-7278 SYSTEM RESET If the TV does not respond to the remote control, control-panel buttons, or will not power on/off, press and hold the POWER button on the control panel for ten seconds. The TV will turn off. Power on the TV and the green LED will flash quickly for about one minute. The changes you made most recently, before using SYSTEM RESET, may be lost. VLP41_VLP41+_IB_e_20090827 © 2009 Mitsubishi Digital Electronics America, Inc.
