Santon AL07/3 Installation And User Instructions Manual

Aqualine unvented water heaters
Hide thumbs

Advertisement

Table of Contents

Installation and User Instructions

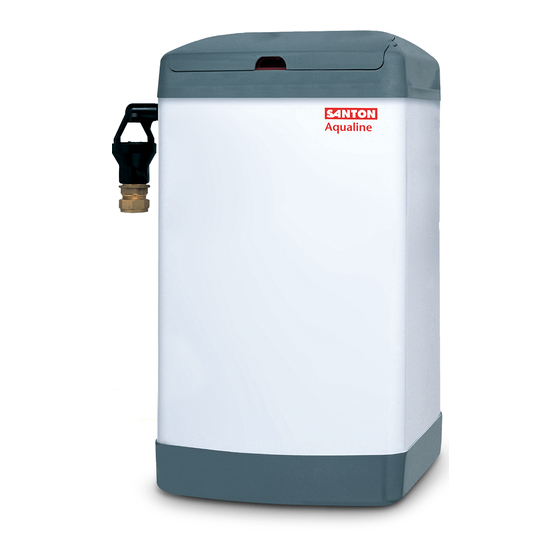

Aqualine Unvented Water Heaters
Models: AL07/3, AL10/3, AL15/3, AL15/4.5
Please read and understand these instructions before starting work.
Please leave this leaflet with the user following installation
PACK CONTENTS
Heater, tundish, service valve, discharge pipe, grommet, fixing screws and plugs,
installation and user instructions.
WARNING
This water heater must only be installed
by qualified persons
36005790 Issue 07
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AL07/3 and is the answer not in the manual?

Questions and answers

Related Manuals for Santon AL07/3

Summary of Contents for Santon AL07/3

  • Page 1 Installation and User Instructions Aqualine Unvented Water Heaters Models: AL07/3, AL10/3, AL15/3, AL15/4.5 Please read and understand these instructions before starting work. Please leave this leaflet with the user following installation PACK CONTENTS Heater, tundish, service valve, discharge pipe, grommet, fixing screws and plugs, installation and user instructions.

  • Page 2: Table Of Contents

    10.0 ENVIRONMENTAL INFORMATION 11.0 SPARES STOCKISTS 1.0 INTRODUCTION Thank you for purchasing a Santon Aqualine water heater. The unit is manufactured in the UK to the highest standards and has been designed to meet all the latest relevant safety specifications.

  • Page 3: Technical Specification

    2.0 TECHNICAL SPECIFICATION Electrical rating ............. 2.75/3kW @ 230/240V ~ ..................4.1/4.5kW @ 230/240V ~ Capacities..............7, 10 or 15 litres Weight (full)..............7 litre - 13.5 kg ..................10 litre - 17.5 kg ..................15 litre - 26.6 kg Rated pressure..............
  • Page 4 FIGURE 01: INTERNAL CONTROLS TUNDISH DISCHARGE PIPE THERMOSTATIC BLENDING VALVE TEMPERATURE AND COMBINED THERMOSTAT PRESSURE RELIEF AND THERMAL CUT-OUT VALVE MODEL SHOWN: AQUALINE 10LITRE 3kW. The heater can be used to supply several hot water outlets via conventional taps. It is not recommended for supplying a shower.

  • Page 5: Installation

    3.0 INSTALLATION 3.1 LOCATION 3.1.1 National Wiring rules may contain restrictions concerning the installation of these units in bathrooms. 3.1.2 The water heater should be vertically wall mounted using the screws and plugs provided. Position the bottom two screws as shown in Figure 02 above with heads 3mm from the wall.
  • Page 6 FAILURE TO PROVIDE ADEQUATE PRESSURE RELIEF WILL INVALIDATE ANY GUARANTEE AND LEAD TO A DANGEROUS INSTALLATION 3.3.2 Expansion can take place within the cold water supply PROVIDED THAT BOTH: (a) Backflow in the main is not prevented by any stop valve with loose jumper, check valve, pressure reducing valve or similar, AND (b) Hot water expansion does not enter a branch to a cold water outlet (see Figure 03, p6 for expansion pipe lengths).
  • Page 7 WARNING: IF WATER FLOWS FROM THE PRESSURE RELIEF VALVE OR TEMPERATURE / PRESSURE RELIEF VALVE THE ELECTRICITY SUPPLY MUST BE SWITCHED OFF IMMEDIATELY. CONTACT THE SANTON SERVICE TEAM (TEL: 0844 8711530) OR AN APPROVED INSTALLER. FIGURE 03 : FOR INLET WATER PRESSURES UP TO 4.1 BAR (60 P.S.I.) - NO ADDITIONAL KITS USED.
  • Page 8 3.3.6 The discharge outlet from the temperature and pressure relief valve and the pressure (expansion) relief valve (if fitted) must be connected to a discharge pipe. 3.3.7 A discharge pipe is supplied to connect the internally fitted temperature and pressure relief valve to the tundish which is also supplied. The pipe should be fitted though the hole in the outer case and held in place with the two part grommet supplied (see Figure 06 below).

  • Page 9: Commissioning

    FIGURE 07 : 3kW WIRING DIAGRAM 'AC' ONLY. NEON ELEMENT (STAT/CUT-OUT PLUGS MAINS DIRECTLY ONTO ELEMENT TERMINATIONS). SUPPLY BROWN BLUE GREEN/YELLOW DOUBLE POLE EARTH ISOLATING SWITCH POST RESET BUTTON IMPORTANT: THE COMBINED THERMOSTAT/CUT-OUT MUST BE PUSHED FULLY HOME TO ENSURE CORRECT OPERATION OF THE CUT-OUT COMBINED THERMOSTAT &...

  • Page 10: User Demonstration

    5.4 LITERATURE Hand over the installation and user instructions. 5.5.1 This Santon unvented water heater stores water at the temperature set on the adjustable thermostat in the range of 6 to 66° C. The heater is fitted with a TMV2 thermostatic blending valve which controls the temperature of water to the hot tap(s).

  • Page 11: Maintenance

    Maintenance should be carried out by a competent person and any replacement parts used should be authorised Santon Aqualine spare parts. It is recommended that maintenance is carried out annually and should include the checks detailed in the sections below: The temperature and pressure relief valve and, if fitted, the pressure (expansion) relief valve should be regularly checked.
  • Page 12 Little maintenance is required, however in hard water areas the unit will require periodic descaling to ensure efficient operation. To descale the unit: Switch off, and disconnect, the electrical supply. Turn off the water supply to the unit. Open a hot tap to relieve any system pressure. Disconnect the plumbing connections to the unit and remove (note full weights of units, p3).

  • Page 13: Fault Finding

    Warning: Disconnect from all electrical supplies before beginning any work on the heater. Water contained within the heater may be very hot! The Santon Aqualine should give trouble-free operation, however should a problem occur, the table below should enable most faults to be identified with ease.

  • Page 14: Spare Parts

    8.0 SPARE PARTS The following comprehensive list of spare parts is available for your Santon water heater. Please refer to the rating label on the side of your heater before ordering to ensure the correct spare part is obtained. DO NOT REPLACE WITH PARTS NOT RECOMMENDED BY SANTON.

  • Page 15: Guarantee

    This guarantee in no way affects the statutory rights of the consumer. The policy of Santon is one of continuous product development and, as such, we reserve the right to change specifications without notice. 10.0 ENVIRONMENTAL INFORMATION This product is manufactured from many recyclable materials.

  • Page 16: Spares Stockists

    Alternatively contact your local supplying merchant or wholesale branch or use our online stockist finder at www.interpartspares.co.uk SPECIFICATION ADVICE HOTLINE t| 01603 420220 e| specifier@heatraesadia.com AFTER SALE SERVICE Hurricane Way, Norwich, t| 0344 8711530 Norfolk, NR6 6EA e| customer.support@heatraesadia.com www.santon.co.uk...

This manual is also suitable for:

Al10/3Al15/3Al15/4.5
