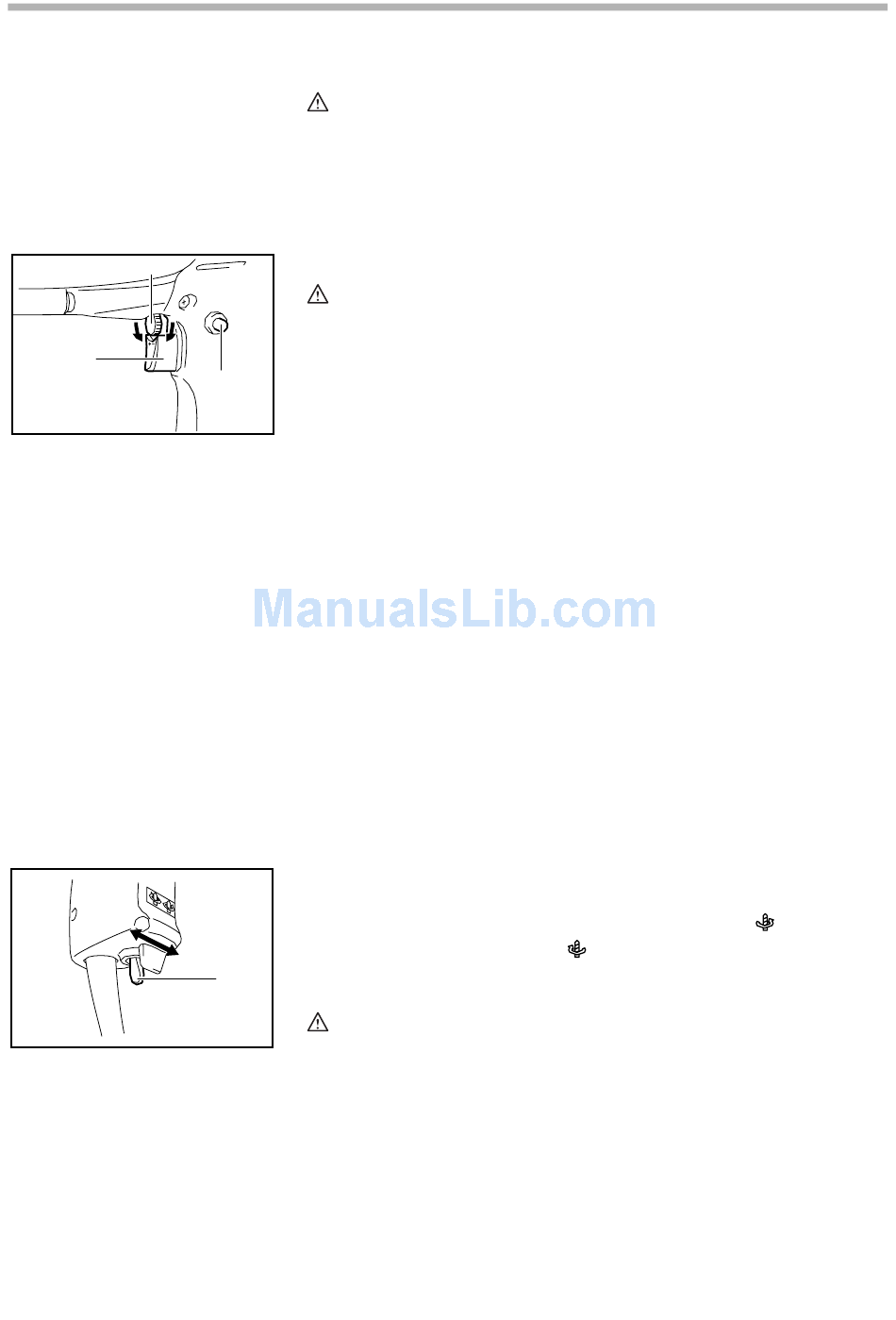

FUNCTIONAL
DESCRIPTION
1
2 3
4
1. Speed control screw
2. Low
3. High
4. Switch trigger
5. Lock button
1. Reversing switch lever
6
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on the
tool.

Switch action

002457
CAUTION:
• Before plugging in the tool, always check to see that the
switch trigger actuates properly and returns to the "OFF"
position when released.
5
• Switch can be locked in "ON" position for ease of
operator comfort during extended use. Apply caution
when locking tool in "ON" position and maintain firm
grasp on tool.
To start the tool, simply pull the switch trigger. Tool speed is
increased by increasing pressure on the switch trigger.
Release the switch trigger to stop.
For continuous operation, pull the switch trigger and then
push in the lock button.
To stop the tool from the locked position, pull the switch trig-
ger fully, then release it.
A speed control screw is provided so that maximum tool
speed can be limited (variable). Turn the speed control screw
clockwise for higher speed, and counterclockwise for lower
speed.

Reversing switch action

002411
This tool has a reversing switch to change the direction of
rotation. Move the reversing switch lever to the
clockwise rotation or the
rotation.
1
CAUTION:
• Always check the direction of rotation before operation.
• Use the reversing switch only after the tool comes to a
complete stop. Changing the direction of rotation before
the tool stops may damage the tool.
position for counterclockwise
position for
