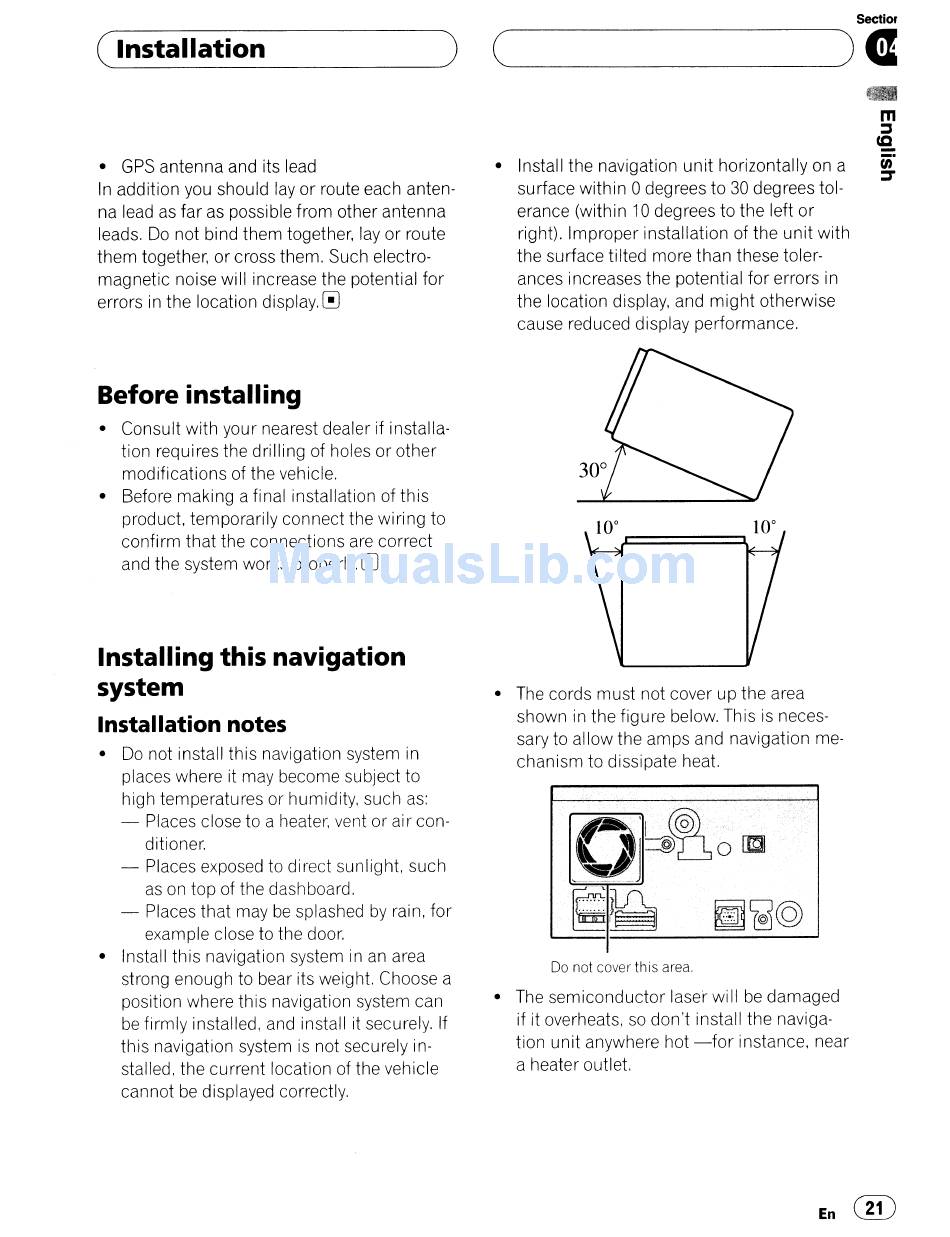

( Installation
)
Seetlor
(~ ~)a:
• GPS antenna and its lead
In addition you should lay or route each anten-
na lead as far as possible from other antenna
leads. Do not bind them together, lay or route
them together, or cross them. Such electro-
magnetic noise will increase the potential for
errors in the location display. ~
Before installing
• Consult with your nearest dealer if installa-
tion requires the drilling of holes or other
modifications of the vehicle.
• Before making a final installation of this
product, temporarily connect the wiring to
confirm that the connections are correct
and the system works properly. ~
Installing this navigation
system
Installation notes
• Do not install this navigation system in
places where it may become subject to
high temperatures or humidity, such as:
- Places close to a heater. vent or air con-
ditioner.
- Places exposed to direct sunlight, such
as on top of the dashboard.
- Places that may be splashed by rain, for
example close to the door.
• Install this navigation system in an area
strong enough to bear its weight. Choose a
position where this navigation system can
be firmly installed, and install it securely. If
this navigation system is not securely in-
stalled, the current location of the vehicle
cannot be displayed correctly.
• Install the navigation unit horizontally on a
surface within 0 degrees to 30 degrees tol-
erance (within 10 degrees to the left or
right). Improper installation of the unit with
the surface tilted more than these toler-
ances increases the potential for errors in
the location display, and might otherwise
cause reduced display performance.
• The cords must not cover up the area
shown in the figure below. This is neces-
sary to allow the amps and navigation me-
chanism to dissipate heat.
O'I~
~j~
0
m
~
~
~~@
.......
Do not cover this area.
• The semiconductor laser will be damaged
if it overheats, so don't install the naviga-
tion unit anywhere hot -for instance. near
a heater outlet.
