Page 1: Installation Manual

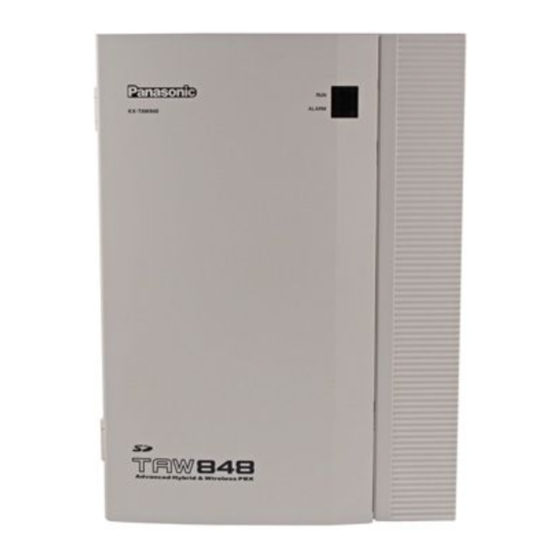

Advanced Hybrid & Wireless PBX Installation Manual Panasonic KX-TAW848, KX TAW848, KXTAW848, TAW848 Thank you for purchasing the Panasonic Advanced Hybrid & Wireless PBX, KX-TAW848. SD Logo is Please read this manual carefully before using this product and save this manual for future use.
Page 2: System Components
KX-T0141 2-Channel Cell Station Unit for 2.4 GHz Portable Station Proprietary Equipment KX-T30865 Doorphone Available Proprietary Telephones The PBX supports all of the Panasonic KX-T7000 and KX-TD7000 series: • Analog proprietary telephones (e.g., KX-T7730) • Portable stations (e.g., KX-TD7690) •...
Page 3 Abbreviations in this manual Analog proprietary telephone: APT Portable station: PS Single line telephone: SLT Notice The power supply capacity of the PBX may differ from the values described in this manual depending on the model number. Please consult your dealer for detailed information. Installation Manual...
Page 4: Safety Requirements
Important Safety Instructions SAFETY REQUIREMENTS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: Read and understand all instructions. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning.
Page 5: Save These Instructions
If the product exhibits a distinct change in performance. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. Do not use the telephone to report a gas leak in the vicinity of the leak. SAVE THESE INSTRUCTIONS Installation Manual...
Page 6 Precaution WARNING DO NO T REMO SD MEMOR Y CARD WHILE PO WER IS SUPPLIED T O THE ADVANCED HYBRID & WIRELESS PBX Doing so ma y cause the PBX to fail to start when tr ying to restar t the system. Installation Manual...
Page 7 If the telephone operates properly, do not reconnect the unit to the line until the trouble has been repaired by an authorized Panasonic Factory Service Center. If the telephone does not operate properly, chances are that the trouble is in the telephone network, and not in the PBX.
Page 8 Executive or Regional Sales offices. They are NOT equipped to make repairs. Product Service Panasonic Factory Servicenters for this product are listed in the servicenter directory. Consult your dealer for detailed instructions. The serial number of this product may be found on the label affixed to the side of the unit.
Page 9: The Structure Of This Manual
Introduction This Installation Manual is designed to serve as an overall technical reference for the Panasonic Advanced Hybrid & Wireless PBX, KX-TAW848. It provides instructions for installing the hardware, and programming the PBX using the KX-TAW848 Maintenance Console. The Structure of this Manual...
Page 10 • Telephone numbers to which the system will be connected • Make: Panasonic • Model: KX-TAW848 • Certification No.: found on the side of the unit • Ringer Equivalence No.: 0.3A • Facility Interface Code: 02LS2 •...
Page 11 Combined Use with Alarm Equipment If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer.
Page 12 For Cell Station CAUTION Any changes or modifications not expressly approved by the party responsible for compliance could void user’s authority to operate this device. Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
Page 13: Table Of Contents
2.2.5 Frame Ground Connection..................34 2.2.6 Installing/Removing the Optional Service Cards............35 2.2.7 Types of Connectors ....................43 2.2.8 Wall Mounting (KX-TAW848)..................44 2.2.9 Wall Mounting (AC Adaptor) ..................47 2.2.10 Lightning Protector Installation.................50 Installation of the CO Line Cards .................53 2.3.1 LCOT4 Card......................53 2.3.2 CID4 Card ........................54...
Page 14 Overview ....................... 102 Connection......................103 3.2.1 Connection ......................103 Installation of the PC Programming Software ..........105 3.3.1 Installing and Starting the KX-TAW848 Maintenance Console ......105 3.3.2 Structure of the KX-TAW848 Maintenance Console ..........110 3.3.3 PBX Configuration....................111 3.3.4 PBX Maintenance....................
Page 15: System Outline
Section 1 System Outline This section provides general information on the PBX, including the system capacity and specifications. Installation Manual...
Page 16: System Highlights
APT. Portable Station (PS) Features A Panasonic PS can be used in place of an APT to provide wireless access to PBX features and call handling. When in Wireless XDP Parallel Mode, a PS can share an extension number with a wired telephone, allowing extension users to use their PSs when they are away from their desks to answer or make calls as if they were using their wired telephones.
Page 17: Basic System Construction
1.2 Basic System Construction Basic System Construction 1.2.1 Main Unit The main unit is equipped with 4 Hybrid Ports. For system expansion, optional service cards can be installed. Construction of Main Unit LCOT4 card (installed by default) Front Cover Main Board Cable Cover Installation Manual...
Page 18: System Connection Diagram
1.2 Basic System Construction 1.2.2 System Connection Diagram Telephone Company (Analog CO Lines) Remote PC Advanced Hybrid & Wireless PBX Printer Wireless Phone DSS Console Doorphone & Door Opener Fax Machine BGM/Music On Hold (MOH) Pager/ Amplifier Speaker Voice Processing System Installation Manual...
Page 19 1.2 Basic System Construction Advanced Hybrid & Wireless PBX LCOT4 (KX-TAW84880) Telephone Analog Analog Analog Company CO Line CO Line CO Line CID4 (KX-TAW84893) Voice Processing DSS Console System HLC4 (KX-TAW84870) Wireless Phone Fax Machine SLC8 (KX-TAW84874) PLC8 Wireless Phone Fax Machine (KX-TAW84876) PLC4...
Page 20: Options
1.3 Options Options 1.3.1 Options Model No. Model Name Description Maximum Quantity KX-TAW84861 4-Port Doorphone Card 4-port doorphone card for 4 doorphones (DPH4) and 4 door openers. KX-TAW84866 8-Channel Echo 8-channel card for echo cancellation Canceller Card (ECHO8) during conferences. KX-TAW84868 Extension Caller ID Card Sends Caller ID signals to extension (EXT-CID)
Page 21: Specifications
1.4 Specifications Specifications 1.4.1 General Description Switching Non Blocking AC Adaptor AC Input 100 V AC to 240 V AC, 1.5 A, 50 Hz/60 Hz DC Output 40 V, 1.38 A (55.2 W) DC Input 40 V, 1.38 A (55.2 W) Maximum Power Failure 300 ms Tolerance...
Page 22 1.4 Specifications Dimension 275 mm (W) × 376 mm (H) × 117 mm (D) (10-4/5 in × 14-4/5 in × 4-3/5 in) Weight (when fully mounted) Under 3.5 kg (7.72 lb) Installation Manual...
Page 23: Characteristics
1.4 Specifications 1.4.2 Characteristics Terminal Equipment Loop Limit • APT: 40 • SLT: 600 including set • Doorphone: 20 • CS: 65 Minimum Leakage Resistance 15 000 minimum Maximum Number of Extension 1 for APT or SLT Instruments per Line 2 by Parallel connection of an APT and an SLT Ring Voltage 75 Vrms at 20 Hz/25 Hz depending on the Ringing Load...
Page 24: System Capacity
1.4 Specifications 1.4.3 System Capacity Maximum CO Line and Extension Cards The following number of CO line and extension cards can be installed in the PBX for expansion. Card Type Maximum Number CO Line Card Extension Card Notes • For each card, the maximum number that can be installed in the PBX is listed in "1.3.1 Options".
Page 25: Installation
Section 2 Installation This section describes the procedures to install the PBX. Detailed instructions for planning the installation site, installing the optional service cards, and cabling of peripheral equipment are provided. Further information on system expansion and peripheral equipment installation is included. Installation Manual...
Page 26: Before Installation
2.1 Before Installation Before Installation 2.1.1 Before Installation Please read the following notes concerning installation and connection before installing the PBX. Be sure to comply with applicable local regulations (e.g., law, guidelines). Safety Installation Instructions When installing telephone wiring, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: Never install telephone wiring during a lightning storm.
Page 27 2.1 Before Installation Avoid using the same power supply outlet for computers, telexes, and other office equipment. Otherwise, the PBX operation may be interrupted by the inducted noise from such equipment. Please use 1-pair telephone wire for extension connection of (telephone) equipment such as standard telephones, data terminals, answering machines, computers, Voice Processing Systems, etc., except APTs (e.g., KX-T7730).
Page 28: Installation Of The Pbx
2.2 Installation of the PBX Installation of the PBX 2.2.1 Unpacking Unpack the box and check the items below: Main Unit AC Cord AC Adaptor Screws for Wall Mounting Washers for Wall Mounting Mini Plug (for pager and music source) SD Memory Card Main Strap Optional Card Label Sheet...
Page 29: Names And Locations
2.2 Installation of the PBX 2.2.2 Names and Locations SD Memory Card Slot Cover Reset Button System Initialize Switch MOH port Pager port Hybrid Ports Ground Terminal RS-232C port DC IN 1 USB port Power Switch Installation Manual...
Page 30: Opening/Closing The Covers
2.2 Installation of the PBX 2.2.3 Opening/Closing the Covers Opening the Covers Pull the slide button to the right and, holding it, slide the cable cover upwards. Then turn the cable cover slightly to remove it. Slide Button Cable Cover Remove the three screws.
Page 31: Removing/Attaching The Front Cover
2.2 Installation of the PBX Removing/Attaching the Front Cover If you prefer, you can remove the front cover. Removing the Front Cover Holding the front cover open at about a 45° angle, remove the front cover by pushing it in the direction of the arrow as shown below.
Page 32 2.2 Installation of the PBX Closing the Covers Close the front cover, then tighten the three screws. Screw Attach the rear hooks on the cable cover to the main unit, then swing the cable cover closed so that the front hooks fit in place. Cable Cover Slide the cable cover down until it locks.
Page 33: Installation Of The Sd Memory Card
2.2 Installation of the PBX 2.2.4 Installation of the SD Memory Card SD Memory Card SD Memory Slot Cover Card CAUTION • Use only the SD Memory Card included with the PBX. • The SD Memory Card contains software for all the processes of the PBX and all the customer data.
Page 34: Frame Ground Connection
2.2 Installation of the PBX 2.2.5 Frame Ground Connection IMPORTANT Connect the frame of the PBX to earth. Loosen the screw. Screw Insert a grounding wire (user- supplied)*. Tighten the screw. Grounding Connect the grounding wire to wire earth. To ground * For grounding wire, green-and-yellow insulation is required, and the cross-sectional area of the conductor must be more than 0.75 mm or 18 AWG.
Page 35: Installing/Removing The Optional Service Cards
2.2 Installation of the PBX 2.2.6 Installing/Removing the Optional Service Cards Slot Position 11 * 10 * 02 * 01 * Slots 10 and 11 accept only cards which do not have external ports. Therefore, these slots do not have removable cover plates. Slot 02 has an LCOT4 card pre-installed.
Page 36: Installing Optional Service Cards
2.2 Installation of the PBX Note When installing or removing the optional service cards, the DC power supply must be stopped. Installing Optional Service Cards Before installing the optional service cards, cut and remove the appropriate dummy cover plates from the main unit. Dummy Cover Plate CAUTION For safety reasons, smooth the cut edges after removing the dummy cover plates.
Page 37 2.2 Installation of the PBX Insert the new extension bolt (included with the card) into the hole on the card, and tighten it to secure the card. Extension Bolt Stick an appropriate optional card label (included) to the left side of the corresponding card.
Page 38 2.2 Installation of the PBX Repeat the procedure for other cards. • When installing a card in Slot 11, tighten the card using the screw included with the card, instead of the extension bolt. Screw Installation Manual...
Page 39 2.2 Installation of the PBX Handling of the Cables Attach the strap included with the card to one of the connected cables. Strap Bind all the connected cables together using the strap. Repeat the procedure for other cards. Installation Manual...
Page 40 2.2 Installation of the PBX Attach the main strap (included with the PBX) to any of the 5 rails depending on your preference. Main Strap Installation Manual...
Page 41 2.2 Installation of the PBX Bind all the connected cables together using the main strap, and then close the cable cover. For how to close the cable cover, refer to "2.2.3 Opening/Closing the Covers". Cable Cover Main Strap Notes • For safety reasons, do not stretch, bend, or pinch the cables.
Page 42 2.2 Installation of the PBX Removing the Optional Service Cards Loosen the extension bolt. Holding the protrusions of the card, pull the card in the direction of the arrows. Installation Manual...
Page 43: Types Of Connectors
2.2 Installation of the PBX 2.2.7 Types of Connectors Connector Type Pin Number Used for • DPH4 (TAW84861) RJ11 • HLC4 (TAW84871) • SLC8 (TAW84874) • PLC4 (TAW84875) • PLC8 (TAW84876) • LCOT4 (TAW84880) (Twisted pair cable) • Hybrid Ports (Main Board) •...
Page 44: Wall Mounting (Kx-Taw848)
2.2 Installation of the PBX 2.2.8 Wall Mounting (KX-TAW848) Mounting on Wooden Wall Place the reference for wall mounting on the wall to mark the three screw positions. 130 mm (5.1 in) 250 mm (9.8 in) Install the screws and washers (included) in the wall.
Page 45 2.2 Installation of the PBX Mounting on Concrete or Mortar Wall CAUTION Drive mounting screws into the wall. Be careful to avoid touching any metal laths, wire laths or metal plates in the wall. Place the reference for wall mounting on the wall to mark the three screw positions. 130 mm (5.1 in) 250 mm (9.8 in)
Page 46 2.2 Installation of the PBX Notes • Do not block the openings of the cabinet. Allow space of at least 20 cm (8 in) above and 10 cm (4 in) at the sides of the cabinet. • Make sure that the wall behind the cabinet is flat and free of obstacles, so that the openings on the back of the cabinet will not be blocked.
Page 47: Wall Mounting (Ac Adaptor)
2.2 Installation of the PBX 2.2.9 Wall Mounting (AC Adaptor) Mounting on Wooden Wall Place the reference for wall mounting (on the following page) on the wall to mark the two screw positions. 110 mm (4.4 in) Install the screws and washers (included) in the wall. Washer Drive the screw to this position.
Page 48 2.2 Installation of the PBX Mounting on Concrete or Mortar Wall CAUTION Drive mounting screws into the wall. Be careful to avoid touching any metal laths, wire laths or metal plates in the wall. Place the reference for wall mounting (on the following page) on the wall to mark the two screw positions.
Page 49 2.2 Installation of the PBX Reference for Wall Mounting Please copy this page and use as a reference for wall mounting. Install a screw here. 110 mm (4-5/16 in) Install a screw here. Note When you print out this page, the distance on the paper output may deviate slightly from the measurement indicated above.
Page 50: 2.2.10 Lightning Protector Installation
2.2 Installation of the PBX 2.2.10 Lightning Protector Installation Overview A lightning protector is a device that must be installed on a CO line to prevent a dangerous surge from entering the building and damaging equipment. A dangerous surge can occur if a telephone line comes in contact with a power line. Trouble due to lightning surges has been showing a steady increase with the development of electronic equipment.
Page 51 2.2 Installation of the PBX Outside Installation (Main Building) Lightning Protectors CO Line (Another Building) CO Line Extn. Hybrid Terminal IP-PBX Board Lightning Extn. Protector Extn. Extn. Earth Extn.: Extension Line If you install an extension outside of the building, the following precautions are recommended: Install the extension wire underground.
Page 52 2.2 Installation of the PBX Installation location of the earth rod..Near the protector Check obstructions..None Composition of the earth rod..Metal Depth of the earth rod..More than 50 cm (20 in) Size of the grounding wire..Thickness is more than 16 AWG Notes •...
Page 53: Installation Of The Co Line Cards
2.3 Installation of the CO Line Cards Installation of the CO Line Cards 2.3.1 LCOT4 Card Function 4-port analog CO line card with 2 power failure transfer (PFT) ports. One CID4 card can be mounted on the LCOT4 card (refer to "2.3.2 CID4 Card"). PFT Port 2 PFT Port 1 RJ11...
Page 54: Cid4 Card
2.3 Installation of the CO Line Cards 2.3.2 CID4 Card Function 4-port Caller ID signal type FSK/FSK (with Call Waiting Caller ID [Visual Caller ID])/DTMF. To be mounted on the LCOT4 card. CID4 Card LCOT4 Card Accessory and User-supplied Items Accessory (included): none User-supplied (not included): none Note...
Page 55: Installation Of The Extension Cards
2.4 Installation of the Extension Cards Installation of the Extension Cards 2.4.1 HLC4 Card Function 4-port extension card for SLTs, APTs, DSS consoles, a Voice Processing System (VPS), and CSs. RJ11 To extension Accessory and User-supplied Items Accessory (included): Extension Bolt × 1, Strap × 1 User-supplied (not included): RJ11 connector Note For details about connecting the CS, refer to "2.7.7 Connecting a Cell Station to the PBX".
Page 56: Plc4 Card
2.4 Installation of the Extension Cards 2.4.2 PLC4 Card Function 4-port extension card for APTs, DSS consoles, and a VPS. RJ11 To extension Accessory and User-supplied Items Accessory (included): Extension Bolt × 1, Strap × 1 User-supplied (not included): RJ11 connector Pin Assignments RJ11 Connector Signal Name...
Page 57: Slc8 Card
2.4 Installation of the Extension Cards 2.4.3 SLC8 Card Function 8-port extension card for SLTs. RJ11 To extensions Accessory and User-supplied Items Accessory (included): Extension Bolt × 1, Strap × 1 User-supplied (not included): RJ11 connector Pin Assignments RJ11 Connector Signal Name Function Ring...
Page 58: Plc8 Card
2.4 Installation of the Extension Cards 2.4.4 PLC8 Card Function 8-port extension card for APTs, DSS consoles, and a VPS. RJ11 To extensions Accessory and User-supplied Items Accessory (included): Extension Bolt × 1, Strap × 1 User-supplied (not included): RJ11 connector Pin Assignments RJ11 Connector Signal Name...
Page 59: Installation Of The Other Cards
2.5 Installation of the Other Cards Installation of the Other Cards 2.5.1 DPH4 Card Function 4-port doorphone card for 4 doorphones and 4 door openers. 10-pin 8-pin RJ11 Telephone Line Cord To door openers To doorphones Accessory and User-supplied Items Accessory (included): Extension Bolt ×...
Page 60 2.5 Installation of the Other Cards 8-pin Terminal Block Signal Name Function – Reserved – Reserved – Reserved – Reserved – Reserved – Reserved – Reserved – Reserved 10-pin Terminal Block Signal Name Function OP1b Door opener 1 OP1b (RL1b) OP1a (RL1a) OP1a Door opener 1 com...
Page 61: Echo8 Card
Accessory (included): Extension Bolt × 1, Screw × 1 User-supplied (not included): none Note To establish a conference call involving 6 to 8 parties, install an ECHO8 card and enable the echo cancellation for conference using the KX-TAW848 Maintenance Console (refer to "3.3.3 PBX Configuration"). Installation Manual...
Page 62: Msg2 Card
2.5 Installation of the Other Cards 2.5.3 MSG2 Card Function 2-channel message card. Accessory and User-supplied Items Accessory (included): Extension Bolt × 1, Screw × 1 User-supplied (not included): none Installation Manual...
Page 63: Ext-Cid Card
2.5 Installation of the Other Cards 2.5.4 EXT-CID Card Function Sends Caller ID signals to extension ports. Accessory and User-supplied Items Accessory (included): Extension Bolt × 1, Screw × 1 User-supplied (not included): none Installation Manual...
Page 64: Rmt Card
2.5 Installation of the Other Cards 2.5.5 RMT Card Function Analog modem card for remote communication with the PBX. V90 support. RMT Card RMT Slot Accessory and User-supplied Items Accessory (included): none User-supplied (not included): none CAUTION Make sure to insert the RMT card between the guide rails until it locks into the RMT slot. Removing the RMT Card Pull open the guide rails using a flathead screwdriver and, while holding them open, remove the RMT card.
Page 65: Connection Of Extensions
2.6 Connection of Extensions Connection of Extensions 2.6.1 Maximum Cabling Distances of the Extension Wiring (Twisted Cable) Cable Maximum Distance 26 AWG: Under 222 m (728 ft) 24 AWG: Under 347 m (1138 ft) 22 AWG: Under 500 m (1640 ft) CAT 5: Under 347 m (1138 ft) Cable...
Page 66: Parallel Connection Of The Extensions
2.6 Connection of Extensions 2.6.2 Parallel Connection of the Extensions Any SLT can be connected in parallel with an APT as follows: To a Hybrid Port Modular T-Adaptor 2-conductor wiring cord Connect pins "T" and "R". 4-conductor wiring cord Connect pins "T", "R", "D1", and "D2".
Page 67: Connection Of 2.4 Ghz Portable Stations
This unit determines the area covered by the wireless system. Up to 2 calls can be made at the same time through each CS. PS: 2.4 GHz Portable Station (KX-TD7680/KX-TD7690) The KX-TAW848 can support up to 28 PSs. For more details about the PS, refer to the PS Operating Instructions. CAUTION •...
Page 68: Procedure Overview
2.7 Connection of 2.4 GHz Portable Stations 2.7.2 Procedure Overview When connecting the wireless system, use extreme care to conduct a site survey. Inadvertent site survey can result in poor service area, frequent noise, and disconnection of calls. 1. Investigate the installation site Refer to "2.7.3 Site Planning".
Page 69 2.7 Connection of 2.4 GHz Portable Stations 4. Finish the site survey Refer to "2.7.6 After Site Survey". Return all DIP switches of each CS to the OFF position, and stop supplying power. Turn off the PS. 5. Connect the CS and PS to the PBX and test the operation Refer to "2.7.7 Connecting a Cell Station to the PBX".
Page 70: Site Planning
2.7 Connection of 2.4 GHz Portable Stations 2.7.3 Site Planning Choosing the best site for the CS requires careful planning and testing of essential areas. The best location may not always be convenient for installation. Read the following information before installing the unit. Understanding the Radio Waves Characteristics of Radio Waves The transmission of radio waves and the CS coverage area depend on the structure and...
Page 71 2.7 Connection of 2.4 GHz Portable Stations Object Material Transmission Tendency Wall Concrete The thicker they are, the less radio waves penetrate them. Ferroconcrete Radio waves can penetrate them, but the more iron there is, the more radio waves are reflected. Window Glass Radio waves usually penetrate them.
Page 72 2.7 Connection of 2.4 GHz Portable Stations CS Coverage Area The example below shows the size of the coverage area of 1 CS if it is installed where there is no obstacle. Note Radio signal strength levels are measured during the site survey (refer to "2.7.5 Site Survey").
Page 73 2.7 Connection of 2.4 GHz Portable Stations and obstacles in the installation site. Note that a CS cannot be installed outside a building. If one CS cannot cover the entire service area, install additional CSs as required. Overlap the coverage areas of adjacent CSs. Where CS coverage areas overlap, the PS will start call handover to the next CS if the signal from one CS becomes weak.
Page 74: Before Site Survey
2.7 Connection of 2.4 GHz Portable Stations 2.7.4 Before Site Survey Setting and Installing the CS Temporarily for Site Survey Switch the Radio Signal Test switch from OFF to ON. Set the CS number switches as desired. DIP Switch CS Number Switch Radio Signal Test Switch CS no.
Page 75 2.7 Connection of 2.4 GHz Portable Stations After setting the DIP switch, connect an AC adaptor or battery box to the CS using a power supply adaptor. Telephone Cord Power Supply Adaptor (PSZZ1TDA0142) Modular To AC Adaptor (KX-A11/KX-TCA1)/ Battery Box (PSZZTD142CE) Install the CS temporarily for the site survey.
Page 76: Site Survey
2.7 Connection of 2.4 GHz Portable Stations 2.7.5 Site Survey The PS has a Radio Signal Test mode that monitors the state of the radio link to the CS. After installing the CSs temporarily, set the PS to the Radio Signal Test mode and measure each CS coverage area.
Page 77 2.7 Connection of 2.4 GHz Portable Stations Measure the radio signal strength by moving to and away from the CS. Move to the CS until the point the radio signal strength level becomes "12". Move away from the CS and identify the CS coverage area within which the radio signal strength level is greater than "8".
Page 78 2.7 Connection of 2.4 GHz Portable Stations Overlap the CS coverage areas of at least 2 CSs at any location in the installation site. CS no. 1 CS no. 2 CS no. 3 CS no. 4 Make sure that the radio signal strength level is greater than "3" at any location in the service area demanded by the user.
Page 79 2.7 Connection of 2.4 GHz Portable Stations Deleting the Stored Scan Data Using the KX-TD7680 Scan Data No. Press 1, 9, and POWER 0 to 9, or # for all data for more than 2 seconds. To the Desired Scan Data No. Using the KX-TD7690 Scan Data No.
Page 80: After Site Survey
2.7 Connection of 2.4 GHz Portable Stations 2.7.6 After Site Survey After obtaining the proper measurement results, exit the Radio Signal Test mode before connecting the CS to the PBX. Keep pressing POWER button on the PS until the PS is turned OFF. Disconnect the AC adaptor or battery box from the CS and stop supplying electricity.
Page 81: Connecting A Cell Station To The Pbx
2.7 Connection of 2.4 GHz Portable Stations 2.7.7 Connecting a Cell Station to the PBX Refer to the following example to connect a CS to the PBX. Hybrid Port Cable Maximum Distance 26 AWG: Under 222 m (728 ft) 24 AWG: Under 347 m (1138 ft) 22 AWG: Under 500 m (1640 ft)
Page 82 2.7 Connection of 2.4 GHz Portable Stations Connecting the CS Connect the cable from a Hybrid Port or the HLC4card to the CS. Modular To a Hybrid Port, or HLC4 card Pass the cable through the groove of the CS (in any direction depending on your preference).
Page 83 2.7 Connection of 2.4 GHz Portable Stations Registering the PS The PS must be registered to the PBX before it can be used. Programming of both the PS and PBX is required. An APT with multiline display (e.g., KX-T7735) is required for the PBX system programming.
Page 84 2.7 Connection of 2.4 GHz Portable Stations When the PS has not been registered yet When registering the PS for the first time, it is possible to select the desired language for the display. (You do not need to enter the PS system programming mode when registering for the first time.) Using the KX-TD7680 [ F2 ]...
Page 85 2.7 Connection of 2.4 GHz Portable Stations Using the KX-TD7690 CHNG Choose Select "Enable/Disable". "SYSTEM LOCK". System Lock Password System Lock Password ENTR ENABLE 4 digits 4 digits DISABLE ENTR C.Tone Setting the Personal Identification Number (PIN) for PS Registration To prevent registering the PS to a wrong PBX, a PIN for PS registration can be set to the PBX.
Page 86 2.7 Connection of 2.4 GHz Portable Stations PS Termination Confirm the following before canceling the PS registration: • PS is turned on. • PS is within the range. [691] PS No. 001 to 028 STORE STORE If "Rejected" or "Time out" is displayed To the PS operation below...
Page 87: Wall Mounting
2.7 Connection of 2.4 GHz Portable Stations 2.7.8 Wall Mounting Place the reference for wall mounting (on the following page) on the wall to mark the 2 screw positions. Install the 2 screws and washers (included) into the wall. Notes •...
Page 88 2.7 Connection of 2.4 GHz Portable Stations Reference for Wall Mounting Please copy this page and use as a reference for wall mounting. Install a screw here. 71 mm (2-13/16 in) Install a screw here. Note When you print out this page, the distance on the paper output may deviate slightly from the measurement indicated above.
Page 89: Connection Of Doorphones And Door Openers
2.8 Connection of Doorphones and Door Openers Connection of Doorphones and Door Openers 2.8.1 Connection of Doorphones and Door Openers Maximum of 4 doorphones (KX-T30865) and door openers can be connected to the PBX. Note Doorphones and door openers are user-supplied. Maximum Cabling Distance Cable Maximum Distance...
Page 90 2.8 Connection of Doorphones and Door Openers Pass the wires through the hole in the base cover, and attach the base cover to a wall using 2 screws. Screw To terminal box Note Two kinds of screws are included with KX-T30865. Please choose the appropriate kind for your wall type.
Page 91 2.8 Connection of Doorphones and Door Openers Connection of Doorphones Connect DPH4 Card to the terminal boxes using telephone line cords. Refer to "2.5.1 DPH4 Card" for pin assignments. Connect the wires of doorphones 1 and 3 to the red and green screws on the terminal box. Connect the wires of doorphones 2 and 4 to the yellow and black screws on the terminal box.
Page 92 2.8 Connection of Doorphones and Door Openers Connection of the Door Openers Use 10-pin terminal block (included with the card) for connection. While pressing down on the hole at the top of the terminal block using a screwdriver, insert the wire into the side hole as shown below. Repeat this procedure for other door openers. Refer to "2.5.1 DPH4 Card"...
Page 93: Connection Of Peripherals
2.9 Connection of Peripherals Connection of Peripherals 2.9.1 Connection of Peripherals Cable Maximum Distance 26 AWG to 22 AWG: Under 10 m (32 ft) CAT 5: Under 10 m (32 ft) BGM/ Cable Maximum Distance Music on Hold 26 AWG to 22 AWG: Under 10 m (32 ft) CAT 5: Under 10 m (32 ft) Pager:...
Page 94: Pin Assignments
2.9 Connection of Peripherals Pager Only 1 paging device (user-supplied) can be connected to the PBX. CAUTION An External Paging Jack is a SELV port and should only be connected to an approved SELV device. PC/Printer (via RS-232C) The PBX is equipped with an RS-232C interface. This interface provides communication between the PBX and the user-supplied devices such as PC or line printers.
Page 95 2.9 Connection of Peripherals For connecting a printer/PC with a 25-pin RS-232C connector Printer/PC Circuit Type Signal Signal Circuit Type Pin No. Pin No. (EIA) Name Name (EIA) RD (RXD) SD (TXD) RD (RXD) ER (DTR) SD (TXD) ER (DTR) DR (DSR) RS (RTS) CS (CTS)
Page 96 2.9 Connection of Peripherals PC (via USB version 1.1) The PBX is equipped with a USB interface. This interface provides communication between the PBX and a PC. The PC is used for system programming, diagnostics and external system database storage (save/load) functions.
Page 97: 2.10 Power Failure Connections
2.10 Power Failure Connections 2.10 Power Failure Connections 2.10.1 Power Failure Connections When the power supply to the PBX fails, power failure transfer (PFT) will switch from the current connection to the Power Failure Connection. Refer to "2.4.1 Power Failure Transfer" in the Feature Guide for further information.
Page 98: 2.11 Starting The Pbx
2.11 Starting the PBX 2.11 Starting the PBX 2.11.1 Starting the PBX CAUTION • SD Memory Card must be inserted in the SD Memory Card slot of the main board before start up. • Before touching the System Initialize Switch and the Reset Button, discharge static by touching ground or wearing a grounding strap.
Page 99 2.11 Starting the PBX Plug the DC connector of the AC adaptor into the DC IN 1. DC IN 1 DC Connector AC Adaptor Plug the AC cord into the AC adaptor, and then plug the other end into an AC outlet. AC Adaptor AC Cord To AC outlet...
Page 100: Confirming The Co Line Connection
2.11 Starting the PBX • For safety reasons, do not stretch, bend, or pinch the AC cord and the DC cable of the AC adaptor. Press the Reset Button with a pointed tool. (The RUN indicator will flash.) While the RUN indicator is flashing (within about 10 s), return the System Clear Switch to the "NORMAL"...
Page 101: Guide For The Pc Programming Software
Section 3 Guide for the PC Programming Software This section explains the installation and structure of the PC Programming Software. Installation Manual...
Page 102: Overview
Overview 3.1.1 Overview KX-TAW848 Maintenance Console is designed to serve as an overall system programming reference for the PBX. To program and administer the PBX by PC, you need to install the KX- TAW848 Maintenance Console onto the PC. This manual describes overview and installation of the KX-TAW848 Maintenance Console only.
Page 103: Connection
3.2 Connection Connection 3.2.1 Connection Serial Interface Connection RS-232C Port To COM Port To USB Port USB Port Note For pin assignments and maximum cabling distance, refer to "2.9.1 Connection of Peripherals". Installation Manual...
Page 104 Use an RS-232C straight cable for connection between the PBX and external modem. • An AT command (for initialization, enabling automatic answer, etc.) can only be programmed by KX-TAW848 Maintenance Console. "AT&F0E0V1X1S10=30S12=50" is stored as the default value. • For more information about the AT command, refer to the external modem's instructions.
Page 105: Installation Of The Pc Programming Software
3.3 Installation of the PC Programming Software Installation of the PC Programming Software 3.3.1 Installing and Starting the KX-TAW848 Maintenance Console System Requirements Operating System • Microsoft ® Windows ® 98 SE, Windows Me, Windows 2000, or Windows XP Hardware •...
Page 106: Installing The Kx-Taw848 Maintenance Console
Starting the KX-TAW848 Maintenance Console and Assigning the Basic Items (Quick Setup) When you start the KX-TAW848 Maintenance Console with the Installer Level Programmer Code and connect to the PBX for the first time after initialization (with the factory default setting), Quick Setup will launch automatically.
Page 107 3. Type the Installer Level Programmer Code (default: INSTALLER), then click [OK]. The Programmer Code authorizes different programming levels, and the Quick Setup is only available when you start the KX-TAW848 Maintenance Console with the Installer Level Programmer Code. Note...
Page 108 SD Memory Card. To save the system data to the SD Memory Card, either click the "SD Memory Backup" icon, or exit KX-TAW848 Maintenance Console and click "Yes" to save when prompted. •...
Page 109 3.3 Installation of the PC Programming Software CAUTION Do not remove the SD Memory Card while it is being accessed. Doing so will corrupt the system data and possibly damage the SD Memory Card. Installation Manual...
Page 110: Structure Of The Kx-Taw848 Maintenance Console
3.3 Installation of the PC Programming Software 3.3.2 Structure of the KX-TAW848 Maintenance Console Menu Bar File Connect Tool Diagnosis Utility File Transfer PC to PBX (SD Card) File Transfer PBX (SD Card) to PC SD Card File View and Load...
Page 111: Pbx Configuration
3.3.3 PBX Configuration This section briefly describes how to check the configuration of the PBX using the KX-TAW848 Maintenance Console when PC and the PBX are connected by USB cable. For detailed descriptions of each feature and related PT programming, refer to the on-line help at each screen.
Page 112: Pbx Maintenance
3.3.4 PBX Maintenance This section briefly describes how to perform maintenance of the PBX using the KX-TAW848 Maintenance Console when PC and the PBX are connected by USB cable. For detailed descriptions of each feature and related PT programming, refer to the on-line help at each screen.
Page 113 3.3 Installation of the PC Programming Software File Transfer PC to PBX (SD Card) The program files in the PC are transferred to SD Memory Card of the PBX. Program files in the SD Memory Card is overwritten in this process. File Transfer PBX (SD Card) to PC The program files in the SD Memory Card are transferred to the PC.
Page 114 3.3 Installation of the PC Programming Software Installation Manual...
Page 115: Troubleshooting
Section 4 Troubleshooting This section provides information on the PBX and telephone troubleshooting. Installation Manual...
Page 116: Troubleshooting
Wireless Phones. (KX-T7880/KX-T7885/KX- TD7894/KX-TD7895). The ALARM indicator on the A major system error occurs See the error log using the KX-TAW848 front of the cabinet turns on in the PBX. Maintenance Console (refer to "4.1.5 red. Troubleshooting by Error Log").
Page 117: Connection
4.1 Troubleshooting 4.1.2 Connection Connection between the PBX and an APT: CAUSE SOLUTION Can you dial The T/R is connected to the D1/D2. Use the correct cord (the an extension? inner 2 wires are for T/R and the outer 2 wires are for D1/D2).
Page 118 4.1 Troubleshooting Connection between the central office and the PBX: CAUSE SOLUTION (Continued from the CO line is connected to the T2/T1. Reconnect the CO line to previous page.) the T1/R1 or T2/R2 of the telephone jack using 2-conductor wiring. Can you dial out on a CO line...
Page 119: Operation
4.1 Troubleshooting 4.1.3 Operation PROBLEM PROBABLE CAUSE SOLUTION • The APT does not ring. • The ringer volume is off. • Turn on the ringer volume. • During a power failure, • An APT is connected to • Disconnect the APT and connect an extensions connected to the extension port.
Page 120: Using The Reset Button
4.1 Troubleshooting 4.1.4 Using the Reset Button If the PBX does not operate properly, use the Reset Button. Before using the Reset Button, try the system feature again to confirm whether there definitely is a problem or not. Notes When the System Initialize Switch is set to the "NORMAL" position, pressing the Reset Button causes the following: •...
Page 121 4.1 Troubleshooting If the PBX still does not work: Unplug the PBX. Set the System Initialize Switch to the "SYSTEM INITIALIZE" position. Plug in the PBX after 5 min. Press the Reset Button. Set the System Initialize Switch to the "NORMAL" position while the RUN indicator is flashing (within approximately 10 s).
Page 122: Troubleshooting By Error Log
Error Log Display Format Below is the display format of the error log. To see the error log using the KX-TAW848 Maintenance Console, refer to "3.3.4 PBX Maintenance". Example: KX-TAW848 Maintenance Console...
Page 123 4.1 Troubleshooting Item Description Sub Code Five-digit sub code (1XXYY) 1: Cabinet number XX: Slot number (00 to 06, 08 to 11) 00: MPR; 01: Hybrid Ports; 02 to 06, 08 to 11: Slots for optional service cards YY: Physical port number (01 to 16) For optional service cards that are installed in Slots 08 to 11, sub slot number + port number will be displayed.
Page 124 When other errors are logged, the ALARM indicator will turn off only when the log for major or minor errors is cleared from the KX-TAW848 Maintenance Console. In other words, the ALARM indicator will turn off under the following conditions: When the errors "021", "091", "092", and "510"...
Page 125 4.1 Troubleshooting Error Error Message PROBABLE CAUSE SOLUTION Code System Reset • Reset Button is • Ignore if not frequent pressed • Press the Reset Button • Power failure • Reprogram the PBX • Main Board • Replace the Main Board (be sure to malfunction turn off the PBX when replacing) •...
Page 126 "$" from SD Memory Card the system data, or to Note upload system files Do not delete the "PSMPR" file; it is the from the KX-TAW848 program file of the Main Board (MPR). Maintenance Console System data file •...
Page 127 4.1 Troubleshooting Error Error Message PROBABLE CAUSE SOLUTION Code Over Card • Too many optional • Reduce the number of optional service Limitation service cards installed cards 091* PT connection • Too many APTs • Reduce the number of APTs over connected 092*...
Page 128 4.1 Troubleshooting Installation Manual...
Page 129: Index
Index Installation Manual...
Page 130 8-Port Proprietary Extension Card (KX-TAW84876) 20, 58 Installation Precautions 8-Port Single Line Telephone Extension Card (KX-TAW84874) Installing and Starting the KX-TAW848 Maintenance Console Installing the KX-TAW848 Maintenance Console Installing/Removing the Optional Service Cards About the Other Manuals After Site Survey...
Page 131 SD Memory Card Site Planning Site Survey SLC8 Card Slot Position Specifications Starting the KX-TAW848 Maintenance Console and Assigning the Basic Items (Quick Setup) Starting the PBX Structure of the KX-TAW848 Maintenance Console System Capacity System Components Table System Connection Diagram...
Page 132 Index Installation Manual...
Page 133 Index Installation Manual...
Page 134 Index Installation Manual...
Page 135 Index Installation Manual...
Page 136 Index Installation Manual...
Page 137 Phone: 877-289-2829 This manual is copyrighted by Panasonic Communications Co., Ltd. (PCC). Under the applicable copyright laws, this manual may not be reproduced in any form, in whole or part, without the prior written consent of PCC and its licensee.
