- Page 1 DS-3D2216P Hardware Installation Manual...
-
Page 2: Table Of Contents
2.3.3 Cabinet Configuration ..........................6 2.3.4 Power Requirements ..........................7 2.4 Installation Tools and Device ..........................7 Chapter 3 Installing the DS-3D2216P Switch ........................8 3.1 Installation Flow of DS-3D2216P .......................... 8 3.2 Installing the Chassis of the Switch ........................8 3.2.1 Installing the Machine Box on the Desk .................... -
Page 3: Chapter 1 Ds-3D2216P Switch

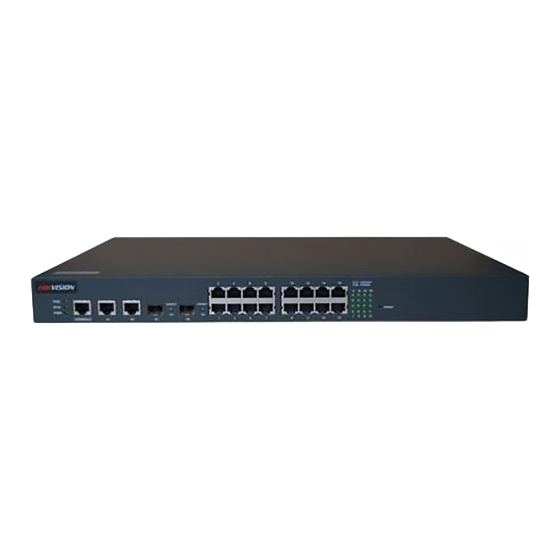

The document describes the characteristics and parameters of DS-3D2216P and gives an overview of DS-3D2216P. a) Standard Configuration The standard port settings of DS-3D2216P consists of 16 100M-Ethernet RJ45 ports, 2 gigabit-Ethernet RJ45 ports, 2 gigabit-Ethernet SFP optical ports and 1 Console port. For details, see table 1-1. - Page 4 It is used to switch over to the POE SWAP POE switchover mode. Figure 1-2 Back faceplate of the DS-3D2216P switch Table 1-3 Parts at the rear template of the DS-3D2216P switch Abbrev. Name Remarks None "ON" means the power source is opened, while “OFF”...
-
Page 5: Characteristic Parameters Of Ds-3D2216P
DS-3D2216P Hardware Installation Manual b) Characteristic Parameters of DS-3D2216P IEEE 802.1d Spanning Tree Protocol IEEE 802.1s multiple spanning trees IEEE 802.1p Class of Service IEEE 802.1q tagged VLAN IEEE 802.3x Flow control Supported standard IEEE 802.3z asymmetric flow control IEEE 802.3ad Link aggregation Protocol IEEE 802.3af Power via Media Dependent Interface... -
Page 6: Chapter 2 Installation Preparation
Similar to other electronic products, the semiconductor chip easily gets damaged if you power on and off abruptly and frequently. To restart up the switch of DS-3D2216P, you have to open the power on-off three or five seconds after the power is cut off. -
Page 7: Safety Principles For Live Working
DS-3D2216P Hardware Installation Manual (11) Pull out the AC power socket and close the direct-current power before operating on the chassis or working beside the power source. (12) The final configuration of products must comply with relative national laws and regulations. -
Page 8: Electrostatic Discharge Prevention
DS-3D2216P Hardware Installation Manual Electrostatic Discharge Prevention Electrostatic discharge may damage devices and circuits. Improper treatment may cause the switch to malfunction completely or discontinuously. Move or locate the devices according to the measures of electrostatic discharge prevention, ensuring the chassis connects the ground. Another measure is to wear the static-proof hand ring. -
Page 9: Power Requirements
Installation Tools and Device The tools and devices to install the DS-3D2216P switch are not provided by the DS-3D2216P switch. You yourself need to prepare them. The following are the tools... -
Page 10: Chapter 3 Installing The Ds-3D2216P Switch
DS-3D2216P Hardware Installation Manual (42) Installing the DS-3D2216P Switch Caution: Only professionals are allowed to install or replace the devices of the router. a) Installation Flow of DS-3D2216P b) Installing the Chassis of the Switch The chassis of the router can be installed on the desk or can be fixed to other cabinets. -
Page 11: Installing The Machine Box On The Desk
DS-3D2216P Hardware Installation Manual Installing the Machine Box on the Desk The DS-3D2216P switch can be directly put on the smooth and safe desk. Note: Do not put things weighing 4.5 kg or over 4.5 kg on the top of the switch. - Page 12 PC through a console cable, you can configure and monitor the switch of DS-3D2216P by running a terminal emulation software, such as super Windows terminal. The cable is provided according to the host. The communication parameters of the terminal serial port can be set to a rate of 9600bps, eight data bits, one stop bit, no sum check bit and traffic control.
-
Page 13: Connecting Ethernet 100M Port
One end of the cable is a 8-pin RJ45 plug and the other end is a 9-hole plug (DB9). The RJ45 plug is put into the socket of the console port on the DS-3D2216P switch. The inner line connection in the cable is shown in figure 3-1. The console cable is numbered as RLC0301. - Page 14 Ethernet terminals. Figure 42-7 Connecting the 10/100Base-T port and other Ethernet terminals Note: The switch shown in the previous figure does not represent real DS-3D2216P switch. Table 42-2 Definition of the pins of the 100M RJ45 port...
-
Page 15: Connecting Ethernet-1000M Electric Port
Connecting Ethernet-1000M Electric Port DS-3D2216P provides 2 10/100/1000M Base-T ports, each of which corresponds to an indicator that shows the link/ACT state of each port. If the indicator is always on, it means the port is linked. If the indicator flickers, it means that the data is transmitted through the port. -
Page 16: Connecting The 1000M Ethernet Sfp Port
3 Connecting the 1000M Ethernet SFP Port DS-3D2216P provides 2 1000M SFP optical ports. The indicators of two ports are those of port G0 and port G1 and indicate the LINK/ACT status. You can insert the SFP module and then connect it to other Ethernet terminal devices through the optical fiber if you want to use the 1000M SFP port. - Page 17 DS-3D2216P Hardware Installation Manual (46) Check whether the connected power meets the power requirements of the switch. (47) Check whether the grounding line is correctly connected. (48) Check whether the switch is correctly connected to other terminal devices. - 15 -...
-
Page 18: Chapter 4 Maintaining The Switch
DS-3D2216P Hardware Installation Manual (49) Maintaining the Switch Caution: Before opening the machine box, make sure that you have released the static you carried and then turn off the power on-off of the switch. Before operating any step in Appendix B, read the section “Safety Advice”. -
Page 19: Closing Chassis
DS-3D2216P Hardware Installation Manual Note: The switch shown in the previous figure does not represent real DS-3D2216P switch. When the cover is opened, put it aside. The main board of the system appears. Note: After taking off the cover, put it horizontally and avoid it to be crushed or collided. -
Page 20: Chapter 5 Hardware Fault Analysis
9600 bps, eight data bits, no sum check bit, one stop bit and no traffic control. a) Indicator Description The LED indicator shows that the switch is running. The following table shows the indicators of the DS-3D2216P switch and their description: Abbrev. Name Remarks... - Page 21 DS-3D2216P Hardware Installation Manual If the switch is powered on, the indicator Power indicator is on. If the indicator is always on, the system is being started. System indicator If the indicator flickers, the system works normally. If the indicator is always on, the link on the port is normal.
