Page 1: Ds-3E1Xxxp Series
DS-3E1xxxP Series 100 Mbps PoE Switches Quick Start Guide... -
Page 2: Legal Information
INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. -
Page 3: Regulatory Information
DS-3E1xxxP Series 100 Mbps PoE Switches Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 4: Table Of Contents
DS-3E1xxxP Series 100 Mbps PoE Switches Quick Start Guide Contents DS-3E1xxxP Series ..............................1 100 Mbps PoE Switches ............................1 Quick Start Guide ..............................1 Legal Information ..............................2 Regulatory Information ............................3 1.0 Preface ................................5 Applicable Models ........................... 5 Symbol Conventions .......................... -
Page 5: Preface
DS-3E1xxxP Series 100 Mbps PoE Switches Quick Start Guide 1.0 Preface 1.1 Applicable Models This manual is applicable to DS-3E1xxxP Series switches. 1.2 Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could result in death or serious Danger injury... -
Page 6: Cautions
DS-3E1xxxP Series 100 Mbps PoE Switches Quick Start Guide result in an explosion. Do not leave the battery in an extremely high temperature environment, which may result in an • explosion or the leakage of flammable liquid or gas. Do not subject the battery to extremely low air pressure, which may result in an explosion or the •... -
Page 7: Introduction

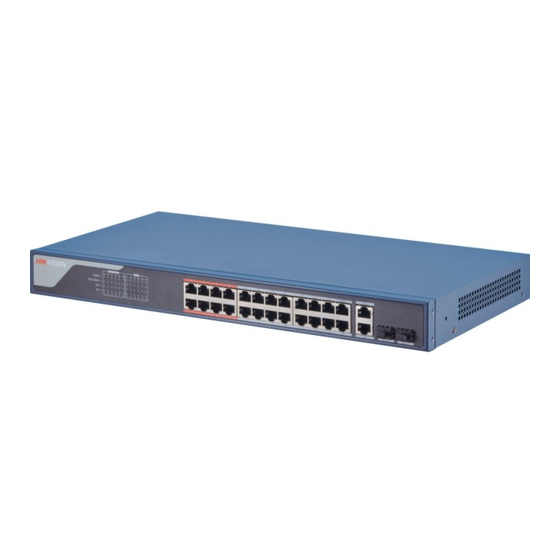

DS-3E1xxxP Series 100 Mbps PoE Switches Quick Start Guide 2 Introduction 2.1 Product Introduction DS-3E1xxxP Series switches (hereinafter referred to as “the device”) are layer 2 PoE switches, providing advanced PoE power supply technology on the basis of high-performance access. The switches support client management, network topology management, link aggregation, port management, and so on. - Page 8 DS-3E1xxxP Series 100 Mbps PoE Switches Quick Start Guide Rear Panel Figure 1-3 DS-3E1X05/09P Series Figure 1-4 DS-3E1318/26P Series Port/Indicator Description Indicator/Port Description Solid /Flashing: The output power of the switch will reach the upper limit. The • power supply may be abnormal if more devices are connected. PoE-MAX Indicator Unlit: The switch provides power supply to PD normally •...
-
Page 9: Installation
DS-3E1xxxP Series 100 Mbps PoE Switches Quick Start Guide 3 Installation Please select the appropriate installation method according to the actual needs. Before You Start Ensure that the desktop or rack is stable and firm enough. • Keep the room well ventilated. Keep at least 3.9" (10 cm) distance around the device for heat •... -
Page 10: Rack-Mounted Installation
DS-3E1xxxP Series 100 Mbps PoE Switches Quick Start Guide 3.3 Rack-Mounted Installation Steps 1. Check the grounding and stability of the rack. 2. Use the attached screws to fix the two L-shaped brackets to the sides of the switch. Figure 2-2 Fix L-Shaped Brackets 3. -
Page 11: Without Grounding Bar
DS-3E1xxxP Series 100 Mbps PoE Switches Quick Start Guide Figure 3-1 Grounding with Grounding Bar 4.1.2 Without Grounding Bar If there is no grounding bar, but the earth is nearby and the grounding body is allowed to be buried, follow the steps below. -
Page 12: Connecting Rj-45 Port
DS-3E1xxxP Series 100 Mbps PoE Switches Quick Start Guide 4.2 Connecting RJ-45 Port Use a network cable to connect the device to the RJ-45 port of a peer device such as network camera, NVR, switch, etc. Figure 3-3 RJ-45 Port Connection 4.3 Connecting SFP Optical Module Connecting SFP optical module is supported when the device has a fiber optic port or a combo. -
Page 13: Powering On The Device
DS-3E1xxxP Series 100 Mbps PoE Switches Quick Start Guide 5 Powering on the Device Use the power cord in the package to power on the device. Before powering your switch, make sure that: The operating power supply is compliant with rated input standard. •... -
Page 14: Adding Devices
DS-3E1xxxP Series 100 Mbps PoE Switches Quick Start Guide Figure 5-1 Online Inactive Device 5. Click Activate to open the Activation dialog. 6. Create a password in the password field, and confirm the password. CAUTION The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of eight characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. -
Page 15: Get More Information
DS-3E1xxxP Series 100 Mbps PoE Switches Quick Start Guide Port: You can customize the port number. The port number of the device is obtained automatically • in this adding mode. User Name: By default, the user name is admin. • •...
