- Page 1 DS-3D2208P Hardware Installation Manual...
-
Page 2: Table Of Contents
2.3.3 Cabinet Configuration ..........................7 2.3.4 Power Requirements ..........................8 2.4 Installation Tools and Device ..........................8 Chapter 3 Installing the DS-3D2208P Switch ........................9 3.1 Installation Flow of DS-3D2208P .......................... 9 3.2 Installing the Chassis of the Switch ........................9 3.2.1 Installing the Machine Box on the Desk .................... -
Page 3: Chapter 1 Ds-3D2208P Switch

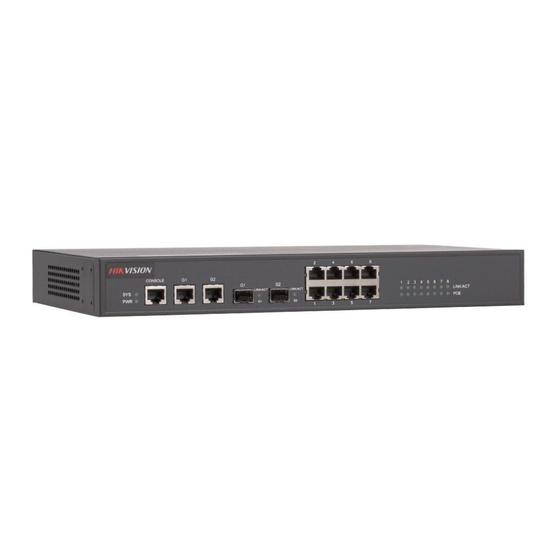

The document describes the characteristics and parameters of DS-3D2208P and gives an overview of DS-3D2208P. Standard Configuration The standard port settings of DS-3D2208P consists of 8 100M-Ethernet RJ45 ports, 2 gigabit-Ethernet RJ45 ports, 2 gigabit-Ethernet SFP optical ports and 1 Console port. For details, see table 1-1. -
Page 4: Characteristic Parameters Of Ds-3D2208P
If the PoE LED is on, the power has 8 PoE LEDs obtained the PoE power supply. Figure 0-2 Back faceplate of the DS-3D2208P switch Table 0-3 Parts at the back faceplate of the DS-3D2208P switch Abbrev. Name Remarks None "ON"... - Page 5 DS-3D2208P Hardware Installation Manual RFC 1157 SNMP v1/v2 Network RFC 1213 MIB II management standard RFC 1757 RMON 1,2,3,9 EPROM: 512K Bytes Memory Flash Memory: 8M Bytes SDRAM: 64MBytes 8 10/100BASE-T/PoE ports Standard configuration 2 10/100/1000 Base-T ports 2 1000M SFP optical ports...
-
Page 6: Rohs Description
DS-3D2208P Hardware Installation Manual ROHS Description - 4 -... -
Page 7: Chapter 2 Installation Preparation
Similar to other electronic products, the semiconductor chip easily gets damaged if you power on and off abruptly and frequently. To restart up the switch of DS-3D2208P, you have to open the power on-off three or five seconds after the power is cut off. -
Page 8: Safety Principles For Live Working
DS-3D2208P Hardware Installation Manual (11) Pull out the AC power socket and close the direct-current power before operating on the chassis or working beside the power source. (12) The final configuration of products must comply with relative national laws and regulations. -
Page 9: Electrostatic Discharge Prevention
DS-3D2208P Hardware Installation Manual Electrostatic Discharge Prevention Electrostatic discharge may damage devices and circuits. Improper treatment may cause the switch to malfunction completely or discontinuously. Move or locate the devices according to the measures of electrostatic discharge prevention, ensuring the chassis connects the ground. Another measure is to wear the static-proof hand ring. -
Page 10: Power Requirements
Installation Tools and Device The tools and devices to install the DS-3D2208P switch are not provided by the DS-3D2208P switch. You yourself need to prepare them. The following are the tools... -
Page 11: Chapter 3 Installing The Ds-3D2208P Switch
DS-3D2208P Hardware Installation Manual Installing the DS-3D2208P Switch Caution: Only professionals are allowed to install or replace the devices of the router. Installation Flow of DS-3D2208P Installing the Chassis of the Switch The chassis of the router can be installed on the desk or can be fixed to other cabinets. -
Page 12: Installing The Machine Box On The Desk
Installation Manual Installing the Machine Box on the Desk The DS-3D2208P switch can be directly put on the smooth and safe desk. Note: Do not put things weighing 4.5 kg or over 4.5 kg on the top of the switch. - Page 13 Installation Manual a console cable, you can configure and monitor the switch of DS-3D2208P by running a terminal emulation software, such as super Windows terminal. The cable is provided according to the host. The communication parameters of the terminal serial port can be set to a rate of 9600bps, eight data bits, one stop bit, no sum check bit and traffic control.
-
Page 14: Connecting Ethernet 100M Port
One end of the cable is a 8-pin RJ45 plug and the other end is a 9-hole plug (DB9). The RJ45 plug is put into the socket of the console port on the DS-3D2208P switch. The inner line connection in the cable is shown in figure 3-1. The console cable is numbered as RLC0301. - Page 15 Ethernet terminals. Figure 0-7 Connecting the 10/100Base-T port and other Ethernet terminals Note: The switch shown in the previous figure does not represent a real DS-3D2208P switch. Table 0-2 Definition of the pins of the RJ45 port...
-
Page 16: Connecting The 1000M-Ethernet Electric Port
Connecting the 1000M-Ethernet Electric Port DS-3D2208P provides 2 10/100/1000MBase-T ports, each of which corresponds to an LED that shows the link/ACT state of each port. If the LED is always on, it means the port is linked. If the LED flickers, it means that the data is transmitted through the port. -
Page 17: Connecting The 1000M Ethernet Sfp Port
3 Connecting the 1000M Ethernet SFP Port DS-3D2208P provides 2 1000M SFP optical ports. You can insert the SFP module and then connect it to other Ethernet terminal devices through the optical fiber if you want to use the 1000M SFP port. - Page 18 DS-3D2208P Hardware Installation Manual (44) Check whether the switch is correctly connected to other terminal devices. - 16 -...
-
Page 19: Chapter 4 Maintaining The Switch
(53) Open the cover by holding two sides of the cover towards the direction of the arrow key shown in the following figure: Note: The switch shown in the previous figure does not represent real DS-3D2208P switch. - 17 -... -
Page 20: Closing Chassis
Reinstall the switch on the cabinet or the desk. Reconnect all cables of the switch. Memory Upgrade SDRAM Expansion Because SDRAM of DS-3D2208P adopts the patch design, you have to offer your SDRAM expansion requirement before purchase. - 18 -... -
Page 21: Chapter 5 Hardware Fault Analysis
9600 bps, eight data bits, no sum check bit, one stop bit and no traffic control. LED Description The LED shows that the switch is running. The following table shows the LEDs of the DS-3D2208P switch and their description: Abbrev. Name Remarks... - Page 22 DS-3D2208P Hardware Installation Manual If the switch is powered on, the LED is Power LED If the LED is always on, the system is being started. System LED If the LED flickers, the system works normally. If the LED is always on, the link on the port is normal.
