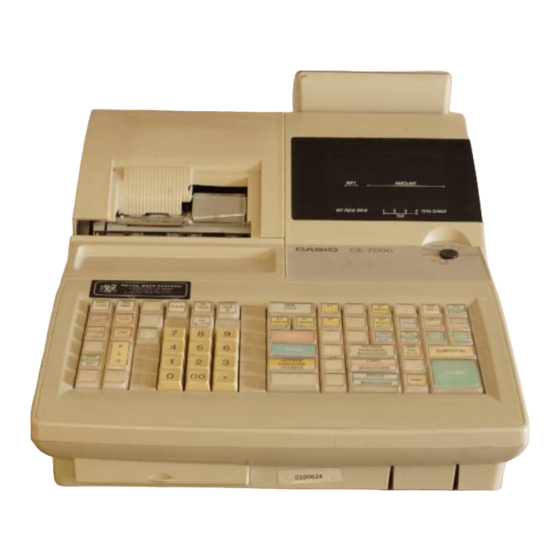

Casio CE-7000 Service Manual

Hide thumbs Also See for CE-7000:
Table of Contents

Advertisement

Quick Links

See also: Dealer's Manual , User Manual
SERVICE MANUAL
(without price)
ELECTRONIC CASH REGISTER
CE-7000
(EX-475B*,C*,D*)
FEB. 2000
Printer Model : M-U420-071
INDEX

Advertisement

Table of Contents
loading

Related Manuals for Casio CE-7000

Summary of Contents for Casio CE-7000

  • Page 1 SERVICE MANUAL (without price) ELECTRONIC CASH REGISTER CE-7000 (EX-475B*,C*,D*) FEB. 2000 Printer Model : M-U420-071 INDEX...

  • Page 2: Table Of Contents

    CONTENTS CE-7000 Page 1. SPECIFICATIONS..................1 2. INITIALIZE (MAC) OPERATION ..............4 3. F-INIT (FMAC) OPERATION ............... 4 4. BLOCK DIAGRAM ..................5 5. TO OPEN THE UPPER CASE ..............7 6. CIRCUIT EXPLANATION ................9 6-1. Power supply circuit ....................9 6-2.

  • Page 3: Specifications

    1. SPECIFICATIONS 1-1. Electrical specifications 120V 220V 230V 240V • Power consumption In operation Max. 0.7 A 0.4A 0.4A 0.4A Min. 0.3 A 0.2A 0.2A 0.2A Power OFF 0.3 A 0.2A 0.2A 0.2A • Memory protection Back-up battery VL3032/1F2 90 days (25 °C) Back-up period Battery life Replace the battery every 5 years.
  • Page 4 1-4. Drawer List DRAWER NAME Specification NOTE • DL-2766 (M type) D-9BC-B84M-9* EUROPE, Saudi-Arabia, Other countries • DL-2767 (M type) D-9BC-B84SM-9* UK, Germany • DL-2417 (M type) D-9BC-B55S-9* • DL-2517 (M type) D-9BC-B64S-9* Canada • DL-3616 (L type) D-11BH-B65SS-9* USA, Canada •...
  • Page 5 DEVICE NAME MODEL NOTE • Slip printer cable PRT-CB-8C Connect Com 2 or 3. (Cable lngth 1.5m) • External printer cable PRT-CB-8A Connect to Com 1,2 or 3. (Cable length 3 m) • External printer cable PRT-CB-8B Connect to Com 1,2 or 3. (Cable length 5 m) •...

  • Page 6: Initialize (Mac) Operation

    2. INITIALIZE (MAC) OPERATION (CE-7000) 1. Plug the power cord into an AC outlet. 2. Set the mode switch to "OFF" position. 3. While pressing the Journal feed Button, turn the mode switch to "PGM" position. 4. Release the Journal feed button.

  • Page 7: Block Diagram

    4. BLOCK DIAGRAM 4-1. PCB CONNECTION - 5 -...
  • Page 8 4-2. BLOCK DIAGRAM (CE-7000) Main display Main display Customer (Dot & segment) (Dot & segment) display Printer COM3 Segment driver Keyboard Driver M-U420-071 uPD16312GB-3B4 COM2 Driver COM1 Display controller uPD78015FGC526-AB8 ARCNET Printer driver IN-Line driver Display driver and Key control circuit...

  • Page 9: To Open The Upper Case

    5. TO OPEN THE UPPER CASE 1. Open the printer cover. Then, remove the ribbon cover from the machine. Open the printer cover. Remove the ribbon cover. 2. Remove the 2 screws of the upper case. Remove the 2 screws. 3.
  • Page 10 5. The each parts of the Main PCB are located as shown in the picture. RAM 1 (128 K bytes) Flash ROM 1 (2 M bytes) Reset Switch Printer cable Battery Power supply connector Buzzer Flash ROM 2 (512 K bytes) RAM 4 Display cable (Option RAM-610)

  • Page 11: Circuit Explanation

    6.CIRCUIT EXPLANATION 6-1. Power supply circuit The power supply circuit provides the following voltage for the main circuit. Output Pin No1----- VC1 (DC32.3V): To the VC line for the Display power. Output Pin No.2---- VC2 (DC24V): To the Vp line for the printer power. Output Pin No.3---- VLED (DC5.85V): To the Vcc,Vcc2 and Vdd for the logic circuit power.

  • Page 12: Reset And Power Down Circuit

    6-2. Reset and power down circuit The rest and power down circuit are as following circuit. The reset switch is provided for the hard reset to cleare the system error. Use this switch only when the FMAC or MAC are not possible to perform.

  • Page 13: Cpu Description

    CPU pin description(uPD784215GC-084-8EU) Pin No. Signal Name Description In/Out 1 P120 HEAD PIN DRIVE HD1 2 P121 HEAD PIN DRIVE HD2 3 P122 HEAD PIN DRIVE HD3 4 P123 HEAD PIN DRIVE HD4 5 P124 HEAD PIN DRIVE HD5 6 P125 HEAD PIN DRIVE HD6 7 P126 HEAD PIN DRIVE HD7...
  • Page 14 Pin No. Signal Name Description In/Out 51 P83 Bank selection RB3 52 P84 RB4/CB1 Bank selection RB4/CB1 53 P85 FB0/CB2 Bank selection FB0/CB2 54 P86 Bank selection FB1 55 P87 Connected to GND 56 P40 Data/address bus D0/A0 In/Out 57 P41 Data/address bus D1/A1 In/Out 58 P42...

  • Page 15: Momory Chip Selection Circuit

    6-4. Memory chip selection circuit The RAM chip select signals made by the following circuit. There are 4 chip enable signal lines for RAM selection and 3 chip enable signal lines for Flash ROM selection (including Memory cassette). RAM1 CE RAM2 CE RAM3 CE RAM4 CE...

  • Page 16: Flash Rom1 Address Circuit

    6-5. Flash ROM1 address circuit The Flash ROM1 address signals FA17 to FA20 are made by the following circuit. The Flash ROM1 (LH28F016SCT-L95, 16M bits) is used for the application program. Flash ROM1 (16M bits) CPU address BANK port Flash memory address NOTE A19 A18 A17 FC2 BANK...

  • Page 17: Flash Pack Circuit (Memory Cassette Rac-9)

    6-7. Flash Pack circuit (Memory Cassette RAC-9) The Memory Cassette RAC-9 (2 M bytes) is possible to connect to the Flash Pack connector CN17 of the Main PCB E475-1. [RAC-9 circuit diagram] Flash Pack connector - 15 -...

  • Page 18: Memory Map

    6-8. Memory map The memory table is as follows: RAM enable 2CS 3CS 4CS 8CS CCS A18 A19 RAM BANK Flash BANK RAM1 RAM2 RAM3 RAM4 Flash1 Flash2 Flash pack RB0 RB1 RB2 RB3 RB4 FB0 FB1 FB2 C S A16 C S CS2 A16 C S A16 A17 A18 C S A16 A17 A18 C S A18 C S...

  • Page 19: Printer Drive Circuit

    6-9. Printer drive circuit The printer drive circuit is as follows: IC5 (MTA001M-F4101) is the head pin driver IC. And, the Transistors Q6,Q7 and Q8 are the motor drive circuit. The IC1 (TA8429H) is the auto paper cut driver circuit. 6-10.

  • Page 20: Rs232C Port Com2 And Com3 Circuit

    6-11. RS232C port COM2 and COM3 circuit The circuits of COM2 and COM3 are as follows: TP48 COM3 COM2 The COM2, and COM3 port pin locations are as shown below: COM2 port COM3 port Signal Signal Pin VCC(+5V) - 18 -...

  • Page 21: Keyboard Selection Switch

    6-12. Keyboard selection switch The main PCB has the keyboard selection switch to detect the keyboard type. For the model CE-7000, set the switch to S position for the stroke key type. Keyboard selection switch 6-10. To mount optional circuit The following optional circuits are provided for this model.
  • Page 22 1-3. Connect the clerk key cable sub ass'y to the clerk key unit. Also, fix the FG wire by the fixing pin and the screw. Clerk cable sub ass'y Clerk key unit Pin No. Wire color Printed mark on PCB White Blue Yellow...

  • Page 23: Multi-Drawer Circuit

    1-6. Remove the clerk button unit form the upper case. Then, replace the model key plate. Remove the mode key plate. Then, fix new mode key plate. Upper case 2) Multi-drawer kit 2-1. Prepare the following parts kit for multi-drawer circuit. The parts kits are supplied from sales division.

  • Page 24: Paper Near End Sensor Circuit

    2-4. Open the back cover of lower cabe to release the 2 screws. Then, connect the necessary extension cable for drawer. In this case, do no forget to fix the FG wire of the extension cable to the frame ground by the screw. Release the 2 screws and open the Fix the FG wire of the Connect the extension...

  • Page 25: Display Controller Upd78015Fgc526-Ab8

    3-3. Fix the paper near end sensor to the lower case by 2 screws and connect the sensor connector to the main PCB. 1903 0101 19077906 62366288 1907 6948 Main PCB 2P connector 6-14. Display controller uPD78015FGC526-AB8 - 23 -...

  • Page 26: Segment Display Driver Upd16312Gb-3B4

    Pin No.Signal Name Description In/Out Pin No. Description In/Out 1 TO0 BLINK OUT 33 WAIT CONNECTED TO GND 2 TO1 BK1 SIGNAL 34 ASTB CONNECTED TO GND 3 TO2 BK2 SIGNAL 35 RESET VFD RESET SIGNAL 4 TI1 36 INTP0/TI0 VFD BK 5 TI2 CLKG...

  • Page 27: Dc/Dc Convertor Circuit

    VD3 = DC58V 6-17. ARCNET circuit (I/O PB14) For the model CE-7000, the ARCNET board I/O PB14 is installed from the factory. It is possible to connect up to 32 units without scanning system (scanning system up to 4 units) through the ARCNET In-line connection.
  • Page 28 Pin No.Pin Name N a m e In/Out Status of OFF Status of ON Status of ON Description No Token Token 1 A0/nMUX Address 0-2 Pulse On a non-multiplexed bus, 2 A1 these signals are directly 3 A2/ALE connected to the lower 3 bits of the address bus.
  • Page 29 Power GND Power supply GND 14 VSS Power GND 22 VSS Power GND 2. ARCNET In-line circuit The In-line circuit is as follows: CE-7000 has the ARCNET In-line board I/0 PB-14. ARCNET In-line circuit board I/0 PB-14 - 27 -...
  • Page 30 20 units 430 m 156.25 K bps 32 units 890 m 2) In-line cable and connector CASIO TECHNO will supply the In-line cable, connector and terminater parts by the following parts code. In line cable Code No. Parts name Specification...
  • Page 31 4) To connect the In-line cable Connect the In-line cable and connector as shown below: Connector at the enc of In-line cable Terminal cap In-line connector In-line cable Wrap bent shield wire Black with Copper tape. Shield wire Terminater (100 ohms) Notes: 1.
  • Page 32 Connect the In-line In-line port Release the 2 screws to remove cable shield wire to (ARCNET) the bachk cover. FG plate. To connect the In-line cable, release the 2 screws from the back cover. Then, remove the Back cover. And, put the In-line connector to the ARCNET In-line port. Do not foget to connect the shield wire (copper tape part) to the FG plate by the cable supporter with screw.

  • Page 33: Diagnostic Operation

    7. DIAGNOSTIC OPERATION 7-1. To start the diagnostic program 1. Plug the power cord into an AC outlet. 2. Set the mode switch to "OFF" position. 3. While pressing the "Jounal feed " button, turn the mode switch to "PRG" position. 4.

  • Page 34: Switch Status Test

    7-4. Switch status test Press "C" button or changing the switch condition,the switch status is appeared on the transaction place of the display. The clerk key switch condition is shown at the 6 and 7 digit number's place of display. For the clerk button model, the pressed LED will light on. [DISPLAY] Allways off Allways off...

  • Page 35: Individual Function Test

    7-5. Individual function test 1) Series test This test will perform the following tests in series. 1. Display test (All dot and segment trun on.) 2. RAM read after write test (one time) 3. Print test (one time) 4. Time display test 5.
  • Page 36 2) Print aging test (R/J printer) This test will check the R/J printer continuously until pressing some key button or turn off the mode switch. Operation : n1 #2 Key X: 0= Print 45 times test pattern without paper cut in a minute. 1= Print 15 times test pattern with paper cut in a minute.
  • Page 37 5) Print test (R/J printer) This test will check the R/J printer. To stop the continuous printing, press some key button or turn off the mode switch. Operation : n1 #2 Key X: 0= One time print 1= Continuously print n: 0= Display test pattern 1= All dots and segment will light on.
  • Page 38 8) Flash1 ROM check This test will check the Flash 1 ROM. This test will print the version name and check sum on the receipt as shown in sample print. When using several bank, the each version name and check sum will be printed after this sample data. Operation : #2 Key [PRINT]...
  • Page 39 11) Flash2 ROM and Flash pack check This test will check the Flash 2 ROM and Flash pack. This test will perform the erase, write, and verify check. Operation : n1 n2 #2 Key s: 0= Select Flash2 1= Select Flash pack X: 5= Test by one block (64 bytes) Select the block by the Number n (from 0 to 9).
  • Page 40 12) Flash ROM and Flash pack device information check This test will check the Flash ROM and Flash pack device infromation . Thie device signature code (Maker code, device code) and write protect information will be printed on the receipt. Operation : #2 Key s: 0= Select Flash2...
  • Page 41 14) RAM read only check This test will check the read only check for RAM. Perform the RAM check (EX: command "1 and #2 " ), before start of this operation. Operation : #2 Key X: 0= One time check. 1= Continuous check.
  • Page 42 16) RS232 port check This test will check the RS232 port. Connect the loop back connector before operate this check. Operation : #2 Key m: 0= One time loop check 1= Loop check continuously 2= One time loop check (Ignore the CD,CI signals. Only COM1 port) 3= Loop check continuously (Ignore the CD,CI signals.
  • Page 43 17) Print check This test will check the print test. Operation : #2 Key r: 0= One time check 1= Continuously check (NOTE1) s: 0= Receipt/Journal print mutually 1= Receipt print only 2= Journal print only NOTE1: To stop this test, press any key or set the mode switch to OFF position. [PRINT] [DISPLAY] Dot display...
  • Page 44 NOTE: When use the command print and display, press #1 key (Cash AMT tender key) to display and print the next line. To stop this test, press any key or set the mode switch to OFF position. [PRINT] [DISPLAY] Dot display DIAG MODE QA version Segment display...
  • Page 45 20) Dot display check This test will display the some dot test pattern. Operation : 8 #2 Key 0= Pattern selection 1= Pattern selection 2= Pattern selection 3= Pattern selection n= After n dot lines, reverse the dot condition. 0= After 16 dot lines, reverse the dot condition. yy:00= Change the test pattern each about 1 sec.
  • Page 46 22) Date time set test The machine will set the time or the date. Opeartion : n1 n2 n3 n4 n5 n6 X: 0= Time set (n1 n2: Time, n3 n4: Minute, n5 n6: Second) 1= Date set (n1 n2: Year, N3 n4: Month, n5 n6: Day) [PRINT] [DISPLAY] Dot display...
  • Page 47 24) Scanner test This operation will test the scanner operation. Opeartion : 7 #2 n: 0= Scanner read test Scanner read some bar code by this command. #1 key will change the LED light on/off control. 1= Compare the read data test. (Compare with code "49491004".) X: 0= 2,400 bps and even parity 1= 9,600 bps and even parity 2= 2,400 bps and odd parity...
  • Page 48 Opeartion : b: Baud rate selection 0= 19,200 bps 1= 9,600 bps 2= 4,800bps 3= 2,400bps 4= 38,400 bps m: Test Mode selection 0= Self loop test 1= Reception mode 2= Send mode ZZ: Time out number (seconds) input between data (default is 3 seconds.
  • Page 49 26) In-line (ARCNET) test This operation will test the In-line (ARCNET) function. This test need the reception machine as shown below; Send Receive In-line In-line In-line cable Wiring diagram for the connection cable Signal Pin Signal Pin In-line port In-line port Opeartion : b: Baud rate selection 0= 156 K bps...
  • Page 50 2) MODE 2 Reception mode 2: Check the receive data only. Send mode 2 : Send the test data each one second continuously. This action will continue until making the stop operation. RETRY OPERATION 1) Reception side: (Reception mode 1 is selected.) Until 7 times continuous error, retry the reception.

  • Page 51: To Exit The Diagnostic Mode

    27) In-line (ARCNET) initial test This operation will initialize the In-line (ARCNET) function. And , when the machine is connected to the other machine, the token signal is sent to the other machine. Send Receive In-line In-line In-line cable Wiring diagram for the connection cable Signal Pin Signal Pin In-line port...

  • Page 52: Error Code List

    8. ERROR CODE 8-1.Operation error code When an error condition is generated, one of the following error codes (E001 – E205) is displayed to indicate the cause of the error and the corrective action. s t i i t t i t i z i l z i l...
  • Page 53 . l l i l a l i a . l l i l a e t t < > i l a i t s f f i . r e e t t < > f i ( i t s <...
  • Page 54 8-2. System error code e l i e l i e l i e l i i t a . s t i l l e t i e t t r r I e l i e l i i t a i t r e t t...

  • Page 55: Ic Data

    9. IC DATA 1. BA10393F-E2 2. HA17431PA 3. HD74LVC244ATELL Don't care High impedance 4. HD74LVC245ATELL Don't care High impedance - 53 -...
  • Page 56 5. HD74LVC374ATELL 6. HIN202CBN-T 7. HIN211CA-T - 54 -...
  • Page 57 8. HY628100ALLG-70 9. LC7932M-TE-R - 55 -...
  • Page 58 10. LH28F004SCT-LB5 - 56 -...
  • Page 59 11. LH28F016SCT-L95A - 57 -...
  • Page 60 12. LM2576HVT-5.0LB03 13. MB3800PF Pin No. Name Description Input for Error Amp. Soft start/ SPC preset capacitor terminal Power supply Output current preset/ control terminal Output terminal (totem pole type) Oscillation friquency preset capacitor/ resister connection terminal Error amp. output terminal Basic sorce Saw-tooth voltage...
  • Page 61 14. MTA001M-F4101 15. S-80823ANNP-EDL/S-80835ALNP-EAZ (2) CMOS active low output (1) Nch open drain active low output S-808XX AX XX - - T2 Tape spec. IC direction Production short No. Package No. NP: SC-82AB MP: SOT-23-5 UP: SOT-89-3 Y: TO-92 Output N: Nch open drain (Active "L") L: CMOS (Active "L") Detection Voltage X 10 times...
  • Page 62 17. SN74HC157APWR 18. SN74HC27PWR 19. SN74LV00APWR 20. SN74LV02APWR - 60 -...
  • Page 63 21. SN74LV08APWR 22. SN74LV138APWR 23. SN74LV139APWR - 61 -...
  • Page 64 24. SN74LV165APWR 25. SN74LV174PWR - 62 -...
  • Page 65 26. SN74LV244APWR 27. SN74LV245APWR 28. SN74LV32APWR - 63 -...
  • Page 66 29. SN74LV373APWT-EL 30. SN74LV373APWT-EL 31. SN74LV74APWR - 64 -...
  • Page 67 32. SN751178NS-EL Input Enable Output 33. TA8429H Control circuit Heat protection circuit Over current protection INPUT OUTPUT OUTPUT MODE Brake Reverse rotation Positive rotation High impedance Stop High impedance Stand by - 65 -...
  • Page 68 34. TC74VHC123AFT - 66 -...

  • Page 69: Pcb Layout

    10. PCB LAYOUT MAIN PCB (Front side) - 67 -...
  • Page 70 MAIN PCB (Back side) - 68 -...

  • Page 71: Circuit Diagram

    11. CIRCUIT DIAGRAM MODEL : CE-7000 (EX-475B*,C*,D*) CONTENTS 1. LOCATION OF PRINTED CIRCUIT BOARD..............70 2. MAIN PCB CIRCUIT ......................72 2-1. MAIN PCB CIRCUIT (1/6) ..................72 2-2. MAIN PCB CIRCUIT (2/6) ..................73 2-3. MAIN PCB CIRCUIT (3/6) ..................74 2-4.
  • Page 89 - 87 -...
  • Page 90 - 88 -...
  • Page 91 - 89 -...
  • Page 92 - 90 -...
  • Page 93 - 91 -...

  • Page 94: Parts List

    2. As for spare parts order and supply, refer to the “GUIDEBOOK for Spare Parts Supply”, published separately. 3. The numbers in item column corespond to the same numbers in drawing. 4. CASIO does not supply the spare parts without parts code. 5. Remarks Q'ty :...

  • Page 95: Explode View

    - 93 -...
  • Page 96 Battery only RAC-9 - 94 -...

  • Page 97: Main Pcb Block

    N Item Code No. Parts Name Specification Q'ty Price R Other Saudi Code Europe Germany Canada Countries Arabia 1. Main PCB block 1 61935380 PCB ASSY/E475-1 E240580*6 1 61935381 PCB ASSY/E475-1 E240580*5 30007777 FUSE 230.600 21145832 IC/MOS TA8429H IC10 10005687 LSI UPD784215GC084-8EU 1 BW N IC11...

  • Page 98: Main Display Block

    N Item Code No. Parts Name Specification Q'ty Price R Other Saudi Code Europe Germany Canada Countries Arabia 30008096 SWITCH SKQLLD-T 10004466 SWITCH/SLIDE SSSS823-B-3B 10014177 SPACER/PCB E440986-1 C1, 2, 6, 8-13, 20-24, CAPACITOR/CHIP TMK107F104ZZ-T 28, 31, 32, 35, 37, 39, 41, 43, 47-52, 55, 58- 60, 64, 65, 67, 68, 73- 76 79 81 82...

  • Page 99: Customer Display Block

    N Item Code No. Parts Name Specification Q'ty Price R Other Saudi Code Europe Germany Canada Countries Arabia N C13 28073653 ELECTROLYTIC/CHIP RVJ-50V101MH10-R N C14 28073657 ELECTROLYTIC/CHIP RVJ-100V220MH10-R N C16 28073656 ELECTROLYTIC/CHIP RVL-35V220MF60-R N C8 28073654 ELECTROLYTIC/CHIP RVL-16V100MD60-R N CA1-9 28073624 CAPACITOR/MODULE MNA145A101KK 35405185 CONNECTOR...
  • Page 100 N Item Code No. Parts Name Specification Q'ty Price R Other Saudi Code Europe Germany Canada Countries Arabia 34 62471478 FILLER/BUTTON E311197-2 35 62481295 SPACER E340738-1 36 62461990 FILLER/BUTTON E412129-1 37 62481736 PLATE/MODE KEY E475BB E340735A-10 37 62481737 PLATE/MODE KEY E475BC E340735A-11 38 62481296 CHASSIS/KEYBOARD E340739-1...

  • Page 101: Power Supply Block

    N Item Code No. Parts Name Specification Q'ty Price R Other Saudi Code Europe Germany Canada Countries Arabia 5. Power supply block 40 10013899 PCB/E445-S1 E340808A-1 40 10017368 PCB/E445-S1 E340808A-2 N F1 10017330 FUSE 2371.25 36310332 FUSE 218001 N F2 10017328 FUSE 213002 N F3...

  • Page 102: Connector Board

    N Item Code No. Parts Name Specification Q'ty Price R Other Saudi Code Europe Germany Canada Countries Arabia 21120802 IC SN74LV373APWT-EL 21120801 IC SN74LV32APWT-EL 21056442 IC SN751178NS-EL 10006030 LOCK/CERAMIC CSTCV20.00MXJ040-T D!-4 30007959 DIODE 1SS376TE-17 23153115 DIODE PTZTE-255.1B N C6 28073647 CAPACITOR/ELECTROLYTIC RV2-16V101MS-R 10005643 CONNECTOR HFW28S-2STE1...

  • Page 103: Printer Block

    N Item Code No. Parts Name Specification Q'ty Price R Other Saudi Code Europe Germany Canada Countries Arabia 86 62481646 GUIDE/ROM E475 E240524-1 CLIP CS-4U CONTACT SPH-002T-P0.5S CONTACT 1561T CONTACT SPH-002T-P0.5S CONTACT SRA-51T-4 CONTACT/PIN SYM-01T-0.7 HOUSING PHR-2 HOUSING XLR-02V HOUSING 1625-03R1 HOUSING PHR-3...

  • Page 104: Printer (M-U420-071)

    15. PRINTER (M-U420-071) - 102 -...
  • Page 105 PARTS PRICE LIST M-U420(071) Item Code No. Parts Name Specification Q Price Code R 1. DRIVING MECHANISM COMPONENTS 19092776 LEVER/FIXING J 1004032 19092777 SPRING/FIXING LEVER 1004033 19092775 LEVER/FIXING R 1004031 94870506 MAIN MOTOR ASSY 1049277 94870505 GEAR/MAIN MOTOR 1049273 19060719 WIRE/LEAD A 2021071 19060720 WIRE/LEAD B 2021072...
  • Page 106 Item Code No. Parts Name Specification Q Price Code R 19060763 SHAFT/PAPER FEED ASSY 1028544 94870513 SHAFT/PAPER EXTENSION ASSY 1059877 19060804 SHAFT/PAPER FEED PRESSURE 1028046 19060765 PLATE/PAPER GUIDE 1028048 94870510 ROLLER/PAPER HOLD 1052541 19092805 RING/RETAINING TYPE-E(2.5) 1004399 19060767 SPRING/PAPER GUIDE PLATE 1028049 94870514 PAPER GUIDE/UPPER SET 1061952...

  • Page 107: Drawer

    16. DRAWER DL-2766 (M type) Europe,Saudi-Arabia, Other countries - 105 -...
  • Page 108 DL-2766 (M type) Europe, Saudi-Arabia, Other countries Item Code No. Parts name Specification Q'ty Price Code RANK 19061309 CHASSIS/BOTTOM 264D-1101 55000619 ROLLER/DERLIN DR-19-B1 55000878 ROLLER/DERLIN DR-19-B2 19079682 WASHER SW-M6 19077150 NUT HN-M6 19081339 BRACKET/LOCK 37A-B150 19061304 SOLENOID 262A-S153 94870398 SCREW CPS-M3X5 19064012 BRACKET/SHAFT GUIDE 37A-1503...

  • Page 109: Dl-2767 (M Type) Uk, Germany

    DL-2767 (M type) UK, Germany - 107 -...
  • Page 110 DL-2767 (M type) UK, Germany Item Code No. Parts name Specification Q'ty Price Code RANK 19061309 CHASSIS/BOTTOM 264D-1101 55000619 ROLLER/DERLIN DR-19-B1 55000878 ROLLER/DERLIN DR-19-B2 19079682 WASHER SW-M6 19077150 NUT HN-M6 19081339 BRACKET/LOCK 37A-B150 94870387 SOLENOID 262A-S154C 94870400 TIE/INSULOCK P12-1555 94870395 BRACKET/SHAFT GUIDE 808R-1910 94870397 SCREW CP-M2.3X10...

  • Page 111: Dl-2417 (M Type) Usa

    DL-2417 (M type) USA - 109 -...
  • Page 112 DL-2417 (M type) USA Item Code No. Parts name Specification Q'ty Price Code RANK 19061309 CHASSIS/BOTTOM 264D-1101 55000619 ROLLER/DERLIN DR-19-B1 55000878 ROLLER/DERLIN DR-19-B2 19079682 WASHER SW-M6 19077150 NUT HN-M6 19081339 BRACKET/LOCK 37A-B150 94870387 SOLENOID 262A-S154C 94870400 TIE/INSULOCK P12-1555 94870395 BRACKET/SHAFT GUIDE 808R-1910 94870397 SCREW CP-M2.3X10...

  • Page 113: Dl-2517 (M Type) Canada

    DL-2517 (M type) Canada - 111 -...
  • Page 114 DL-2517 (M type) Canada Item Code No. Parts name Specification Q'ty Price Code RANK 19061309 CHASSIS/BOTTOM 264D-1101 55000619 ROLLER/DERLIN DR-19-B1 55000878 ROLLER/DERLIN DR-19-B2 19079682 WASHER SW-M6 19077150 NUT HN-M6 19081339 BRACKET/LOCK 37A-B150 94870387 SOLENOID 262A-S154C 94870400 TIE/INSULOCK P12-1555 94870395 BRACKET/SHAFT GUIDE 808R-1910 94870397 SCREW CP-M2.3X10...

  • Page 115: Dl-3616 (L Type) Usa,Canada

    DL-3616 (L type) USA, Canada - 113 -...
  • Page 116 DL-3616 (L type) USA, Canada Item Code No. Parts name Specification Q'ty Price Code RANK 19077272 LOCK ASSY ZD00290-0 19060672 NUT M4XP0.7 94870383 LABEL DL-3616 19079613 WIRE/FG ZD31670 19070223 CONNECTOR 1625-03PI 19027112 GROMET 19027076 SPRING ZD01370B 19026829 RUBBER/DAMPER K2320 19070234 SCREW/TAPPING M4X16 19026842 ROLLER/DERLIN DR-19B...

  • Page 117: Dl-3617 (L Type) Saudi-Arabia

    DL-3617 (L type) Saudi-Arabia - 115 -...
  • Page 118 DL-3617 (L type) Saudi-Arabia Item Code No. Parts name Specification Q'ty Price Code RANK 19077935 LOCK ASSY ZD00280-0 19060672 NUT M4XP0.7 94870384 LABEL DL-3617 19079613 WIRE/FG ZD31670 19070223 CONNECTOR 1625-03PI 19027112 GROMET 19027076 SPRING ZD01370B 19026829 RUBBER/DAMPER K2320 19070234 SCREW/TAPPING M4X16 19026842 ROLLER/DERLIN DR-19B...
  • Page 119 CASIO TECHNO CO.,LTD. Overseas Service Division Nishi-Shinjuku Kimuraya Bldg. 1F 5-25, Nishi-Shinjuku 7-Chome Shinjuku-ku, Tokyo 160-0023, Japan...
