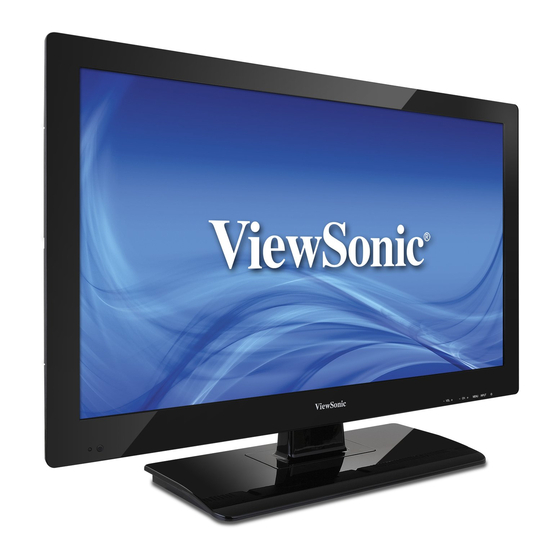

VT2756-L/VT2406-L
Professional LCD TV display
User Guide
IMPORTANT: Please read this User Guide to obtain important information on installing
and using your product in a safe manner, as well as registering your product for future
service. Warranty information contained in this User Guide will describe your limited
coverage from ViewSonic Corporation, which is also found on our web site at http://
www.viewsonic.com in English, or in specific languages using the Regional selection
box in the upper right corner of our website. "Antes de operar su equipo lea cu
idadosamente las instrucciones en este manual"
Model No. VS15628/VS15627

Advertisement

Table of Contents
loading

Related Manuals for ViewSonic VT2756-L

Summary of Contents for ViewSonic VT2756-L

  • Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http:// www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website.

  • Page 2: Table Of Contents

    Installing the LCD TV ....................2 Installing the Stand ..................... 2 Disconnecting the Stand ..................2 Mounting ViewSonic LCD TV to the wall ............3 Wall Mount Kit Specifications (VESA) ..............4 Front View of the Product ..................5 Rear View of the Product ..................6 Connecting the LCD TV ...................7...

  • Page 3: Compliance Information

    Compliance Information FCC Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 4: Declaration Of Rohs2 Compliance

    Declaration of RoHS2 Compliance This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below: Proposed Maximum...

  • Page 5: Copyright Information

    _________________________________ Product disposal at end of product life ViewSonic respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit ViewSonic website to learn more. USA & Canada: http://www.viewsonic.com/company/green/recycle-program/ Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/...

  • Page 6: Important Safety Instructions

    • When disconnecting the power cord, grasp the plug instead of pulling the power cord. 1. Read these instructions completely before using the equipment. • Use only an original ViewSonic AC power cord, not other 2. Keep these instructions in a safe place. brands. 3. Heed all warnings.

  • Page 7: Carrying The Tv

    Disclaimer levels, or hearing damage may result. Some chemical cleaners have been reported to damage the screen and/or case of the LCD TV. ViewSonic will not be liable for damage resulting from use of these cleaners. ANTENNAS Outdoor antenna grounding...
  • Page 8 • Never block the slots and openings by into the product, unplug the power cord and placing the TV on a bed, sofa, rug or other contact ViewSonic. similar surface. • Do not operate the TV when wet. It may result in electric •...

  • Page 9: Lcd Screen

    exposed to extreme temperature, the TV may overheat and Broken pieces cause deformation of the enclosure or cause malfunction. Do not throw anything at the TV. • Do not install the TV in a place exposed to direct air Doing so may break the screen glass and conditioning.

  • Page 10: Getting Started

    AUDI AUDIO IN Pr/C Pb/C ViewSonic CD ViewSonic Quick Start Guide Power Cord (User Guide) (for US model) The photos of the accessories are for reference only, the color of the remote control, the type of power cord are variable based on the actual models.

  • Page 11: Installing The Lcd Tv

    Getting Started Installing the LCD TV Installing the Stand Figure 1 Figure 2 Figure 3 REMOTE PC/VGA VIDEO AUDIO IN CONTROL PC/VGA IN AUDIO Pb/Cb Pr/Cr 1. Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.

  • Page 12: Mounting Viewsonic Lcd Tv To The Wall

    • Do not install near heat source, or strong magnetic fields. • Use only ViewSonic approved wall-mounting brackets to support the LCD TV weight. • Before attaching the wall mount plate to the back cover, ensure the product is working.

  • Page 13: Wall Mount Kit Specifications (Vesa)

    100 x 100 mm M4 x L12 • ViewSonic provides the standard dimensions for wall mount kits as shown in the table above. • To find the perfect mount, please browse www.viewsonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775, Europe +44 (0) 207 382 8250.

  • Page 14: Front View Of The Product

    Getting Started Front View of the Product Item Icon Description LED Indicator Blue indicates power on. Red indicates standby mode. Remote Control Receive IR signals from the remote control. Receiver Decrease the volume. VOL - Move to the left or adjust the setting on the OSD menu. Volume Increase the volume.

  • Page 15: Rear View Of The Product

    Getting Started Rear View of the Product REMOTE PC/VGA VIDEO AUDIO IN Pb/Cb Pr/Cr CONTROL PC/VGA IN AUDIO REMOTE PC/VGA CONTROL PC/VGA IN AUDIO VIDEO AUDIO IN Item Description Power (AC input) Connect to the AC input power source. Connect to an IR emitter. This will enable the remote control of Remote Control output external equipment.

  • Page 16: Connecting The Lcd Tv

    Getting Started Connecting the LCD TV Cable System or VHF/UHF Antenna System Enjoy the high-definition and standard-definition digital programming along with standard-definition analog programming. ☼ • This TV is capable of receiving unscrambled digital programming for both cable and external VHF/ UHF antenna.
  • Page 17 Getting Started DVI Connection HD cable box / HD satellite box COMPONENT LINE OUT VIDEO OUT Rear side of the TV DVI-HDTV OUT PC/VGA AUDIO VIDEO PC/VGA IN AUDIO VIDEO AUDIO IN HDMI OUT Audio cable CATV / Satellite antenna cable DVI-to-HDMI cable DVI-to-HDMI cable DVI-to-HDMI adapter...
  • Page 18 Getting Started YPbPr or Component Connection HD cable box / HD satellite box COMPONENT LINE OUT Rear side of the TV VIDEO OUT DVI-HDTV OUT PC/VGA PC/VGA IN AUDIO VIDEO AUDIO IN AUDIO VIDEO HDMI OUT Component CATV / Satellite cable antenna cable Audio cable...

  • Page 19: Personal Computer

    Getting Started Programming your Cable or Satellite Box remote Refer to the user manual from your service provider to determine the setting. If it requires: • 3 digits, please try “566”, “565”, “556”, or “688”. It usually works with DISHNetwork. •...

  • Page 20: Using The Tv Features

    Using the TV Features Remote Control and TV Controls Inserting Remote Control Batteries 1. Remove the battery cover by pulling then lifting the knob on the cover. 2. Insert the batteries, corresponding to the (+) and (-) markings on the battery compartment. 3.

  • Page 21: Button Description

    Using the TV Features Button Description 0~9, - Press the respective button to select a channel. number After you input the channel numbers, press buttons ENTER to direct to the channel immediately, or wait for 3 seconds to change automatically. - VOL + Press to adjust the volume.
  • Page 22 Using the TV Features Button Description 10 SOUND Press this button repeatedly to select the preset sound mode. Available options: Standard, Soft, User or Dynamic. 11 MTS Press this button to choose the available sound output that is preset by TV broadcasting station. Available options: Mono, Stereo, or SAP.

  • Page 23: Operation

    Using the TV Features Operation Turning the TV On and Off Press on the remote control. You can also use the key on the front side of the panel. j If there is no input signal within 10 minutes, TV will be turned off automatically.
  • Page 24 Using the TV Features Changing Channels 1. Using Channel Buttons Press ▼CH▲ to change channels, and the TV changes the available channels in sequence. 2. Using Number Buttons (1) ATV The “-” has no function in ATV mode. Directly press the number buttons to select channels.
  • Page 25 Using the TV Features Selecting the Input Source To select the TV or other external input sources connected to the Source Select Source Select 1. Press INPUT on the remote control. 2. Press ▲ or ▼ to select the desired input source. YPbPr YPbPr 3.
  • Page 26 Using the TV Features Skipping Channel When the channel is skipped, it will not appear on the screen when you browse the channels with ▼CH▲ button. To skip a channel: CHANNEL CHANNEL 1. Press MENU to display the OSD main menu. Channel List Favorite List 2.

  • Page 27: Movie Rating

    Using the TV Features Using the Parent Controls With PARENT CONTROL, you can block television and movie programming based on Movie and TV ratings. Password is required to access the PARENTAL CONTROL menu. The default is “0000”. To manage programs using the US Ratings system: PARENTAL CONTROL PARENTAL CONTROL 1.
  • Page 28 Using the TV Features TV Rating 1. Press ▲ or ▼ to select TV Rating, then press ► to enter its submenu. Movie Rating TV Rating :Return :Move :Go to Next Menu MENU MENU ENTER ENTER TV RATING TV RATING 2.
  • Page 29 Using the TV Features English Rating 1. Press ▲ or ▼ to select English Rating, then press ► to enter its CANADA CANADA submenu. English Rating French Rating :Return :Move :Go to Next Menu MENU MENU ENTER ENTER 2. Press ▲ or ▼ to select your desired Canadian English rating ENGLISH RATING ENGLISH RATING level.

  • Page 30: Changing Password

    Using the TV Features Blocking Unrated Movie or TV Programs To block the unrated movies or TV programs: 1. Press MENU to display the OSD main menu. V-CHIP V-CHIP 2. Press ◄ or ► to select PARENTAL menu, then press ENTER to US V-Chip Canada V-Chip enter the menu.
  • Page 31 Using the TV Features Blocking Selected Input Source To block the selected input source: 1. Press MENU to display the OSD main menu. PARENTAL CONTROL PARENTAL CONTROL Lock Parental Control 2. Press ◄ or ► to select PARENTAL menu, then press ENTER to V-CHIP enter the menu.
  • Page 32 Using the TV Features Customizing PC Display Connect the PC and your TV using the VGA cable. See “Personal Computer” on page 10. 1. Press INPUT to display the Source Select menu. PICTURE PICTURE 2. Press ▲ or ▼ to select PC, then press ENTER to confirm the Picture Settings setting.
  • Page 33 Using the TV Features Using USB Function Your TV is equipped with a USB connector that enables you to view photos or listen to music stored on a USB storage device. j USB only supports JPEG and MP3 files. Multimedia support format Multimedia File Decoder...
  • Page 34 Using the TV Features 3. During the playback, do the following: • To pause the playback, press ◄ or ► to select icon, then press ENTER. Press ◄ or ► to select icon, then press ENTER to resume. Name : Music001.MP3 Date : 2012/1/1 12:00:00 Size...
  • Page 35 Using the TV Features Adjusting On-Screen Display (OSD) Settings 1. Press MENU to display the OSD main menu. PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS 2. Press ◄ or ► to select the main menu, then press ENTER to enter the selected menu. 3.
  • Page 36 Using the TV Features Menu item Description ADVANCED PICTURE SETTINGS ADVANCED PICTURE SETTINGS Dynamic Contrast Backlight Adjust the backlight that affects the overall Film Mode brilliance of the picture (High / Medium / Low). Noise Reduction Medium MPEG Noise Reduction Medium Advanced Set additional picture settings:...

  • Page 37: Parental Control Menu

    Using the TV Features Channel Menu (Only available on TV source) Menu item Description CHANNEL CHANNEL Channel List Channel List View the list of the available channels. Favorite List Favorite List View your favorite channel list. Channel Settings Signal Type Channel Set the channel settings.

  • Page 38: Setup Menu

    Using the TV Features Setup Menu Menu item Description SETUP SETUP Closed Caption Closed Set Closed Caption (CC) settings. Menu Language English Caption • Caption Display: Enable/Disable the caption Clock display. OSD Transparency OSD Timer 20 S • Analog Caption Type: Set the analog CC display type.
  • Page 39 Using the TV Features Others Menu Menu item Description OTHERS OTHERS Blue Back Blue Back Select to enable the blue background in case No Signal Power Off of no signal. No Operation Power Off Usage Monitor No Signal Select to set the TV to automatically turn off in Audio Only Power Off case of no signal for 10 minutes.

  • Page 40: Other Information

    Other Information Troubleshooting Please contact ViewSonic service team directly if you have questions, service needs, or require technical assistance related on the use of your television. Contact ViewSonic Service Team at: http://www.ViewSonic.com Or call our service team: United States 1-800-688-6688...
  • Page 41 Other Information Problem Possible Solution Remote control unit does • Make sure the batteries are inserted correctly. not operate • Batteries could be weak or dead. Replace with new batteries. • Check if there is a fluorescent light illuminated near the remote control sensor.

  • Page 42: Specifications

    Other Information Specifications Model VT2756-L VT2406-L Screen Size 27-inch Full HD 60Hz 24-inch Full HD 60Hz (LED Backlight) Aspect Ratio 16:9 16:9 Television System ATSC / 64 & 256 QAM / ATSC / 64 & 256 QAM / NTSC-M NTSC-M...

  • Page 43: Rs232 Protocol

    Other Information RS232 Protocol 1. Introduction This document describes the hardware interface spec and software protocols of RS232 interface communication between Viewsonic Commercial Display and PC or other control unit with RS232 protocol. The protocol divide into three sections: • Set-Function •...
  • Page 44 Other Information 3. Protocol 3.1 Set-Function Listing The PC can control the TV Monitor for specific actions. The Set-Function command allows you to control the TV behavior in a remote sit through the RS232 port. The Set-Function packet format consists of 9 bytes. Set-Function description: Length: Total Byte of Message excluding “CR”...
  • Page 45 Other Information Reply (Hex Format) Length Command Name Type 0x34 0x30 0x2B 0x0D 0x32 Example2: Set Brightness as 176 for TV-02 and this command is NOT valid. Send (Hex Format) Name Length Command Command Value1 Value2 Value3 Type 0x38 0x30 0x73 0x24 0x31...
  • Page 46 Other Information 000: English Extend the value for language 001: French more supported 002: Spanish languages Power lock 000 : Unlock 001 : Lock Volume 000 ~ 100 Mute 000: OFF 001: ON (mute) Button lock 000: Unlock 001: Lock TV channel <...
  • Page 47 Other Information [NOTE] 1. Behavior at lock modes Lock Mode Behavior Button Lock 1. Lock all buttons of front panel and RCU, except for “Power” 2. All the SET functions should be workable via RS32, even the ones with according hot key in RCU like Mute,…etc. MENU Lock 1.
  • Page 48 Other Information Get-Function format: Send: (Command Type= “g”) Length Command Command Value1 Value2 Value3 Name Type Byte Count 1 Byte 2 Byte 1 Byte 1 Byte 1 Byte 1 Byte 1 Byte 1 Byte Bytes order Reply: (Command Type= “r” or “-”) If the Command is valid, Command Type = “r”...
  • Page 49 Other Information Reply (Hex Format) Name Length Command Type 0x34 0x30 0x2D 0x0D 0x35 Get-function table Length ID Command Command Response Range Comments Function Type (Three ASCII Code (ASCII) Code (Hex) bytes) Get-Contrast 000 ~ 100 Get-Brightness 000 ~ 100 Get-Sharpness 000 ~ 100 Get-Color...
  • Page 50 Other Information IR Pass Through-Function format Reply: (Command Type= “p”) Length Command RCU Code1 RCU Code2 Name Type (MSB) (LSB) Byte Count 1 Byte 2 Byte 1 Byte 1 Byte 1 Byte 1 Byte Bytes order Example1: Remote Control pass-through when “VOL+” key is pressed for TV-05 Reply (Hex Format) Length Command...
  • Page 51 Other Information DOWN LEFT RIGHT OK (ENTER) EXIT [NOTE] 1. This IR-pass-through code is different with RCU key code 2. Special control sequence for POWER key under IR-pass through mode. 2-1. When TV is OFF and receives the POWER code: TV will turn on itself, then forward the POWER code to the host via RS232.

  • Page 52: Customer Support

    Note: You will need the product serial number. Use with other Wall-Mount kit may cause instability and possibly result in injury. To find the perfect mount for VT2756-L/VT2406-L, please browse www.viewsonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775, Europe +44 (0) 207 382 8250.

  • Page 53: Limited Warranty

    How long the warranty is effective: ViewSonic LCD TVs are warranted for 3 years for all parts excluding the light source and 3 years for labor from the date of the first customer purchase. Who the warranty protects: This warranty is valid only for the first consumer purchaser.

  • Page 54: Mexico Limited Warranty

    How long the warranty is effective: ViewSonic LCD TVs are warranted for 3 years for all parts excluding the light source and 3 years for labor from the date of the first customer purchase. Who the warranty protects: This warranty is valid only for the first consumer purchaser.
  • Page 55 FOR USA SUPPORT: ViewSonic Corporation Av Ferrocarril Sonora #3780 L-C 381 Brea Canyon Road, Walnut, CA. 91789 USA Col 20 de Noviembre Tel: 800-688-6688 (English); 866-323-8056 (Spanish); Tijuana, Mexico Fax: 1-800-685-7276 E-Mail: http://www.viewsonic.com 4.3: ViewSonic Mexico Limited Warranty LTV_LW02 Rev. 1A 06-25-07...
