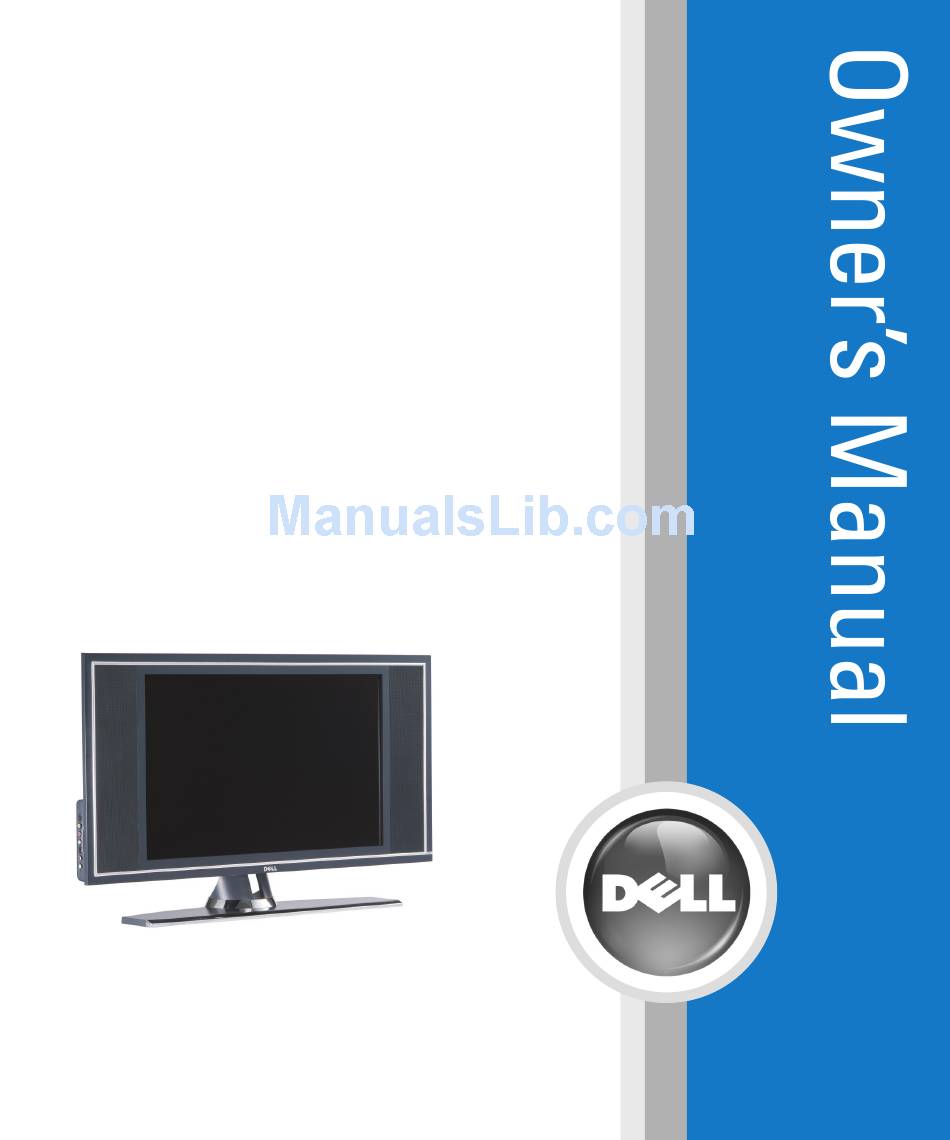

- Page 1 Dell ™ W2600 26” LCD TV Televisor LCD Dell ™ W2600 de 26 pulgadas TV LCD Dell ™ W2600 66 cm Model W2600 w w w . d e l l . c o m s u p p o r t . d e l l . c o m...
- Page 2 Dell™ W2600 26" LCD TV Owner’s Manual Model W2600 w w w . d e l l . c o m | s u p p o r t . d e l l . c o m...
- Page 3 Information in this document is subject to change without notice. © 2004 Dell Inc. All rights reserved. Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden. Trademarks used in this text: Dell, the DELL logo;...
-
Page 4: Table Of Contents
Contents About Your TV ....... . . Front View Right Side View . - Page 5 Parental Control ......Closed Caption ......Sleep Timer .
-
Page 6: About Your Tv
About Your TV Front View IR receiver Senses the signal from the remote control Power indicator light (LED) The light is blue when the TV is on and amber when the TV is in power save mode About Your TV... -
Page 7: Right Side View
Right Side View Power button Push to turn the TV on and off OSD menu button Push to enable the on-screen display (OSD) Volume button Push to decrease the volume or navigate through the on-screen display (OSD) Volume button Push to increase the volume or navigate through the OSD Channel button Push to select the previous channel or navigate through the Channel button... -
Page 8: Left Side View
Left Side View Composite video connector (AV1) Use the side composite connector for devices you connect occasionally such as a video game system R (composite right audio Use the audio connector if you have connected a device to connector) composite connector (AV1) L (composite left audio connector) Use the audio connector if you have connected a device to composite connector (AV1) Card reader panel... -
Page 9: Bottom View
Bottom View Power connector Connect your power cord. Composite video and audio Connect devices such as a VCR or DVD player. connector (AV2) DVI audio connector (L) Use the DVI audio connector if you have connected a device to the DVI connector. VGA connector Use the VGA connector to use your TV as a monitor for your computer. -
Page 10: Package Contents
Package Contents NOTE: Component cables are not included with the TV. If you need additional cables, contact Dell. Remote Control AAA batteries (2) Power Cable S-Video cable About Your TV... - Page 11 Audio cable (2) Composite cable DVI cable VGA cable About Your TV...
-
Page 12: Caring For Your Tv
PC Audio Cable Documentation Caring for Your TV CAUTION: Only a licensed technician should service the TV. Do not disassemble the TV. NOTE: Before cleaning the TV, unplug it from the electrical outlet. • To clean the surface of the panel, lightly dampen a soft, clean, lint-free cloth with water. •... - Page 13 About Your TV...
-
Page 14: Setting Up Your Tv
Setting Up Your TV CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide. Proper Location for Your TV Consider the following environmental factors when you are deciding where to put your TV: •... - Page 15 Quality Cable and Connector When to Use Good Composite carries the video signal through a single cable. If you are using a composite video connector, you also need to connect composite audio cables. To locate the connector, see "Left Side View" on page 7 and "Bottom View"...
- Page 16 Using the ANT/Cable (Coaxial) Connector Turn off the TV and unplug the power cord. Connect the coaxial cable to the ANT/Cable connector of the TV. Plug in the power cord for the TV and turn on the TV. Enter the on-screen display (OSD) and select TV. See "Input Select Menu" on page 26. Using the Composite Video Connector Turn off the TV and unplug the power cord.
- Page 17 Connect your device including the audio cables. Plug in the power cords for the TV and devices and turn them on. Enter the OSD and select the proper composite input. See "Input Select Menu" on page 26. Using the S-Video Connector Turn off the TV and unplug the power cord.
- Page 18 Using Component Connectors Turn off the TV and unplug the power cord. Connect your device including the audio cables. Plug in the power cords for the TV and devices and turn them on. Enter the OSD and select the proper component input. See "Input Select Menu" on page 26. Setting Up Your TV...
- Page 19 Using the DVI Connector Only one connector can be used for a computer, either VGA or DVI. Turn off the TV and unplug the power cord. Remove the back cover from the TV by pulling the cover toward you and lifting it away. Connect the white DVI cables and the audio cables.
- Page 20 Replace the back cover. Plug in the power cords for the TV and devices and turn them on. Enter the OSD and select DVI. See "Input Select Menu" on page 26. Using VGA (PC Analog) You can use your TV as a computer monitor using a VGA connector NOTE: Only one connector can be used for a computer, either VGA or DVI.
- Page 21 Connect the blue VGA cable to your TV and to your computer. Connect the green audio cable to the connector on the TV and to your computer. Replace the back cover. Plug in the power cords for the TV and devices and turn them on. Enter the OSD and select the VGA.
-
Page 22: Your Remote Control
Your Remote Control Installing Batteries Before you can use your remote control, install two-AAA batteries. Open the battery cover. Install the batteries. Make sure that you match the + and - on the batteries with the + and - symbols in the battery compartment. Close the battery cover. -
Page 23: Using Your Remote Control
Using Your Remote Control Your Remote Control... - Page 24 Power Button Turns the TV on and off Number buttons Press to select a channel Last Returns you to the previously viewed channel Mute Press to turn off the sound. Press again to turn on the sound CH (up icon) Push to view the next channel In the OSD, use the channel button to navigate through the menus in the on-screen display (OSD)
-
Page 25: Using Your Tv With A Universal Or Learning Remote Control
NOTE: Future preprogrammed universal remote controls may be able to control more functions. You can program universal remote controls to work with your Dell TV in the following ways: • If the remote control manual lists codes by manufacturer, the TV can work with Philips codes. -
Page 26: Using The On-Screen Display
Using the On-Screen Display Your TV has an on-screen display (OSD) that allows you to select the proper input source, make adjustments to the image and audio settings, select to view Picture-In-Picture, Picture-Outside- Picture, and Picture-By-Picture, and set parental controls. The OSD also allows you to chose how to view the images when using the card reader and to make adjustments to the image if you are using the TV as your computer monitor. -
Page 27: Selecting Your Osd Language
Use the up and down buttons (channel buttons) and the Enter button to adjust or select settings. NOTE: You can select Exit to return to the main menu or press Menu to exit the OSD. After you have made your selections, select the Exit. To exit the OSD, press Menu on the remote or select Exit from the main menu. -
Page 28: Picture Menu
AV 1 — Select when you have a video device, such as a video game system, connected to the composite connector on the side of the TV. See "Left Side View" on page 7 for the location of the composite connector. -
Page 29: Audio
Audio — Midnight Mode Evens out the AUDIO large volume variations between BACK voice and action scenes. — SRS TruSurround XT Delivers MIDNIGHT MODE virtual surround sound over two speakers from any source, which EQUALIZER MODE PERSONAL creates a wider sound with deep rich TREBLE bass. -
Page 30: Parental Control
Position of the PIP windows. When you are selecting the horizontal orientation, - moves the window left and + moves the window to the right. When you are adjusting the vertical orientation, 100 is at the top of the screen and 0 is at the bottom of the screen. For POP, you can select from three different POP options: —... -
Page 31: Closed Caption
— • TV Ratings Blocks TV shows based on their rating (TV-Y, TV-Y7, TV-G, TV-PG, TV-14, TV- MA, No Rating) NOTE: You can use Clear All to unblock the channels and programs that you have set. Setting an Access Code After you enter the Parental Control menu for the first time, you can set your own four-digit access code. -
Page 32: Osd Setup
OSD Setup OSD setup allows you to adjust the appearance of the OSD, set the channels when in TV mode, change the language of the OSD (see "Selecting Your OSD Language" on page 26), and restore factory settings. SETUP Use OSD Hold Time to increase or decrease the amount of time the OSD appears. - Page 33 • Smart Media • Multimedia Card (MMC) NOTE: To purchase a card reader, contact Dell. IMAGE MANAGEMENT The Image Management menu allows you select how to display your photos, including viewing the photos as BACK a slide show, rotating photos, selecting different...
-
Page 34: Troubleshooting Your Tv
Troubleshooting Your TV CAUTION: If at any time you see smoke or sparks coming from your TV, unplug the TV immediately and contact Dell. Do not try to perform any troubleshooting steps. Troubleshooting Tips NOTE: Some problems may be related to devices you have connected to your TV. For additional troubleshooting help, see the documentation for any devices connected to your TV. -
Page 35: General Problems
General Problems Problem Possible Solution Poor picture quality while watching TV and Check the aspect ratio settings in the OSD. Press the Menu button on the remote control and select Size. using a device such as a DVD player or a VCR For more information on using the OSD, see "Using the On-Screen Display"... - Page 36 Problem Possible Solution Ensure TV is selected as the input source in the Input Poor picture quality when using a device Select menu. See "Input Select Menu" on page 26 for connected to the ANT/Cable (coaxial) connector more information. Press Menu on the remote control, select Setup, and then select Channel Setup.
- Page 37 Double image or no image with DVD Turn off the progressive scan on the DVD player. Your Dell™ TV offers built-in deinterlacer that is equal to or better quality than the deinterlacer on your DVD player. For more information about progressive scan on your...
- Page 38 Problem Possible Solution Update the color settings in the OSD. Press Menu on the Picture is too dim or too bright remote control and select Picture. Update the size settings in the OSD. Press Menu on The screen is not centered correctly the remote control and select Size.
-
Page 39: Osd Messages
Out of Range Check the optimal resolution settings. You may need to download a new video driver. For more information, go to support.dell.com. No Video Input Check all cables are properly connected. Ensure the proper source is selected in the Input Select menu. -
Page 40: Remote Control Problems
Message Possible Solution No Card Detected in Card Reader Remove and reinstall the card. Ensure you are using a card that is supported by the card reader. Your card reader supports the following card types: • Compact Flash • Secure Digital •... -
Page 41: Using The Self-Test Feature When Your Tv Is Connected To Your Computer
Unplug the video cable from the back of the computer. Turn on the TV. If the TV cannot sense a video signal and is working correctly, the floating "Dell - Self-Test Feature Check" dialog box appears on the screen (against a black background). - Page 42 Problem Possible Solution No audio Ensure the green audio cable is connected to audio connector on the TV and on the computer. For the location of the connector on the TV see, "Using VGA (PC Analog)." on page 19." See your computer documentation for the location of connectors on your computer.
- Page 43 Troubleshooting Your TV...
-
Page 44: Specifications For Your Tv
Specifications for Your TV General Model number W2600 LCD TV Display type TFT Active Matrix (Color TFT LCD) Screen size 26 inches Viewable area 566.4 339.8 mm (22.3 inches 13.38 inches) Image aspect ratio Wide screen 15:9 resolution 16:9 aspect ratio... - Page 45 Picture-In-Picture Picture-In-Picture (PIP) Picture-Outside-Picture (POP) Picture-By-Picture (PBP) Number of Tuners 2 analog Brightness (typical) 450 nits (typical) Contrast Ratio 500:1 (typical) Response time (black:white) 25 ms (typical) Viewing Angle Horizontal +/- 85 degrees Vertical +/- 85 degrees Inputs Video Composite (CVBS) two (side and bottom) S-Video two (side and bottom)
- Page 46 Audio Effects SRS TruSurround XT Midnight Mode Speakers (integrated) 15 watts/channel 30 watts total Specifications for Your TV...
-
Page 47: 6 Specifications For Your Tv
Specifications for Your TV... -
Page 48: Index
Index PIP , 22 Connectors, 7 power, 6 AV1, 7 About remote control, 22 AV2, 7-8 side connectors, 5 Side panel, 6 AV4, 8 side panel buttons, 5 volume, 6, 22 AV5, 8 TV, 5 AV6, 8 Access Code coax, 8, 13 creating, 30 component, 8, 13, 17 composite, 13, 15... - Page 49 Specifications, 43 SRS, 28 Input Select Package contents, 9 Input sources, 26 S-Video, 16 Parental Control Input Source, 22 access code, 29 rename, 31 Picture-By-Picture, 28 IR receiver, 5 Picture-In-Picture, 28 Troubleshooting, 33 Picture-Outside-Picture, 28 computer, 40 Power indicator general problems, 34 amber light, 5 monitor, 40 Midnight Mode, 28...
