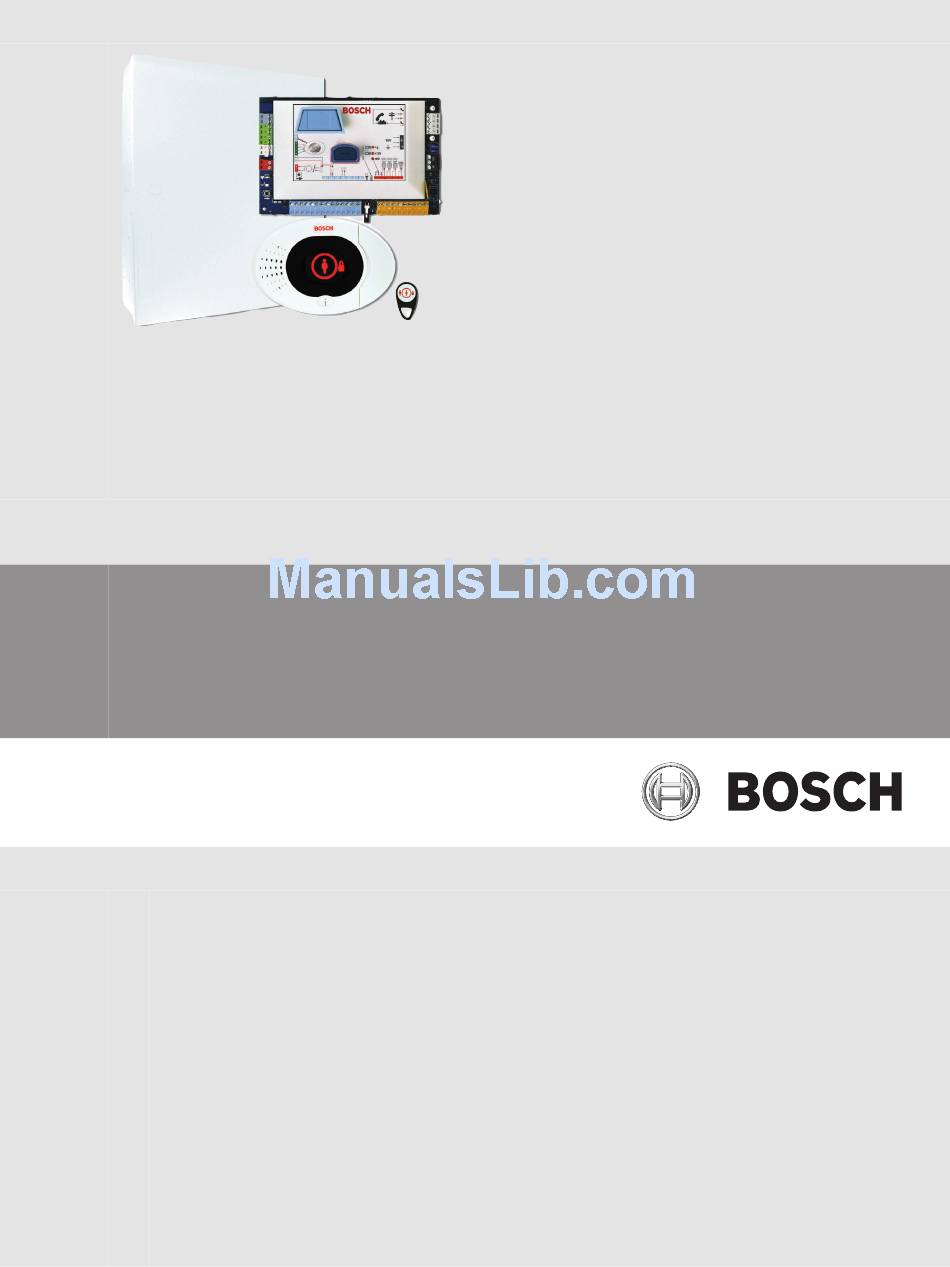

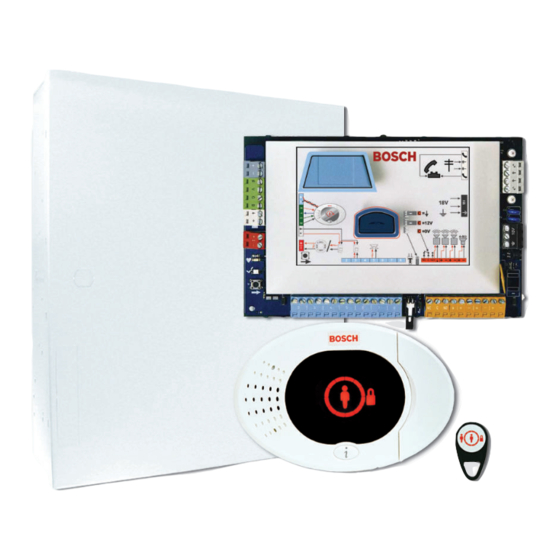

  • Page 1 Easy Series Control Panel ICP-EZM2 Quick Start Guide...

  • Page 3: Table Of Contents

    Configure the System Configuring with the telephone Configuring with RPS Add/Change Users Add users Change users System Test and Maintenance Installer Telephone Menu Appendix Expert Programming Country Codes Default Passcodes Bosch Security Systems, Inc. Quick Start Guide 2014.09 | 01 | F.01U.306.216...

  • Page 4: Install The Enclosure

    If you install more than one control center, mount them at least 1.2 m apart. Do not install the RADION receiver within 15 cm (6 in) of the control centers metal enclosure. 12 VDC Figure 1.1: System component placement in enclosure 2014.09 | 01 | F.01U.306.216 Quick Start Guide Bosch Security Systems, Inc.
  • Page 5 Ground connection Connect ground wire from enclosure to enclosure door. Module mounting location Module mounting location Status LED (√) System Test Button (→) Port for ICP-EZV2 Voice Module Bosch Security Systems, Inc. Quick Start Guide 2014.09 | 01 | F.01U.306.216...

  • Page 6: Wire The Control Panel

    1 = Normal Operation 5 = Maintenance Mode DX2010 Point Data bus Adr 102: Points 9-16 Expander Data bus Adr 103: Points 17-24 Data Bus Adr 104: Points 25-32 2014.09 | 01 | F.01U.306.216 Quick Start Guide Bosch Security Systems, Inc.
  • Page 7 2-wire Smoke EOL resistor (P/N: 25899) required. Detector Option 4-wire Smoke EOL resistor (P/N: 25899) and Bosch EOL relay module Detector Option required Note: The system uses a 12 VDC battery, connected as shown. If using RADION devices: Mount the bases for the wireless devices in the desired locations.

  • Page 8: Configure The System

    The following table shows the correlation between the current RPS Device Type values and the RADION Device Types. Once the device type has been selected in RPS, enter the Wireless Point ID and Point Type via the “wizard” dialog. 2014.09 | 01 | F.01U.306.216 Quick Start Guide Bosch Security Systems, Inc.
  • Page 9 The columns labeled “Wireless Sensor Sensitivity” and “External Power Input” have no effect on the Radion Wireless Receiver/Transmitter configuration. These fields are not used by the Easy Panel Radion configuration. Bosch Security Systems, Inc. Quick Start Guide 2014.09 | 01 | F.01U.306.216...

  • Page 10: Add/Change Users

    Press [2] to change a user. Press [2] repeatedly until the system speaks the desired user number. Repeat Step 4 in Add Users. Press [#] to return to the User Menu, or [#][#][#] to exit completely. 2014.09 | 01 | F.01U.306.216 Quick Start Guide Bosch Security Systems, Inc.

  • Page 11: System Test And Maintenance

    After system installation and any control panel programming, perform a complete system test. A complete system test includes testing the control panel, all devices, and communication destinations for proper operation. Bosch Security Systems, Inc. Quick Start Guide 2014.09 | 01 | F.01U.306.216...

  • Page 12: Installer Telephone Menu

    Record site description Voice Session Record Call for Service message Exit Custom Messages Send data from key to control panel Send data from control panel to key Exit Programming Exit 2014.09 | 01 | F.01U.306.216 Quick Start Guide Bosch Security Systems, Inc.

  • Page 13: Appendix

    4 = Rest of Australia 5 = New Zealand 6 = Cuba 7 = South America & Antarctica 8 = USA (post 2006) Installer Passcode 0 = Disabled Override 1 = Enabled Bosch Security Systems, Inc. Quick Start Guide 2014.09 | 01 | F.01U.306.216...
  • Page 14 4= 12 Hours 5= 24Hours 6= 2.5 Hours Missing Wireless 0 = Missing conditions create a tamper Device Conditions condition (meets EN50131). 1 = Missing conditions create a trouble condition. 2014.09 | 01 | F.01U.306.216 Quick Start Guide Bosch Security Systems, Inc.
  • Page 15 Listen to premises. Listen to premises. Restart 90-second timer. [9][8] Terminate session with call back. [9][9] Terminate session without call back. Listen to all microphones. Cancels first digit of command. Bosch Security Systems, Inc. Quick Start Guide 2014.09 | 01 | F.01U.306.216...
  • Page 16 Route 2 Backup 5 = Fast Format 6 = Network Call Waiting Disable 3 or 4 digits * = [*][*]; # = [*][#] Emergency Call Override 3-digit number 2014.09 | 01 | F.01U.306.216 Quick Start Guide Bosch Security Systems, Inc.
  • Page 17 0 = Disabled; 1 = Enabled Route 1 Backup Route 2 Primary Route 2 Backup Heartbeat Attempt for Route Destination: Route 1 Primary 1 to 99 Route 1 Backup Route 2 Primary Bosch Security Systems, Inc. Quick Start Guide 2014.09 | 01 | F.01U.306.216...
  • Page 18 Intrusion Alarm Verified Fire Trouble Intrusion Alarm Unverified Fire Trouble Restoral Intrusion Alarm 24-Hr 24-Hour Trouble Intrusion Alarm 24-Hr 24-Hour Trouble Restoral Restoral Intrusion Alarm Restoral Supervisory Alarm 2014.09 | 01 | F.01U.306.216 Quick Start Guide Bosch Security Systems, Inc.
  • Page 19 Programming Item Item Programming Item System Reports and Low Battery Restorals (all) User Emergency Low Battery Restoral User Fire Phone Line Fault Restoral User Fire Restoral Firmware Updated Bosch Security Systems, Inc. Quick Start Guide 2014.09 | 01 | F.01U.306.216...
  • Page 20 Programming Item Range Communicator Disable 0 = Enable reporting 1 = Disable reporting Route Attempts 1 to 20 Send Report During Walk Test 0 = No 1 = Yes 2014.09 | 01 | F.01U.306.216 Quick Start Guide Bosch Security Systems, Inc.
  • Page 21 2 = Silent alarm One Button Arming 0 = Disabled 1 = Enabled Invalid Passcode Attempt Limit 3 to 8 Control Center Lockout Time 1 to 30 min Bosch Security Systems, Inc. Quick Start Guide 2014.09 | 01 | F.01U.306.216...
  • Page 22 Point 01 = 9016 0 = Disable audio alarm verification Verification Point 32 = 9326 1 = Enable audio alarm verification Programming Item Item No. Factory Default 9999 2014.09 | 01 | F.01U.306.216 Quick Start Guide Bosch Security Systems, Inc.

  • Page 23: Country Codes

    Egypt Mexico United States Finland Netherlands France New Zealand Default Passcodes Passcode Default Installer Passcode (User 0) 5432(11) Master User (User 1) 1234(55) Guard Code (User 22) 1111(11) Bosch Security Systems, Inc. Quick Start Guide 2014.09 | 01 | F.01U.306.216...
  • Page 24 Bosch Security Systems, Inc. Bosch Sicherheitssysteme GmbH 130 Perinton Parkway Robert-Bosch-Ring 5 Fairport, NY 14450 85630 Grasbrunn Germany www.boschsecurity.com © Bosch Security Systems, Inc., 2014...
