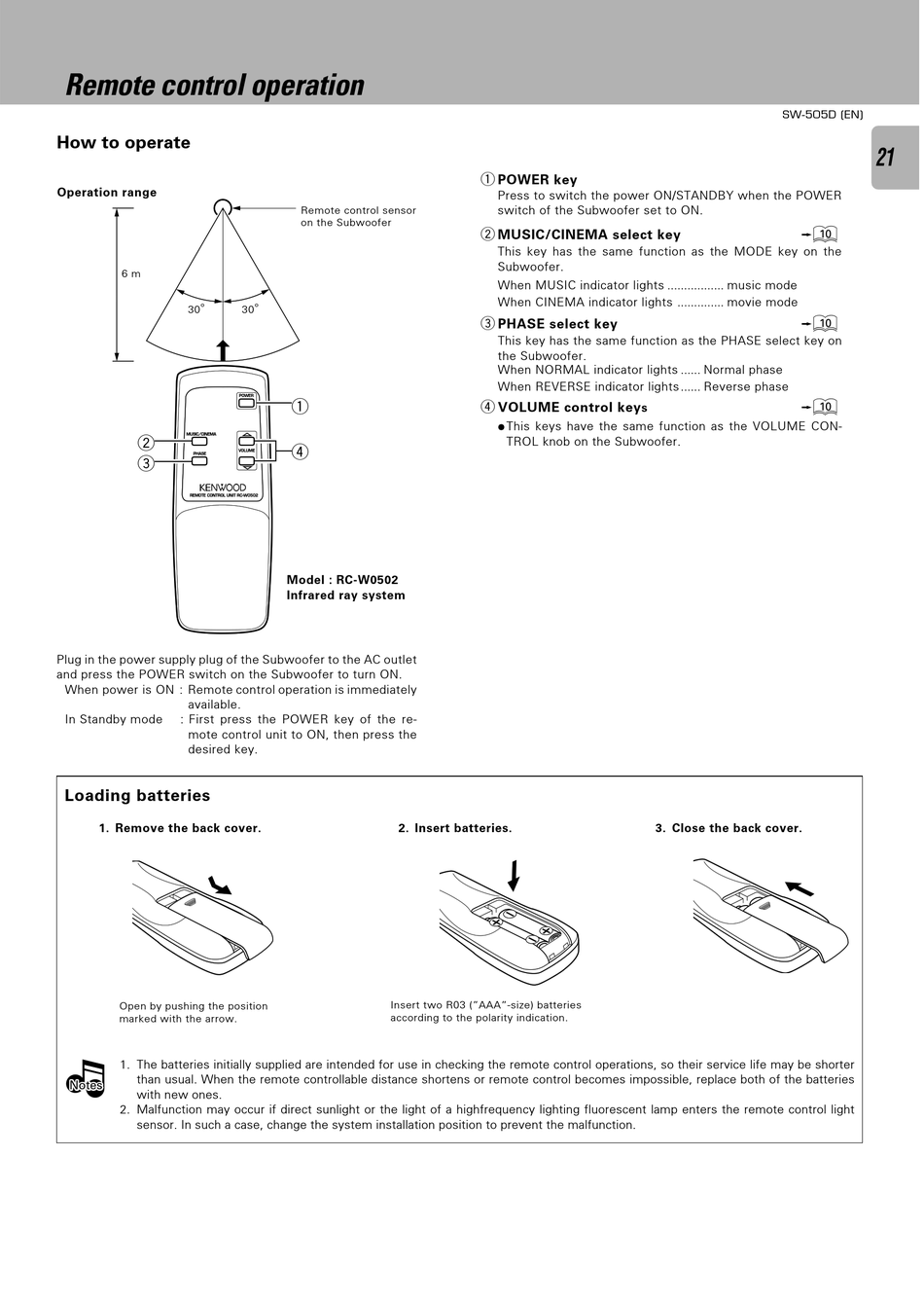

Remote control operation

How to operate

Operation range
6 m
30 °
MUSIC/CINEMA
2
PHASE
3
REMOTE CONTROL UNIT RC-W0502
Plug in the power supply plug of the Subwoofer to the AC outlet
and press the POWER switch on the Subwoofer to turn ON.
When power is ON : Remote control operation is immediately
available.
In Standby mode : First press the POWER key of the re-
mote control unit to ON, then press the
desired key.
Loading batteries
1. Remove the back cover.
Open by pushing the position
marked with the arrow.
1. The batteries initially supplied are intended for use in checking the remote control operations, so their service life may be shorter
than usual. When the remote controllable distance shortens or remote control becomes impossible, replace both of the batteries
Notes Notes Notes
with new ones.
2. Malfunction may occur if direct sunlight or the light of a highfrequency lighting fluorescent lamp enters the remote control light
sensor. In such a case, change the system installation position to prevent the malfunction.
Remote control sensor
on the Subwoofer
30 °
POWER
1
4
VOLUME
Model : RC-W0502
Infrared ray system
2. Insert batteries.
Insert two R03 ("AAA"-size) batteries
according to the polarity indication.
1
POWER key
Press to switch the power ON/STANDBY when the POWER
switch of the Subwoofer set to ON.
2
MUSIC/CINEMA select key
This key has the same function as the MODE key on the
Subwoofer.
When MUSIC indicator lights ................. music mode
When CINEMA indicator lights .............. movie mode
3
PHASE select key
This key has the same function as the PHASE select key on
the Subwoofer.
When NORMAL indicator lights ...... Normal phase
When REVERSE indicator lights ...... Reverse phase
4
VOLUME control key
s
÷ This keys have the same function as the VOLUME CON-
TROL knob on the Subwoofer.
SW-505D (EN)
0
0
0
3. Close the back cover.
21
