XtendLan XL-ICA-106M3 User Manual

Megapixel indoor
Hide thumbs Also See for XL-ICA-106M3:
Table of Contents

Advertisement

Quick Links

Download this manual

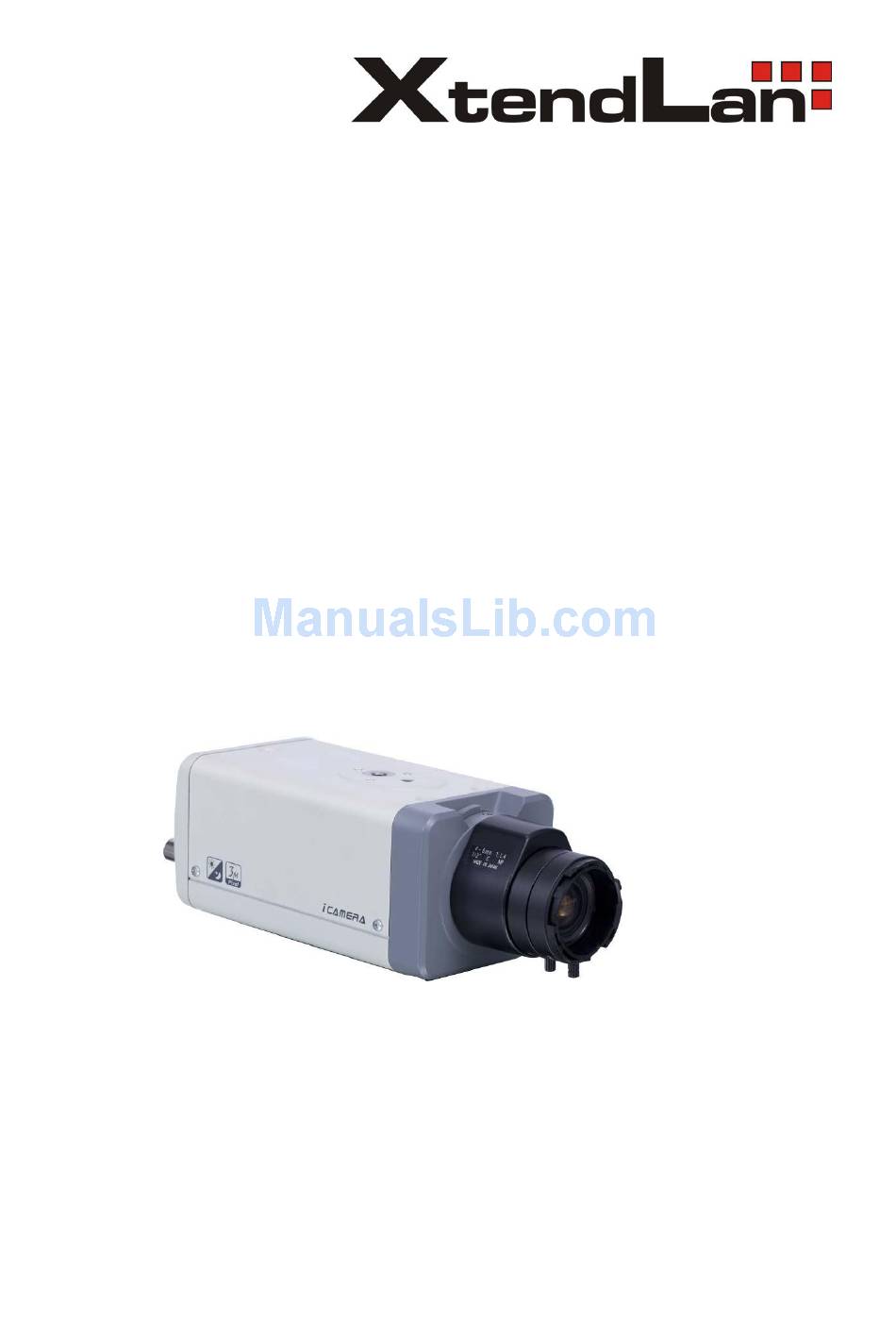

XL-ICA-106M3
Megapixel Indoor
User's manual

Advertisement

Table of Contents
loading

Related Manuals for XtendLan XL-ICA-106M3

Summary of Contents for XtendLan XL-ICA-106M3

  • Page 1 XL-ICA-106M3 Megapixel Indoor User’s manual...
  • Page 2 Welcome Thank you for purchasing our IP camera! This user‟s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user‟s manual well for future reference!

  • Page 3: Important Safeguards And Warnings

    Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC or 24V AC in the IEC60950-1. Before you replace the SD card, please unplug the power cable and then remove the shell We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation.
  • Page 4 ■...

  • Page 5: Table Of Contents

    Table of Contents General Introduction ........................7 Overview ........................7 Feature ........................... 7 Specifications ........................ 8 1.3.1 Performance......................8 1.3.2 Factory Default Setup ..................10 Framework..........................14 Rear Panel........................14 Side Panel ........................18 Lens ..........................19 Bidirectional talk ......................19 2.4.1 Device-end to PC-end ..................
  • Page 6 I/O Port ......................... 28 Quick Configuration Tool......................29 Overview ........................29 Operation ........................29 Web Operation.......................... 32 Network Connection....................32 Login and Main Interface................... 32 FAQ ............................35 Appendix Toxic or Hazardous Materials or Elements ............... 36...

  • Page 7: General Introduction

    1 General Introduction 1.1 Overview This series IP camera integrates the traditional camera and network video technology. It adopts audio video data collection, transmission, storage together. It can connect to the network directly without any auxiliary device. This series IPC uses standard H.264 video compression technology and PCM, G.711a/u audio compression technology, which maximally guarantees the audio and video quality.

  • Page 8: Specifications

    Support log function. Support video watermark function to avoid vicious video modification. 1.3 Specifications 1.3.1 Performance Please refer to the following sheet for IPC performance specification. Model XL-ICA-106M3 XL-ICA-106M3W CCD ver. CCD ver. Parameter Main TI Davinci high performance DSP...
  • Page 9 Video Quality 1~6 level（The 6 level has the highest quality） Snapshot Max 1f/s snapshot. File extension name is JPEG Privacy Mask Each channel supports max 4 privacy mask zones Video Setup Support parameter setup such as bright, contrast. Video Channel title, time title, video loss, motion detect, privacy mask. Information Lens Optional...

  • Page 10: Factory Default Setup

    Working -10℃~+60℃ Temperature Working 10%~90% Humidify Dimensions 70*63.2*149.5 Weight 650g Installation Support various installation modes（Enclosure and bracket is optional） 1.3.2 Factory Default Setup Please refer to the following sheet for factory default setup information. Function Item Name Default setup Configuration Type XL-ICA- XL-ICA- 106M3...
  • Page 11 Pre-record 5 seconds. Time Setup Start Time 0:00:00 End Time 23:59:59 Record Period 1:Enable motion detection/alarm Snapshot Period 1: Enable motion detection/alarm Week Sunday Option COM01 COM Setup Function General Data bit Stop bit Baud rate 115200 Parity None Network Setup Ethernet Port 01 DHCP...
  • Page 12 Start time 0:00:00 End time:23:59:59 Period 1:enable Week: Sunday Anti-dither 5 seconds General output Disable Alarm latch 10 seconds Record channel Disable Record latch 10 seconds Send email Disable PTZ activation Event type: Never Address: 0 Disable Snapshot Disable PTZ Setup Channel Ch01 Protocol...
  • Page 13 White Balance Auto Scene Mode Auto Signal Type Mirror Rotate Support Auto Registration Enable Disable 0.0.0.0 Port 7000 Device ID none DNS Setup 8.8.8.8 Alternative DNS 8.8.8.8...

  • Page 14: Framework

    2 Framework 2.1 Rear Panel This series IP camera real panel is shown as below. See Figure 2-1. The rear panel with the network port The rear panel with the 100M fiber port Figure 2-1 Please refer to the following sheet for detail information. Interface Name Connector Function...
  • Page 15 TV monitor to view video. AC 24V/ DC 12V Power port Power port. Input 12V DC or AC 24V STATUS System boot up- Red light Indication Light red light is on Safe mode-red light flashes System upgrades-red light flashes System resets- red light flashes.
  • Page 16 Connect to 3G card. Please note it is the reserved function. Current series IPC does not support this function right now. WIFI 3G/WIFI port Connect to 3G/WIFI antenna to receive the wireless signal. Please note this function is for some series products only.
  • Page 17 Reserved port RESET RESET button Restore factory default setup. When system is running normally (power indication light is red), press the RESET button for at least 5 seconds, system can restore factory default setup. AUDIO OUT Audio output port Audio output 3.5mm Output audio signal to JACK port.

  • Page 18: Side Panel

    SD card port Connect to SD card. Note When you install the SD card, please make sure current card is not in write mode and then you can install it to the camera. When you remove the SD card, please make sure current card is not in write mode.

  • Page 19: Lens

    Figure 2-2 2.3 Lens Please refer to the following interface for lens dimension information. The unit is mm. See Figure 2-3. Figure 2-3 2.4 Bidirectional talk 2.4.1 Device-end to PC-end Device Connection...

  • Page 20: Pc-End To The Device-End

    Please connect the speaker or the pickup to the first audio input port in the device rear panel. Then connect the earphone or the sound box to the audio output port in the PC. Login the Web and then enable the corresponding channel real-time monitor. Please refer to the following interface to enable bidirectional talk.
  • Page 21 Figure 2-5...

  • Page 22: Installation

    3 Installation 3.1 Lens Installation 3.1.1 Auto Aperture Lens Please follow the steps listed below for auto aperture lens installation. The interface is shown as in Figure 3-1 and Figure 3-2. Remove the CCD protection cap of the device, and then line up the lens to the proper installation position.

  • Page 23: Remove Lens

    Figure 3-2 3.1.3 Remove Lens Please follow the steps listed below to remove lens. The interface is shown as in Figure 3-3. Turn the lens counter clockwise and then remove it from the camera. Unplug the auto lens cable socket from the auto lens connector. If you are using the manual aperture lens, please skip to the following step.

  • Page 24: Remove

    Figure 3-4 Figure 3-5 3.2.2 Remove Please follow the steps listed below to remove SD card. The interface is shown as Figure 3-6. Use the screwdriver to loosen the screw of SD card protection cap in the rear panel. Remove the cap from the camera. Follow the SD card direction to remove the SD card.

  • Page 25: Card

    3.3 3G Card 3.3.1 Installation The 3G card installation is the same with the SD card. Please follow the steps listed below to install 3G card. The interfaces are shown as Figure 3-7 and Figure 3-8. Use the screwdriver to loosen the 3G card protection cap screw in the side panel, and then remove the 3G card protection cap from the camera.

  • Page 26: Wifi Antenna

    Figure 3-9 3.4 3G/WIFI Antenna 3.4.1 Installation Line up the thread of the screw of the 3G/WIFI antenna to the thread of the rear panel. See Figure 3-10. Please turn according to the direction in the following figure until antenna is secure firmly. See Figure 3-11.

  • Page 27: Remove

    After you fix the 3G/WIFI antenna to the WIFI port of the rear panel, you can adjust the antenna direction. See Figure 3-12. Figure 3-12 3.4.2 Remove Use your hands to hold the 3G/WIFI thread end and then turn according to the following figure. See Figure 3-13.

  • Page 28: I/O Port

    Remove the 3G/WIFI antenna from the port of the rear panel. See Figure 3-15. Figure 3-15 3.5 I/O Port Install Cable Please follow the steps listed below to install the cable. See Figure 3-16. Use the small slotted screwdriver to press the corresponding button of cable groove. Insert the cable into the groove and then release the screwdriver.

  • Page 29: Quick Configuration Tool

    4 Quick Configuration Tool 4.1 Overview Quick configuration tool can search current IP address, modify IP address. At the same time, you can use it to upgrade the device. Please note the tool only applies to the IP addresses in the same segment. 4.2 Operation Double click the “ConfigTools.exe”icon, you can see an interface is shown as in Figure 4-1.
  • Page 30 Select the “Open Device Web” item; you can go to the corresponding web login interface. See Figure 4-3. Figure 4-3 If you want to modify the device IP address without logging in the device web interface, you can go to the configuration tool main interface to set. In the configuration tool search interface (Figure 4-1), please select a device IP address and then double click it to open the login interface.
  • Page 31 Figure 4-5 For detailed information and operation instruction of the quick configuration tool, please refer to the Quick Configuration Tool User’s Manual included in the resources CD.

  • Page 32: Web Operation

    5 Web Operation This series IPC product support the Web access and management via PC. Web includes several modules includes monitor channel list, record search, alarm setup, system configuration, PTZ control, monitor window and etc. IP camera factory default setup: IP address: 192.168.1.108.
  • Page 33 Figure 5-2 After installation, the interface is shown as below. See Figure 5-3. Please input your user name and password. Default factory name is admin and password is admin. The login type includes: TCP/UDP/Multicast. Note: For security reasons, please modify your password after you first login. Figure 5-3 After you logged in, you can see the main window.
  • Page 34 Figure 5-4 Please refer to the Web Operation Manual included in the resource CD for detailed operation instruction.

  • Page 35: Faq

    6 FAQ I can not boot up Please click RESET button for at least five seconds to restore the device or can factory default setup. not control the device. SD card hot swap Before draw out SD card, please stop record or snapshot first and then wait for at least 15 seconds to remove the SD card.

  • Page 36: Appendix Toxic Or Hazardous Materials Or Elements

    Appendix Toxic or Hazardous Materials or Elements Component Name Toxic or Hazardous Materials or Elements Cr VI PBDE ○ ○ ○ ○ ○ ○ Circuit Board Component ○ ○ ○ ○ ○ ○ Device Construction Material ○ ○ ○ ○ ○...
