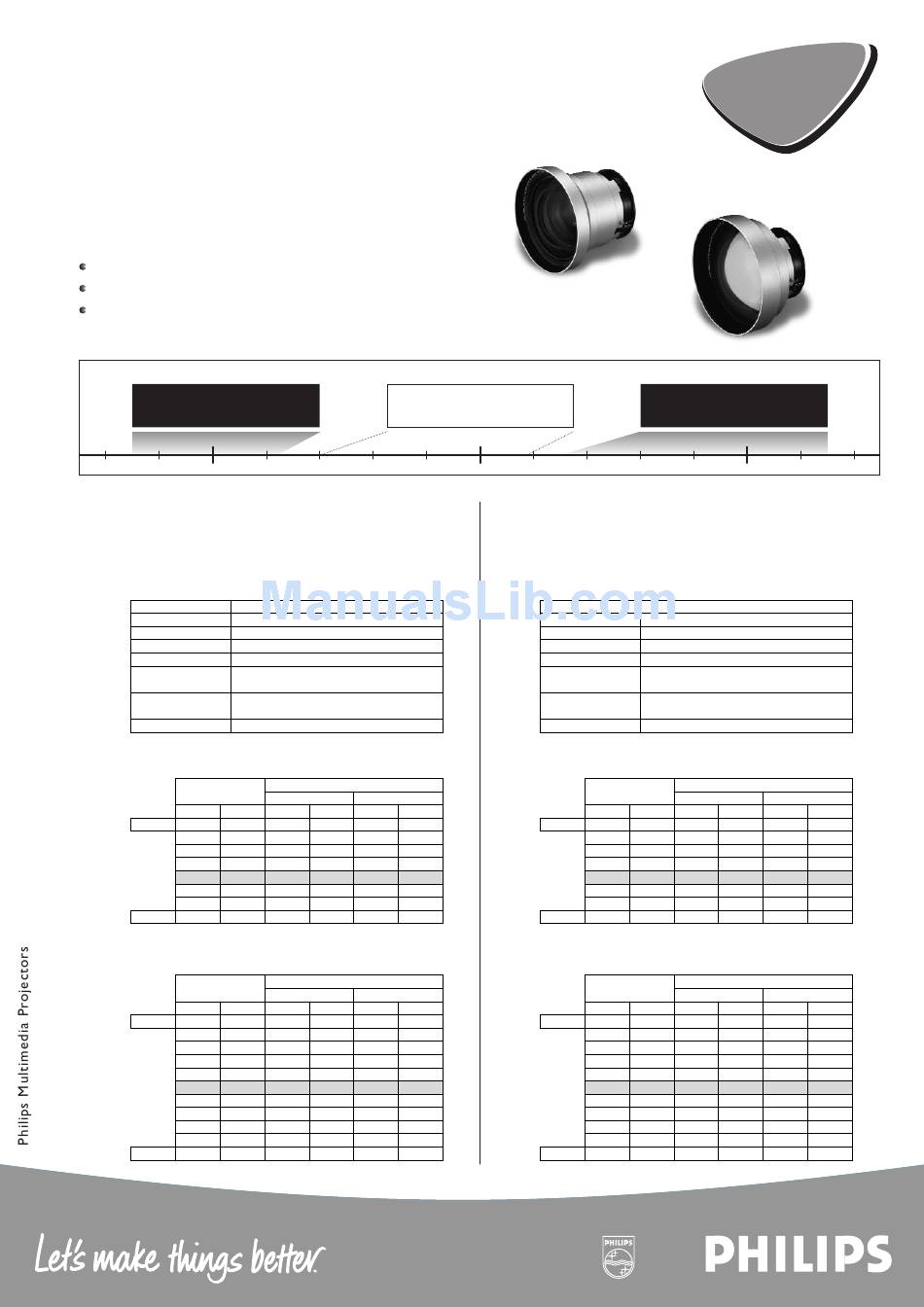

ProScreen PXG10
Optional lenses
Next to the supplied lens fit on the ProScreen PXG10
projector we offer two optional lenses to provide you the
flexibility you need for a wide variety of applications
ranging from small meeting rooms to large conference
halls. Choose from three projection settings:
Short-range; The optional available Wide zoom lens
Mid-range; The standard supplied lens
Long-range; The optional available Tele zoom lens
8'6" - 11'2" (2,6 - 3,4 m)
Wide Zoom lens
LCA 3002
10
Wide Zoom lens; LCA 3002
Once the lens is installed, the projector can be placed at a
shorter distance to generate the same projected image as
with the standard supplied lens.
Product type
Wide-Zoom Lens for LCD Projector
Model
LCA3002/00
Type of lens
Wide-power zoom lens
Focal distance
35 ~ 45.5mm
Aperture ratio
1 : 1.7 ~ 2.3
Screen width to throw
1.3 ~ 1.7 : 1
distance ratio
Dimensions
Max. diameter 118mm, 4 41/64" (incl. protrusions)
x Length 106, 53mm, 4 3/16"
Weight
Approx. 1300g
Normal mode; 4:3 format
Image diagonal size
[inch]
[meters]
Minimum
40"
1,02
60"
1,52
72"
1,83
84"
2,13
100"
2,54
150"
3,81
200"
5,08
Maximum
300"
7,62
Wide mode; 16:9 format
Image diagonal size
[inch]
[meters]
Minimum
40
1,02
60
1,52
72
1,83
84
2,13
92
2,34
100
2,54
106
2,69
133
3,38
150
3,81
200
5,08
Maximum
300
7,62
For 100" picture diagonal
12' - 15'11" (3,65 - 4,86 m)
Standard Lens
Projection distance
Wide zoom
Tele zoom
[ft/inch]
[meters]
[ft/inch]
[meters]
3'3"
1,0
4'4"
1,3
5'
1,5
6'7"
2,0
6'1"
1,9
8'
2,4
7'1"
2,2
9'4"
2,8
8'6"
2,6
11'2"
3,4
12'11"
3,9
16'10"
5,1
17'3"
5,3
22'6"
6,9
26'1"
7,9
33'11"
10,3
Projection distance
Wide zoom
Tele zoom
[ft/inch]
[meters]
[ft/inch]
[meters]
3'7"
1,1
4'9"
1,4
5'6"
1,7
7'3"
2,2
6'8"
2,0
8'8"
2,7
7'9"
2,4
10'2"
3,1
8'6"
2,6
11'2"
3,4
9'4"
2,8
12'2"
3,7
9'11"
3,0
12'11"
3,9
12'6"
3,8
16'3"
5,0
14'1"
4,3
18'4"
5,6
18'10"
5,8
24'7"
7,5
28'5"
8,7
37'
11,3
Big picture...
eye for d e ta i l
Wide Zoom lens
15
Tele Zoom lens; LCA 3001
Once the lens is installed, the projector can be placed at a
longer distance to generate the same projected image as
with the standard supplied lens.
Product type
Tele-Zoom Lens for LCD Projector
Model
LCA3001/00
Type of lens
Tele-power zoom lens
Focal distance
67.9 ~ 88.3mm
Aperture ratio
1 : 1.7 ~ 2.3
Screen width to throw
2.5 ~ 3.2 : 1
distance ratio
Dimensions
Max. diameter 130.5mm, 51/8" (incl. protrusions)
x Length 90, 16mm, 3 35/64"
Weight
Approx. 1100g
Normal mode; 4:3 format
Image diagonal size
[inch]
[meters]
Minimum
40"
1,02
60"
1,52
72"
1,83
84"
2,13
100"
2,54
150"
3,81
200"
5,08
Maximum
300"
7,62
Wide mode; 16:9 format
Image diagonal size
[inch]
[meters]
Minimum
40
1,02
60
1,52
72
1,83
84
2,13
92
2,34
100
2,54
106
2,69
133
3,38
150
3,81
200
5,08
Maximum
300
7,62
ProScreen
ProScreen
PXG10
PXG10
Tele Zoom lens
16'5" - 21'6" (5 - 6,56 m)
Tele Zoom lens
LCA 3001
20 (feet)
Projection distance
Wide zoom
Tele zoom
[ft/inch]
[meters]
[ft/inch]
[meters]
6'2"
1,9
8'3"
2,5
9'7"
2,9
12'8"
3,9
11'8"
3,6
15'4"
4,7
13'8"
4,2
18'
5,5
16'5"
5,0
21'6"
6,6
24'11"
7,6
32'7"
9,9
33'5"
10,2
43'8"
13,3
50'5"
15,4
65'9"
20,0
Projection distance
Wide zoom
Tele zoom
[ft/inch]
[meters]
[ft/inch]
[meters]
6'10"
2,1
9'1"
2,8
10'6"
3,2
13'11"
4,2
12'9"
3,9
16'9"
5,1
15'0"
4,6
19'8"
6,0
16'6"
5,0
21'7"
6,6
17'11"
5,5
23'6"
7,2
19'1"
5,8
24'11"
7,6
24'1"
7,3
31'5"
9,6
27'2"
8,3
35'6"
10,8
36'5"
11,1
47'7"
14,5
55'
16,8
71'8"
21,8
