Page 1: User Guide

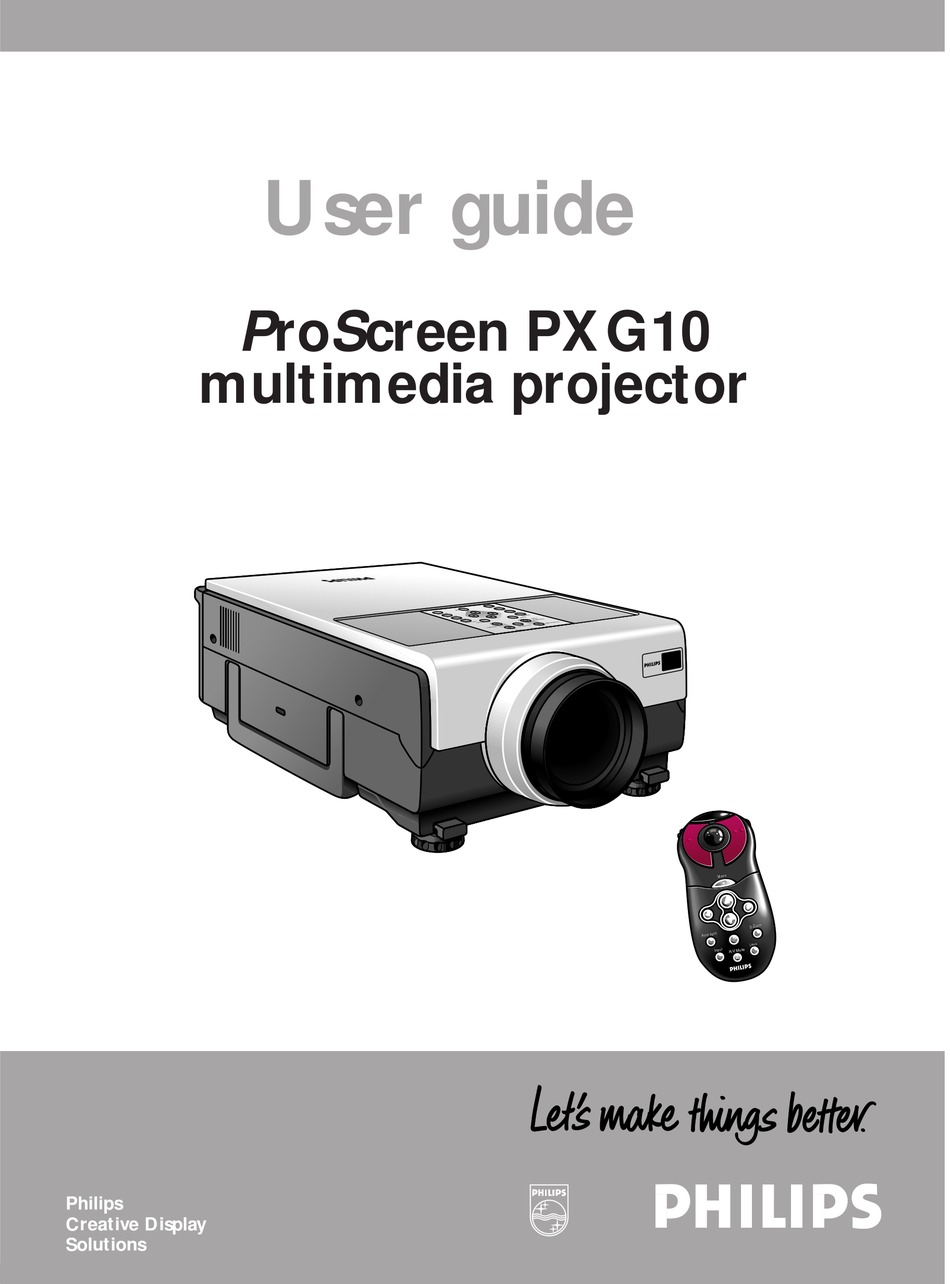

User guide ProScreen PXG10 multimedia projector Philips Creative Display Solutions... - Page 2 IMPORTANT NOTE FOR USERS IN THE U.S.A. The responsible party of this multi media projector is the following: Philips Consumer Electronics Company One Philips Drive Knoxville, TN 37914 Telephone (1888) 873-4672 WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
-
Page 3: Important Safeguards
Electric energy can perform many useful functions. This projector has been engineered and manufactured to meet applicable safety standards. IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the safeguards incorporated into this projector, observe the following basic rules for its installation, use and servicing. -
Page 4: Table Of Contents
Dutch. Carefully read through the operation instructions before operating the LCD-projector. PACKAGING CONTENTS Please confirm that the following items are packed in the projector box. They are provided to help you use or set up your projector. • ProScreen PXG 10 • Lens cap •... -
Page 5: Things You Should Know
Note: SAVE ENERGY! To save energy, please put the projector in the STANDBY position if you are not going to use the projector for more than 15 minutes. -
Page 6: Illustrations
&^ Lamp Temp. Power ON A / V Mute Volume Standby / OFF Lens Menu Data 1 V-Format Data 2 V-Effect Video D-Freeze Auto sync D- Zoom Menu Menu Auto sync D-Zoom D-Zoom Auto sync Input Input Lens Lens A/V Mute A/V Mute fig. -
Page 7: Projector Features
PROJECTOR For minimal servicing and to maintain high image quality, PHILIPS recommends that this projector be installed in an area free from humidity, dust and cigarettesmoke. If the projector is used in these environments, the lens and filter will need to be cleaned (or the filter replaced) more often, and internal cleaning may become necessary. -
Page 8: Functional Overview
$ Volume buttons (+/-) To adjust audio volume level. % Temperature warning indicator (Temp.) Flashes when the temperature of the projector is too high ^ Lamp replacement indicator (Lamp) Lights to indicate the status of the lamp; Green: lamp is ready... -
Page 9: Remote Control
5. FUNCTIONAL OVERVIEW On remote control (fig. 2) z / y 1 On / Off switch For switching the remote control as well as the projector on and off. Note: The remote control will always use some power, even when not in use. -
Page 10: Set Up
• Place the projector at the required distance from the screen according to the desired picture size (see the table below). • Optional wide and telephoto lenses from Philips are available for specialised application. Please see your local Philips Authorised LCD Projector Dealer for details on the optional lenses. -
Page 11: Lens Adjustment
4. When transporting the projector, carry it by the carrying handle on the side. FOCUS NEXT (Lens) ADJUST Do not lift or carry the projector by the lens or the lens cap as this may damage the lens. INSERTING THE BATTERIES IN THE REMOTE CONTROL KEYSTONE END (Lens) -
Page 12: Installation
7. INSTALLATION VIDEO/COMPUTER CABLES AND ADAPTER These accessories are supplied for connecting the projector to computer/Audiovisual equipment. The numbers in the left-hand column correspond with the numbers in the connection diagrams on the following pages. CABLE/ADAPTER Computer VGA Cable RCA Audio Video Cable... -
Page 13: Connecting To A Computer
– The data input (Data 1 and 2) is suitable for both Apple Macintosh computers (Power Book and Power Mac) as well as for IBM compatible PCs. – The data output of IBM compatible PCs can be connected directly to the projector using standard computer VGA cable. – Apple Macintosh computers may need a conversion plug (optional) added to the standard computer VGA cable. -
Page 14: Connecting To Video Equipment
– The figures in brackets (1) correspond to the figures in the diagram on page 10. The characters in brackets (A) correspond to characters in fig. 3 on page 4. – Caution: Always turn off the projector while connecting to video equipment, in order to protect both the projector and the equipment being connected. -
Page 15: Connecting To Audio Equipment
Connecting to audio equipment/remote control mouse receiver CONNECTING THE REMOTE CONTROL MOUSE RECEIVER When the RS-232C port on the projector is connected to a computer with an RS-232C cable (cross type, sold separately), the computer can be used to control the projector and check the status of the projector. -
Page 16: Operation
– If the bottom filter cover is not securely installed, the Power indicator flashes in red. – After the projector is unpacked and turned on for the first time, a slight odour may be emitted from the exhaust vent. This odour will soon disappear with use. -
Page 17: Graphical User Interface
USING THE GUI (GRAPHICAL USER INTERFACE) MENU SCREENS This projector has two sets of menu screens (Data/Video) that allow you to adjust the image and various projector settings. These menu screens can be operated from the projector or the remote control with the following buttons. -
Page 18: Picture Control
Data or Video ADJUST feature. – The projector will store the last used settings for every source. So when you switch from one source to another, the settings of the source switched from will be stored and the settings of the source switched to will be recalled. -
Page 19: Data Mode Display
(Fine Sync adjustment). 1. Select the desired computer input mode by pressing either Data 1 or Data 2 at the projector local keyboard or toggling the Input button on the Remote Control unit. 2. Press Menu. Menu bar and “Picture” menu screen appear. -
Page 20: Data Mode / Video Mode Display
– The volume can also be adjusted with the “–” Volume “+” buttons on the projector. PERSONAL PREFERENCES This projector allows you to store up to seven adjustment settings for use with various computers. Once these settings are stored, they can be easily selected each time you connect the computer to the projector. -
Page 21: Personal Preferences
Setting” , the computer system should match the stored setting. Personal preferences/Other settings OTHER SETTINGS Reverse/Invert Image Function This projector is equipped with a reverse/invert image function which allows you to reverse or invert the projected image for various applications. Front Normal image... -
Page 22: Other Settings
– If the input signal is changed during digital image magnification, the image will return to 1. The input signal is changed: • when Data 1, Data 2 or Video is pressed on the projector, or Input on the remote control, • when the input signal is interrupted, or •... - Page 23 8. OPERATION Picture display mode This function allows you to modify or customise the picture display mode to enhance the input image. Depending on the input signal, you can choose NORMAL, WIDE, DOT BY DOT, DOT BY DOT (WIDE), or FIT TO SCREEN image. –...
- Page 24 8. OPERATION AV Mute Function This function can be used for muting the sound of the projector (or an external connected sound amplifier) and for muting the picture. Press A/V Mute. – “AV Mute” is displayed on the screen. To return to the original projected image, press A/V Mute again.
- Page 25 8. OPERATION Automatic Power Shutoff Function When no input signal is detected for more than 15 minutes, the projector will automatically shut off. The on-screen message on the left will appear five minutes before the power is automatically turned off.
- Page 26 8. OPERATION Setting a Background Image This function allows you to select the image displayed when no signal is being sent to the projector. Description of Background Images Selected item Background image Philips PHILIPS default image Blue Blue screen None Black screen 1.
-
Page 27: Additional Information
Clean the filters more often when the projector is used in a dusty or smoky location. • Have your nearest Philips Authorised LCD Projector Dealer or Service Centre exchange the filter when it is no longer possible to clean it. -
Page 28: Maintenance
– Disconnect the mains lead and all the other cables. 3. Slide the lamp cage cover out. – Turn over the projector and unfasten the user service screw that secures the lamp cage cover. Then slide the cover in the direction of the arrow. -
Page 29: Additional Information
See page 25 for cleaning the air filters. Resetting the lamp timer 1. Connect the power cord. – Plug the power cord into the AC socket of the projector. 2. While pressing 4, 2 and OK on the projector, press Power ON on the projector. -
Page 30: Troubleshooting
