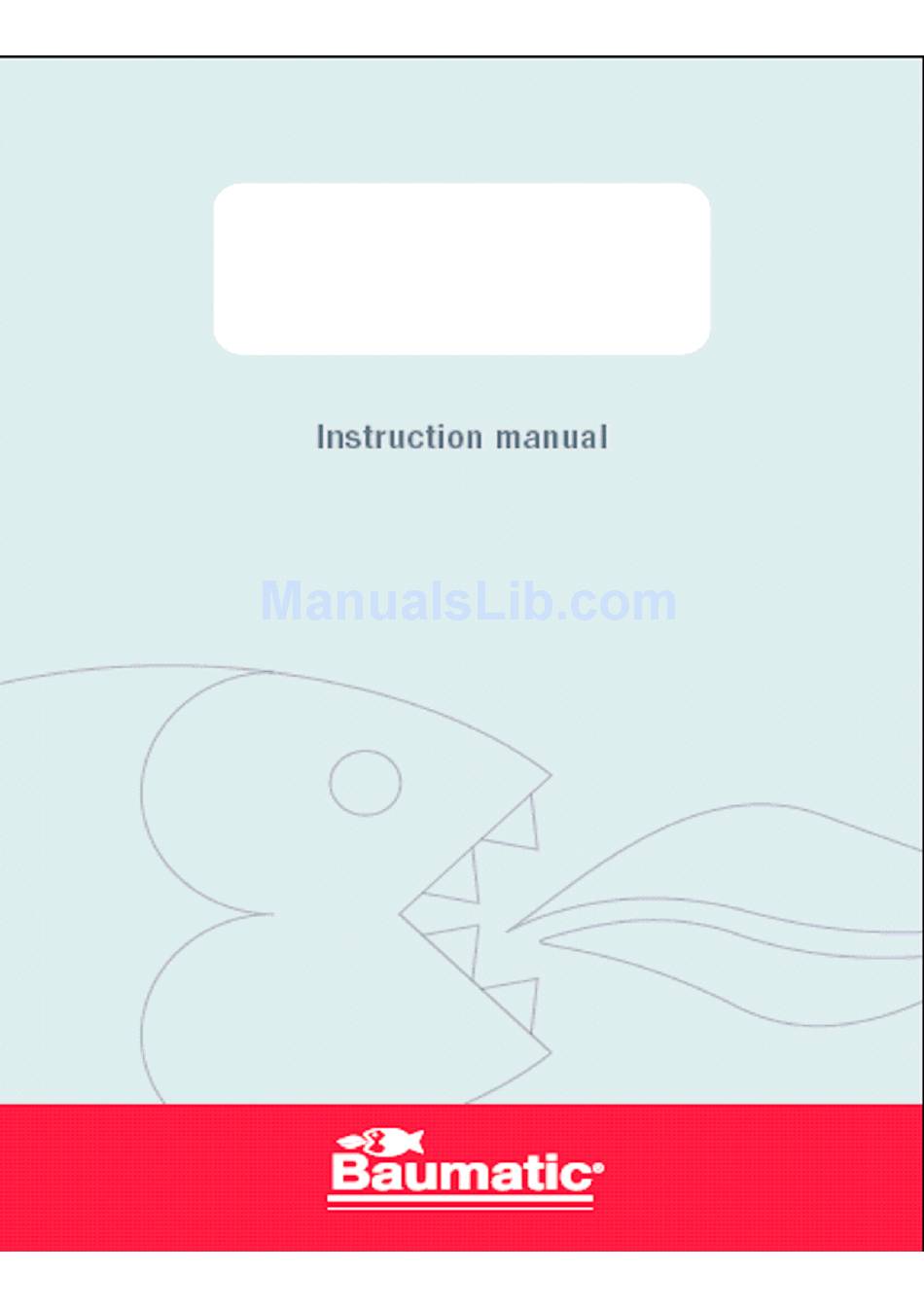

BAUMATIC BDW01W/SS dishwasher user manual BFD65W DISHWASHER 60 CM FULL HEIGHT DISHWASHERS IMPORTANT! PLEASE READ THIS MANUAL AND KEEP IT FOR FUTURE REFERENCE! THIS MANUAL CONTAINS SECTIONS OF SAFETY INSTRUCTIONS, OPERATING INSTRUCTIONS & TROUBLESHOOTING TIPS, ETC. HT MOD 31/07/06...
BAUMATIC BFD65W dishwasher user manual CONTENTS • SAFETY FIRST! SAFETY INFORMATION .……………..…………3 *Please read this before using your dishwasher! BEFORE CALLING • KNOWING YOUR FOR SERVICE DISHWASHER CONTROL PANEL ………………………..……..…4 REVIEWING THE SECTION ON DISHWASHER FEATURES …………..………….4 TROUBLESHOOTING TIPS WILL...
BEFORE DISCARDING IT. • DURING THE GUARANTEE PERIOD ONLY BAUMATIC SERVICE ENGINEERS OR AN AUTHORISED AGENT OF BAUMATIC SHOULD CARRY OUT REPAIRS ON THIS UNIT. • DO NOT USE IF THE SUPPLY CORD IS DAMAGED. • FOR INSTALLATION PROCEDURE PLEASE CONSULT PAGES 24 –...
Page 5
1. Pre- Rinse light: To come on when Pre-Rinse is needed 2. Wash Light: Comes on when washing 3. Rinse Light: Comes on when rinsing 4. Drying Light: Comes on when drying 5. Power Light: To come on when the ON/OFF Button is pressed down 6.
BAUMATIC BFD65W dishwasher user manual Note on chemicals used by the dishwasher • Your dishwasher is equipped with an adjustable rinse aid and salt container. Using individual detergents, rinse aid and salt will give the best possible results as this will give the correct dosage of each chemical to suit your needs.
BAUMATIC BFD65W dishwasher user manual SETTING THE WATER SOFTENER LEVEL YOU CAN ADJUST THE AMOUNT OF SALT USED BY THE DISHWASHER TO SOFTEN WATER TO GET THE BEST WASHING RESULTS, BASED ON THE HARDNESS OF WATER IN YOUR AREA. THERE IS A RING ON THE NECK OF THE CONTAINER.
BAUMATIC BFD65W dishwasher user manual • THE RINSE AID IS RELEASED DURING THE RINSE AID FINAL RINSE TO PREVENT WATER FROM FORMING DROPLETS ON YOUR DISHES THAT CAN CAUSE SPOTS AND STREAKS. IT ALSO IMPROVES DRYING BY ALLOWING WATER TO FALL OFF THE DISHES.
BAUMATIC BFD65W dishwasher user manual LOADING NOTE: YOUR FOR BEST PERFORMANCE, FOLLOW THESE LOADING GUIDELINES. FEATURES AND DISHWASHER APPEARANCE OF RACKS & CUTLERY BASKETS MAY VARY FROM YOUR MODEL. BEFORE LOADING! • REMOVE ALL SCRAPS OF FOOD. • EMPTY DRINKS & LIQUIDS FROM CUPS.
Page 10
BAUMATIC BFD65W dishwasher user manual HOW TO USE THE UPPER RACK THE UPPER RACK IS FOR MORE DELICATE POSITION THE DISHES AND LIGHTER DISHWARE SUCH COOKWARE SO THAT THEY DO NOT GLASSES, COFFEE & TEA CUPS, SAUCERS, GET MOVED BY THE SPRAY OF...
BAUMATIC BFD65W dishwasher user manual ***NOTE***: THE UPPER RACK HAS SIDE FLAPS (PICTURED AT LEFT ABOVE BASKET). THERE ARE 4 (2 ON EACH SIDE). THESE CAN BE ADJUSTED INTO 2 POSITIONS = POSITION 1 (HIGH) AND POSITION 2 (LOW). TO MOVE THE FLAPS BETWEEN THESE...
BAUMATIC BFD65W dishwasher user manual CUTLERY BASKET CUTLERY SHOULD BE PLACED IN THE CUTLERY BASKET WITH HANDLES ALWAYS POINTING DOWNWARD (AT THE BOTTOM). VERY LONG UTENSILS (LADLES, etc.) SHOULD BE PLACED HORIZONTALLY AT THE FRONT OF THE UPPER RACK. Forks...
STARTING A WASH CYCLE 1. Draw out the lower and upper basket, load the dishes and push them back. It is recommended to load the lower basket first, then the upper one (see the section entitled “LOADING THE DISHWASHER”). 2. Pour in the detergent (see the section entitled : “USING YOUR DISHWASHER”...
BAUMATIC BFD65W dishwasher user manual FILTERING SYSTEM FOR YOUR CONVENIENCE, WE HAVE PLACED THE FILTERING SYSTEM WITHIN EASY REACH INSIDE THE TUB. THE FILTER REMOVES BITS OF FOOD TRAPPED IN THE FILTER FROM THE WASH WATER SO IT CAN BE RECIRCULATED DURING THE CYCLE.
BAUMATIC BFD65W dishwasher user manual CLEANING THE FILTERS • THE FILTER ASSEMBLY MUST BE KEPT CLEAN FOR BEST PERFORMANCE. You should remove the larger bits of food trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water.
BAUMATIC BFD65W dishwasher user manual HOW TO KEEP YOUR DISHWASHER IN SHAPE , leave the door slightly ajar so that moisture and odours are not trapped FTER VERY inside. before cleaning or performing maintenance. Never run the risk of electric EMOVE THE shocks.
BAUMATIC BFD65W dishwasher user manual BEFORE YOU CALL FOR SERVICE … CHECKING AGAINST THE CHARTS BELOW MAY FIX YOUR PROBLEM. PROBLEM POSSIBLE CAUSES WHAT TO DO • Replace fuse or reset circuit breaker. • Fuse blown, or the circuit breaker acted •...
Page 18
BAUMATIC BFD65W dishwasher user manual PROBLEM POSSIBLE CAUSES WHAT TO DO • Use only special dishwasher Suds in the Tub! • Improper detergent detergent to avoid suds. • Always wipe up rinse agent spills • Spilled rinse agent immediately. Stained tub Interior! •...
Page 19
BAUMATIC BFD65W dishwasher user manual PROBLEM POSSIBLE CAUSES WHAT TO DO • Use less detergent if you have soft • Combination of soft Cloudiness on water and select a shorter cycle to water and too much clean the glassware. glass! detergent •...
BAUMATIC BFD65W dishwasher user manual PROBLEM POSSIBLE CAUSES WHAT TO DO Black or grey • Aluminium utensils • Use a mild abrasive cleaner to have rubbed against marks on dishes! eliminate those marks by hand. dishes • A small amount of clean water...
Error Codes: Baumatic Ltd *NOTE*: ALWAYS CALL FOR A ENDORSED / APPROVED SERVICE TECHNICIAN TO CARRY OUT REPAIRS. Codes Meaning Possible Causes Drying Light Flickers Longer Inlet Time Faucets not opened Rinse Light Flickers Longer Draining Time The installation position of...
BAUMATIC BFD65W dishwasher user manual INSTALLATION INSTRUCTIONS NOTE: APPLIANCE SHOULD ONLY BE FITTED BY A TRAINED TECHNICIAN INSTALLING YOUR DISHWASHER a) PREPARATION Before you install your appliance, make sure that the place you have chosen to fit it is: • Near the existing power socket.
Page 23
BAUMATIC BFD65W dishwasher user manual d) NEXT, CONNECT THE WATER INLET (SEE FIGURE BELOW): Connect the cold water supply hose to a threaded ¾ inch connector and make sure that it is fastened tightly in place. Attach tube C to the cold water supply A.
BAUMATIC BFD65W dishwasher user manual f) NOW YOU ARE READY TO CONNECT THE POWER CORD. WARNING! ELECTRICITY CAN BE DANGEROUS. PLEASE READ THE FOLLOWING CAREFULLY: ELECTRICAL CONNECTION Electrical Requirements The dishwasher is designed for operation on an adequately wired individual 220-240V AC, 50-60Hz system.
Page 25
BAUMATIC BFD65W dishwasher user manual g) NOW, PUT THE DISHWASHER ON THE SLIDE RAILS (These are supplied so your appliance can be pushed into place easily and to protect your floor surface from pressure points). See figure at bottom of page.
Page 26
REAR FEET. THIS CAN BE ACHIEVED USING A LEVER AND FULCRUM. TAKE GREAT CARE WHEN ATTEMPTING TO MOVE OR TILT YOUR DISHWASHER IN ANY WAY. NOTE: BAUMATIC WILL NOT BE LIABLE FOR ANY INJURY OR DAMAGE INCURRED WHILST YOU ATTEMPT TO MOVE YOUR DISHWASHER.
Page 27
BAUMATIC BFD65W dishwasher user manual FINAL CHECKLIST BEFORE OPERATING NOTE: BEFORE YOU START USING YOUR DISHWASHER, PLEASE MAKE SURE YOU HAVE CHECKED WHETHER THE DISHWASHER IS LEVEL AND • FIXED. WHETHER THE INLET VALVE IS OPENED. • WHETHER THERE IS LEAKAGE AT THE •...
In addition, your appliance is covered by a 5 year parts warranty. Baumatic Ltd will provide free of charge the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect that arises due to faulty materials or workmanship within a period of 5 years from the original purchase date.
Page 29
BAUMATIC BFD65W dishwasher user manual Baumatic Ltd Make-up for your kitchen Headquarters Baumatic Ltd. Baumatic Buildings, 6 Bennet Road, Reading, Berkshire RG2 0QX, United Kingdom Sales Telephone +44 118 933 6900 Sales Fax +44 118 931 0035 Service Telephone +44 118 933 6911...
