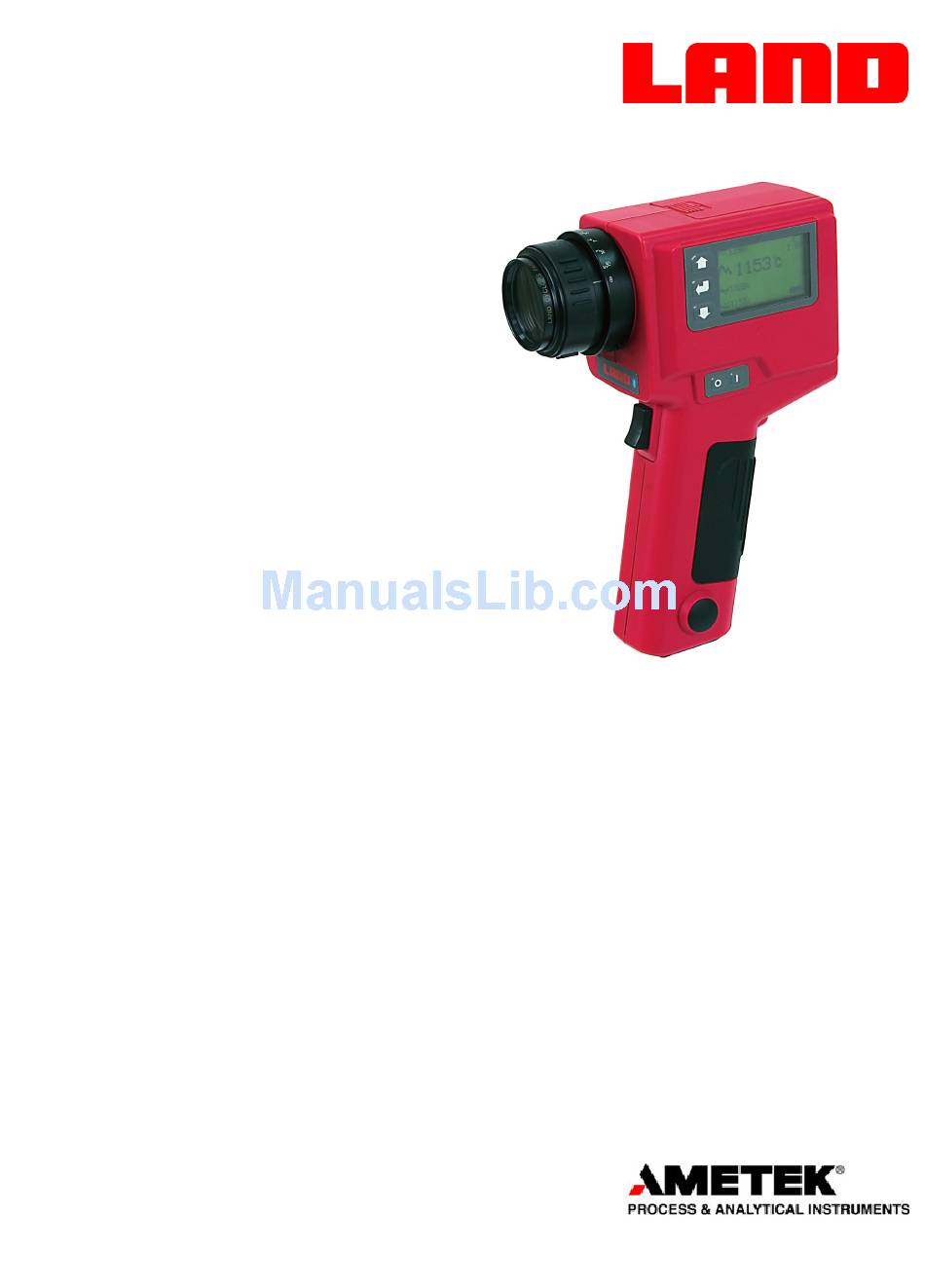

- Page 1 Cyclops 160B User Guide Issue 2, January 2012 Publication Nº 806458 Language: English © Land Instruments International, 2007-2012...
- Page 2 Indicates a potentially hazardous situation which, if not avoided, could result in damage or the loss of data. Equipment Operation Use of this instrument in a manner not specified by Land Instruments International may be hazardous. Read and understand the user documentation supplied before installing and operating the equipment. Protective Clothing, Face and Eye Protection It is possible that this equipment is to be installed on, or near to, machinery or equipment operating at high temperatures and high pressures.
- Page 3 Design and Manufacturing Standards The Quality Management System of Land Instruments International is approved to BS EN ISO 9001 for the design, manufacture and on-site servicing of combustion, environmental monitoring and non-contact temperature measuring instrumentation.
- Page 4 Cyclops 160B User Guide...
-
Page 5: Table Of Contents
Maintenance Accessories and Spare Parts User Configuration Record Appendix 1 Appendix 2 The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Land ® Instruments International is under license. - Page 6 Cyclops 160B User Guide Fig. 1-1 Land Cyclops 160B portable infrared thermometer...
-
Page 7: Introduction
Cyclops 160B portable thermometers. It is important to check all equipment with which you have been supplied, and read all the literature provided with the Land Cyclops 160B before using the thermometer for the first time. Additionally, keep all supplied literature readily available, for reference when the equipment is in general use. - Page 8 1.3 Nomenclature The instrument detail label is positioned centrally, on the right-hand side of the Cyclops 160B casing. The Instrument Type specifies the thermometer variant and the Serial Number is a unique identification number, incorporating the manufacture date code (see Fig. 1-2) Upon receipt of the instrument, make a note of the Instrument Type and Serial Number in the spaces provided below.
-
Page 9: Specifications
User Guide Cyclops 160B Specifications Temperature range: 200 to 1400°C / 392 to 2552°F (operating) 200 to 1300°C / 392 to 2372°F (specified) Viewfinder display: 4-digit temperature in 1° steps External display: Peak, Continuous, Average and Valley temperatures on LCD display panel Optical system: 9°... -
Page 10: Thermometer Description

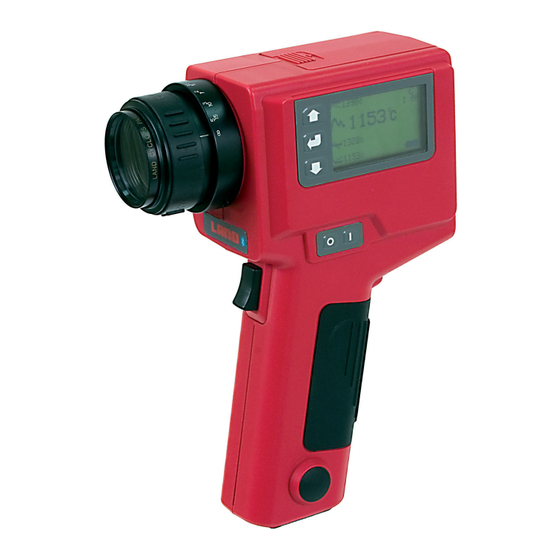

LCD display panel Trigger switch (2 position) Keypad Tripod mounting hole Optical focusing ring Adjustable wrist strap (in packaging) Protective window Adjustable eyepiece Lens cap Battery compartment cover ON/OFF switch Fig. 3-1 Land Cyclops 160B portable infrared thermometer description Page 4... -
Page 11: Thermometer Power Supply
Thermometer Power Supply 4.1 Fitting and changing the Battery The Cyclops 160B portable thermometer is designed to be powered by a 9V dry cell battery. A Duracell 6LR61/MN1604 (or equivalent) battery is supplied with the thermometer. The battery is fitted as follows: Before inserting or changing the battery, ensure that the thermometer is switched OFF. - Page 12 Cyclops 160B User Guide To preserve battery lifetime, the thermometer has the following power saving features: • If the thermometer is in Menu Mode for over one minute without any key being pressed, the display returns to Measure Mode. •...
-
Page 13: Thermometer Controls
User Guide Cyclops 160B Thermometer controls 5.1 ON/OFF Switch The On/Off switch is on the left-hand side of the thermometer (see Fig. 3-1, item 6). The switch has two push buttons, Off (a) and On (b). A single press of a switch will activate/de-activate the unit. - Page 14 Cyclops 160B User Guide 5.4 Adjustable Eyepiece The Adjustable Eyepiece (e) is on the rear face of the thermometer (see Fig. 3-1, item 10). The eyepiece allows you to view the scene being measured by the thermometer. The eyepiece can be adjusted manually to match each user’s eyesight...
-
Page 15: Optics
User Guide Cyclops 160B Optics The Cyclops 160B has a precision reflex optical system, which provides user- focusable ‘through the lens’ sighting and gives precise definition of the target spot. The specified focal range is 1m/39.4in to infinity. 6.1 Target Size Calculation The precision reflex optical system gives a narrow field of view (180:1 to 98% energy). - Page 16 Never look at the sun through this instrument - this could cause severe damage to the eye. 6.3 Fitting a Close-up Lens To fit a close-up lens to the Cyclops 160B thermometer, unscrew the clear protection window from the lens assembly and replace it with the relevant close-up lens.
- Page 17 (1/3° circle) Display panel Temperature reading Fig. 6-2 Cyclops 160B eyepiece optics The eyepiece allows you to look into the thermometer and view the target scene. Accurate target definition is provided by the wide angle (9°) field of view and small, clearly defined (1/3°) target graticule.
-
Page 18: Display Panel Modes
Cyclops 160B User Guide Display Panel Modes 7.1 Introduction The LCD display panel has two basic modes of operation: • Measure Mode • Menu Mode When the thermometer is switched on, an introduction screen is displayed. This screen times-out automatically and is replaced by the Measure Mode display. - Page 19 User Guide Cyclops 160B 7.2.1 Peak temperature measurement The Peak temperature measurement mode is used to measure and display information about the highest temperatures recorded by the thermometer. The peak temperature values can be viewed in the instrument eyepiece and streamed to the Bluetooth output.
- Page 20 Cyclops 160B User Guide 7.2.2 Continuous temperature measurement Continuous temperature measurement provides the real-time observed temperature value. The temperature is updated continuously and the value is viewed in the instrument eyepiece. 7.2.3 Averaged temperature measurement Averaged temperature measurement gives a ‘smoothed’ temperature value.
- Page 21 User Guide Cyclops 160B 7.2.4 Valley temperature measurement Valley temperature measurement is the inverse of Peak temperature measurement, in that it allows you to monitor the lowest temperature value rather than the highest. Temperature measurement starts when the trigger is pressed in and continues until the trigger is released (See Fig.
- Page 22 7.3 Menu Mode When the thermometer is in Menu Mode, the menu options available in the Cyclops 160B thermometer can be accessed. This allows you to view and configure the setup of the thermometer and select the options that best suit your temperature measurement requirements.
- Page 23 User Guide Cyclops 160B 7.4 Menu Mode - Icon Descriptions The information in this chapter should be used in conjunction with the navigational flow chart (see Fig. 7-6). Exit When in Menu Mode, clicking on the exit icon (a) will return you to Measure Mode.
- Page 24 Cyclops 160B User Guide Averager time constant The averager time constant function allows you to set the rate of averaging of the temperature values taken. There are three options: Fast (i), Mid (j) and Slow (k). The default setting is Mid.
- Page 25 Bluetooth identifier, software version, Tmax and Tmin ambient temperature readings since last calibration and a link to the Land Instruments website. Note that it is necessary to use the arrow keys to scroll up and down the screen to see the full list of information available.
- Page 26 Cyclops 160B User Guide Fig. 7-6 Cyclops 160B icon navigational flow chart Page 20...
-
Page 27: Operational (Trigger) Modes
User Guide Cyclops 160B Operational (Trigger) Modes 8.1 Introduction The Cyclops 160B thermometer has three operating modes: • Classic • History • Burst The thermometer trigger is used to control the operation of the thermometer in each Trigger mode. The trigger has two stages: T1 and released T2 (See inset). - Page 28 Cyclops 160B User Guide 8.3 History Mode In History mode all data collection and transfer is controlled by the dual stage trigger operation. In summary, the T1 position is used to align the instrument on the chosen target and the T2 position is used to generate the logged data.
- Page 29 User Guide Cyclops 160B 8.4 Burst Mode Burst mode is only intended for use when data logging via the Bluetooth connection to an IPAQ or laptop computer. It can be used for monitoring rapid fluctuations of temperature or recording a temperature profile, such as a long strip of material.
-
Page 30: Thermometer Operation
Cyclops 160B User Guide Thermometer Operation CAUTION Never look at the sun through this instrument - this could cause severe damage to the eye. Prior to temperature measurement, the thermometer must be set up as dictated by the chosen application. - Page 31 User Guide Cyclops 160B 9.1 Operation (Example 1: simple temperature measurement) Switch the thermometer on via the On/Off switch. The initialisation screen will appear and, after a few seconds, the screen will change to show the measurement mode display. Check the battery status, ensure that there is sufficient battery life remaining.
- Page 32 This can lead to a reduction in the amount of radiant energy reaching the thermometer from the target. The following instructions detail the operation of a Cyclops 160B in a typical complex temperature measurement application (as in Fig. 9-1).
- Page 33 User Guide Cyclops 160B Enter the Window Compensation > On sub-menu and amend the Window Compensation factor value with the keys until the display temperature reads the same as the recorded value taken from the known value source. You must now use this Window Compensation value, as it is correct for the chosen viewing window/ port material (e.g.
-
Page 34: Bluetooth Wireless Communication
Pocket PC (see DL-1000 v2 User Guide) as required Establish Bluetooth communications from the Cyclops 160B to a laptop/PC/Pocket PC (see DL-1000 v2 User Guide). The Cyclops 160B requires a passkey of 0000. When Bluetooth communications is active, the Bluetooth logo on the thermometer side display holds steady and a I0I0I icon appears (a flashing logo indicates lost Bluetooth communications). -
Page 35: Emissivity
(See Section 11.2). If you have a query regarding the emissivity of the target in your measurement application, contact Land Instruments International for assistance. Refractories Material... - Page 36 Cyclops 160B User Guide Metals Material Cyclops 160B Aluminium 0.09 Oxidised 0.40 Chromium 0.34 Oxidised 0.80 Cobalt 0.28 Oxidised 0.65 Copper 0.05 Oxidised 0.85 Gold 0.02 Iron & Steel 0.30 Oxidised 0.85 Lead 0.28 Oxidised 0.65 Magnesium 0.24 Oxidised 0.75 Molybdenum 0.25...
- Page 37 User Guide Cyclops 160B Miscellaneous Material Cyclops 160B Asbestos Board/paper/cloth 0.90 Asphalt 0.85 Carbon Graphite 0.85 Soot 0.95 Cement & Concrete 0.70 Cloth All types - close weave 0.80 (Open weave reduces emissivity) Glass 3mm thick 6mm thick 12mm thick...
- Page 38 Cyclops 160B User Guide 11.2 Practical determination of Emissivity value For many applications, such as metal alloys, it is not possible to specify a fixed emissivity value. In such instances, it is possible to make an in-situ, practical determination of the required emissivity setting by comparison with a reference measurement such as a thermocouple reading.
-
Page 39: Maintenance
User Guide Cyclops 160B 12 Maintenance The Cyclops 160B thermometer has been designed specifically to require very little maintenance. There are several processes that are recommended to help ensure that the instrument remains serviceable. • Ensure that the lens cover is fitted when the thermometer is not in use. -
Page 40: Accessories And Spare Parts
Type 110 & Type 135 Close-up Lenses Type 110 (802007) and Type 135 (802008) close-up lenses enable the Cyclops 160B to focus on targets at distances that are too close to measure with the standard lens. The Type 110 lens has a fixed focus at 215mm/8.5in, with a minimum target size of 0.5mm/0.02in. - Page 41 DL-1000 Datalogger Kit The DL-1000 Datalogger Kit allows you to externally log streamed data from the Cyclops 160B thermometer, whilst retaining full portability. The kit includes an HP iPAQ Pocket PC with companion software CD, Cyclops DL-1000 v.3 software CD (including communication software), and System User Guide.
- Page 42 Cyclops 160B User Guide 13.2 Spare Parts Part Material Code Eyepiece hood 802211 Lens cover 802083 Wrist strap 801994 Battery cover 804090 Lens protection window 802061 Rubber Tripod Pad 802311 Protective thermal cover 802598 Spare HP iPAQ for DL-1000 Datalogger...
-
Page 43: User Configuration Record
Your chosen parameter settings and values are stored in the thermometer’s memory. If the thermometer is returned to Land Instruments for repair or recalibration, it is possible that your stored user settings may be overwritten and the thermometer returned to you with the factory default settings. -
Page 44: Appendix 1
Cyclops 160B User Guide Appendix 1 Serial Communications Data Logging Protocol The logging protocol given below applies to data streamed serially via the BLUETOOTH module. UART Settings BAUD 57600 fixed START DATA PARITY STOP 1,8,N,1 Classic Mode stream When the trigger is pressed to the T1 position, a continuous stream of lines of data of fixed (12 character) length is output every 0.5 ±0.1 seconds. - Page 45 User Guide Cyclops 160B Advanced Mode - data stream When the trigger is pressed to the T1 position, a continuous stream of lines of data is produced every 0.5 ±0.1 seconds: EXAMPLE: 972.0 CR LF As per Classic Mode stream except...
- Page 46 Cyclops 160B User Guide Advanced – Bluetooth Heartbeat To maintain the Bluetooth link, and to establish that the logger program is running, the following dummy data is sent: xxxxxx CR LF The receiving device should send a * handshake to indicate heartbeat reception.
-
Page 47: Appendix 2
Description: Unknown Cyclops Type If this code is displayed the instrument will be unable to perform any further any function. If the error persists, return the Cyclops to Land Instruments for repair. Error Code 2 Description: Lost Calibration Data The Cyclops will continue to work, but with the display inverted (i.e. white on black). - Page 48 Cyclops 160B User Guide Page 42...
- Page 49 We believe that our customers expect us to set the standard in terms of performance, quality, reliability and value for money. This 36 months warranty, as a part of an on-going program of continuous improvement, is just one way in which Land strive to maintain our position as the temperature measurement partner of choice.
- Page 50 It should be noted that costs associated with calibration checks which may be requested during the warranty period are not covered within the warranty. Land reserve the right to charge for service/calibration checks undertaken during the warranty period if the cause is deemed to fall outside the terms of the warranty.
