Page 1: Quick Start Guide
CYCLOPS L QUICK START GUIDE PUBLICATION N 809626 LANGUAGE: ENGLISH Cyclops 100L, Cyclops 160L, Cyclops 390L, Cyclops 055L Q U A L I T Y C U S T O M E R S O L U T I O N S... -
Page 2: Thermometer Description

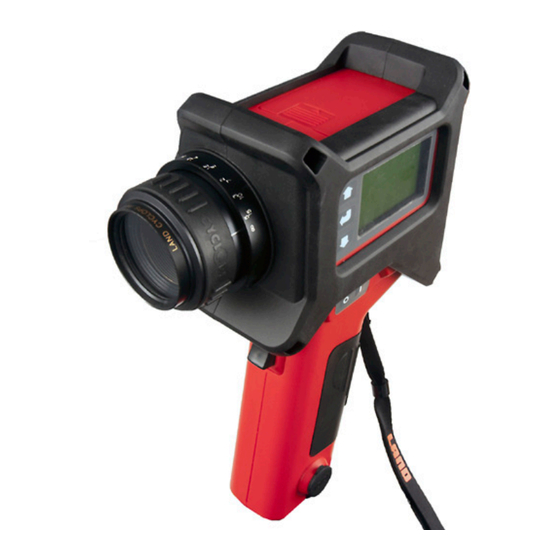

Thermometer Description LCD display panel USB Connector Keypad Tripod mounting hole Optical focusing ring* 10 Adjustable wrist strap (in packaging) Protective window 11 Protective cover Lens cap 12 Adjustable eyepiece ON/OFF buttons 13 Battery compartment cover Trigger * Optical Focus Ring is not fitted to Cyclops 055L Thermometers... -
Page 3: Insert The Battery
Insert the Battery Remove the Lens Cap Lens Cap Switch ON ON Button... -
Page 4: Take A Measurement
View the Target Target Field of View Target being measured is defined by the circle in the viewfinder Take a Measurement Measured temperature displayed in viewfinder and side display Press the trigger to measure temperature... -
Page 5: Install The Software
Insert the CD Install the Software User Documentation Logger Software Multiple Languages... - Page 8 Applies in the UK For a full list of international offices, please visit our website www.landinst.com Copyright © 2008-14 LAND Instruments International. Continuous product development may make it necessary to change these details without notice. Cyclops Quick Start Guide, Issue 1, 06 May 2014...
