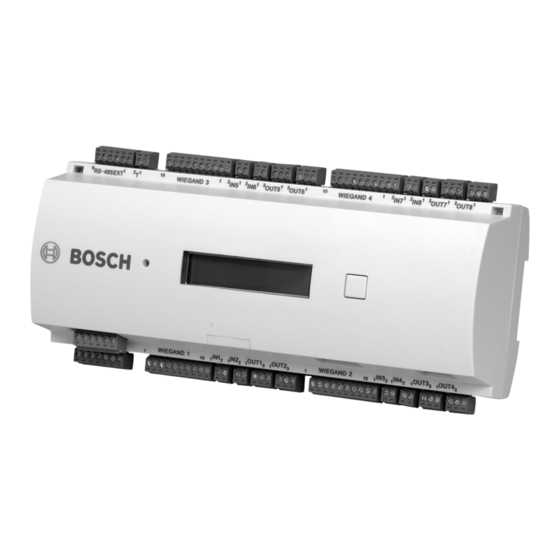

- Page 1 AMC2 4W APC-AMC2-4W | APC-AMC2-4WCF | APC-AMC2-4WUS Installation manual...
- Page 3 Bosch Security Systems retains all rights not expressly granted. Nothing in this license constitutes a waiver of Bosch’s rights under the U.S. Copyright laws or any other federal or state law. If you have any questions concerning this license, please, write Bosch Access Systems GmbH Adenauerstr.
-
Page 4: Table Of Contents
Grounding and Shielding the Extension Interface Connecting Power Supply RS-485 Host Interface 5.6.1 RS-485 Two Wire Connection 5.6.2 RS-485 Four Wire Connection 5.6.3 DIL Switch Address Selector RS-232 Host Interface Ethernet Interface F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems... -
Page 5: Amc2 4W | En
Tamper Protection Operating Status Display of the AMC2 4W Configuring the Ethernet Interface Resetting the AMC2 4W 6.3.1 Resetting the Software 6.3.2 Resetting the Network Configurations Appendix Connecting Diagrams Legend Index Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09... - Page 6 6 en | AMC2 4W F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems...
-
Page 7: Please Read Carefully
Tips and shortcuts might also be included here. Internet If you are interested in further information on this product or information on other products, please, refer to our website at http://www.bosch-security-systems.com. Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09... -
Page 8: Safety Instructions
Adjust only those controls specified in the operating instructions. Improper adjustment of other controls may result in damage, and require extensive work by a qualified technician to restore the unit to normal operation. F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems... - Page 9 This will prevent damage to the unit due to lightning and excessive power line surges. 11. Restricted Access Locations are required for the installa- tion. Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09...
-
Page 10: Fcc & Ices Information
Increase the separation between the equipment and the receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/TV technician for help F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems... -
Page 11: Safety Precautions
• A normally-closed break-glass or manual pull in the lock supply wiring, so that in an emergency the fail- safe lock can be immediately powered down. Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09... -
Page 12: Unpacking
If parts are missing, inform your customer service representa- tive or a Bosch Security Systems salesperson. The shipping car- ton is the safest transport container for the unit. Store it and the other packaging material for future use. If the unit has to be sent back, use the original packaging. -
Page 13: Introduction
Using the AMC2 4W gives you the full functionality and the offline capability of a complete access control system on each room. This leads to an excellent reliability and a very high redundancy without paying extra money. Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09... - Page 14 This settings can be changed using the Device Editor of the BIS Configuration Browser in that way to choose every free contact of the AMC2 4W or an connected extension. F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems...
-
Page 15: Equipment Configuration
Jumper: interface selector RS-485 Host connection, RS- 485 two wire or RS-485 four wire (depends on external wiring) Configurable RS-485 host interface (pluggable screw con- nector) 10. Docking station for the compact flash Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09... - Page 16 16. Wiegand interfaces for up to 4 card readers (Pluggable screw connector) 17. Connectors for eight analog inputs (Pluggable screw con- nector) 18. Connectors for eight relay outputs (Pluggable screw con- nector) F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems...
- Page 17 19. Jumper: Selector for either potential free relay output or powered by AMC2 4W internal power supply (wet/dry con- tacts). 20. Jumper: Potential equalization between different mass systems and protective earth (shield)for the extension interface. Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09...
-
Page 18: Performance Characteristics
Power supply for internal electronics: 10V - 30VDC - max. – Tamper contact for internal and external covers – The AMC2 4W is to be used with power supply AMC PBC-60 (F.01U.026.573) with integrated UPS. F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems... -
Page 19: System Overview
Via Wiegand interfaces up to four peripheral devices can be connected to each AMC2 4W. The interfaces are point-to-point connections - this means that only one reader can be connected to one interface. Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09... -
Page 20: Technical Data
Eight analog inputs with sabotage monitor- – Tamper contact for enclosures Power supply AMC: 10V – 30V DC Display 64,8 mm x 13,9 mm (2.551 x 0.547 in.) 1 line, 16 characters F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems... - Page 21 2.4 in.) Weight app. 0,53 kg (0.9 pounds) CAUTION! The voltage drop from the power supply to the AMC has effect on the AMC-Interfaces. Their sum shall be less than 2V! Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09...
-
Page 22: Installing
AMC2 4W and snap it onto the rail by pushing it towards the back. Fig. 5.1 Mounting the AMC2 4W on a mounting rail F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems... -
Page 23: Demounting
Push down the AMC2 4W until it snaps out of the mounting rail. Pull the lower end of the AMC2 4W from the mounting rail. Fig. 5.2 Demounting the AMC2 4W from a mounting rail Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09... -
Page 24: Opening The Amc2 4W Case
To open the AMC2 4W push down the two snap-ins with a srew driver. After that the cover can be moved to bottom. Fig. 5.3 Opening the AMC2 4W case F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems... -
Page 25: Cabling
AMC. Please, calculate the voltage drop by checking the conductor specifications for characteristic resistance values. The voltage drop shall not exceed 2V. Example: Length = 100m/328 ft Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09... -
Page 26: Grounding And Shielding The Host Interface
For inputs there are other value to keep in mind - see therefore Table 5.3. 5.4.2 Grounding and Shielding the Host Interface Fig. 5.4 Location of ground jumper RS-485 host interface The jumper setting A1 shows the delivery status. F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems... - Page 27 PAG is not connected, ... – the jumper JP2 is set at all devices (= A3) NOTE! If the AMC2 4W is set to RS-232 mode, Jumper JP1 (= A2) must be set. Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09...
-
Page 28: Grounding And Shielding The Extension Interface
Connect the power supply to the 7-pin pluggable screw connec- tor labeled with POWER on the upper case. NOTE! A complete connection diagram of the power supply connector is shown in Figure 7.6. F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems... - Page 29 4 and 7 for power good AC • pin 5 and 7 for power good Battery • pin 6 and 7 for power good DC Otherwise these pins must be short-circuited. Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09...
-
Page 30: Rs-485 Host Interface
RS-485 Host Interface An RS-485 host system can consist of up to eight AMC2 4W controllers connected via 2- or 4-wire connection. Fig. 5.7 Configuration of a RS-485 host system F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems... - Page 31 AMC-MUX. Then set the RS-485 address via DIL switch or software and activate the RS-485 two-wire or four-wire mode via jumper settings on the AMC - see Figure 5.10 and Figure 5.12. Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09...
-
Page 32: Rs-485 Two Wire Connection
32 en | Installing AMC2 4W Fig. 5.8 RS-485 host interface 5.6.1 RS-485 Two Wire Connection Fig. 5.9 Connection scheme of a RS-485 two wire connection F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems... -
Page 33: Rs-485 Four Wire Connection
8 (see also: Figure 3.3). Set the RS-485 address of the AMC using the DIL-Switch - see Section 5.6.3 DIL Switch Address Selector. 5.6.2 RS-485 Four Wire Connection Fig. 5.11 Connection scheme of an RS-485 four wire connection Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09... -
Page 34: Dil Switch Address Selector
485 address of the AMC2 4Win a RS-485 bus system. Switch 5 selects on of the two different protocols, SDEB and BPA (according to DIN6619). Switch 6 sets the connection to the host system to either RS-232 or RS-485. F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems... - Page 35 Device Editor. Therefore this is a point-to-point connection the usually configured address will be 1 - so the switch 1 must be also set to ON. Fig. 5.13 Location of the RS-485 address selector Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09...
-
Page 36: Rs-232 Host Interface
The AMC2 4W offers an RS-232 serial interface to connect a host computer or serial modem. CAUTION! Cable length between two RS-232 COM serial interfaces must not exceed 15 meters (45 ft). F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems... -
Page 37: Ethernet Interface
Use either a CAT5 crossover cable to connect the AMC2 4W directly to a computer’s network interface or a standard CAT5 patch cable to connect the AMC2 4W to a network hub or net- work switch. Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09... - Page 38 To speed up this procedure give in the following command in a command prompt: ipconfig /flushdns After this the AMC should be available by its name. NOTE! A complete connection diagram of the Ethernet host interface is shown in Figure 7.4. F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems...
-
Page 39: Rs-485 Extension Module Bus
Figure 7.10. 5.10 Wiegand Interface for Card Readers The AMC2 4W has four Wiegand interfaces to integrate up to four card readers with Wiegand compatible interfaces. Each Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09... - Page 40 - the cable length is limited to 150 m (492 ft). Like the numbering of the interfaces the reader get their address. NOTE! A complete connection diagram of the Wiegand interface is shown in Figure 7.7. F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems...
-
Page 41: Connecting Relay Outputs
Each relay output can operate in ‘wet’ mode, using the AMC2 4W's internal 12V DC power supply for external devices or ‘dry’ mode with potential free contacts for externally pow- ered systems. Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09... - Page 42 Flare move 24DC1W16A But you can also use products of manufacturer in your country - take care that the values of the product are iden- tical with the products listened above. F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems...
- Page 43 A complete connection diagram of the relay output connectors is shown in Figure 7.9. Each relay output has a separate jumper setting on the bottom side of the lower circuit board to activate wet (D2)or dry (D1) mode. Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09...
-
Page 44: Connecting Analog Input Devices
The inputs will be connected to the 2-pin pluggable screw connectors: S3, S4, S8, S9, S15, S16, S20, and S21 - see Figure 7.5. F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems... - Page 45 R resistor. Fig. 5.23 Operating modes of a lock using the analog input device NOTE! A complete connection diagram of the analog input devices is shown in Figure 7.8. Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09...
-
Page 46: Tamper Protection
AMC2 4W offers an additional interface to connect external tamper contacts. This interface is a potential-free 2-pin plugga- ble screw connector marked with T. If not using the tamper contact, short-circuit the contacts with a wire connection. F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems... - Page 47 AMC2 4W Installing | en 47 Fig. 5.24 Location of the tamper protection contact Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09...
-
Page 48: Operating
The display mode which has been set remains until the next operation of the ‘Dialog’ button. The order of the display pages is determined and follows the scheme shown in the table below. F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems... - Page 49 - every 5 sec. WIEGAND alternating with the display of the reader interface. (= default page) 99999876543210 A BOSCH serial number and bus address: A = address 1 H = address 8 02.06 15:35:15 Current date and time Dig.
-
Page 50: Configuring The Ethernet Interface
The AMC2 4W will be reset and reboots. You are back in the download program. Now it is possible to reconfigure the AMC2 4W from the begin- ning. If the problem still arises, please, call your local service. F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems... -
Page 51: Resetting The Network Configurations
Press the tamper switch on the upper left side of the board The AMC2 4W will now have the following network configura- tion: • DHCP = 0 • IP = 127.0.0.1 Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09... - Page 52 52 en | Operating AMC2 4W Fig. 6.3 Resetting the AMC2 4W to delivery state F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems...
-
Page 53: Appendix
AMC2 4W Appendix | en 53 Appendix Connecting Diagrams Fig. 7.1 Connectors on upper PCB Fig. 7.2 RS-485 host on upper PCB Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09... - Page 54 54 en | Appendix AMC2 4W Fig. 7.3 Connecting diagram of the RS-232 serial interface Fig. 7.4 Ethernet Network socket (RJ45) F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems...
- Page 55 AMC2 4W Appendix | en 55 Fig. 7.5 Connector blocks of the AMC2 4W Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09...
- Page 56 56 en | Appendix AMC2 4W Fig. 7.6 Power supply Fig. 7.7 Wiegand interface Fig. 7.8 Analog input Fig. 7.9 Relay output F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems...
-
Page 57: Legend
AMC2 4W Appendix | en 57 Fig. 7.10 Extension interface Fig. 7.11 External tamper contact Legend Twisted pair connection Transmitter Receiver Bosch Security Systems Installation manual F.01U.024.965 | V.4 | 2006.09... -
Page 58: Index
RS232 Host Interface 36 RS485 Host Interface 30 RS485 Extension Module Bus RS485 Two Wire Connection Safety Notes 11 Status Display 48 Shielding 25 System Overview 19 Used Symbols 7 Wiegand Interface 39 F.01U.024.965 | V.4 | 2006.09 Installation manual Bosch Security Systems... - Page 60 Bosch Security Systems Robert-Koch-Straße 100 D-85521 Ottobrunn Germany Telefon 089 6290-0 089 6290-1020 www.bosch-securitysystems.com © Bosch Security Systems, 2006...
