Single Frame Advance & Single Frame Rewind
During Freeze or Pause mode, rotate the Jog (the inner dial) to view the frame
directly before or after the frame displayed on-screen.
Stop Playback
To stop playback and return to Live Multiscreen mode on Monitor A, press the
Stop button.
Multiscreen Display
During Playback, only the 4-way multiscreen display will function. The PIP
multiscreen display is not available in Playback mode. For detailed
information about Multiscreen displays, see section 2.6.
Multiscreen Display With Sequencing
If a multiscreen display does not include all of the cameras, the remaining
cameras can be sequenced in the bottom right cameo. While in a multiscreen
display, press the Sequence button to begin sequencing. For detailed
information about sequencing, see section 2.8.
Full Screen Display
Select any camera for Full Screen display by pressing the Number button of
the desired camera. Pressing the Camera number button again displays the
Status Display Box.
Sequenced Full Screen Display
While in a Full Screen display, press the Sequence button to begin full
screen sequencing. The sequence list is programmable. For detailed
information about programming the sequence list see section 2.8.
Zooming
To activate the 2x digital zoom, select the full screen display of the camera
you wish to zoom, then press the Zoom button. Zooming will be indicated by
the LED located directly above the Zoom button. Zooming is also indicated
as ZOOM on the monitor. Zooming works with frozen and non-frozen
images. Zoomed images can also be frozen.
While Zoomed, use the Jog/Shuttle to Pan and Tilt across the image.
Please note, the camera does not move during digital Pan/Tilt.
Press the Zoom button again, or another camera button to cancel the Zoom
operations.
If the Zoom button is pressed while in a multiscreen display, the camera from the last active
NOTE
cameo is selected for full screen display. Press the Zoom button again to activate the Zoom
operation.
0150-0257A
15

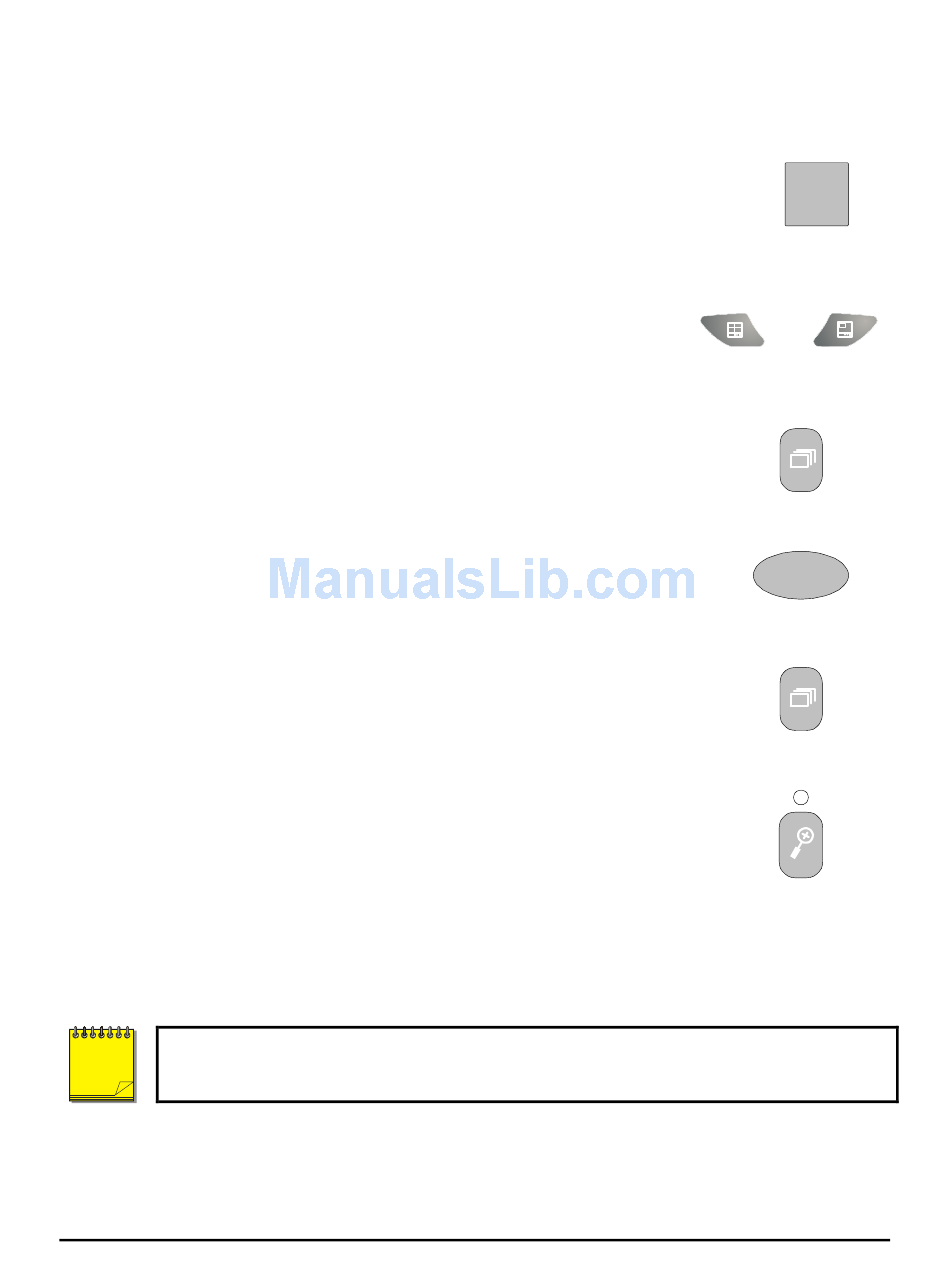

Stop Button
B
4-way and PIP
Multiscreen Buttons
Sequence Button
1
Number Button
Sequence Button
Zoom Button
with LED
Kalatel DVMRe-4L
