  • Page 1: Quick Start Guide

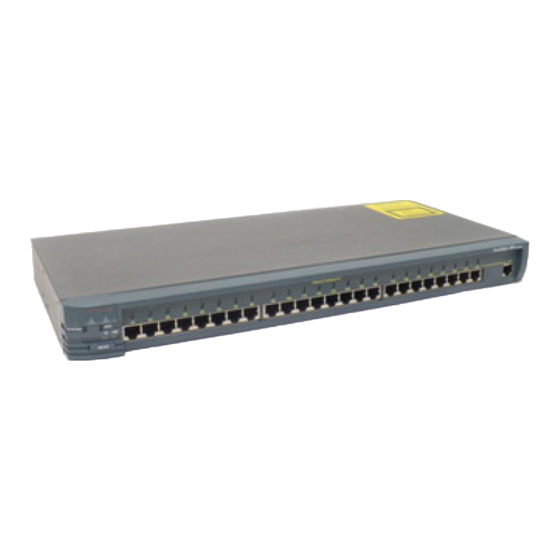

    Quick Start Guide 4 0 0 1 0 / 1 0 0 S A S T E R I E S A B L I N G A N D T A R T ONNECT THE UB TO THER ETWORK EVICES IP I SSIGN...
  • Page 2 Black AC power cable Rack-mount kit Rubber feet If any item is missing or damaged, contact your Cisco representative or reseller for support. Note: You need to supply Category 3, 4, or 5 straight-through or crossover cables to connect to Ethernet devices.

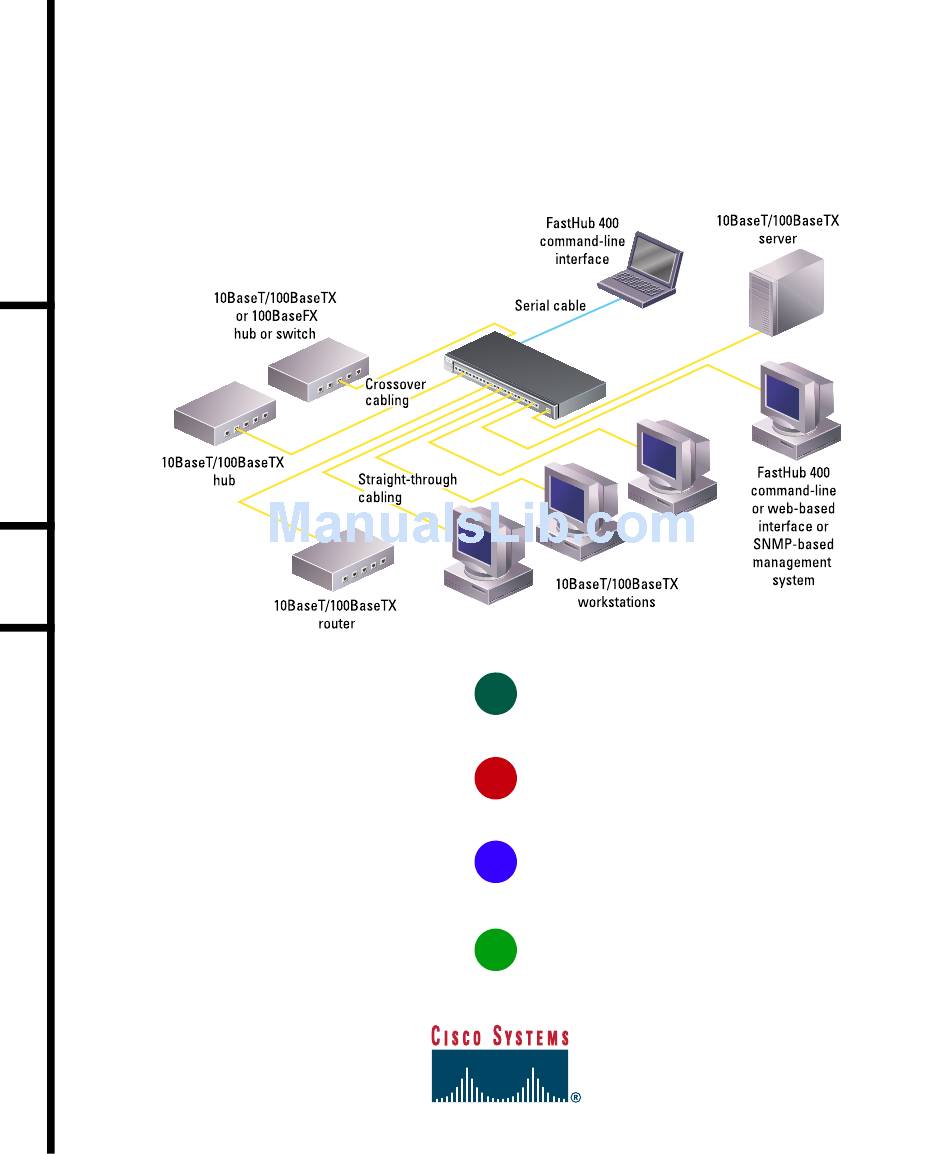

  • Page 3 Connect the Hub to Other Network Devices 10BaseT/100B aseTx 10BaseT/100BaseTX network port (RJ-45) Maximum cable length: 328 ft (100 m) 10BaseT or 100BaseTX port (RJ-45) Ethernet cable (not supplied) Note: Use a straight-through cable to Connect the Hub to Switches connect two ports when one of the ports is and Other Hubs designated with an X.
  • Page 4 Connect the Hub to Other Network Devices (continued) DC INPUTS FOR REMOTE POWER SUPPLY RATING SPECIFIED IN MANUAL 100-127 / 200-240 V~ CONSOLE 6A, +12V 2A /1A 50 / 60 Hz DC INPUT 10/100 BASE-TX DOWN MEDIA MODULE STAT DUP 100 DC INPUTS FOR REMOTE POWER SUPPLY 10/100 BASE-TX...

  • Page 5: Console Cable

    PC, or laptop. Note: You can use the internal power The default settings of the hub console supply and the Cisco 600W AC Redundant port are 9600 baud, 8 data bits, Power System (RPS). Attach only the Cisco 1 stop bit, no parity, and no flow control.
  • Page 6 Enter IP default gateway: 10.1.105.254 Assign IP information to the FastHub 400M The following information is displayed: model so that you can use the FastHub 400 series Hub Manager web-based interface The following configuration command script was created: and so that the hub can communicate with ip address 10.1.105.20 255.255.255.0...
  • Page 7 (Optional) Display the FastHub 400 Series Hub Manager If you have the IP address to the hub, you can display the FastHub 400 series Hub Manager from your intranet. You can use the FastHub 400 series Hub Manager to configure and monitor the hub.
  • Page 8 • AccessPath, Any to Any, AtmDirector, the CCIE logo, CD-PAC, Centri, the Cisco Capital logo, CiscoLink, the Cisco Management Connection logo, the Cisco NetWorks logo, the Cisco Powered Network logo, the Cisco Press logo, the Cisco Technologies logo, ClickStart, ControlStream, DAGAZ, Fast Step, FireRunner, IGX, IOS, JumpStart, Kernel Proxy,...
