NETGEAR WNDR3400v3 Installation Manual

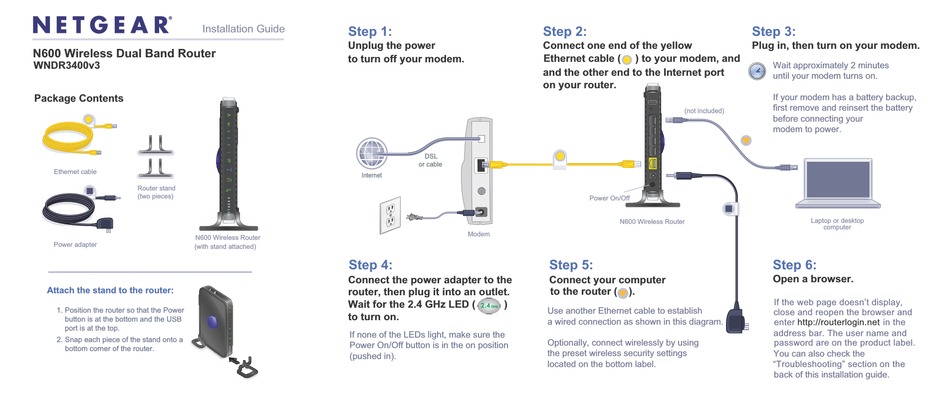

Installation Guide
N600 Wireless Dual Band Router
WNDR3400v3
Package Contents
Ethernet cable
Router stand
(two pieces)

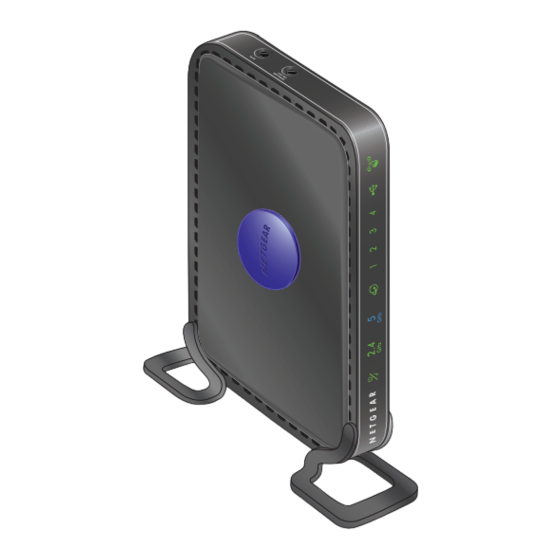

N600 Wireless Router
Power adapter
(with stand attached)
Attach the stand to the router:
1. Position the router so that the Power
button is at the bottom and the USB US SB
port is at the top.
2. Snap each piece of the stand onto a onto o a
bottom corner of the router.
Step 1:
Unplug the power
to turn off your modem.
DSL
or cable
Internet
Modem
Step 4:
Connect the power adapter to the
router, then plug it into an outlet.
Wait for the 2.4 GHz LED ( )
2.4
GHz
to turn on.
If none of the LEDs light, make sure the
Power On/Off button is in the on position
(pushed in).
Step 2:
Connect one end of the yellow
Ethernet cable ( ) to your modem, and
and the other end to the Internet port
on your router.
(not included)
Power On/Off
N600 Wireless Router
Step 5:
Connect your computer
to the router ( ).
Use another Ethernet cable to establish
a wired connection as shown in this diagram.
Optionally, connect wirelessly by using
the preset wireless security settings
located on the bottom label.
Step 3:
Plug in, then turn on your modem.
Wait approximately 2 minutes
until your modem turns on.
If your modem has a battery backup,
first remove and reinsert the battery
before connecting your
modem to power.
Laptop or desktop
computer
Step 6:
Open a browser.
If the web page doesn't display,
close and reopen the browser and
enter http://routerlogin.net in the
address bar. The user name and
password are on the product label.
You can also check the
"Troubleshooting" section on the
back of this installation guide.
