b. Push the iLO MP card blank against the inside of the chassis and screw in the blank's
mounting screw on the external connector side of the server chassis.

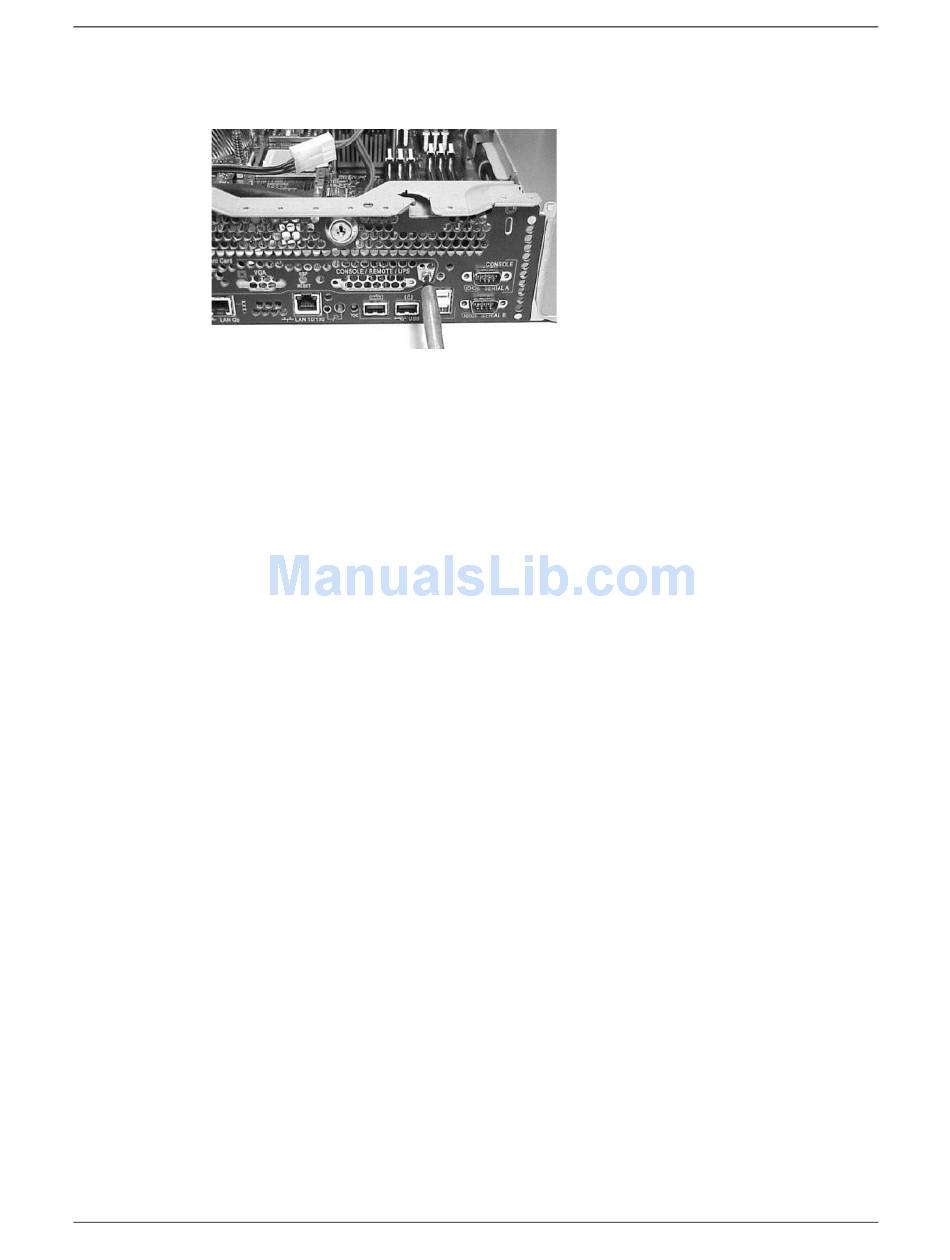

Securing the iLO MP Card Blank

8. Replace the covers and reconnect the power and external cables.
Replacing the iLO MP Card
To replace the iLO MP card, follow these steps:
1. Power off the server, disconnect all power and external cables and remove the server covers.
2. If you are installing a new card, remove the iLO MP card blank:
a. Unscrew the mounting screw for the iLO MP card blank, located on the external
connector side of the server chassis.
b. Remove the blank retaining tab out of its slot on the server chassis and remove the blank
from the server.
3. Insert the iLO MP card in the server:
a. Grasp its edges and place it on the two iLO MP card posts.
b. Push the LAN, 15-pin VGA and 25-pin serial connectors through their openings on the
back of the server.
4. Connect the iLO MP card:
a. Connect the iLO MP card cable to its connector on the system board.
b. Screw in the two mounting screws that connect the iLO MP card to the internal chassis
post.
c. Screw in the two external mounting screws that are located on both sides of the 25-pin
serial connector.
d. Replace the two power connectors.
5. Replace the server covers and reconnect the power and external cables.
