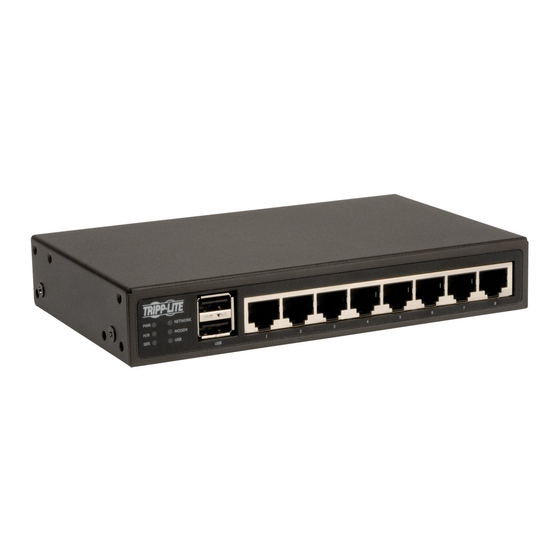

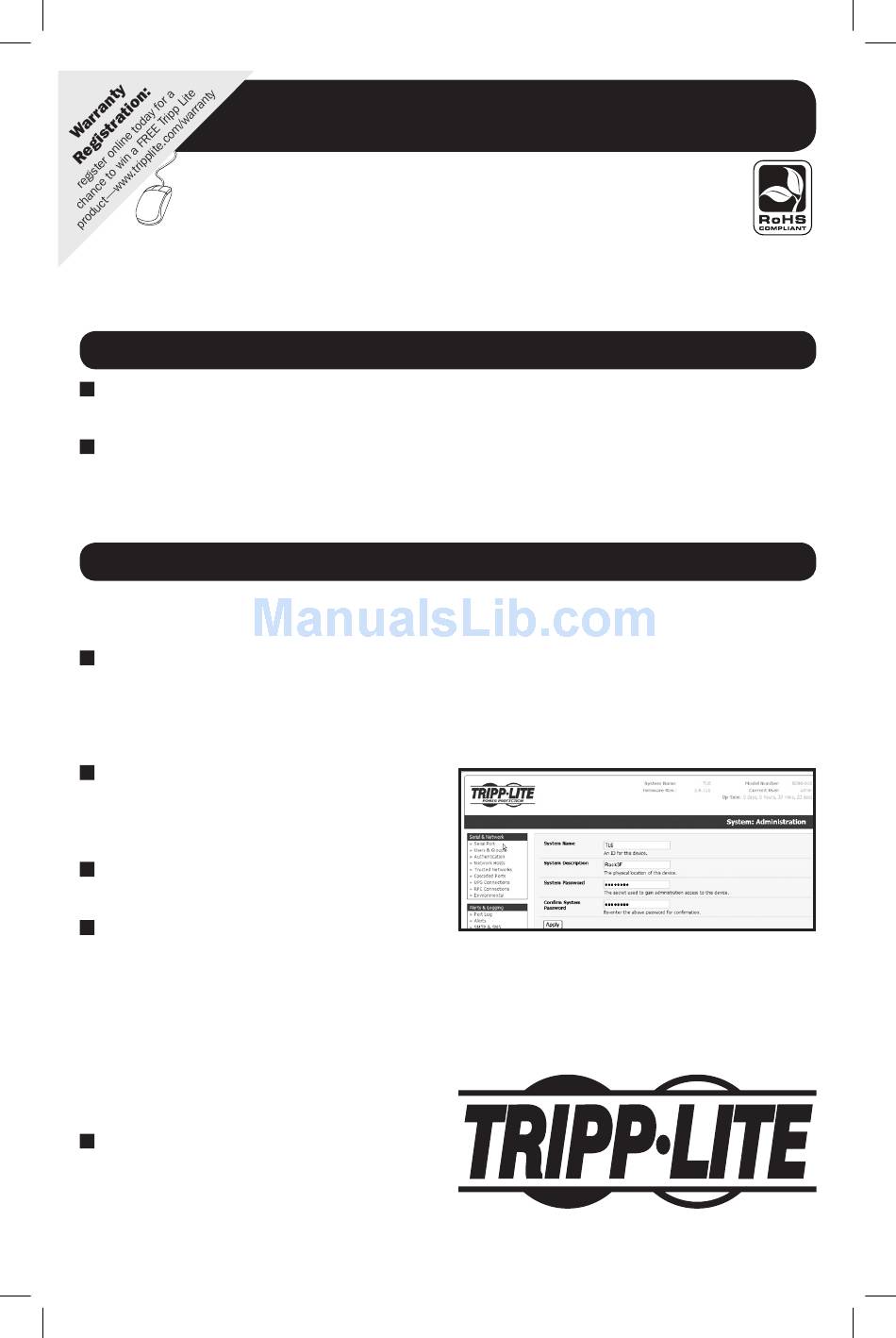

Tripp Lite B094-008-2E-M-F Quick Start Manual

This Quick Start Guide will take you through basic installation,
configuration and local operation. For more detailed information,
1. Connecting the Hardware
Using the included power supply, plug the console server into the power source. We recommend
1
plugging the console server into a Tripp Lite UPS, PDU or Surge Suppressor.
Connect the LAN1 port on the console server to your network; connect your serial devices to the
2
console server SERIAL ports.
Note: If you plan to use out-of-band (OoB) dial-in access, connect the internal modem to the phone line. If you plan to use broadband OoB,
connect the access device (such as DSL modem) to LAN2.
2. Setting Up the Console Server
The default console server IP address is 192.168.0.1 (Subnet Mask 255.255.255.0). With a Web browser
on any computer that is LAN connected to the console server:
Enter https://192.168.0.1 into the address bar.
1
Note: The LAN-connected computer must have an IP address in the same network range (192.168.0.xxx) as the console server. If this is
not convenient, you can use the ARP Ping command to set the IP address (refer to the User's Manual or online FAQ for details). The console
server also has its DHCP client enabled by default, so it will automatically accept any network IP address assigned by any DHCP server on
your network – and will then respond at both 192.168.0.1 and its DHCP address.
Log in using the default system user name: root
2
and the default password: default. A Welcome
screen listing the basic configuration steps
will display.
Select System: Administration, enter and confirm
3
a new System Password and click Apply.
To assign your console server a static IP address
4
or to permanently enable DHCP, select System:
IP, then Network 1 and then check DHCP or
Static for Configuration Method.
The B094-008-2E-M-F also has a second
Ethernet network port that can be configured as
a management gateway/LAN port (with firewall/
router isolation and DHCP server) or as a failover/
OoB access port. By default this port is inactive.
To activate broadband failover/OoB refer to the
5
User's Manual, otherwise leave Failover Interface
at its default selection, which is None.
Copyright © 2012 Tripp Lite. All rights reserved.
201202019 93-3171.indd 1
Quick Start Guide
B094-008-2E-M-F
refer to the User's Manual on the CD-ROM.
1111 W. 35th Street • Chicago, IL 60609 USA
www.tripplite.com/support
