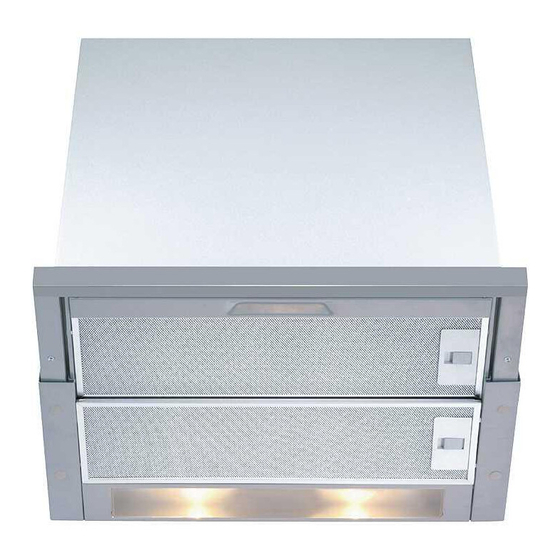

AEG CHDF 6260 Operating And Installation Manual
Hide thumbs
Also See for CHDF 6260:
- Operating and installation instructions (80 pages) ,
- Operating and installation manual (21 pages) ,
- Operating and installation instructions (21 pages)
Related Manuals for AEG CHDF 6260
Summary of Contents for AEG CHDF 6260
- Page 1 CHDF 6260 DF 6260 Dunstabzugshaube Afzuigkap Hotte Cooker Hood Montage- und Gebrauchsanweisung Installatie- en gebruiksaanwijzing Notice d’utilisation et d’installation Operating and Installation Instructions...
- Page 2 Printed on recycled paper AEG - putting words into action...
-
Page 3: Table Of Contents
Contents Safety warnings for the user for the installer Introduction Extractor version Filter Version Description of the Appliance Control Panel Maintenance and care Metal grease filter Open the metal grease filter Charcoal filter Changing the light bulb(s) Cleaning Special accessories Technical assistance service Guarantee conditions Technical Specifications... -
Page 4: Safety Warnings
Safety warnings for the user • Always cover lighted elements, to prevent excess heat from damaging the appliance. In the case of oil, gas and coal fired cookers it is essential to avoid open flames. • Also, when frying, keep the deep frying pan on the cooker top/cooker under careful control. - Page 5 • The air outlet must not be connected to chimney flues or combustion gas ducts. The air outlet must under no circumstances be connected to ventilation ducts for rooms in which fuel-burning appliances are installed. • It is advisable to apply for authorization from the relevant controlling authority when connecting the outlet to an unused chimney flue or combustion gas duct.
-
Page 6: Introduction
Introduction Extractor version • The hood is supplied as an extractor unit and can also be used with a filtering function by fitting one charcoal filter (special accessory). • You will need original AEG charcoal filter KLF 60/80 for this function (see Special Accessories). -
Page 7: Control Panel
Control Panel • The switches are arranged on the upper right side of the vapour catcher. (Fig. 1 - E). The numbers and symbols have the following meanings (from left to right): = Continuously variable blower control = Intensive setting = Lighting = Lighting OFF = Lighting ON... -
Page 8: Maintenance And Care
Maintenance and care • The hood must always be disconnected from the electricity supply before beginning any maintenance work. Metal grease filter • The purpose of the grease filters is to aspirate grease particles which form during cooking and it must always be used, either in the external evacuation or internal recycling function. -
Page 9: Charcoal Filter
Charcoal filter • The charcoal filter should only be used if you want to use the hood in its filtering function. • To do this you will need an original AEG charcoal filter (see special accessories). • Replacing the charcoal filter The charcoal filter must normally be replaced at least once every year. -
Page 10: Changing The Light Bulb(S)
Warning • Failure to observe the instructions on cleaning the unit and changing the filters will cause a fire hazard. You are therefore strongly recommended to follow these instructions. • The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations. -
Page 11: Cleaning
Cleaning • Warning: always disconnect the hood from the mains power supply before cleaning it. Never insert pointed objects in the motor’s protective grid. • Wash the outside surfaces using a delicate detergent solution. Never use caustic detergents or abrasive brushes or powders. •... -
Page 12: Guarantee Conditions
Guarantee conditions Guarantee Conditions AEG offer the following guarantee to the first purchaser of this appliance. 1. The guarantee is valid for 12 months commencing when the appliance is handed over to the first retail purchaser, which must be verified by purchase invoice or similar documentation.The guarantee does not cover commercial use. - Page 13 Before you move please contact your nearest Customer Care Centre, listed below, to give them details of your new home.They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances. France Senlis +33 (0) 44 62 29 29...
-
Page 14: Technical Specifications
Technical Specifications Dimensions: Height x Width x Depth (in cm) 38,7 x 59,9 x 27,5 Maximum absorbed power: 250 W Motor absorption: 2 x 110 W Lighting: 2 x 9 W (PL) Length of the cable: 150 cm Mounting accessories included 1 Flange Ø... -
Page 15: Electrical Connection
Electrical connection Safety warnings for the electrician Before connecting the appliance to the power supply, check that the voltage indicated on the rating plate corresponds to the mains power supply available. Appliances fitted with a plug can be connected to any standard power socket within easy access. -
Page 16: Installation
Installation Preparing the wall unit - Extractor version • The hood is supplied as an extractor unit. Before installing the hood, drill a hole in the roof of the wall unit (see item. 5). This hole is to allow passage of the outlet pipe and the power cable, and to facilitate servicing. - Page 17 Outlet hole (extractor-filter version) • When used as an extractor unit, the hood must be fitted with a 150mm diameter hose. Only for model DF6260: Should there already be a pipe of diameter 125 mm that ducts to the outside through the walls or roof, it is possible to use the 150/125 mm reduction flange provided.
- Page 18 Installing the fume extractor hood in the wall unit - extractor version (Filter version with charcoal filter) • Apply the drilling template to the inside wall of the wall unit on the right and left sides, and mark out and predrill Ø 2 mm mounting holes as well as 2 x Ø...
- Page 19 • If the cupboard is deeper than 300 mm, cover the gap between the hood and the wall with a finishing strip (special accessory). To install it, proceed as follows: Measure the wall distance and apply the covenng strip over the necessary width (wall distance plus 5 to 8 mm), kinking the covering strip at the appropriate notches and tearing off the surplus material (removing the protective foil).
- Page 20 Removing the hood from the wall unit If, for technical reasons (extractor version/filter version conversion) the fume extractor hood has to be removed from the wall unit, proceed as follows: • Fully withdraw the vapour catcher and remove the grease filter. •...
- Page 21 Installing the front panel (see also “Special accessories”) • Remove first the rear then the front grease filters. • Remove the internal cover pressing both unlocking devices (press and pull). Fig. 12. Fig. 15 • Predrill the front panel as per template and fix it to the vapour catcher with 3 screws.
- Page 22 AEG Hausgeräte GmbH Postfach 1036 D-90327 Nürnberg http://www.aeg.hausgeraete.de © Copyright by AEG LI1SJD Ed. 05/02...
