Oven And Accessories; Installation Instructions - Sharp R-80A0S User Manual

1
4
10 7
8
13. Turntable
(metal)
14. Coupling
15. Rack
1. Remove all packing materials from the oven cavity, (do not remove the waveguide cover), and the feature
sticker from the outside of the door, if there is one. Check the unit for any damage, such as a misaligned
door, damaged door seals around the door or dents inside the oven cavity or on the door. If there is any
damage, please do not operate the oven until it has been checked by a SERVICE CENTRE APPROVED BY
SHARP and repaired, if necessary.
2. Accessories provided
1) Turntable 2) Roller stay
3) Operation manual and Cooking guide
3. Place the roller stay in the coupling on the oven fl oor, then place the turntable on to the roller stay,
ensuring it is located fi rmly. Refer to OVEN DIAGRAM below. NEVER operate the oven without the roller
stay and turntable.
4. This oven is designed for countertop or cabinet use as well. It should not be installed in any area where
excessive heat and steam are generated, for example, next to a conventional oven unit. The oven
should be installed so as not to block ventilation openings. Allow a space of at least 30 cm on the top,
5 cm on both sides and at the rear of the oven for adequate air circulation. When installing in a cabinet,
the minimum inside dimension of the cabinet should be 613 mm (W) x 606 mm (H) x 480 mm (D). This
oven is not designed for built-in installation.
WARNING: The electrical outlet must be readily accessible so that the unit can be unplugged easily in an
emergency.
5. Neither the manufacturer nor the distributors can accept any liability for damage to the machine or personal
injury for failure to observe the correct electrical connecting procedure.
The A.C. voltage must be single phase 230 – 240V, 50Hz.
6. This appliance must be earthed.
7. Operate the oven from a general purpose domestic outlet.
If a generator is used, do not operate the oven with non-sinusoidal outputs.
2
3
6 5

INSTALLATION INSTRUCTIONS

O V E N A N D

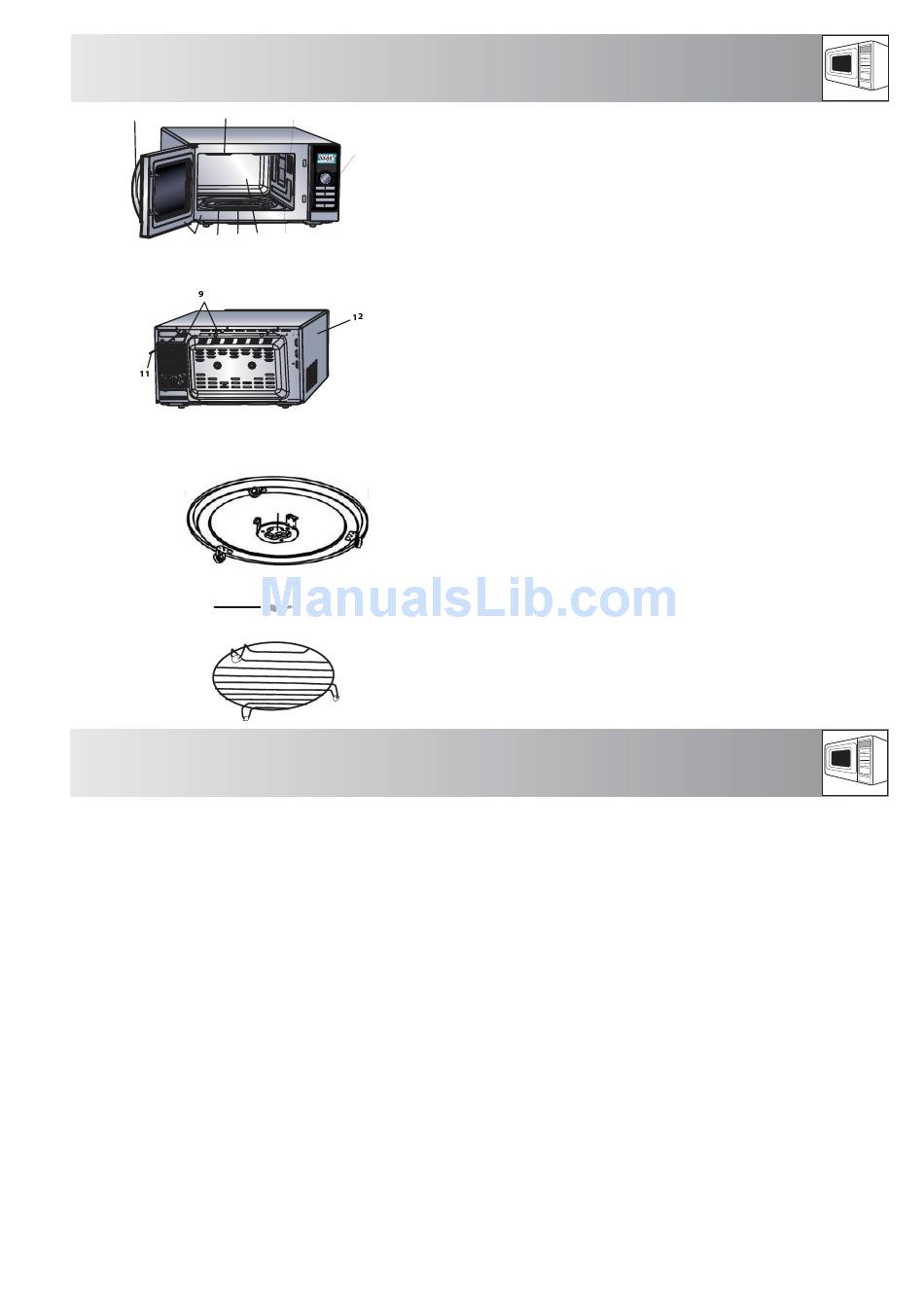

OVEN
1. Grill heating element (top grill)
2. Oven lamp
3. Control panel
4. Door handle
5. Waveguide cover (DO NOT REMOVE)
6. Oven cavity
7. Turntable motor shaft
8. Grill heating element (bottom grill)
9. Ventilation openings
10. Door seals and sealing surfaces
11. Power cord
12. Outer cabinet
ACCESSORIES:
Check to make sure the following accessories are
provided:
(13) Turntable (14) Coupling (15) Rack
• Place the coupling into the turntable motor shaft.
Then place the turntable on to the turntable motor
shaft; ensuring it is located firmly.
• To avoid turntable damage, ensure dishes and
containers are lifted clear of the turntable rim when
removing them from the oven.
• For use of the rack, refer to the grilling sections on
pages A-4 and A-5.
Never touch the grill when it is hot.
NOTE: When you order accessories, please mention
two items: part name and model name to your
dealer or SHARP authorised service agent.
- The waveguide cover is fragile, care should be taken.
- Always clean the cavity, especially the grill element.
- Always operate the oven with the turntable and
turntable support fitted correctly.
- All food are always placed on the turntable for cooking.
- Please do not remove the plastic feet on the rack, they
are required for safety and to prevent arcing when using
the oven.
3
A C C E S S O R E I S
