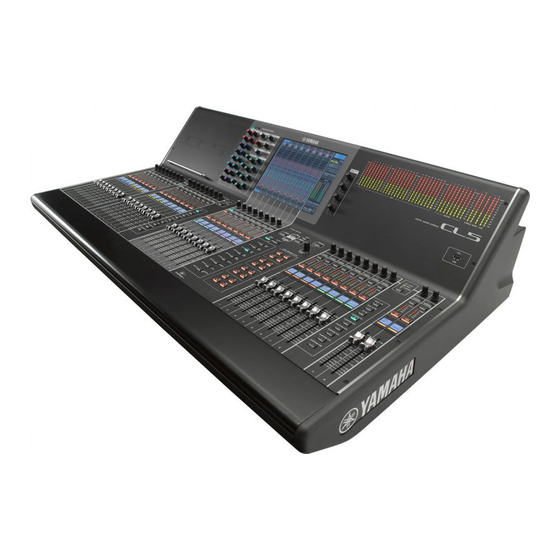

Yamaha CL5 Supplementary Manual
Digital mixing console
Hide thumbs
Also See for CL5:
- Reference manual (306 pages) ,
- Owner's manual (67 pages) ,
- Supplementary manual (14 pages)
Table of Contents
Related Manuals for Yamaha CL5
Summary of Contents for Yamaha CL5
- Page 1 V1.7 Supplementary Manual This supplementary manual explains mainly the functions that have been added or changed in CL5/CL3/CL1 firmware V1.6 and V1.7. Use it in conjunction with the CL5/CL3/CL1 Owner’s Manual and Reference Manual.
-
Page 2: Table Of Contents
Contents Contents User settings................Added functions for the GAIN/PAN/ASSIGN knobs (assignable encoders)....Added custom fader bank functions ............... Added load/save functions ..................SELECTED CHANNEL section ............Added function for recovering from USB overcurrent..........Improved gain indication..................Improved HPF indication ..................Other functions ............... -
Page 3: Selected Channel Section
SELECTED CHANNEL section ■ D.GAIN indication SELECTED CHANNEL section Improved gain indication In the GAIN/PATCH field of the SELECTED CHANNEL VIEW screen, the analog gain and digital gain of the head amp are both shown at all times. ■ A.GAIN indication •... -
Page 4: Improved Hpf Indication
Centralogic section Improved HPF indication Centralogic section The HPF status of an external head amp such as the R-series is now shown in the GAIN/PATCH field of the SELECTED CHANNEL VIEW screen. Improved DCA group indication If 15 or more channels are registered in the DCA member indication of the OVERVIEW screen, you can now use the multifunction knobs of the Centralogic section to scroll the channels. -
Page 5: Input Channels
Input channels ■ Settings in the PORT SELECT popup window Input channels In the OVERVIEW screen, press the GAIN/PATCH field to access the GAIN/PATCH popup window. Additional head amp setting functions when Press the PATCH button (or INPUT PORT button) to access the PORT SELECT popup changing the input patching window. - Page 6 Input channels If the channel’s HA settings are selected, the following HA settings will be copied from the channel to the port that is patched. If you patch the input channel from an input that does not have these settings (i.e., that does not have a HA), the default values will be specified. HA setting Default value HA gain amount...
-
Page 7: Grouping And Linking
Grouping and linking Grouping and linking Press the NAME EDIT button to access the NAME screen. The keyboard window will appear, allowing you to enter or edit the text. Improved display of DCA group / MUTE group names In the DCA/MUTE GROUP ASSIGN MODE popup window, the DCA group names and mute group names can now be displayed. -
Page 8: Added Functions For Dca Groups
Grouping and linking ■ Editing and displaying mute group names Added functions for DCA groups Mute group names can be specified in the same way as for DCA groups. Sends from an input channel to a bus whose send point is set to PRE can now be assigned to be muted by a DCA group. -
Page 9: Improvements In Channel Link Display
Grouping and linking Improvements in channel link display A link indicator has been added to the CH LINK MODE popup window, making it easier to determine the currently-assigned link group. ■ Accessing the CH LINK MODE popup window In the Function Access Area, press the CH JOB button. Press the CH LINK button to open the CH LINK MODE popup window. -
Page 10: Monitor And Cue
Monitor and Cue Monitor and Cue Meters Extended cue functions Added functions for meter display The cue monitor level range has been expanded to –30 dB – +20 dB. PRE GC METER and POST DIGITAL GAIN METER have been added to the METERING POINT field of the METER screen. -
Page 11: Graphic Eq, Effects, And Premium Rack
POST ON MIX21-24 OUT MIX2,4...24 FIXED In the EFFECT popup window, pressing a top panel [SEL] key while editing an effect parameter will CH[1-8,9-16,17-24,25-32,33-40,41-48, 49-56, 57-64, 65-72]POST EQ(CL5) CH[1-8,9-16,17-24,25-32,33-40,41-48, 49-56, 57-64]POST EQ(CL3) To MIX CH[1-8,9-16,17-24,25-32,33-40,41-48]POST EQ(CL1) POST PAN L FIXED switch the screen to the effect that is inserted in that channel. -
Page 12: I/O Device And External Head Amp
I/O device and external head amp I/O device and external head amp R-series The Rio field of the I/O DEVICE screen shows indicators for the status of the R-series units and the Dante network. Added display functions for device status You can now use the touch screen to verify the status of a connected CL series or R-series unit (except the Ro8-D) or the Dante status. - Page 13 The SYSTEM indicators will remain lit/blinking as follows until the problem has been resolved. ■ Warning Messages If service is necessary, please contact the Yamaha service center listed in the CL5/CL3/CL1 owner’s manual. The indicators will light and/or flash as shown until the cause is resolved.
-
Page 14: Improvements In I/O Device Settings
I/O device and external head amp Improvements in I/O device settings If the green indicator is flashing, the unit is the clock master. If the green indicator is lit, the unit is the clock slave and the clock is synchronized. When mounting an I/O device on the Dante audio network, the settings and indications have been SYNC Indicators Description... -
Page 15: User Settings
Custom fader bank settings differ between models, and are not compatible. For example, custom fader bank settings included in a scene stored by the CL5 will not be reproduced if that scene is recalled on the CL3 or CL1. The settings must be created and stored on the CL3 or CL1. - Page 16 User settings ■ Focus function Press a button in the FOCUS PARAMETER field to access the FOCUS PARAMETER popup window. For the focus function, you can specify for each scene whether custom bank settings will be recalled (loaded). Press the SCENE field of the Function Access Area. Press the FOCUS tab at the bottom of the SCENE LIST window.
- Page 17 User settings ■ Recall Safe function ■ Global Paste function In the Recall Safe function, you can specify that custom bank settings of all scenes will be globally The global paste function lets you copy and paste the custom bank settings of the current scene to scene excluded from recall operations.
-
Page 18: Added Load/Save Functions
User settings Added load/save functions DESTINATION field Indicates the load-destination. CL series settings can now be loaded individually from a USB flash drive, or saved individually to a USB Data selection knob flash drive. This knob selects the data shown in the field. Loading settings from a USB flash drive MULTI SELECT button By pressing this button you can make a selection containing multiple items of data. - Page 19 User settings Saving the CL console’s settings on a USB flash drive Buttons Data content Opt-2A LIB Opt-2A library Here’s how to save the CL console’s internal data on a USB flash drive. EQ-1A LIB EQ-1A library In the Function Access Area, press the SETUP button to access the SETUP screen. DynaEQ LIB DynamicEQ library Press the SAVE/LOAD button to access the SAVE/LOAD popup window.
- Page 20 User settings SELECT ALL button • SETUP tab The following table lists the items that you can select. Press this button to select all items. Buttons Data content CLEAR ALL button MIXER SETUP Mixer setup Press this button to clear all selections. OUTPUT PORT Output ports Press the tabs and buttons of the TYPE field to select the type of data that you want...
-
Page 21: Added Function For Recovering From Usb Overcurrent
User settings Added function for recovering from USB overcurrent Even if the connection with the USB device was stopped because an overcurrent condition occurred at the USB port, it is now possible to reconnect the USB device without restarting. Recovery procedure After removing the cause of the overcurrent at the USB port, press the location that shows “USB REMOUNT”... -
Page 22: Other Functions
Other functions Other functions Added channel color Black can now be specified as a channel color. If black is selected for a channel, its channel color Improvements to the channel name display indicator will be unlit. Improvements have been made to the channel name display and channel color indicator. Make this setting in the CH COLOR/ICON popup window. -
Page 23: Added Gpi Functions
Other functions Added GPI functions Initializing the Dante audio network settings You can now select the attributes (latched or unlatched) of an external switch connected to a GPI IN It is now possible for Dante-related settings to also be initialized to their factory-set state when an error port. -
Page 24: Block Diagram
A(L)/B(R) A(L)/B(R) FX2-8 IN EFFECT RACK2-8(FX2-8) (same as EFFECT RACK1) FX2-8 OUT A(L)/B(R) A(L)/B(R) Refer to CL5/CL3/CL1 Mixer Block Diagram 2/2 Refer to CL5/CL3/CL1 Mixer Block Diagram 2/2 PREMIUM PREMIUM RACK1(PR1) RACK IN PATCH METER RACK IN L METER RACK OUT L... - Page 25 CUE / MONITOR MONITOR DELAY AUTO BYPASS CUE TRIM CUE ON (INPUT/OUTPUT/DCA) MONO CUE L CUE OUT ON DELAY METER CUE L CUE OUT L (MAX:1000ms) CUE L BUS To OUTPUT PATCH CUE R METER CUE R CUE OUT R CUE R BUS DELAY To OUTPUT PATCH...
