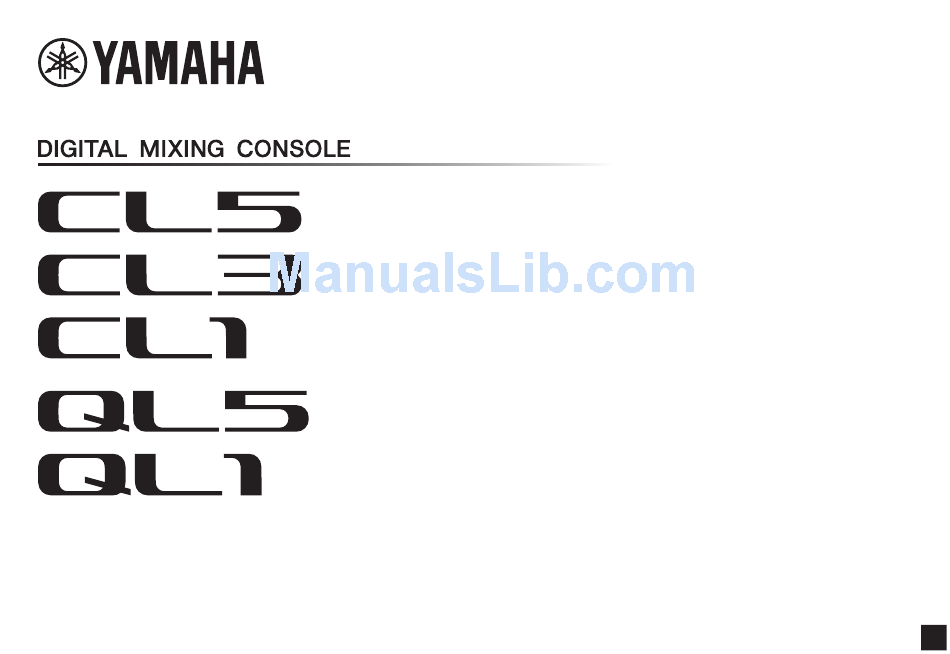

Yamaha CL5 Supplementary Manual
Digital mixing console
cl/ql series v4.5 supplementary manual
cl/ql editor v4.5 supplementary manual
Hide thumbs
Also See for CL5:
- Reference manual (306 pages) ,
- Owner's manual (67 pages) ,
- Supplementary manual (26 pages)
Table of Contents
Advertisement
Quick Links
CL/QL series V4.5 Supplementary Manual
This supplementary manual explains mainly the functions that have been added or changed in CL5/CL3/CL1 and QL5/QL1
firmware V4.5.
Use it in conjunction with the CL5/CL3/CL1 and QL5/QL1 V4 Owner's Manual and Reference Manual.
CL/QL Editor V4.5 Supplementary Manual
This supplementary manual explains mainly the functions that have been added or changed in CL/QL Editor V4.5.
NOTE
• The explanations in this supplementary manual reference the CL5.
• Keep in mind that in the case of the CL3/CL1 or QL5/QL1, certain channels and faders shown in example screens do not exist on
those models and will not be shown on those displays.
EN
Advertisement
Table of Contents
Related Manuals for Yamaha CL5
Summary of Contents for Yamaha CL5
- Page 1 CL/QL series V4.5 Supplementary Manual This supplementary manual explains mainly the functions that have been added or changed in CL5/CL3/CL1 and QL5/QL1 firmware V4.5. Use it in conjunction with the CL5/CL3/CL1 and QL5/QL1 V4 Owner’s Manual and Reference Manual. CL/QL Editor V4.5 Supplementary Manual This supplementary manual explains mainly the functions that have been added or changed in CL/QL Editor V4.5.
-
Page 2: Table Of Contents
Contents Contents Support for Rio3224-D2/Rio1608-D2 ........Support for Dante Domain Manager........CL series and QL series..................... Rio3224-D2/Rio1608-D2 (V1.10 or later)..............About Alerts (R series) ....................Indication Improvements ............Supported Device REMOTE icon ................REMOTE CONTROL STATUS indicator ..............SYSTEM/SYNC indicator on the I/O DEVICE screen ..........NOT CTRL indicator when CONSOLE ID is set to OFF (CONSOLE ID=0) .... -
Page 3: Support For Rio3224-D2/Rio1608-D2
Support for Rio3224-D2/Rio1608-D2 Support for Rio3224-D2/Rio1608-D2 Now supports the Rio3224-D2 and the Rio1608-D2 as remote controllable devices. I/O page REMOTE ONLY button Set this button to ON to disable panel operation of the Rio3224-D2/Rio1608-D2 unit, making only remote controls available. The operation (selecting ON or OFF) of the REMOTE ONLY button is available only from a console the WITH RECALL button set to ON in the REMOTE HA SELECT screen. -
Page 4: Support For Dante Domain Manager
Support for Dante Domain Manager Support for Dante Domain Manager STATE Displays the status of domain participation. • Domain: Domain is enrolled Now supports the Dante Domain Manager (DDM). • Disconnected: Domain is enrolled without connecting to the DDM server •... -
Page 5: Rio3224-D2/Rio1608-D2 (V1.10 Or Later)
Support for Dante Domain Manager Rio3224-D2/Rio1608-D2 (V1.10 or later) INFORMATION – DANTE screen Firmware V1.10 or later is required for Rio3224-D2/Rio1608-D2 to enroll a domain with DDM. When enrolling a domain: The DDM indicator appears at the top of right side of the DANTE screen. INFORMATION –... -
Page 6: Indication Improvements
Indication Improvements Indication Improvements REMOTE CONTROL STATUS indicator The REMOTE CONTROL STATUS indicator appears in all remote control supported devices. This update improves some indications to make the status of mounted devices and remote control availability more easy to understand. Supported Device REMOTE icon The REMOTE icon appears in the remote control supported device. -
Page 7: System/Sync Indicator On The I/O Device Screen
Indication Improvements SYSTEM/SYNC indicator on the I/O DEVICE screen NOT CTRL indicator when CONSOLE ID is set to OFF (CONSOLE ID=0) Now displays error and information icons to quickly check the status of the system and synchronization. When the CONSOLE ID select button is set to OFF in the DANTE SETUP screen, the NOT CTRL indicator appears below the Display switch button of each device. - Page 8 Yamaha Pro Audio global website http://www.yamahaproaudio.com/ Yamaha Downloads http://download.yamaha.com/ Manual Development Group © 2018 Yamaha Corporation Published 02/2018 MA-A0...
