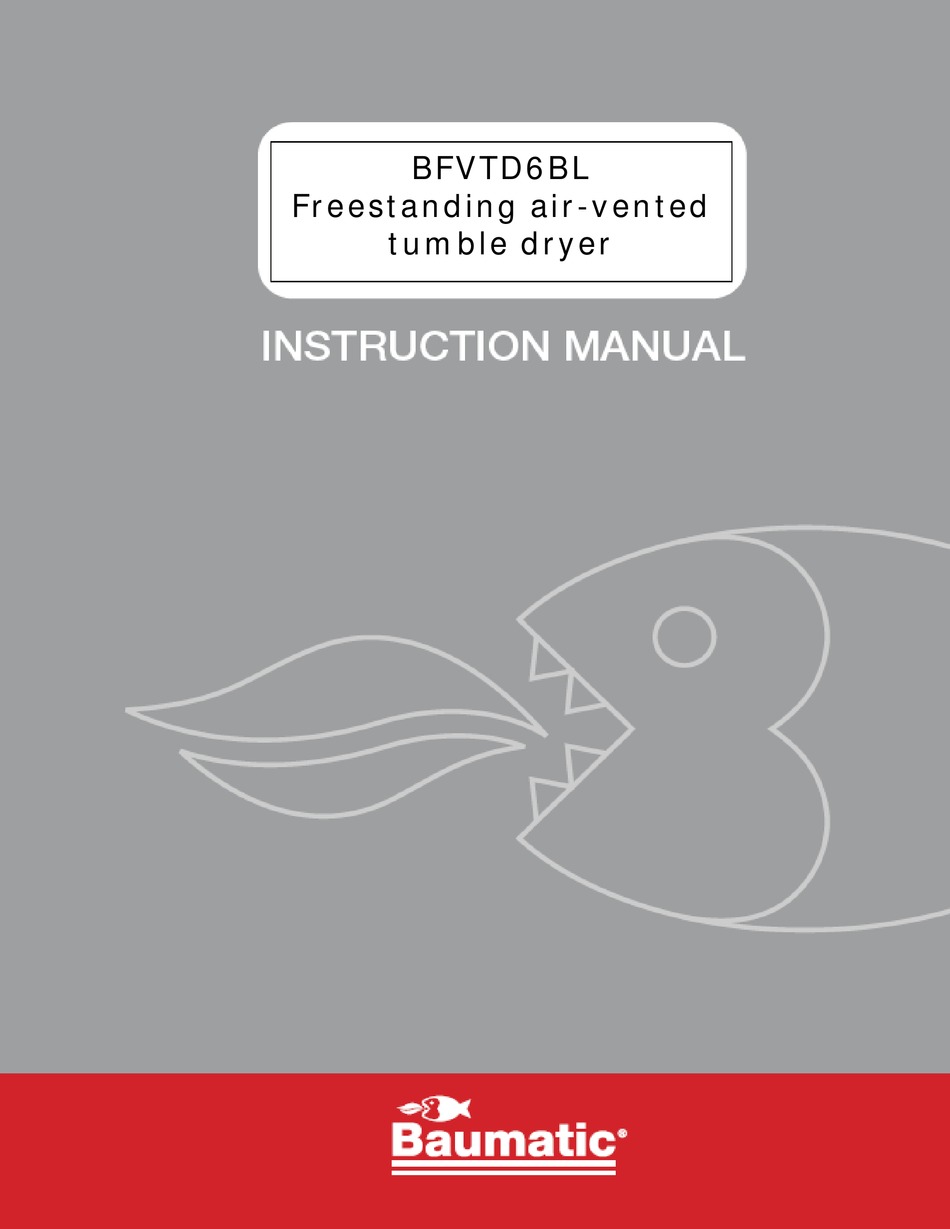

- Page 1 BFVTD6BL BFVTD6BL Fully integrated air- Freestanding air-vented tumble dryer vented tumble dryer...
-
Page 2: Tumble Dryer
BFVTD6BL Freestanding air-vented tumble dryer NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference. -
Page 3: Table Of Contents
Contents Environmental note Important safety information 4 – 6 Specifications 7 – 9 Product dimensions Product specifications Electrical details Control panel Drying selection knob Appliance features Selecting a drying program 10 - 13 Automatically controlled drying Time controlled drying Optional functions Delay start Quick Delicate... -
Page 4: Environmental Note
This should be undertaken by a competent person. Disable the door lock to make sure that children cannot get stuck inside the appliance. o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the... -
Page 5: Important Safety Information
Customer Services Department. General Safety o Repairs to y our appliance must only be carried out by a Baumatic engineer or one of its authorised service agents. Any attempt by an inexperienced person to repair the appliance, could result in injury or damage to your tumble dryer. - Page 6 Baumatic cannot be held responsible for any damage that may result. o Fabric softeners should be used as specified in the manufa cturer’s...
- Page 7 o Items soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with extra detergent before being dried. o Remove all objects from pockets of clothes such as lighters and matches.
-
Page 8: Specifications
Specifications pliance dimension Height: 850 mm idth : 595 mm Depth: 555 mm Product ecificatio s o Capacity: 6 kg o 15 drying programs o Electronic control ope ration Time controlled drying, up to 90 minutes o Delay start function o Reverse tumble action o 180°... -
Page 9: Control Panel
ontrol panel 1. Program selector dial 2. Sequence indicator ligh o Drying o Cooling o End o Filter 3. Start / Pause butto 4. Delay start button / in dicator lights 5. Delicates button 6. Quick cycle butto... -
Page 10: Drying Selection Knob
ryer selection knob o Turning the selector dial (1) allows you to select the drying program according to your laundry. o The selector dial is divided into four s ections: Cottons Synthetics Time Special o After you h ave selected your desired program you must press the tart button (3) within 10 minutes or the appliance will return to standby mode. -
Page 11: Selecting A Drying Program
electing a drying program Program suggestions o Below is a list of functions which the dryer can perform which should help you select the most appropriate drying cycle for your needs: Automatically co ntrolled drying o The appliance detects the mo isture in the load and automatically adjusts the drying time accordingly for optimal drying. -
Page 12: Optional Functions
ptional functions Depending on what program you have chosen, you are able to select dditional functions. These must be selected after choosing your desired drying program, but before you press the start button. When the relevant button is pressed the corresponding LED light will illuminate. If the button is pressed again the LED light will go out and the function is then deselected. -
Page 13: Neon Indicator Lights
ndicator lights o “Drying” lig This light indicates t hat the appliance is in the drying phase. o “Cooling” light At the end of the dry ing phase there is a 5 – 10 minute cooling phase. o “End” of program light At the end of the cooling phas e there is an anti-creasing phase*. -
Page 14: Changing A Program
hanging a program To change a drying pro gram which is in operation, you should first turn e selector dial to the off position (“O”) to cancel the current function. You can then proceed to select a new function. are labels o You ma y find the following symbols on the care labels of your garments. -
Page 15: Drying Program Guidance
rying program guidance o Check the wash care labels of the garments that you want to dry, to make sure that they are suitable for drying in a tumble dryer. o The maximum amount of clothing that can be dried in your a ppliance a single drying cycle is 6kg. -
Page 16: Drying Program Table
Drying program table Selection Program Description of laundry dial section load suggestion Heavy Bathrobes, large towel, overalls, heavy jeans, etc. Strong Medium towel, jeans, jumpers. Cottons Standard Shirts, T-shirts, c otton trousers, cotton etc. Damp Knitted items, cotton shirts, etc. Iron Shee ts, bed linen, table linen,... -
Page 17: Maintenance And Cleaning
aintenance and cleaning In daily use o The filter should be cleaned after each drying cycle. o Leave the porthole door ajar for a short while after a drying cycle as completed. This should help to prevent stagnant smells and to protect the door seal. -
Page 18: The Filter
he filter o It is important to remove fluff from the filter after each drying cycle. o You sho uld disconnect the appliance from the mains supply before cleaning the filter. o The filter is located inside the doorway rim at the bottom, as shown in the below diagram. -
Page 19: Installation
MUST COMPLETED SUITABLY QUALIFIED PERSON. BAUMATIC ONLY SANCTION THE INSTALLATION GIVEN IN THIS INSTRUCTION MANUAL. YOU SHOULD KEEP THE TRANSIT PACKAGING, IN CASE YOU NEED TO TRANSPORT THE MACHINE IN THE FUTURE. nstalling the appliance o Your dryer is provid ed with a vent hose which will extend to approximately 1.8 metres. -
Page 20: Positioning
ositioning The appliance should be positioned on a solid and flat surface. This will duce vibration and noise. Large amounts of vibration can damage the appliance. If required, you can use the adjustable feet to help level the appliance o Loosen the locking nut o Turn the feet right to increase the height. -
Page 21: Power Supply
o The hose should not contain more than two bends, and you should not allow the hose to become blocked or kinked. IMPORTANT: If outlet is far away from your appliance, thus making the hose long in length, then you should take steps to revent water condensation from interfering with the appliance. -
Page 22: Power Supply
The special mains cable and plug assembly must only be replaced with a genuine part from the Baumatic Spa res department or our appointed service agent. o IMPORTANT: We do not recommend that this appliance is connected to an extension lead. - Page 23 Baumatic Customer Care on telephone number (0118) 933 6911. DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. Pleas e note that if an engineer is asked to attend whilst the produc...
-
Page 24: Technical Data
Data Manufacturer Baumatic Model Number BFVTD6BL Rated Capacity of Standard Cotton 6 kg Programme Type of Dryer Air-Ve nted (air-vented, condenser or gas-fired) Energy Efficiency Class Annual Energy Consumption (1) 425 kWh per year Automatic /Non-automatic tomatic Energy Consumption of the Standard 3.32 kWh... - Page 27 United Kingdom Czech Republic aumatic Ltd., aumatic CR spol s.r.o. Baumatic Buildings Lípovà 665 6 Bennet Road, 460 01 Liberec 4 Reading, Berkshire Czech Republic RG2 0QX United Kingdom +420 483 577 2 ww.baumatic.cz Sales Telephon 118) 933 6900 Slovakia Sales Fax aumatic Slovakia, s.r.o.
