SPECIFICATIONS

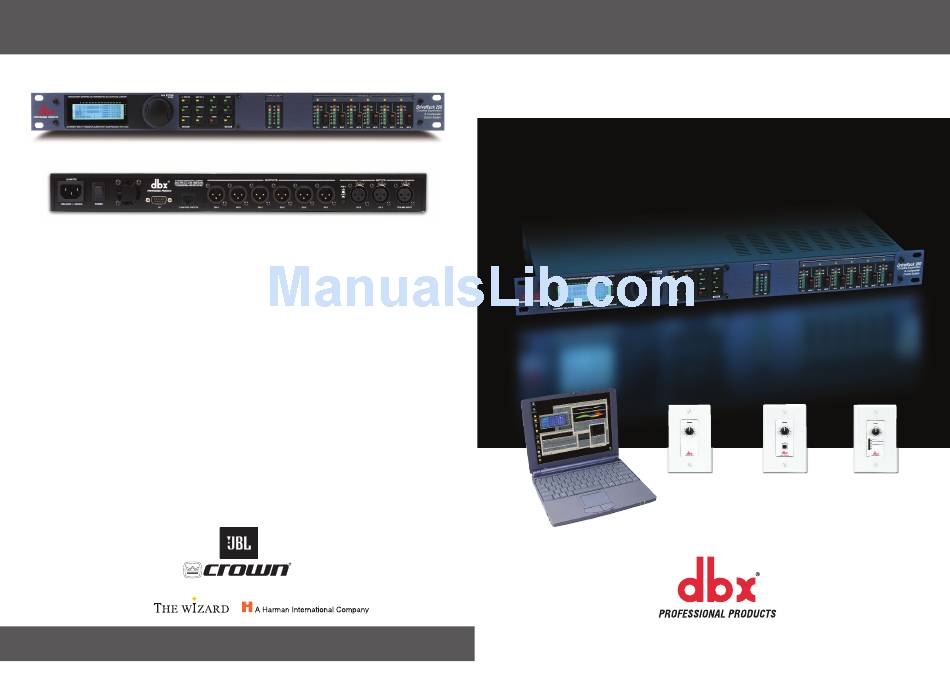

Front
Rear
Analog Inputs:
Number of Inputs: (2) Line inputs. (1) RTA Mic input
Connectors: (2) Female XLR line inputs. XLR RTA
Mic input
Type: Electronically balanced/RF filtered
Impedance: > 40k Ω
Max Input Line Level: +34dBu w/input jumpers in +30 position
CMRR: > 45dB
RTA Mic Phantom Voltage: +15VDC
RTA Mic EIN: < -110dBu, 22Hz-22kHz, 150Ω
Analog Outputs:
Number of Outputs: 6
Connectors: Male XLR
Type: Electronically balanced, RF filtered
Impedance: 120 ohms
Max Output Level: +22dBu
setup powered by
dbx Professional Products • 8760 South Sandy Parkway • Sandy UT 84070 • Phone (801) 568-7660 • Fax (801) 568-7662
Int'l Fax (801) 568-7583 • email: customer@dbxpro.com • URL: http://www.dbxpro.com
Crown and JBL are registered trademarks of their respective companies.
A/D Performance:
Type: dbx Type IV conversion system
Dynamic Range line: >114 dB A-weighted, >112 dB
unweighted
Type IV Dynamic Range: >119 dB, A-weighted, 22kHz BW
>117 dB, A-weighted, 22kHz BW
Sample Rate: 48kHz
D/A Performance:
Dynamic Range: 112 dB A-weighted, 110dB unweighted
System Performance:
Dynamic Range: >110 dB unweighted, >107dB weighted
THD+N: 0.002% typical at +4dBu, 1kHz, 0dB
input gain
Frequency Response: 20Hz – 20kHz, +/- 0.5dB
Interchannel Crosstalk: >110dB, 120dB typical
Crosstalk Input to Output: >100dB
Safety Agency Approvals:
UL 6500, IEC 60065, EN 55013, E 60065
Featuring
Custom Tunings
DriveRack
Complete Equalization and Loudspeaker Management System
The System Solution
18-0152 -A 9/02
™ 260
