OPERATING & INSTALLATION
INSTRUCTIONS
DELUXE KEYLESS ENTRY/REMOTE CAR STARTER
FOR AUTOMATIC TRANSMISSION VEHICLES ONLY
COPYRIGHT: OMEGA RESEARCH & DEVELOPMENT 1999
INTRODUCTION & WARNINGS
Congratulations on your purchase of the RS-7K Remote Car Starter. The RS-7K
will allow you to start your vehicle's engine from the comfort of your home or office,
allowing your vehicle to warm up in winter and cool down in summer. When you
leave your vehicle, simply set the climate controls for what you desire to be operat-
ing upon remote start - heater, defroster or air conditioning.
The RS-7K is a keyless entry/remote start unit designed to be used by itself or
in conjunction with another remote control unit such as a vehicle security system.
We highly recommend that this system be professionally installed, as the com-
plexity of the modern automobile and the nature of circuits to be accessed is often
beyond the abilities of most do-it-yourselfers.
There are several safety considerations with using and installing the RS-7K
Remote Car Starter. Among them are:
- This unit is for Automatic Transmission vehicles only. Installation in a manual
transmission equipped vehicle can result in property damage or personal injury.
- This unit is for fuel injected gasoline engines only.
- Children should not be left unattended in, or be allowed to play with the activating
transmitters of a remote starter equipped vehicle.
- Do not use this unit in an enclosed structure or garage.
RS-7K
1
3
Operating Instructions:
Introduction & Warnings ......................................................................... 3
Transmitter Functions ......................................................................... 4-7
Locking & Unlocking The Doors .............................................................. 5
Remote Starting .................................................................................... 6
Remote Trunk Release ............................................................................7
Carfinder Mode ...................................................................................... 7
Valet Override Mode ............................................................................... 8
Warnings ......................................................................................... 9-10
5-Wire Connector ............................................................................ 11-13
3-Wire Blue Connector ..................................................................... 14-15
10-Wire Connector .......................................................................... 16-35
Engine Detect
(Smart, Tach, Vacuum)
Door Locks ..................................................................................... 29-35
Receiver Antenna ................................................................................. 36
Programming Button ............................................................................ 36
Transmitter Programming ..................................................................... 37
Features Programing ............................................................................ 38
Wiring Diagram .................................................................................... 39

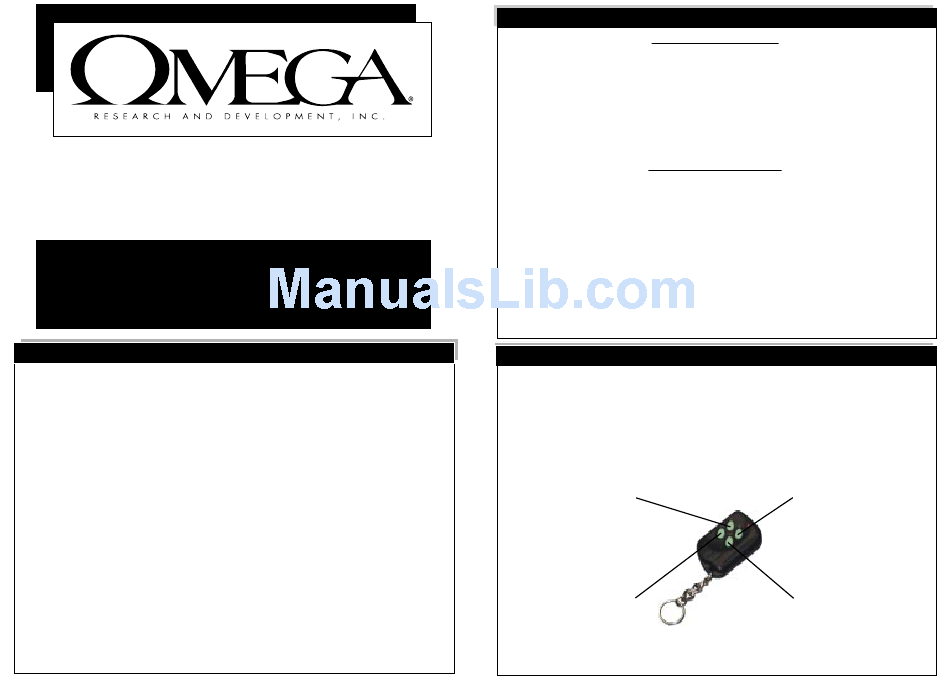

TRANSMITTER FUNCTIONS
The RS-7K comes with two 4-button remote transmitters. Please familiarize your-
self with the buttons and operations of the transmitters which are explained in the
following pages.
•
Button
#
1
(Lock Doors/
Carfinder)
•
Button
#
3
(Remote Start)
INDEX:
................................................. 25-27
2
•
Button
#
2
(Unlock Doors)
•
Button
#
4
(Trunk Release)
4
