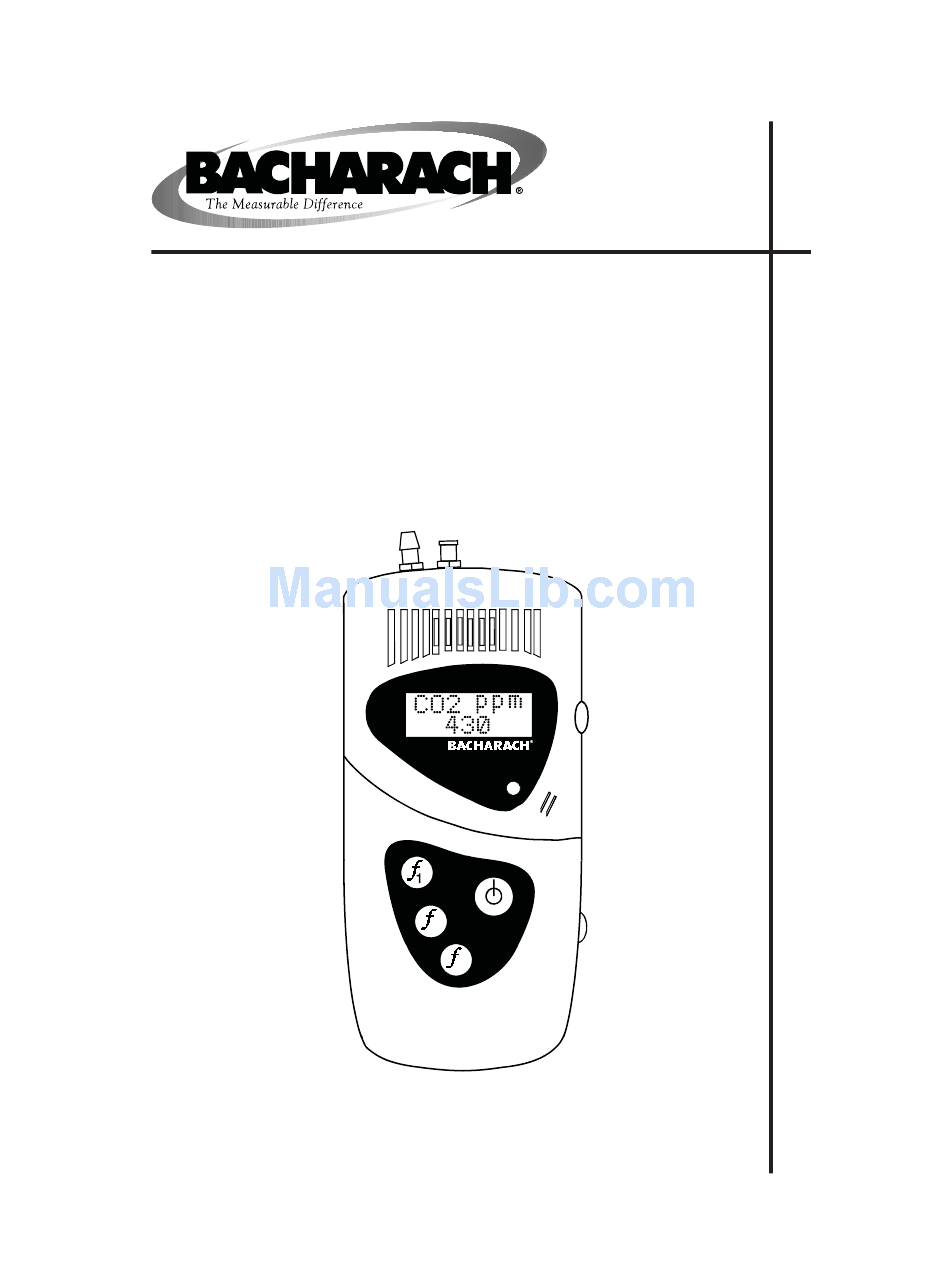

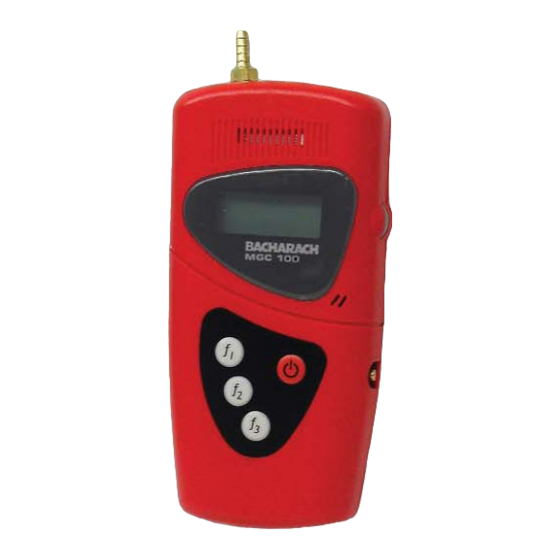

- Page 1 MGC 100/200 100 / 200 Instruction 0019-9322 Operation & Maintenance Rev. 2 – May 2010 Instruction 0019-9322 Product Leadership • Training • Service • Reliability...
- Page 2 Product improvements and enhancements are continuous, therefore the specifi cations and information con- tained in this document may change without notice. Bacharach, Inc. shall not be liable for errors contained herein or for incidental or consequential damages in con- nection with the furnishing, performance, or use of this material.
-
Page 3: Table Of Contents
3.4 Software Version / ID Number ..........9 3.5 Factory Settings ................. 9 3.6 Battery Charging ..............10 3.7 Zeroing the N2O Sensor (MGC 100) ........11 3.8 Zeroing the CO2 & CO Sensors (MGC 200) ......12 3.9 Span Calibration (MGC 100) ........... 13 PARTS &... - Page 4 MGC 100/200 Notes Instruction 0019-9322...
-
Page 5: Introduction
Power is provided by a long-life NiMH battery, which is capable of pro- viding up to 10 hours of continuous operation from one charge. The MGC 100 has built-in memory that allows it to store ‘snapshot’ read- ings (pressing the f1 button stores the current reading in memory), while the MGC 200 can automatically store up to 200 sets of gas readings in memory at predetermined intervals. -
Page 6: Applications
Instruction Manual Unless otherwise noted, all paragraphs in this instruction manual describe the operation and maintenance of both the MGC 100 and MGC 200. For example, the heading 2.9 Battery Charge Display (MGC 100) indicates that the information under this heading pertains only to the MGC 100. -
Page 7: Operation
MGC 200: Press and hold to start and stop data-logging (f I - Press once for battery level; hold to start calibration (f J - MGC 100: Button is enabled only during a span calibration MGC 200: Press once to toggle between CO and CO displays;... -
Page 8: Connecting Instrument To Medical Gas Outlet
MGC 100/200 Connecting Instrument to Medical Gas Outlet Before proceeding, turn ON the instrument and allow it warm-up per Section 2.2. The pump should be OFF at this time. After warming up, connect the instrument’s gas inlet through the sup- plied fl... -
Page 9: Starting And Ending A Test
N O, or CO and CO gas readings on its LCD (Figure 1, Item C) as follows: MGC 100 – Displays N O plus battery capacity. N2O % 99.9 MGC 200 – Displays either CO or CO. -
Page 10: Storing Readings
COM software. This software can also be used to alter the data-logging interval, and save the data to a fi le for further analysis. The procedures for storing gas readings for both the MGC 100 and 200 are described in Sections 2.7.1 and 2.7.2. -
Page 11: Mgc 200 - Snapshot & Data-Logging
MGC 100/200 2.7.2 MGC 200 – Snapshot & Data-Logging After obtaining a steady reading, momentarily press the f button to store (take a snapshot of) the reading shown on the display along with the current time and date. Pressing and holding down the f... -
Page 12: Fault Condition Warning
BACH-COM software. 2.12 Powering Instrument from Charger Both the MGC 100 and 200 can be continuously powered by the charger by connecting the charger to the instrument in the following sequence: 1. Switch ON the instrument without the charger attached. -
Page 13: Maintenance
25/04/01 xxxxx Factory Settings Important! The instrument should only be returned to its factory settings when advised by a Bacharach Service Repre- sentative. With the instrument switched OFF, and while holding down the f but- ton, switch ON the instrument. The display will show:... -
Page 14: Battery Charging
MGC 100/200 Release the f button and zero the gas sensor(s) as described in either Section 3.7 or 3.8. WARNING! Failure to zero the sensor(s) after resetting the instrument to its factory settings may cause incorrect gas readings to be displayed. -
Page 15: Zeroing The N2O Sensor (Mgc 100)
N2O % If the procedure was unsuccessful, the message AirCal Failed will be displayed. If this happens, retry this procedure. If the proce- dure is still unsuccessful, then return the instrument to a Bacharach Service Center for evaluation. Instruction 0019-9322... -
Page 16: Zeroing The Co2 & Co Sensors (Mgc 200)
If this happens, retry the Air Calibration pro cedure, ensuring that the instrument is only exposed to fresh air. If the proce- dure is still unsuccessful, then the instrument must be returned to a Bacharach Service Center for evaluation. Instruction 0019-9322... -
Page 17: Span Calibration (Mgc 100)
MGC 100/200 Span Calibration (MGC 100) A span calibration of the MGC 100 consists of fl owing a recommended certifi ed calibration gas of 99.5% N O (customer supplied) through the instrument and calibrating the instrument to the applied gas level. - Page 18 If the procedure is still unsuccessful, then the analyzer must be returned to a Bacharach Service Center for evaluation. 6. This completes the Gas Calibration procedure. Turn off the regulator;...
-
Page 19: Parts & Service
4.0 PARTS & SERVICE Replacement Parts and Accessories Complete Kits MGC 100 – Includes instrument capable of measuring N a battery charger, particulate fi lter, and a fl ow restrictor ....0019-8058 MGC 200 – Includes instrument capable of measuring and CO, a battery charger, particulate fi lter, and a fl... -
Page 20: Bacharach Service Centers
United States 621 Hunt Valley Circle New Kensington, PA 15068 Phone: 1-800-736-4666 Fax: 724-334-5001 E-mail: help@mybacharach.com Canada Bacharach of Canada, Inc. 20 Amber St. Unit #7 Markham, Ontario L3R SP4 Canada Phone: 905-470-8985 Fax: 905-470-8963 Toll Free: 800-328-5217 E-mail: bachcan@idirect.com... - Page 21 MGC 100/200 Instruction 0019-9322...
- Page 22 MGC 100/200 Headquarters: 621 Hunt Valley Circle, New Kensington, PA 15068 Ph: 724-334-5000 • Fax: 724-334-5001 • Toll Free: 1-800-736-4666 Website: www.mybacharach.com • E-mail: help@mybacharach.com Printed in U.S.A. Instruction 0019-9322...
