Bacharach The Informant2 Operation And Maintenance Manual

Refrigerant / combustibles leak detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Refrigerant / Combustibles
Leak Detector
Instruction 0019-9211
Operation and Maintenance
Rev. 9 – November 2012
Pat. 6,362,741, D447,071
Product Leadership • Training • Service • Reliability

Advertisement

Table of Contents
loading

Related Manuals for Bacharach The Informant2

Summary of Contents for Bacharach The Informant2

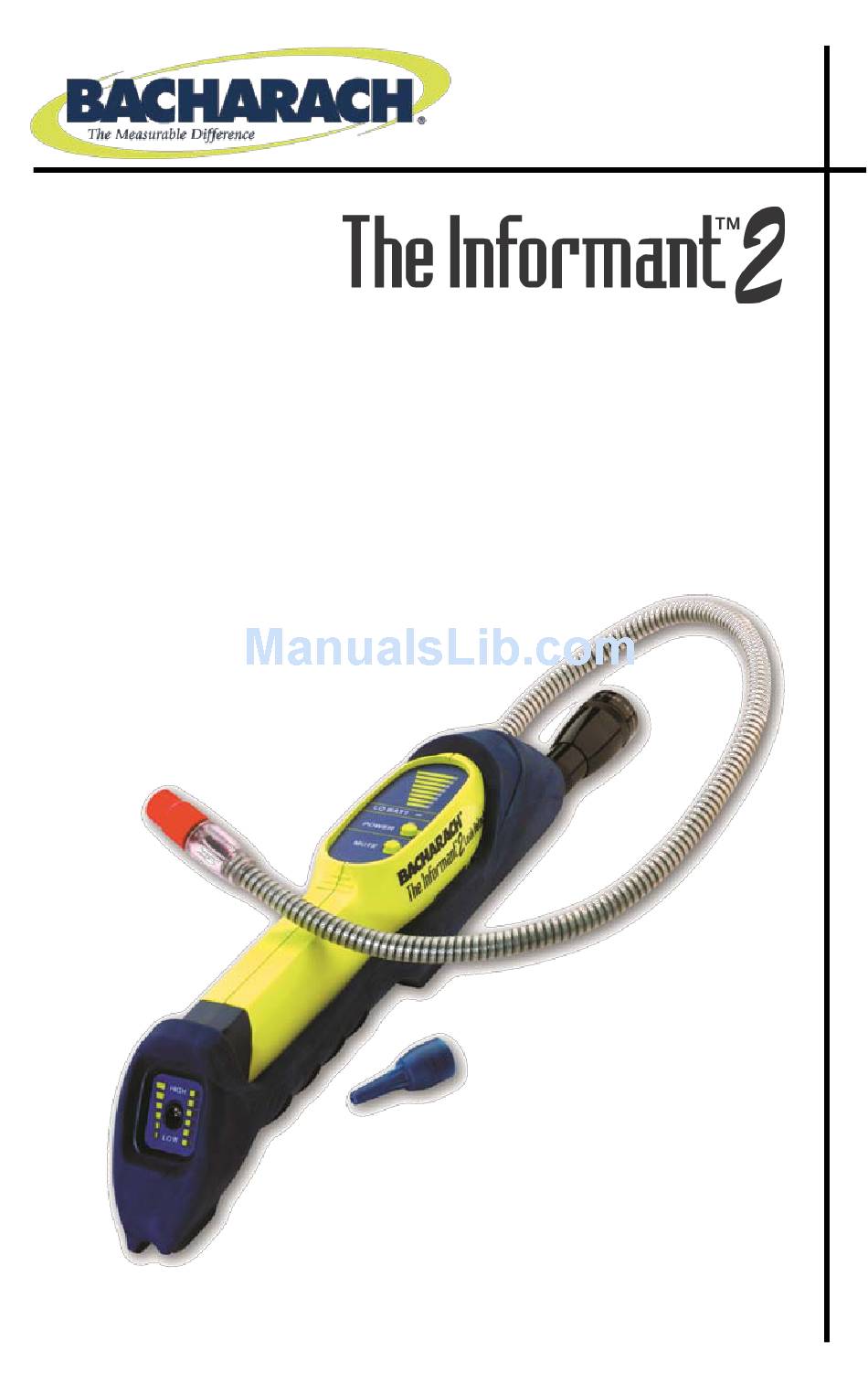

  • Page 1 Refrigerant / Combustibles Leak Detector Instruction 0019-9211 Operation and Maintenance Rev. 9 – November 2012 Pat. 6,362,741, D447,071 Product Leadership • Training • Service • Reliability...
  • Page 2 The Informant™ 2 0019-9211 Rev 9...
  • Page 3 Bacharach Inc.’s reasonable satisfaction to have been defective; provided that written notice of the defect shall have been given by Buyer to Bacharach Inc. within one (1) year after the date of delivery of this Product by Bacharach, Inc.

  • Page 4: Table Of Contents

    The Informant™ 2 TABLE OF CONTENTS OVERVIEW ........................ 1 1.1. Introduction ..................... 1 1.2. Features ......................2 1.3. Technical Characteristics ................3 OPERATION ......................5 2.1. Battery Installation ..................5 2.2. Sensor Installation Overview................5 2.3. Refrigerant Sensor Installation ................ 6 2.4.

  • Page 5: Overview

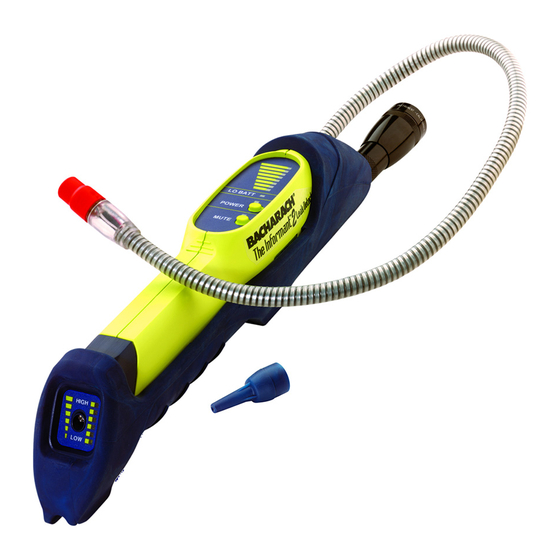

    The Informant™ 2 1. OVERVIEW 1.1. Introduction The Informant 2 Dual Refrigerant / Combustibles Leak Detector (Figure 1) is a portable, battery powered instrument designed to pinpoint the location of either refrigerant or combustible-gas leaks using separate, interchangeable sensors. The type of gas detected depends on the sensor installed.

  • Page 6: Features

    The Informant™ 2 1.2. Features • Detects the presence of either refrigerants or combustible gases (with appropriate sensor installed) • Sensors that represent the latest advancements in sensor technology • Microprocessor-controlled circuitry that guarantees accuracy and reliability • Dual bar-graph LEDs provide visual indication of the refrigerant/combustibles level from a wide variety of viewing angles •...

  • Page 7: Technical Characteristics

    The Informant™ 2 1.3. Technical Characteristics Specification Description Power Four ‘AA’ Alkaline Batteries Warm-Up Time 10 seconds Gases Refrigerants: All CFC, HCFC and HFC refrigerants Detected including: R-12, R-22, R-123, R-134a and blends R-404A, R-408A, R-409A, and R-410A (i.e., any refrigerant containing Chlorine, Fluorine or Bromine gas).
  • Page 8 The Informant™ 2 Specification Description Switches Power ......Toggles detector ON/OFF Mute....Toggles audible indicator ON/OFF Size W×L×H 1.75 x 9.62 x 2.25 inches (Excludes 44.50 x 244.30 x 57.20 mm Probe) Operating Position ............. Any Environment Temperature ....32 to 122 °F (0 to 50 °C) Humidity ....

  • Page 9: Operation

    The Informant™ 2 2. OPERATION 2.1. Battery Installation WARNING: Explosion hazard. To reduce the risk of igniting a flammable atmosphere, batteries must only be changed in an area known to be non-flammable. NOTE: To maintain agency approval, use only the following types of ‘AA’...

  • Page 10: Refrigerant Sensor Installation

    The Informant™ 2 NOTE: For dual detectors, the red probe tip will not screw onto a probe that has a refrigerant sensor installed. This feature safeguards against the possibility of an operator mistakenly thinking that a detector with a refrigerant sensor is configured to detect combustibles.

  • Page 11: Combustibles Sensor Installation

    The Informant™ 2 2.4. Combustibles Sensor Installation Install the combustibles sensor, filter, and “red” probe tip onto the end of the detector’s flexible probe as shown in Figure 3b. Observe the red color coding on both the sensor and probe tip. NOTE: The Informant 2 is intrinsically safe only when its combustibles sensor is installed.

  • Page 12: Low Battery Indication

    The Informant™ 2 NOTE: During the warm-up period, the detector has zeroed out any background concentration of vapors or gases that were present in the area. After the detector is turned on and allowed to warm up, it is ready to perform leak testing as described in Section Procedure for Locating a Gas Leak.

  • Page 13: Locating A Gas Leak

    The Informant™ 2 2.8. Locating a Gas Leak After the detector is turned on and allowed to warm up, observe that none of the gas-level LEDs should be glowing. Also note that both the probe tip should be blinking and the audible indicator ticking once per second.

  • Page 14: Sensor Failure Indication

    The Informant™ 2 CAUTION: When using the refrigerant sensor, note that exposing this sensor to a steady stream of highly concentrated refrigerant will severely reduce sensor life or damage the sensor. Sensor life is directly proportional to the amount of refrigerant that passes through the sensor.

  • Page 15: Refrigerant Sensor Flooding Indication

    The Informant™ 2 • use the detector in windy areas, • move the probe tip back and forth faster than 2" per second, • allow the probe tip to contact a hot surface. 2.11. Refrigerant Sensor Flooding Indication When the refrigerant sensor becomes flooded with a high concentration of gas, observe that the gas-level LEDs quickly light full scale and then all turn off, leaving both the audible tick rate and probe tip blink rate at elevated levels.
  • Page 16 The Informant™ 2 • Always follow the refrigerant system around in a continuous path so that no areas of potential leaks are missed. If a leak is found, always continue to test the remainder of the system. • At each area checked, the probe shall be moved around the location, at a rate no more than 25 to 50 mm/sec (1 to 2 in./sec), and no more than 5 mm (0.2 inch) from the surface completely around the position.

  • Page 17: Maintenance

    The Informant™ 2 3. MAINTENANCE 3.1. Introduction By following the procedures outlined below, The Informant 2 Leak Detector will provide many years of trouble-free and dependable operation. 3.2. Routine Maintenance • Replace the batteries per Section Battery Installation when the LO BATT LED glows.

  • Page 18: Sensor Replacement

    The Informant™ 2 Material Required: • Probe Filter (refer to Section Replacement Parts) Procedure: 1. Turn OFF detector. 2. Unscrew probe tip. 3. Remove filter following the appropriate procedure below: a. Refrigerant Sensor — Remove filter from top of sensor. b.

  • Page 19: Probe Assembly Or Fan Replacement

    The Informant™ 2 3.5. Probe Assembly or Fan Replacement Replace the probe assembly or fan as follows (see Figures 5 thru 8): Material Required: • Probe Assembly or Fan (refer to Section Replacement Parts) • #1 Phillips screwdriver • Medium flat blade screwdriver Procedure: 1.
  • Page 20 The Informant™ 2 9. Turn ON the detector and check that it responds in a positive manner to a source of its corresponding gas. See Figure 6 for See Figure 7 for instructions on how to instructions on how to remove the Front replace the fan.
  • Page 21 The Informant™ 2 Figure 6. Front Retaining Collar Installation Figure 7. Fan Installation 0019-9211 Rev 9...
  • Page 22 The Informant™ 2 Figure 8. Connector Locations on Printed Circuit Board 0019-9211 Rev 9...

  • Page 23: Troubleshooting

    If the information in Table 1 does not solve the problem, or for help with any problem that is not listed, please contact one of the Bacharach Sales/Service Centers listed in Section Parts & Service.
  • Page 24 The Informant™ 2 Symptom Probably Cause and Remedy Short refrigerant a. Probe filter dirty, thus not allowing enough air to flow over the sensor to sensor life. keep it cool. Replace filter often per Section Probe Filter Replacement. b. Sensor has often been exposed to high concentrations of refrigerant.

  • Page 25: Parts And Service

    The Informant™ 2 5. PARTS AND SERVICE 5.1. Complete Kits Contents Informant 2 Kit Detector, refrigerant and combustible gas sensors, color- Dual Refrigerant/ 0019-8042 coded probe tips, 5 probe filters, Combustibles instruction manual, 4 ‘AA’ batteries, and a soft carrying case Detector, refrigerant and combustible gas sensors, color-coded probe tips, 5 probe...

  • Page 26: Optional Accessories

    The Informant™ 2 5.2. Optional Accessories Informant 2 Kit Contents ® Protective rubber boot, MagLite Deluxe Upgrade 0019-8037 ‘AA’ batteries, and a hard carrying case Upgrades a refrigerant-only Informant 2 to a dual sensing Combustible Gas 0019-8047 instrument. Includes a combustible Upgrade Kit gas sensor, color-coded probe tip, and 5 probe filters...

  • Page 27: Sales/Service Centers

    Soft Carrying Case 0019-0591 Battery Door Assembly 5.4. Sales/Service Centers Replacement parts and service can be obtained by contacting one of the following Bacharach Sales/Service Centers: United States Bacharach, Inc. 621 Hunt Valley Circle New Kensington, PA 15068 Phone: 1-800-736-4666 Fax: 724-334-5723 Email: help@mybacharach.com...

  • Page 28: Declaration Of Conformity

    The Informant™ 2 6. Declaration of Conformity 0019-9211 Rev 9...
  • Page 29 The Informant™ 2 NOTES 0019-9211 Rev 9...
  • Page 30 The Informant™ 2 NOTES 0019-9211 Rev 9...
  • Page 31 The Informant™ 2 NOTES 0019-9211 Rev 9...
  • Page 32 The Informant™ 2 World Headquarters 621 Hunt Valley Circle, New Kensington, Pennsylvania 15068 Phone: 724-334-5000 • Toll Free: 1-800-736-4666 • Fax: 724-334-5001 Website: www.MyBacharach.com • E-mail: help@MyBacharach.com 0019-9211 Rev 9...
