Draytek Vigor2130 Series User Manual

Draytek Vigor2130 Series User Manual

High speed gigabit router
Hide thumbs Also See for Vigor2130 Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Vigor2130 Quick Start Guide
i

Advertisement

Table of Contents
loading

Related Manuals for Draytek Vigor2130 Series

Summary of Contents for Draytek Vigor2130 Series

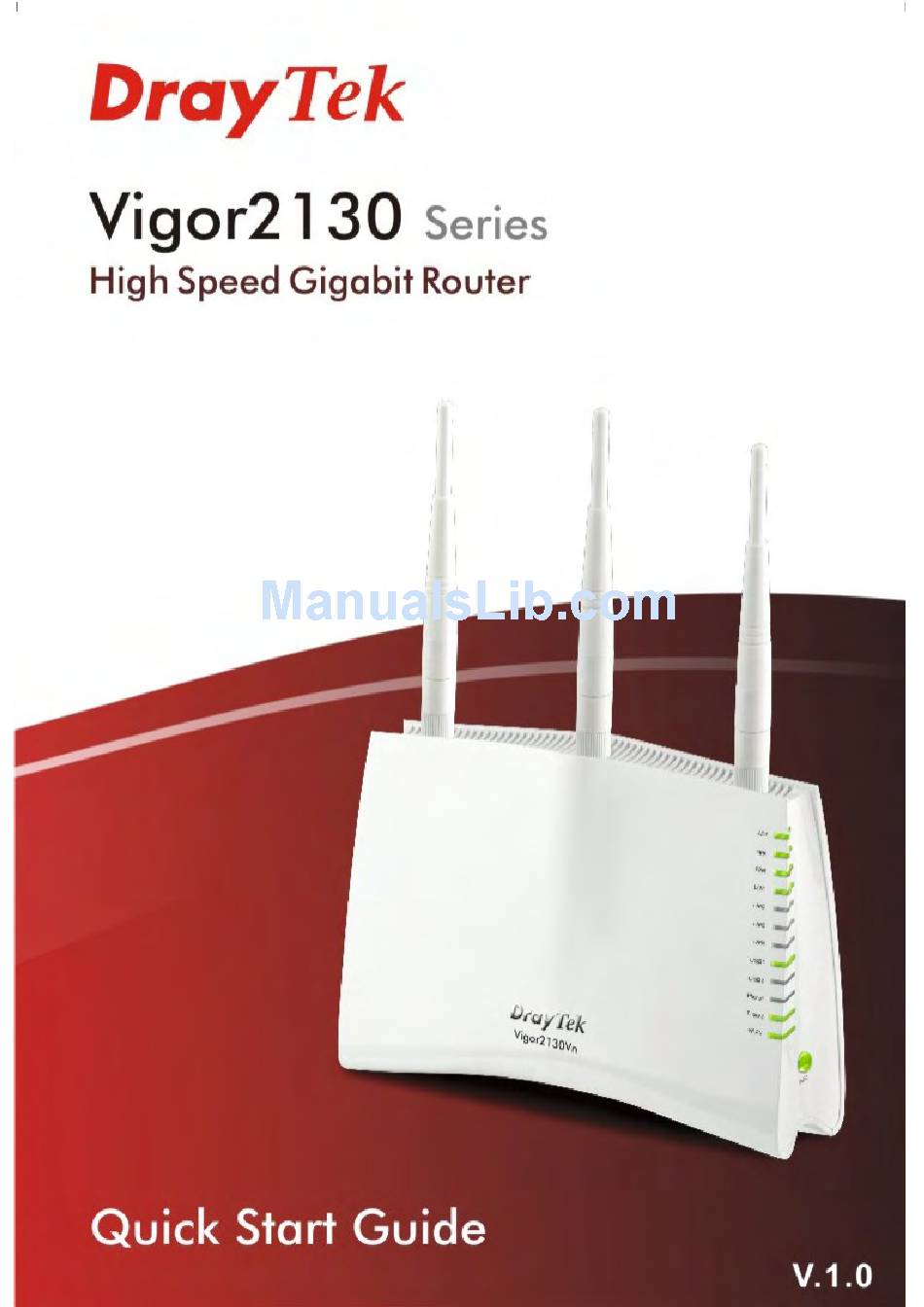

  • Page 1 Vigor2130 Quick Start Guide...

  • Page 2: Quick Start Guide

    Vigor2130 Series High Speed Gigabit Router Quick Start Guide Version: 1.0 Date: 08/07/2009 Vigor2130 Quick Start Guide...

  • Page 3: Copyright Information

    Web registration is preferred. You can register your Vigor router via Owner http://www.draytek.com. Firmware & Tools Due to the continuous evolution of DrayTek technology, all routers will be Updates regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.

  • Page 4: European Community Declarations

    No. 26, Fu Shing Road, HuKou Township, HsinChu Industrial Park, Hsin-Chu, Taiwan Product: Vigor2130 Series Router DrayTek Corp. declares that Vigor2130 Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE Directive 1999/5/EEC. The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B.

  • Page 5: Table Of Contents

    1. Introduction......................1 1.1 Panel Explanation ........................2 1.1.1 For Vigor2130 ....................... 2 1.1.2 For Vigor2130n ......................4 1.1.3 For Vigor2130Vn ......................6 1.2 Package Content........................8 2. Installing Your Router................... 9 2.1 Hardware Installation........................9 Stand Installation........................10 2.2 Printer Installation........................11 3.

  • Page 6: Introduction

    The Vigor2130 series are the routers with high speed in data transmission through WAN port and LAN ports. With hardware NAT acceleration, the rate of Vigor2130 series can be greater than 900 Mbps almost. With the development of NGN (Next Generation Network), you may recently hear the news about FTTx deployment in your local area or even have already subscribed the unbundling last mile service (e.g.

  • Page 7: Panel Explanation

    Status Explanation Blinking The router is powered on and running (Activity) normally. The router is powered off. Hardware NAT is enabled. (Hardware Hardware NAT is disabled. Packet Accelerate) The WAN port is connected. Blinking It will blink while transmitting data. The port is connected.
  • Page 8 Interface Description Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for more than 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button. Then the router will restart with the factory default configuration.

  • Page 9: For Vigor2130N

    Status Explanation Blinking The router is powered on and running (Activity) normally. The router is powered off. Hardware NAT is enabled. (Hardware Hardware NAT is disabled. Packet Accelerate) The WAN port is connected. Blinking It will blink while transmitting data. The port is connected.
  • Page 10 Interface Description Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for more than 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button. Then the router will restart with the factory default configuration.

  • Page 11: For Vigor2130Vn

    Status Explanation Blinking The router is powered on and running (Activity) normally. The router is powered off. Hardware NAT is enabled. (Hardware Hardware NAT is disabled. Packet Accelerate) The WAN port is connected. Blinking It will blink while transmitting data. The port is connected.
  • Page 12 Interface Description Phone2/Phone1 Connector of analog phone for VoIP communication Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for more than 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button.

  • Page 13: Package Content

    Quick Start Guide RJ-45 Cable (Ethernet) Antenna (n models) Stand The type of the power adapter depends on the country that the router will be installed. * The maximum power consumption is 17-23 Watt. UK-type Power Adapter EU-type Power Adapter USA/Taiwan-type Power Adapter AU/NZ-type Power Adapter Vigor2130 Quick Start Guide...

  • Page 14: Installing Your Router

    4 PCs directly. Connect Phone port to a conventional analog telephone. Connect detachable antennas to the router for Vigor2130 series (n model). Connect one end of the power cord to the power port of this device. Connect the other end to the wall outlet of electricity.

  • Page 15: Stand Installation

    The Vigor2130 must be placed erectly. Therefore you have to install a stand onto the router to make it standing firmly. Please follow the figures listed below to finish the installation. Vigor2130 Quick Start Guide...

  • Page 16: Printer Installation

    You can install a printer onto the router for sharing printing. All the PCs connected this router can print documents via the router. The example provided here is made based on Windows XP/2000. For Windows 98/SE/Vista, please visit www.draytek.com. Before using it, please follow the steps below to configure settings for connected computers (or wireless clients).
  • Page 17 Open File->Add a New Computer. A welcome dialog will appear. Please click Next. Click Local printer attached to this computer and click Next. In this dialog, choose Create a new port Type of port and use the drop down list to select Standard TCP/IP Port.
  • Page 18 In the following dialog, type 192.168.1.1 (router’s LAN IP) in the field of Printer Name or IP Address and type IP_192.168.1.1 as the port name. Then, click Next. Click Standard and choose Generic Network Card. Then, in the following dialog, click Finish. Vigor2130 Quick Start Guide...
  • Page 19 Now, your system will ask you to choose right name of the printer that you installed onto the router. Such step can make correct driver loaded onto your PC. When you finish the selection, click Next. 10. For the final stage, you need to go back to Control Panel-> Printers and edit the property of the new printer you have added.
  • Page 20 If you do not know whether your printer is supported or not, please visit www.draytek.com to find out the printer list. Open Support >FAQ; find out the link of Printer Server and click it; then click the What types of printers are compatible with Vigor router? link.
  • Page 21 This page is left blank. Vigor2130 Quick Start Guide...

  • Page 22: Configuring Web

    To access Internet, please finish basic configuration after completing the hardware installation. Make sure your PC connects to the router correctly. Notice: You may either simply set up your computer to get IP dynamically from the router or set up the IP address of the computer to be the same subnet as the default IP address of Vigor router 192.168.1.1.

  • Page 23: Basic Configuration

    The Quick Start Wizard is designed for you to easily set up your router for Internet access. You can directly access the Quick Start Wizard via Web Configurator. Open a web browser on your PC and type http://192.168.1.1. The system will ask you to type username/password.
  • Page 24 Enter the login password on the field of New Password and retype it on the field of Confirm Password. Then click Next to continue. After restarting the router, new password must be typed for accessing into router web page. On the next page as shown below, please choose time zone for your router. Set/add NTP server(s).
  • Page 25 On the next page as shown below, please select the appropriate Internet access type according to the information from your ISP. For example, you should select PPPoE mode if the ISP provides you PPPoE interface. Static IP: if you click Static IP, you will get the following page. Please type in the IP address information originally provided by your ISP.
  • Page 26 DHCP: if you click DHCP, you will get the following page. Simply click Next to continue. PPPoE: if you click PPPoE as the protocol, please manually enter the Username/Password provided by your ISP and all the required information. Then, click Next. Vigor2130 Quick Start Guide...
  • Page 27 PPTP/L2TP: if you click PPTP/L2TP as the protocol, please manually enter the Username/Password provided by your ISP and all the required information. Then, click Next. In an Infrastructure Mode of wireless network, Vigor wireless router plays a role as an Access Point (AP) connecting to lots of wireless clients or Stations (STA). All the STAs (clients) will share the same Internet connection with other wired hosts via Vigor wireless router.
  • Page 28 WEP: if you choose WEP as the security configuration, you have to specify encryption key and authentication mode. WPA-PSK: if you choose WPA-PSK as the security configuration, you have to specify WPA mode, algorithm and pre-shared key. Vigor2130 Quick Start Guide...
  • Page 29 WPA-RADIUS: if you choose WPA-Radius as the security configuration, you have to specify WPA mode, algorithm, Radius server, Radius server port and Radius server secret respectively. WPS: if you choose WPS as the security configuration, you can press Start WPS PIN and Start WPS PBC to complete the wireless connection.
  • Page 30 Click Next to continue. Now you can see the following screen. It indicates that the setup is complete. Different types of connection modes will have different summary. Click Finish and then restart the router. Now, you can enjoy surfing on the Internet. Vigor2130 Quick Start Guide...
  • Page 31 This page is left blank. Vigor2130 Quick Start Guide...

  • Page 32: Trouble Shooting

    This section will guide you to solve abnormal situations if you cannot access into the Internet after installing the router and finishing the web configuration. Please follow sections below to check your basic installation status stage by stage. Checking if the hardware status is OK or not. Checking if the network connection settings on your computer are OK or not.
  • Page 33 The example is based on Windows XP. As to the examples for other operation systems, please refer to the similar steps or find support notes in www.draytek.com. Go to Control Panel and then double-click on Network Connections. Right-click on Local Area Connection and click on Properties.
  • Page 34 Select Obtain an IP address automatically and Obtain DNS server address automatically. Double click on the current used MacOs on the desktop. Open the Application folder and get into Network. On the Network screen, select Using DHCP from the drop down list of Configure IPv4.

  • Page 35: Pinging The Router From Your Computer

    The default gateway IP address of the router is 192.168.1.1. For some reason, you might need to use “ping” command to check the link status of the router. The most important thing is that the computer will receive a reply from 192.168.1.1. If not, please check the IP address of your computer.

  • Page 36: Checking If The Isp Settings Are Ok Or Not

    Open WAN>>Internet Access page and then check whether the ISP settings are set correctly. Use the Connection Type drop down list to choose Static IP/DHCP/PPPoE/PPTP/L2TP for reviewing the settings that you configured previously. Vigor2130 Quick Start Guide...
  • Page 37 Choose Static IP as the connection type. Check if IP Address, IP Mask and IP Router are set correctly (must identify with the values from your ISP). Choose PPPoE as the connection type. Check if Username, and Password are set correctly (must identify with the values from your ISP).

  • Page 38: Backing To Factory Default Setting If Necessary

    Choose PPTP/L2TP as the connection type. Check if Username, Password, IP address, Subnet Mask are entered with correct values that you get from your ISP. Sometimes, a wrong connection can be improved by returning to the default settings. Try to reset the router by software or hardware. Warning: After pressing factory default setting, you will loose all settings you did before.

  • Page 39: Contacting Your Dealer

    If the router still cannot work correctly after trying many efforts, please contact your dealer for further help right away. For any questions, please feel free to send e-mail to support@draytek.com. Vigor2130 Quick Start Guide...
