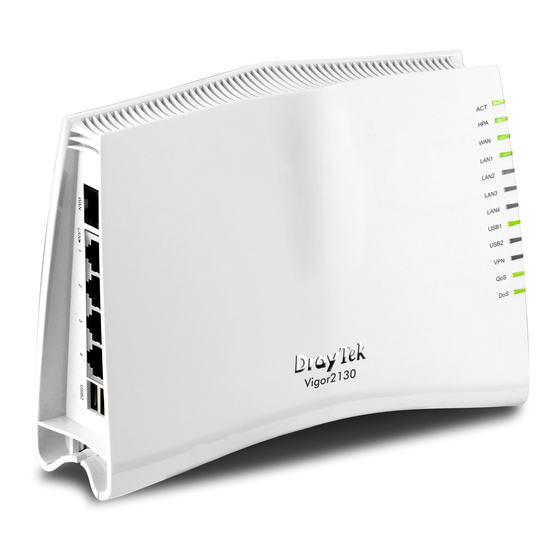

Draytek Vigor2130 Quick Start Manual

www.draytek.net.nz www.snappernet.co.nz
Vigor2130 » Quick Start Guide
Configure your computer's network
Connect your computer to the Vigor2130 with an Ethernet cable (supplied). Ensure your computer is obtaining an IP
address automatically.
Connect to the Web Interface
Open your Web Browser (e.g. Internet Explorer, Google Chrome or Mozilla Firefox), enter http://192.168.1.1/ into
the address bar, and press the Enter key on your keyboard.
You should be asked for a username and password. Enter admin into both fields (the password may show as dots or
stars) and click the Login button.

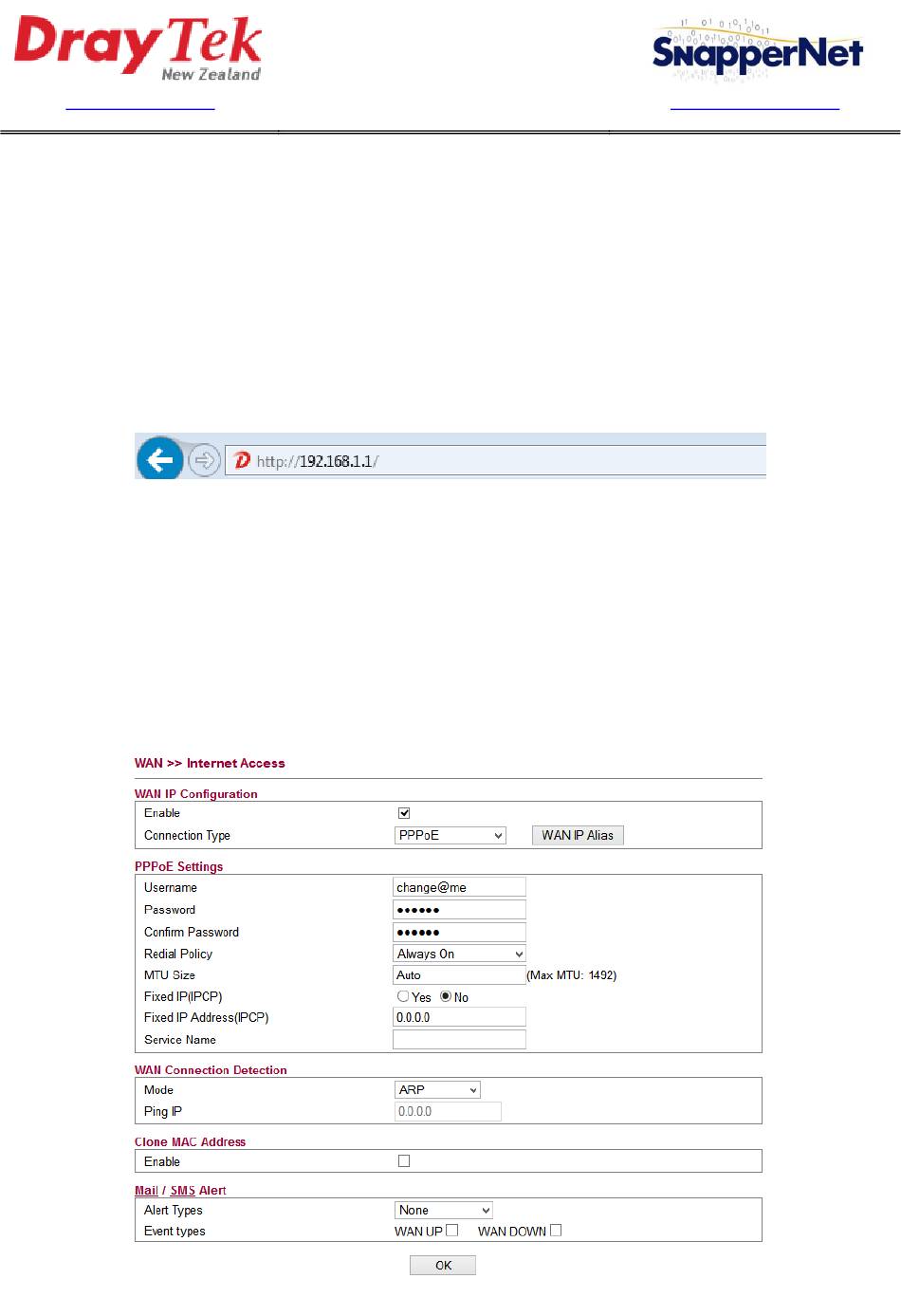

Configure your PPPoE settings
On the left-hand navigation menu, click WAN and then Internet Access. Ensure that the connection is Enabled and
the Connection Type is PPPoE.
Enter the username and password provided to you by your Internet Service Provider. Username should be in the
form of an email address, and the password will need to be entered into both the Password and Confirm Password
fields. All fields are case sensitive.
