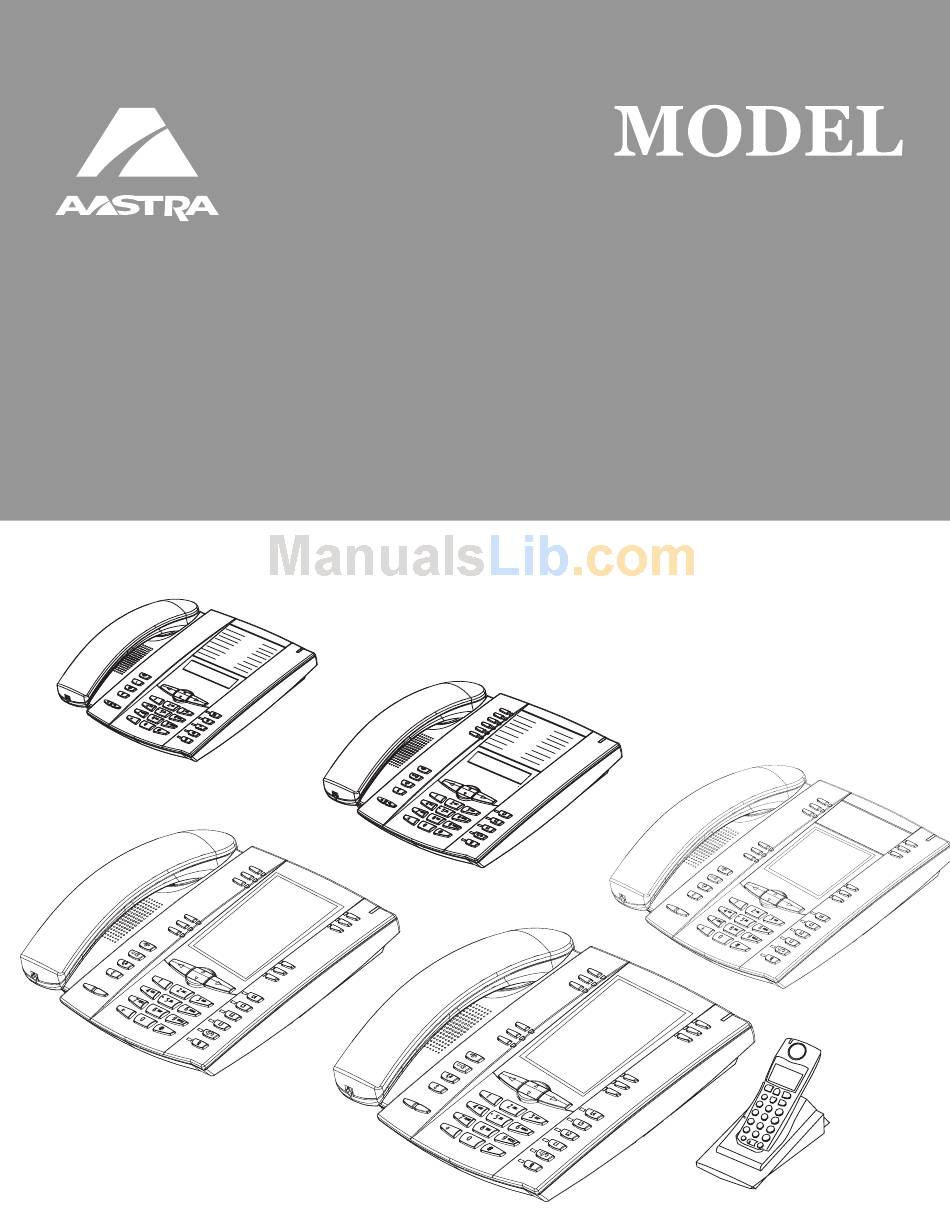

51i, 53i, 55i, 57i, and 57i CT
51i, 53i, 55i, 57i, and 57i CT
SI SIP I IP PHONE
PHONE
RN-001029-00
Rev 06
Release Note
Release 2.2

Advertisement

Table of Contents
loading

Related Manuals for Aastra REV 06

Summary of Contents for Aastra REV 06

  • Page 1 51i, 53i, 55i, 57i, and 57i CT 51i, 53i, 55i, 57i, and 57i CT SI SIP I IP PHONE PHONE RN-001029-00 Rev 06 Release Note Release 2.2...
  • Page 2 While every effort has been made to ensure accuracy, Aastra Telecom will not be liable for technical or editorial errors or omissions contained within this documentation. The information contained in this documentation is subject to change without notice.

  • Page 3: Table Of Contents

    Support for HTTP and HTTPS Configuration Servers on Non-Standard Ports 108 Ability to Set TFTP and FTP Path for Configuration Servers ... 113 NAT Traversal Features ... 120 Configurable SIP and TLS Source Ports ... 120 RPORT Support ... 123 RN-001029-00, Rev 06, Release 2.2 Contents...
  • Page 4 CMS Support ... 126 Server-Side Do Not Disturb (DND), Call Forward (CFWD) , and Automatic Call Distribution (ACD) Support ... 130 Issues Resolved on Series 5i Phones in Release 2.2 ... 136 Contacting Aastra Telecom Support ... 139 RN-001029-00, Rev 06, Release 2.2...

  • Page 5: About This Document

    • General Information (release content, hardware supported, bootloader requirements) • Features in Release 2.2 • Issues Resolved on Series 5i Phones in Release 2.2 • Contacting Aastra Telecom Support RN-001029-00, Rev 06, Release 2.2 SIP IP Phone Release Note 2.2...

  • Page 6: General Information

    57i - Bootloader 2.0.1.1055 or higher • 57i CT - Bootloader 2.0.1.1055 or higher Release Version Release Filename FC-001126-00-06 FC-001086-00-09 FC-001087-00-09 FC-001088-00-09 FC-001089-00-09 Release Date March 2008 March 2008 March 2008 March 2008 March 2008 RN-001029-00, Rev 06, Release 2.2...

  • Page 7: Features In Release 2.2

    Support for HTTP and HTTPS Configuration Servers on Non-Standard Ports Ability to Set TFTP and FTP Path for Configuration Servers Deployability Features Configurable SIP and TLS Source Ports RPORT Support RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes Features in Release 2.2 Page Number page 5...
  • Page 8 IP Phone Release Notes 2.2 Features in Release 2.2 Feature BroadSoft Interoperability Features CMS Support Server-Side Do Not Disturb (DND), Call Forward (CFWD) , and Automatic Call Distribution (ACD) Support Page Number page 126 page 130 RN-001029-00, Rev 06, Release 2.2...

  • Page 9: Usability Features

    Example: sip dial plan: “9;xxxxxxx” You use the following parameter in the Aastra Web UI to configure a secondary dial tone: Local Dial Plan RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes Features in Release 2.2...

  • Page 10: Account-Based Do Not Disturb (Dnd) And Call Forward (Cfwd)

    Once the mode is set, you can use the IP Phone UI to use the DND feature. Note: If there is only one account configured on the phone, then the mode setting is ignored and the phone behaves as if the mode was set to “Phone”. RN-001029-00, Rev 06, Release 2.2...
  • Page 11 • If you make changes to the configuration for DND via the IP Phone UI, you must refresh the Aastra Web UI screen to see the changes. RN-001029-00, Rev 06, Release 2.2 MWI LED Behavior for All Modes if current account in MWI LED ON if current account in focus has DND ON.
  • Page 12 Note: If there is only one account configured on the phone, then the mode setting is ignored and the phone behaves as if the mode was set to “Phone”.. Integer 1 (phone) 0 (account) 1 (phone) 2 (custom) dnd key mode: 2 RN-001029-00, Rev 06, Release 2.2...
  • Page 13 “custom” configuration. Pressing softkey 1 displays DND screens for which you can customize on the phone. For specific screens that display in the IP Phone UI, see the section, “Using DND Modes via the IP Phone UI” page RN-001029-00, Rev 06, Release 2.2...

  • Page 14: Aastra Web Ui

    “Phone”. Using the Aastra Web UI, if you change the DND Key Mode to “phone”, all accounts syncrhonize to the current setting of Account 1. DND Key Mode Parameter RN-001029-00, Rev 06, Release 2.2...
  • Page 15 “Phone Number” parameter at the path Advanced Settings->LineN. If neither the “Screen Name” nor the “Phone Number” parameters are specified, the account name shows “1”, “2”, “3”, etc. only. RN-001029-00, Rev 06, Release 2.2 to save your changes. 5i Series IP Phone Release Notes...
  • Page 16 Softkeys 1 and 2 configured for DND Note: If there is no DND key configured or if it is removed, DND is disabled on the IP Phone. Click to save your changes. to save your changes. RN-001029-00, Rev 06, Release 2.2...
  • Page 17 “Phone” “phone”, all accounts synchronize to the current setting of Account 1. RN-001029-00, Rev 06, Release 2.2 If there is no DND key configured or if it is removed, DND is If there is only one account configured on the phone, then the...
  • Page 18 Only Screenname1 and 3 have DND ON. Screenname 2 has DND OFF. Screenname1 DND On Jan 1 12:96 Screenname3 DND On Jan 1 12:96 Services Callers Screenname2 Tues Jan1 10:00am - DND Screenname2 Jan 1 12:96 Services Callers Screenname3 DND On Tues Jan1 10:00am - DND RN-001029-00, Rev 06, Release 2.2...
  • Page 19 In the above example, toggling Screenname1 to DND ON, enbabled DND for Screenname2 and 3 also. Note: Enabling DND in “Phone” mode toggles all accounts on the phone to DND ON. RN-001029-00, Rev 06, Release 2.2 Screenname1 DND On Jan 1 12:96...
  • Page 20 Aastra IP Phone UI Step Action DND in Custom Mode On the 51i and 53i: Press the DND key on the phone. The screen displays a list of the accounts on the phone and allows you to enable/disable a specific account or all accounts. Use the UP and DOWN arrow keys to scroll through the accounts.
  • Page 21 DND on all accounts, respectively. You use the CHANGE key to enable or disable DND for a specific account selected. After making the change, you must press DONE to save the change. RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes Services Callers 1.
  • Page 22 CopytoAll softkey. Note: If there is only one account configured on the phone, then the mode setting is ignored and the phone behaves as if the mode was set to “Phone”. RN-001029-00, Rev 06, Release 2.2...
  • Page 23 You can enable/disable CFWD and set a CFWD key using the configuration files or the Aastra Web UI. You can set CFWD mode (Account, Phone, Custom) using the configuration files, Aastra Web UI or IP Phone UI. RN-001029-00, Rev 06, Release 2.2 MWI LED Behavior for All Modes...
  • Page 24 • If you make changes to the configuration for CFWD via the IP Phone UI, you must refresh the Aastra Web UI screen to see the changes. “Configuring CFWD Using the Configuration Files”, is in RN-001029-00, Rev 06, Release 2.2...
  • Page 25 CFWD number for that mode in order for the mode to be enabled. RN-001029-00, Rev 06, Release 2.2 If there is no CFWD key configured on the phone or it is If there is only one account configured on the phone, then the...
  • Page 26 When configuring a CFWD mode (All, Busy, No Answer) for an account, you must configure a CFWD number for that mode in order for the mode to be enabled. Integer 0 (account) 0 (account) 1 (phone) 2 (custom) call forward key mode: 2 RN-001029-00, Rev 06, Release 2.2...
  • Page 27 “custom” configuration. Pressing softkey 1 displays CFWD screens for which you can customize on the phone. For specific screens that display in the IP Phone UI, see the section, RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes “Using CFWD Modes via the IP Phone UI”...
  • Page 28 Use the following procedure to configure CFWD mode using the Aastra Web UI: Aastra Web UI Click on Operation->Softkeys and XML; Click on Operation->Programmable Keys; Click on Operation->Expansion Module. Softkey 2 configured for CFWD Click to save your changes. RN-001029-00, Rev 06, Release 2.2...

  • Page 29: Call Forward

    Note: If there is no CFWD key configured on the phone or it is removed, you can still set the CFWD modes via the IP Phone UI at the path Options->Call Forward. RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes Features in Release 2.2...
  • Page 30 When configuring a CFWD state (All, Busy, No Answer) for an account, you must configure a CFWD number for that state in order for the state to be enabled. Click The change takes effect immediately without a reboot. to save your changes. RN-001029-00, Rev 06, Release 2.2...
  • Page 31 (for example, voicemail). If there is no answer on the phone after the specified number of rings, the phone can forward the call to a different specified number, such as a cell phone number. RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes...
  • Page 32 If you use the Aastra Web UI to change the Call Forward Key Mode to “Phone”, all accounts synchronize to Account 1. Click The change takes effect immediately without a reboot. to save your changes. RN-001029-00, Rev 06, Release 2.2...
  • Page 33 “Phone”. “Phone”, all accounts synchronize to the current setting of Account 1. RN-001029-00, Rev 06, Release 2.2 If there is no CFWD key configured on the phone or it is If there is only one account configured on the phone, then the...
  • Page 34 Change Done Cfwd Mode 2. Busy Change Done Cfwd Mode 3. NoAns Change Done RN-001029-00, Rev 06, Release 2.2 Screenname3 CFWD Busy Jan 1 12:96 Cfwd Mode 4. All Off Done Cfwd Mode 5. All On Done ), CFWD Busy is...
  • Page 35 ON or OFF. In the example in Step 4, you press NEXT to change the option to OFF. Press the SET key to save the change. RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes 1. Cfwd All to view 1.
  • Page 36 Press SET to save the change. 1. Cfwd All to view 1. Cfwd State Change Done 2. Cfwd Number Change Change Done RN-001029-00, Rev 06, Release 2.2 Cfwd Number Cancel...
  • Page 37 Press DONE to save CFWD All Number, CFWD All State, CFWD Busy Number, CFWD Busy State, CFWD No Answer Number, CFWD No Answer State, CFWD No Answer Rings. Each time you press DONE, the following “Apply Changes” screen displays. RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes 1. Cfwd NoAns to view 1.
  • Page 38 IP Phone Release Notes 2.2 Features in Release 2.2 Aastra IP Phone UI Step Action Press # to confirm the change(s) each time the “Apply Changes” screen displays. All changes are saved to the phone. RN-001029-00, Rev 06, Release 2.2...
  • Page 39 All three accounts have CFWD enabled as indicated by the “CFWD All” message. Note: In ”Phone” mode, when you change the call forward configuration for an account, the change applies to all accounts. RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes Screenname2 CFWD All Jan 1 12:96 Features in Release 2.2...
  • Page 40 ). The CFWD Busy setting is enabled but no call forward phone number is configured as indicated by a Cfwd Mode 1. All Change Done Cfwd Mode 2. Busy Change Done Cfwd Mode 3. NoAns Change Done Cfwd Mode 4. All Off Done Cfwd Mode 5. All On Done RN-001029-00, Rev 06, Release 2.2...
  • Page 41 In the following example, the CFWD All state is ON.. CFWD State Screen RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes 1. Cfwd All to view 1. Cfwd State...
  • Page 42 Press SET to save the change. 1. Cfwd All to view 1. Cfwd State Change Done 2. Cfwd Number Change Change Done RN-001029-00, Rev 06, Release 2.2 Cfwd Number Cancel...
  • Page 43 Press DONE to save CFWD All Number, CFWD All State, CFWD Busy Number, CFWD Busy State, CFWD No Answer Number, CFWD No Answer State, CFWD No Answer Rings. Each time you press DONE, the following “Apply Changes” screen displays. RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes 1. Cfwd NoAns to view 1.
  • Page 44 Features in Release 2.2 Aastra IP Phone UI Step Action Press # to confirm the change(s) each time the “Apply Changes” screen displays. All the same changes are saved to all accounts on the phone. RN-001029-00, Rev 06, Release 2.2...
  • Page 45 Screenname3 has one or more CFWD states configured but a specific state has no call forward phone number configured as indicated by a all accounts, respectively. RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes Screenname2 CFWD Busy...
  • Page 46 Cfwd Mode 1. All Done Change Cfwd Mode 2. Busy Change Done Cfwd Mode 3. NoAns Done Change Cfwd Mode 4. All Off Done Cfwd Mode 5. All On Done RN-001029-00, Rev 06, Release 2.2...
  • Page 47 In the following example, the CFWD All state is ON.. CFWD State Screen RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes 1. Cfwd All to view 1. Cfwd State...
  • Page 48 Press SET to save the change. 1. Cfwd All to view 1. Cfwd State Change Done 2. Cfwd Number Change Change Done RN-001029-00, Rev 06, Release 2.2 Cfwd Number Cancel...
  • Page 49 When the phone receives an incoming call, and call forward is configured on the phone, the phone rings the number of times you specify in the No. Rings screen, and then forwards the call. Press SET to save the change. RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes 1. Cfwd NoAns to view 1.
  • Page 50 Each time you press DONE, the following “Apply Changes” screen displays. Press # to confirm the change(s) each time the “Apply Changes” screen displays. All changes are saved to the phone for all accounts. Apply Changes? 0 Cancel # Confirm RN-001029-00, Rev 06, Release 2.2...
  • Page 51 In the above example, CFWD All is enabled as indicated by a checkmark ( enabled but no call forward phone number is configured as indicated by a disabled as indicated by an X. RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes Services...
  • Page 52 CopytoAll Key enables the Busy state and the NoAns state and assigns the same phone number to both states. Cancel Key - Cancels any configuration you may have made without saving. To cancel a configuration, you must press this CANCEL key before pressing the DONE key. RN-001029-00, Rev 06, Release 2.2...
  • Page 53 Note: You can press the AllAccts key to copy the settings in the current Call Forward Settings screen for a specific call forward mode, to every account on the phone. Every account will have the same settings for that call forward mode. RN-001029-00, Rev 06, Release 2.2 Services Callers...
  • Page 54 Every account will have the same settings for that call forward mode. Press DONE in the CFWD State Screen to save all changes. Press DONE in the CFWD Mode Screen to save all changes. RN-001029-00, Rev 06, Release 2.2...
  • Page 55 In the above example, CFWD All is enabled as indicated by a checkmark ( enabled but no call forward phone number is configured as indicated by a is disabled, as indicated by an X. RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes Services...
  • Page 56 CopytoAll Key enables the Busy state and the NoAns state and assigns the same phone number to both states. Cancel Key - Cancels any configuration you may have made without saving. To cancel a configuration, you must press this CANCEL key before pressing the DONE key. RN-001029-00, Rev 06, Release 2.2...
  • Page 57 Call Forward State Screen Press the CHANGE key in the CFWD State screen. With the cursor in the “State” field, toggle the state ON and OFF by pressing the CHANGE key. RN-001029-00, Rev 06, Release 2.2 Services Callers Call Forward...
  • Page 58 Press DONE in the CFWD State Screen to save all changes. Press DONE in the CFWD Mode Screen to save all changes. Note: In “Phone” mode, the configuration applies to all the accounts on the phone. RN-001029-00, Rev 06, Release 2.2...
  • Page 59 ), Screenname 2 has one or more CFWD states enabled but a specific state has no call forward phone number configured as indicated by a CFWD states disabled as indicated by an X. RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes Services...
  • Page 60 2. Busy 3. No Answer - Change CopytoAll - Cancel - - All Off - All On Done - RN-001029-00, Rev 06, Release 2.2 Indicates CFWD Enabled Indicates no CFWD phone number configured Indicates CFWD Disabled ), CFWD Busy is...
  • Page 61 Cancel Key - Cancels any configuration you may have made without saving. To cancel a configuration, you must press this CANCEL key before pressing the DONE key. RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes Features in Release 2.2...
  • Page 62 Call Forward Mode NoAns State: Number: 5551212 No. Rings: 3 - Change - AllAccts Change the State Cancel - Done - Change the Number Cancel - Done - Change the No. Rings Cancel - Done - RN-001029-00, Rev 06, Release 2.2...
  • Page 63 Press DONE in the CFWD State screen to save all changes. Press DONE in the CFWD Mode screen to save all changes. Press DONE in the CFWD Account screen to save all changes. RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes Features in Release 2.2...

  • Page 64: Multicast Group Paging

    “Paging” message to the phone’s LCD. Note: Multicast RTP is one way only - from sender to the receiver (i.e. from sender to the multicast address (receiver)). The phone uses the G711 uLaw CODEC for multicast RTP. RN-001029-00, Rev 06, Release 2.2...
  • Page 65 “Allow Barge-in” parameter. The incoming call is handled as if there were an existing call already on the phone. RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes Features in Release 2.2...
  • Page 66 RTP packets. Note: If this field is blank, Paging listening capability is disabled on the phone. Comma separated list of IP Address in dotted decimal format:Port # paging group listening: 239.0.1.15:10000,239.0.1.20:15000 RN-001029-00, Rev 06, Release 2.2...
  • Page 67 Note: Enter the IP address in dotted decimal format (for example, 239.0.1.15:10000,239.0.1.20:15000) If this field is blank, Paging listening capability is disabled on the phone. Click RN-001029-00, Rev 06, Release 2.2 to save your changes. 5i Series IP Phone Release Notes Features in Release 2.2...
  • Page 68 Group 1 softkey1 value: 239.0.1.15:10000 Note: The “softkeyN value” field allows for one multicast address entry only. The “paging group listening” parameter value allows for multiple multicast addresses. RN-001029-00, Rev 06, Release 2.2...
  • Page 69 Choose a key that you want to assign as the Paging Key and select Paging from the “Type” field. In the “Label” field, enter a key label to assign to the Paging key (for example, “Group 1”). RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes...
  • Page 70 1. When you select Paging for the “Type” field, the “Line” field and state fields are disabled. 2. The “Value” field allows for one multicast address entry only. The “Paging Listen Addresses” parameter in Step 2 allows for multiple multicast addresses. Click to save your changes. RN-001029-00, Rev 06, Release 2.2...
  • Page 71 Press the Drop softkey to end the multicast RTP session and return to the idle screen. Note: If you enable global DND on the phone, the incoming multicast RTP session is dropped. RN-001029-00, Rev 06, Release 2.2 Recipient of a Paging call can set a global “Do Not Disturb”...

  • Page 72: Simplified Transfer Using Blf And Speeddial Keys

    Note: It is recommended that you enable the “switch focus to ringing” parameter when using the BLF and Speeddial transfer key feature. For more information about this parameter, see Disable Switching Focus to a Ringing Line When on a Call” page “Ability to RN-001029-00, Rev 06, Release 2.2...
  • Page 73 When the focused line and the monitored extension are idle, pressing the BLF/Xfer key causes the phone to go offhook and dial the number of the extension. RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes Features in Release 2.2...
  • Page 74 (get the call back) by pressing the line key again. • Speeddial/Xfer and Call Forward When the phone is in the “Ringing” state, pressing the Speeddial/Xfer key forwards the call to the predefined extension. RN-001029-00, Rev 06, Release 2.2...

  • Page 75: Configuration Files

    1 softkey1 states: idle connected incoming outgoing busy prgkey1 type: blfxfer prgkey1 value: 35 prgkey1 line: 1 RN-001029-00, Rev 06, Release 2.2 Programmable Key Parameters Expansion Module Parameters prgkeyN type prgkeyN value prgkeyN line 5i Series IP Phone Release Notes Features in Release 2.2...
  • Page 76 BLF key or speeddial key using the Aastra Web UI. Use the following procedure to configure BLF/Xfer and/or Speeddial/Xfer. Aastra Web UI Click on Operation->Softkeys and XML. Click on Operation->Programmable Keys. Click on Operation->Expansion Keys. Bottom Keys Tab (57i example). RN-001029-00, Rev 06, Release 2.2...
  • Page 77 On the Bottom Key tab, in the States field, select the state(s) (idle, connected, incoming, outgoing, busy) for which you want to use on the key. Note: States are not applicable to programmable keys. Click RN-001029-00, Rev 06, Release 2.2 to save your changes. 5i Series IP Phone Release Notes Features in Release 2.2...

  • Page 78: Ability To Disable Switching Focus To A Ringing Line When On A Call

    Configuration Files aastra.cfg, <mac>.cfg Specifies whether or not the UI focus is switched to a ringing line while the phone is in the connected state. Boolean 1 (enable) 0 (disable) 1 (enable) switch focus to ringing line: 1 RN-001029-00, Rev 06, Release 2.2...
  • Page 79 “Switch Focus to Ringing Line” Parameter The “Switch Focus to Ringing Line” field is enabled by default. To disable this field, uncheck the box. Click RN-001029-00, Rev 06, Release 2.2 to save your changes. 5i Series IP Phone Release Notes Features in Release 2.2...

  • Page 80: Security Features

    If the 802.1x failed to authenticate with the server, the phone continues it's normal startup process using DHCP. However, the network port on the phone may or may not be disabled, depending on the switch configuration. >> 10% 802.1x Authenticating... RN-001029-00, Rev 06, Release 2.2...
  • Page 81 Use the configuration files or the Aastra Web UI to load certificates and private keys. RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes Features in Release 2.2...
  • Page 82 802.1x local certificate (use 1 local certificate) • 802.1x private key (1 private key that corresponds to local certificate) • 802.1x trusted certificates (0 or more trusted certificates (a maximum of 2)) • pc port passthrough enabled RN-001029-00, Rev 06, Release 2.2...
  • Page 83 Range Example Parameter – eap type Description Format Default Value Range Example RN-001029-00, Rev 06, Release 2.2 IP phone UI Options->Administrator Menu-> Network Settings->Ethernet Link Aastra Web UI Advanced Settings->Network-> Basic Network Settings Configuration Files aastra.cfg, <mac>.cfg Enables or disables the LAN PC port on the phone.
  • Page 84 Specifies the password used for the MD5 authentication of the phone. Note: The value you enter for this parameter also displays in the Aastra Web UI at the path Advanced Settings-> 802.1x Support->EAP-MD5 Settings->MD5 Password. The password displays as “*******”. String md5 password: password1 RN-001029-00, Rev 06, Release 2.2...
  • Page 85 802.1x private key Description Format Default Value Range Example RN-001029-00, Rev 06, Release 2.2 Aastra Web UI: Advanced Settings->802.1x Support-> EAP-TLS Settings Configuration Files aastra.cfg, <mac>.cfg Specifies the file name that contains the root and intermediate certificates related to the local certificate.
  • Page 86 802.1x trusted certificates Description Format Default Value Range Example Aastra Web UI: Advanced Settings->802.1x Support-> EAP-TLS Settings Configuration Files aastra.cfg, <mac>.cfg Specifies the file name that contains the trusted certificates. String 802.1x trusted certificates: filename.pem RN-001029-00, Rev 06, Release 2.2...
  • Page 87 Press to enter the Options List. Select Administrator Menu and enter your Administrator password. Select Network Settings->Ethernet->Enable PassThru Port. RN-001029-00, Rev 06, Release 2.2 If configuring 802.1x using the IP Phone UI, the Ethernet Link 1. LAN Port Link 2. PC Port Link 3.
  • Page 88 Note: The PC PassThru Port must be enabled to use the 802.1x Protocol. Press Done. Select 802.1x Settings. Select 802.1x Mode. Enable PassThru Port Enable PassThru Port - Change Cancel - Done - 802.1x Settings 1. 802.1x Mode 2. EAP-MD5 Settings - Select Done - RN-001029-00, Rev 06, Release 2.2...
  • Page 89 Aastra Web UI to configure the certificates and private key for the phone. Press Done. To configure MD5, select EAP-MD5 Settings. Select Identity. RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes 802.1x Mode Disabled...
  • Page 90 IP Phone UI. Username Username: - Backspace Nextspace - Cancel - - ABC Done - Password Password: - Backspace Nextspace - Cancel - - ABC Done - RN-001029-00, Rev 06, Release 2.2...
  • Page 91 For example, phone1. In the “MD5 Password” field, enter a password used for the MD5 authentication of the phone. For example, password1. Click RN-001029-00, Rev 06, Release 2.2 to save your changes. 5i Series IP Phone Release Notes Features in Release 2.2...
  • Page 92 In the “Root and Intermediate Certificates” field, enter the filename that contains the root and intermediate certificates related to the local certificate. For example: root_Intermed_certifi.pem. In the “Local Certificate” field, enter the filename that contains the local certificate. For example: localcertificate.pem. to save your changes. PC Port PassThru Enable/Disable RN-001029-00, Rev 06, Release 2.2...
  • Page 93 The “PC Port PassThru Enable/Disable” field is enabled by default. To disable this field, uncheck the box. Note: The PC Port PassThru Enable Disable field must be enabled to use the 802.1x Protocol. Click RN-001029-00, Rev 06, Release 2.2 to save your changes. to save your changes. 5i Series IP Phone Release Notes Features in Release 2.2...

  • Page 94: Improved Configuration File Encryption

    • Renders the <MAC>.tuz file invalid if the user renames the file. • Works with IP phone releases prior to Release 2.2. • Provides compatibility between the previous encryption routine and the new decryption routine. RN-001029-00, Rev 06, Release 2.2...

  • Page 95: Xml Features

    For example if an AastraIPPhoneExecute is used, the embedded uri(s) can not be HTTPS based. RN-001029-00, Rev 06, Release 2.2 The phone supports all the current XML objects with all 5i Series IP Phone Release Notes Features in Release 2.2...
  • Page 96 Whitelist feature (Whitelist Proxy parameter) on the IP phone. If enabled, and the phone receives a SIP NOTIFY from a server that is NOT on the whitelist, the phone rejects the message. RN-001029-00, Rev 06, Release 2.2...
  • Page 97 Description Format Default Value Range Example RN-001029-00, Rev 06, Release 2.2 Aastra Web UI: Advanced Settings->Global SIP-> Advanced SIP Settings Configuration Files aastra.cfg, <mac>.cfg Enables or disables the phone to accept or reject an aastra-xml SIP NOTIFY message.
  • Page 98 Use the following procedure to enable/disable the XML SIP NOTIFY feature in the Aastra Web UI. Aastra Web UI Enabling/Disabling the XML SIP NOTIFY Feature Click on Advanced Settings->Global SIP->Advanced SIP Settings. XML SIP Notify Parameter Enabling Whitelist Proxy is recommended RN-001029-00, Rev 06, Release 2.2...
  • Page 99 Description Format Default Value Range Example RN-001029-00, Rev 06, Release 2.2 to save your changes. Aastra Web UI: Advanced Settings->Action URI Configuration Files aastra.cfg, <mac>.cfg Specifies the URI to be called when an empty XML SIP NOTIFY is received by the phone.
  • Page 100 Specify a URI to be called when an empty XML SIP NOTIFY is received by the phone. Note: The sip xml notify event parameter at the path Advanced Settings->Global SIP->Advanced SIP Settings must be enabled. Click to save your changes. XML SIP Notify Parameter RN-001029-00, Rev 06, Release 2.2...

  • Page 101: Rtp And Multicast Rtp Via Xml

    Note: If one of the previous commands is sent to the phone which is already in a call, the phone places the current call on hold and the RTP streaming commands are performed using a new audio path. RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes Features in Release 2.2...
  • Page 102 This example receives a unicast RTP stream from 10.30.100.20 at UDP port 21000 with the voice settings as used in the previous RTP stream. <AastraIPPhoneExecute> <ExecuteItem URI = ”RTPRx:10.30.100.20:21000”> <AastraIPPhoneExecute> Example: This example stops an incoming active multicast/unicast RTP stream. <AastraIPPhoneExecute> <ExecuteItem URI=”RTPRx:Stop”> <AastraIPPhoneExecute> RN-001029-00, Rev 06, Release 2.2...
  • Page 103 Example: This example sends a unicast RTP stream to 10.30.100.20 on UDP port 21000. <AastraIPPhoneExecute> <ExecuteItem URI = ”RTPTx:10.30.100.20:21000”> <AastraIPPhoneExecute> Example: This example stops an outgoing active multicast/unicast RTP stream. <AastraIPPhoneExecute> <ExecuteItem URI=”RTPTx:Stop”> <AastraIPPhoneExecute> RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes Features in Release 2.2...
  • Page 104 The phone starts listening based on the most recent RTPMRx command received. This behavior also applies to the RTPRx:Stop and RTPMRx:Stop commands as well, but tbe “Stop” command does not enable any further listening. RN-001029-00, Rev 06, Release 2.2...
  • Page 105 Ensure that this is a number greater than 3100. Example: This example sends a multicast RTP stream to 239.0.1.20 from UDP port 21000. <AastraIPPhoneExecute> <ExecuteItem URI = ”RTPMTx:239.0.1.20:21000”> <AastraIPPhoneExecute> RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes Features in Release 2.2...

  • Page 106: Text Wrap For Xml Textmenu Items

    Text Wrapping Prior to Release 2.2 Top Stories DNA shows Columbian captor fathered boy Blurry-eyed front- runners take first - Select Done - 1 DNA shows Columbian capt Next Enter Text Wrapping in Release 2.2 RN-001029-00, Rev 06, Release 2.2...

  • Page 107: Non-Blocking Http Connections

    Note: This feature impacts only the HTTP calls triggered by a phone key (softkey or programmable key); the HTTP calls performed by action URIs are still blocking in Release 2.2. RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes This feature also allows a user to abort the connection and...

  • Page 108: Polling Action Uri

    Aastra Web UI Advanced Settings->Action URI Configuration Files aastra.cfg, <mac>.cfg Specifies the interval, in seconds, between calls from the phone to the "action uri poll". Integer 0 (disabled) action uri poll interval: 60 RN-001029-00, Rev 06, Release 2.2...
  • Page 109 In the “Interval” field, enter the interval, in seconds, between calls from the phone to the "action uri poll". The value of “0” is disabled. Click RN-001029-00, Rev 06, Release 2.2 to save your changes. 5i Series IP Phone Release Notes...

  • Page 110: Deployability Features

    9 lines.The following is an illustration of the Network Status screen in the Aastra Web UI with SIP status displayed. SIP Status on the Network Status Screen The following table describes the status conditions that can display for an account(s). RN-001029-00, Rev 06, Release 2.2...
  • Page 111 Account Number is “4” SIP Account is “9057604601@anasipproxy.aastra.com” on port “5060” Status is “401” - Unregistered if SIP registration fails. Backup registrar is used (“No”) RN-001029-00, Rev 06, Release 2.2 9057604603@anasipproxy.aastra.com:5060Registered Yes 9057604601@anasipproxy.aastra.com:5060401 5i Series IP Phone Release Notes Features in Release 2.2...

  • Page 112: Support For Http And Https Configuration Servers On Non-Standard Ports

    Aastra Web UI: Advanced Settings->Configuration Server-> Settings Configuration Files aastra.cfg, <mac>.cfg Specifies the HTTP port that the server uses to load the configuration to the phone over HTTP. Integer 1 through 65535 http port: 1025 RN-001029-00, Rev 06, Release 2.2...
  • Page 113 Step Action Configuring HTTP Port Press Options->Administrator Menu. Enter your Administrator password and press Enter. Select Configuration Server->HTTP Settings->HTTP Port. RN-001029-00, Rev 06, Release 2.2 IP Phone UI: Options->Administrator Menu-> Configuration Server->HTTPS Settings-> HTTPS Client->Download Port Aastra Web UI: Advanced Settings->Configuration Server->...
  • Page 114 Enter the HTTPS port that the server uses to load the configuration to the phone over HTTPS. Press Done. Press Options to save your changes and exit from the Options Menu. HTTP Port HTTP Port - Backspace Cancel - Done - HTTPS Port HTTPS Port - Backspace Cancel - Done - RN-001029-00, Rev 06, Release 2.2...
  • Page 115 In the “HTTP Port” field, enter the HTTP port that the server uses to download the configuration to the phone. Default value is 80. Valid values are 1 through 65535. Click RN-001029-00, Rev 06, Release 2.2 to save your changes. 5i Series IP Phone Release Notes...
  • Page 116 In the “HTTPS Port” field, enter the HTTPS port that the server uses to download the configuration to the phone. Default value is 443. Valid values are 1 through 65535. Click to save your changes. RN-001029-00, Rev 06, Release 2.2...

  • Page 117: Ability To Set Tftp And Ftp Path For Configuration Servers

    Parameter – tftp path Description Format Default Value Range Example RN-001029-00, Rev 06, Release 2.2 Aastra Web UI Advanced Settings-> Configuration Server->Settings IP Phone UI Options->Administrator Menu-> Configuration Server->TFTP Settings Configuration Files aastra.cfg, <mac>.cfg Specifies the path name for which the configuration files reside on the TFTP server for downloading to the IP Phone.
  • Page 118 Specifies a path name for which the configuration files reside on an FTP server for downloading to the IP Phone. Note: Enter the path name in the form folderX\folderX\folderX. For example, ipphone\57i\configfiles. String Up to 64 alphanumeric characters ftp path: configs\ftp RN-001029-00, Rev 06, Release 2.2...
  • Page 119 Note: Enter the path name in the form folderX\folderX\folderX. For example, ipphone\57i\configfiles. You can enter up to 64 alphanumeric characters. Click RN-001029-00, Rev 06, Release 2.2 to save your changes. 5i Series IP Phone Release Notes Features in Release 2.2...
  • Page 120 In the “FTP Path” field, enter the path name for which the configuration files reside on the FTP server for downloading to the IP Phone. Note: Enter the path name in the form folderX\folderX\folderX. For example, ipphone\57i\configfiles. You can enter up to 64 alphanumeric characters. Click to save your changes. RN-001029-00, Rev 06, Release 2.2...
  • Page 121 Press NEXT to move to the next option in the TFTP Settings Menu. Press CANCEL to cancel the entry. Press SET to save the entry for the TFTP Path. RN-001029-00, Rev 06, Release 2.2 Primary TFTP Path Primary TFTP Path...
  • Page 122 Press SET to save the entry for the Alternate TFTP Path. 1 Alternate TFTP Alternate TFTP Path Next Alternate TFTP Path iphone\57i\configfiles - Backspace Nextspace - Alternate TFTP Cancel - iphone\53i\configfiles - ABC Cancel Done - 55i/57i/57i CT Enter 51i/53i RN-001029-00, Rev 06, Release 2.2...
  • Page 123 Press CANCEL to cancel the entry. Press SET to save the entry for the FTP Path. Press DONE to save the entry for the FTP Path to the phone’s configuration. RN-001029-00, Rev 06, Release 2.2 FTP Path Next FTP Path...

  • Page 124: Nat Traversal Features

    UDP SIP messages. When symmetric UDP is enabled, the IP phone generates and listens for UDP messages using port 5060.If symmetric UDP signaling is disabled, the phone sends from random ports but it listens on the configured SIP local port. RN-001029-00, Rev 06, Release 2.2...
  • Page 125 Description Format Default Value Range Example RN-001029-00, Rev 06, Release 2.2 Aastra Web UI: Advanced Settings->Global SIP-> Advanced SIP Settings Configuration Files aastra.cfg, <mac>.cfg Specifies the local source port (UDP/TCP) from which the the phone sends SIP messages...
  • Page 126 The “Local SIP UDP/TCP Port” field has a default value of 5060. Change this value if required to a value greater than 1024 and less than 65535. Note: It is recommended that you avoid the conflict RTP port range in case of a UDP transport. “Local SIP TLS Port” Parameter RN-001029-00, Rev 06, Release 2.2...

  • Page 127: Rport Support

    When you enable “Rport, the phone always uses symmetric signaling (listens on the port used for sending requests). An Administrator can configure “Rport” using the configuration files or the Aastra Web UI. RN-001029-00, Rev 06, Release 2.2 to save your changes. 5i Series IP Phone Release Notes Features in Release 2.2...
  • Page 128 “Rport” in RFC 3581, allows a client to request that the server send the response back to the source IP address and the port from which the request came. Boolean 0 (disable) 1 (enable) sip rport: 1 RN-001029-00, Rev 06, Release 2.2...
  • Page 129 “Rport” in RFC 3581, allows a client to request that the server send the response back to the source IP address and the port from which the request came. Click RN-001029-00, Rev 06, Release 2.2 to save your changes. 5i Series IP Phone Release Notes Features in Release 2.2...

  • Page 130: Broadsoft Interoperability Features

    • By enabling the “http digest force login” parameter (setting to 1) - the phone displays the LOG IN key so the user can enter the default username/password via the IP Phone UI. RN-001029-00, Rev 06, Release 2.2...
  • Page 131 Format Default Value Range Example RN-001029-00, Rev 06, Release 2.2 Configuration Files aastra.cfg, <mac>.cfg Specifies the username to use for HTTP/HTTPS digest authentication.. The server uses this username for authentication purposes when loading configuration to the phone over HTTP/HTTPS. This parameter initiates a “Username/Password”...
  • Page 132 Note: After the server has authenticated the phone, this parameter must be set to “0” in order for the server to send the default profile to the phone. Boolean 0 (disable) 0 (disable) 1 (enable) http digest force login: 1 RN-001029-00, Rev 06, Release 2.2...
  • Page 133 After entering the username and password, press Submit. The phone attempts to authenticate with the server. If successful, the phone reboots and loads the user configuration. If unsuccessful, the phone displays “Authentication Failed”. RN-001029-00, Rev 06, Release 2.2 Please Enter: Username: Log In...

  • Page 134: Server-Side Do Not Disturb (Dnd), Call Forward (Cfwd) , And Automatic Call Distribution (Acd) Support

    “as-feature-event” is not enabled, the phones uses the ACD icons and LED behavior from a Sylantro server instead. The 51i supports server-side DND and CFWD only. The DND, CFWD, and ACD server-side feature is not applicable to “Account-Based Do Not Disturb page “Account-Based Do page RN-001029-00, Rev 06, Release 2.2...
  • Page 135 Unavailable - User has the option of logging out or making the phone available. ACD Screen for 53i ACD Screen for 55i, 57i, and 57i CT Logged Out - Log In RN-001029-00, Rev 06, Release 2.2 Call Forward Mode: CFA Done Next Logged Out...
  • Page 136 The ACD softkey must be configured for the first line of an account. For example, if account 2 has line 3 and line 4 you must configure the ACD softkey for line 3. “Account-Based Do Not Disturb (DND) and (CFWD)”. RN-001029-00, Rev 06, Release 2.2...
  • Page 137 Description Format Default Value Range Example RN-001029-00, Rev 06, Release 2.2 Aastra Web UI: Advanced Settings->LineN-> Advanced SIP Settings Configuration Files aastra.cfg, <mac>.cfg Enables or disables the specified line with the BroadSoft’s server-side DND, CFWD, or ACD features.
  • Page 138 Aastra Web UI Click on Advanced Settings->LineN->Advanced SIP Settings. In the “Advanced SIP Settings” section, enable the "As--Feature-Event Subscription" field, by checking the check box. (Disable this field by unchecking the box). Click to save your changes. RN-001029-00, Rev 06, Release 2.2...
  • Page 139 SUBSCRIBE, to recieve a NOTIFY response from the server side. Default is 3600. Valid values are Click RN-001029-00, Rev 06, Release 2.2 to save your changes. 5i Series IP Phone Release Notes Features in Release 2.2...

  • Page 140: Issues Resolved On Series 5I Phones In Release 2.2

    DEF08645 When the DND key is configured on an expansion module, the DND status is now preserved via a reboot of the phone. DEF08829 57iCT: The MWI icon on the cordless handset now functions correctly. RN-001029-00, Rev 06, Release 2.2...
  • Page 141 Phones now correctly parse XML objects that have a 'space' at the end of a URI. ENH08004 List objects now support up to 30 items. DEF09150 FastReboot now works correctly when no language packs installed. RN-001029-00, Rev 06, Release 2.2 5i Series IP Phone Release Notes Issues Resolved on Series 5i Phones in Release 2.2...
  • Page 142 Phones now work properly when connecting to a 3CX server and a transfer is attempted. DEF08851 Phones now work properly after processing a 484 Address Incomplete message. Other DEF08634 Auto-sync time setting format is now independent of the phones language setting. RN-001029-00, Rev 06, Release 2.2...

  • Page 143: Contacting Aastra Telecom Support

    Contacting Aastra Telecom Support Contacting Aastra Telecom Support If you’ve read this release note, and consulted the Troubleshooting section of your phone model’s manual and still have problems, please send inquiries via email to support@aastra.com. RN-001029-00, Rev 06, Release 2.2...
  • Page 146 Model 5i Series 2.2 Release Notes Copyright © 2008 Aastra Telecom. All rights reserved. Information in this document is subject to change without notice. Aastra Telecom assumes no responsibility for any errors that may appear in this document. Product capabilities described in this document pertain solely to Aastra Telecom's marketing activities in the U.S.
