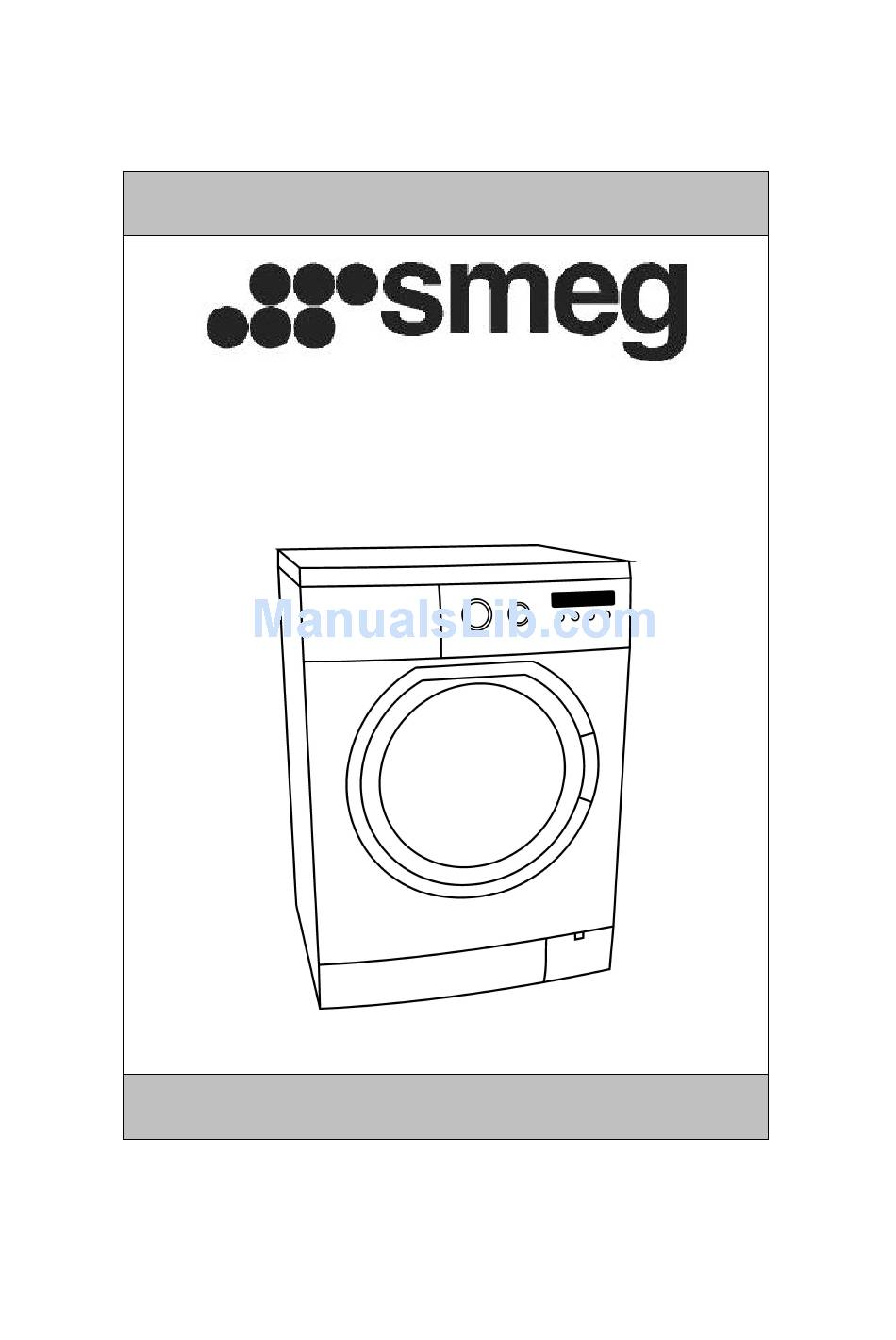

- Page 1 WASHING MACHINE USER MANUAL BEFORE USING THE WASHING MACHINE, YOU SHOULD CERTAINLY READ THE INFORMATION IN USER’S MANUAL.
-
Page 2: Table Of Contents
Auxiliary functions Starting the programme Child lock Cancelling programme Finishing programme CHAPTER-7: WARNING SYMBOLS Warning of water cut-off/low mains water pressure Warning of clogged pump fitler CHAPTER-8: MAINTENANCE AND CLEANING OF YOUR MACHINE CHAPTER-9: PRACTICAL INFORMATION CHAPTER-10: TROUBLESHOOTING CHAPTER-11: AUTOMATIC FAULT WARNINGS AND... -
Page 3: Chapter-1: Technical Specifications
CHAPTER -1: TECHNICAL SPECIFICATIONS 1.Detergent drawer 2.Upper tray 3.Programme knob 4.Electronic display 5.Door 6.Cover of pump filter 7.Transport safety screw 8.Power cable 9.Discharging hose 10.Water inlet valve... - Page 4 Total current (A) Maximum: 1 Mpa Water pressure (Mpa) Minimum: 0.1 MPa 2100 Total power (W) Maximum dry laundry capacity (kg) 1200 Wringing revolution (rev / min) Programme number Dimensions 845 x 597 x 527 (Height x Width x Depth) (mm)
-
Page 5: Chapter-2: Before Using Washing Machine
Never pull the cable when unplugging. Grab the plug when unplugging. Do not plug-in or out the plug from the receptacle with wet hands to prevent electric shock. Never touch the machine with your wet, damped hand or foot. -
Page 6: Recommendations
By this way, your machine shall run in saving mode. It will help that inner side of your machine will remain dry and no unpleasant smell will occur provided that you unplug the appliance, turn off the water inlet faucet and leave the door open or spaced- out if you will not use your machine for a long time. -
Page 7: Chapter-3: Setting Up
REMOVING TRANSPORT SAFETY SCREWS Before operating your washing machine, you should certainly remove the transport safety screw on the rear side of the machine. For this reason, transport safety screws shall be loosened by being rotated in counter-clockwise using an appropriate wrench. - Page 8 Fit the plastic transport screw taps delivered in accessories bag to the places where transport screws have been removed. The transport safety screws should be stored to be used in case of a transportation. You should absolutely remove the transport screws of your machine before the first usage.
-
Page 9: Adjusting Adjustable Stays
CHAPTER -3: SETTING UP ADJUSTING ADJUSTABLE STAYS Do not install your machine on a carpet or suchlike grounds. To ensure silent and vibration-free operation of your machine, it should be deployed on a non-sliding and firm ground. Loosen the plastic adjustment nut. -
Page 10: Electrical Connection
To eliminate water leakages in points of contact, 1 or 2 nuts are provided in the hose package (applicable for machines with double water inlets). Fit these nuts to the ends of new water inlet hoses on the side of faucet. -
Page 11: Water Discharge Connection
The end of water discharge hose can be fitted to a specific apparatus directly attached to dirty water discharge hole or outlet joint of the basin elbow. Never attempt to extend the water discharge hose by jointing. Do not put discharging hose of your machine in a vessel, bucket or sink. -
Page 12: Chapter-4: Preliminary Preparation For Laundering
Wash your coloured laundries separately in the first washing as they may bleed. Ensure that there are no metallic materials on your laundries or in the pockets; if so, take them up. WARNING: Faults that will emerge in case of penetration of foreign substances into your machine are not included within the scope of warranty. - Page 13 CHAPTER-4: PRELIMINARY PREPARATION FOR LAUNDERING SEPARATING LAUNDRIES Ironing No whitening Whitening temperature is available maximum 110°C Ironing Ironing temperature is temperature is No ironing maximum 150°C maximum 200°C No dry cleaning Dry cleaning Leave on a flat available place Drying by twirling...
- Page 14 Pillow slip Underwear Tablecloth Put the laundries separately. Ensure that no laundry is stuck between the cover and bellow seal when closing the door of your machine. Push the door of your machine until hearing the locking sound to close it.
- Page 15 CHAPTER-4: PRELIMINARY PREPARATION FOR LAUNDERING ADDING DETERGENT INTO MACHINE The amount of detergent you will put in your machine will depend on the following criteria: Your detergent utilization will be based on the degree of contamination of your laundries. Do not prewash your less stained laundries and put your slight amount of detergent in the 2 compartment of the detergent drawer.
-
Page 16: Chapter-5: Control Panel
CHAPTER 5: CONTROL PANEL... -
Page 17: Detergent Drawer
CHAPTER 5: CONTROL PANEL DETERGENT DRAWER A. Prewashing compartment B. Main washing compartment C. Softener compartment D. Siphon cover E. Liquid level detergent plate... -
Page 18: Programme Knob
CHAPTER 5: CONTROL PANEL PROGRAMME KNOB You may select the programme you like to wash your laundries through programme knob. You may set the programme selection operation by rotating the programme knob in both direction. Ensure that the programme knob is exactly on the programme... -
Page 19: Spin Speed Selector Knob
(No spin) and the maximum spinning speed of your machine. If the spin speed selector knob is higher than the to the selected program spin speed maximum speed, machine will make the spin according to the program maximum spin speed. -
Page 20: Electronic Display
Furthermore, electronic display will warn you by means of fault symbols on the display when a fault occurs on your machine and notify you of the completion of the washing programme by revealing expression of “END”... -
Page 21: Chapter-6: Operating Your Machine
Put detergent and softener in the detergent drawer. First washing operation Some water may be left in your machine due to experiments and tests carried out during production. To dispose of this water, it is recommended to perform the first washing operation in 1 programme and without laundry by inserting ½... - Page 22 Your machine features a half-load detection system. In case you put approximately half or less amount of laundries of maximum laundry capacity in your machine, your machine will run so as to save washing time, water consumption and energy in some programmes (White cotton 95°, Colorfast cotton 60°, Non colorfast cotton 40°).
- Page 23 14-DAILY 60 min. You can wash your dirty cotton, colour and flax textiles at 60°C in 60 minutes. You can wash your slightly dirty cotton, colour and flax textiles in 15 minutes that is a short period. Note: As the washing period is short, less amount of detergent is required to be 15-SUPER RAPID used compared to other programmes.
- Page 24 CHAPTER 6: OPERATING YOUR MACHINE AUXILIARY FUNCTIONS 1-Washing water temperature selection You can select the washing water temperature with the washing water temperature adjustment button. Whenever you select a new programme, the maximum washing water temperature is shown on the washing water temperature display.
- Page 25 “Start/Pause” button. If you have skipped the time delay you want to set, you can go back to the time desired by keeping pressed on delay timer button. If you want to cancel the delay timer, you are required to press the delay timer button once.
- Page 26 CHAPTER 6: OPERATING YOUR MACHINE AUXILIARY FUNCTIONS 3. Auxiliary function for easy ironing Your laundry will be less creased if the easy ironing auxiliary function is pressed/selected.
-
Page 27: Starting The Programme
CHAPTER 6: OPERATING YOUR MACHINE STARTING THE PROGRAMME Start/Pause button By pressing on Start/Pause button, you may start the programme you have selected, suspend a running programme. If you switch your machine to pause mode, electronic display will blink. When you start your machine, the following symbols for the programmes you have selected will be available on electronic display. -
Page 28: Child Lock
When it becomes active the electronic display will blink “CL” and child lock light will light up. If pressed any button while child lock is active, child lock light will blink on the electronic display. When any of the programmes is running and child lock is active, if another programme is selected after programme knob is switched to 0 position, the programme already running will resume. -
Page 29: Cancelling Programme
- Your machine will stop the washing operation and the programme will be cancelled. - To get rid of the water accumulated in the machine switch the programme knob to any programme. - Your machine will perform the necessary discharge operation and cancel the programme. -
Page 30: Finishing Programme
-Door lock light of extinguish. -Expression of “END” will flash on the electronic display. - Leave the door of your machine open to allow the inner part of your machine to dry after removing your laundries. - Switch the programme knob to 0. -
Page 31: Chapter-7: Warning Symbols
- Water faucet may be closed. Check. - Mains water may be cut-off. Check. If so, switch the programme knob to position 0. You can select a programme and run your machine after the mains water is supplied. -
Page 32: Warning Of Clogged Pump Fitler
WARNING OF CLOGGED PUMP FILTER If symbol flashes on the control panel: - Pump filter may be clogged. Clean the pump filter. (*) - Discharging hose may be clogged or twisted. Check the discharging hose. (*) See the chapter regarding maintenance and cleaning of your... -
Page 33: Chapter-8: Maintenance And Cleaning Of Your Machine
Filters to avoid dirt and foreign substances in the water from penetrating into the machine are available both on the side of faucet and on the ends of water valves along the water inlet hose of your machine. If your machine cannot intake sufficient amount of water despite water faucet being open, these filters should be cleaned. - Page 34 It is recommended that you clean your pump filter once in 2 months. To clean pump filter: Depress the lug downwardly to uncover the pump section of the toe board and pull it towards yourself and extract it.
- Page 35 CHAPTER -8: MAINTENANCE AND CLEANING OF YOUR MACHINE / PUMP FILTER After cleaning the filter, fit the filter cover by rotating it in clockwise. Fit the pump section of the toe board. Remember that water will leak if you do not fit the filter cover properly.
- Page 36 3- In 2 locking stage, in order to unsettle the detergent drawer, move the detergent drawer up and down, and then pull and eject it. (Figure - 4- Flush it using a brush. 5- Collect residues in the housing of the detergent drawer without dropping them inside the machine.
- Page 37 Drum Do not leave metallic objects such as needles, paper clips, coins, etc. in your machine. This objects will lead to formation of rust stains in the drum. To clean such rust stains, use a non-chlorine cleaning agent and follow the instructions of manufacturers of the cleaning agent.
-
Page 38: Chapter-9: Practical Information
Tea and coffee: Stretch the spotted area of your laundry throughout the openning of a vessel, and pour hot water as much as the type of your laundry can resist. In case the type of your laundry permits, wash with bleacher. - Page 39 Fruit: Stretch the spotted area of your laundry throughout the opnening of a vessel, and pour cold water on it. Do not pour hot water on the spot. Wipe with cold water and apply glycerine. Allow 1-2 hours, wipe with a few drops of white vinegar, and rinse it.
-
Page 40: Chapter-10: Troubleshooting
CHAPTER -10: TROUBLESHOOTING All repairing operations required for your machine should be carried out by our authorised service. If your machine requires a repair or if you cannot remove the fault by the help of the information provided as follows: Unplug your machine. - Page 41 Your machine rests When settling your on a hard surface. machine, leave 2 cm space between it and wall or hard surfaces. (*) See the chapter regarding maintenance and cleaning of your machine. (**) See the chapter regarding installation of your machine.
- Page 42 CHAPTER -10: TROUBLESHOOTING REMOVING FAULT POSSIBLE CAUSE METHODS Press on Start/Pause button. To eliminate foam formation, mix a spoon of softener with half litres of water, and pour the mixture Excessive amount of in the detergent detergent used. drawer. After 5-10...
- Page 43 Apply the maximum amount of detergent The reason for this instructed by the Grey spots appear on spots may be oil, detergent the laundries. cream or ointment. manufacturer in the next washing operation. (**) See the chapter regarding installation of your machine.
- Page 44 CHAPTER -10: TROUBLESHOOTING REMOVING FAULT POSSIBLE CAUSE METHODS Unbalanced load control system will try to spread your laundries homogeneously. Wringing operation No fault. Unbalanced Wringing operation is will start after load control system not performed or spreading your has been activated.
-
Page 45: Chapter-11: Automatic Fault Warnings And What To Be Done
CHAPTER -11: AUTOMATIC FAULT WARNINGS AND WHAT TO BE DONE Your machine is equipped with the systems which are capable of both taking necessary precautions and warning you in case of any breakdown by means of continuous self-checking during washing operations. - Page 46 CHAPTER -11: AUTOMATIC FAULT WARNINGS AND WHAT TO BE DONE TROUBLE CODE POSSIBLE WHAT TO DO FAULT - Water faucet may be closed. Check. - Mains water may be cut-off. Check. - If so, switch the programme knob to position 0. You can...
-
Page 47: Chapter-12: Describing And Saving Energy
It will reduce energy and water consumption to use your machine with the laundry capacity proposed for the selected programme, wash your laundries less dirty or daily laundries in short... -
Page 48: Disposal Of Your Old Machine
DISPOSAL OF YOUR OLD MACHINE This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment. You will contribute to avoid potential...
