- Page 1 SI-624 Extreme Performance Digital Signage Player User’s Manual Version 1.0 (December 2023)
- Page 2 No part of this publication may be reproduced, copied, stored in a retrieval system, translated into any language or transmitted in any form or by any means, electronic, mechanical, photocopying, or otherwise, without the prior written consent of IBASE Technology, Inc. (hereinafter referred to as “IBASE”).
- Page 3 Compliance In a domestic environment, this product may cause radio interference in which case users may be required to take adequate measures. This product has been tested and found to comply with the limits for a Class B device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 4 Important Safety Information Carefully read the precautions before using the device. Environmental conditions: • Lay the device horizontally on a stable and solid surface in case the device may fall, causing serious damage. • Leave plenty of space around the device and do not block the openings for ventilation.
- Page 5 CAUTION There is danger of explosion if internal lithium-ion battery is replaced by an incorrect type. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. Warranty Policy • IBASE standard products: 24-month (2-year) warranty from the date of shipment.
-
Page 6: Table Of Contents
Table of Contents Chapter 1 General Information ............... 8 Introduction ..................... 9 Features ....................9 Packing List ..................10 Specifications ..................10 Product View ..................12 Dimensions ................... 14 Chapter 2 Hardware Installation & Motherboard Information .... 15 Installation / Replacement ..............16 2.1.1 Memory .................. - Page 7 2.5.14 J15: M.2 2230 E-key Socket ........... 34 2.5.15 J17: M.2 3053 B-Key Socket ..........34 2.5.16 J18: Mini SIM Socket .............. 35 2.5.17 J22: M.2 2280 M-Key Socket ..........35 2.5.18 J23, J24: SATA HDD Power Connectors ........ 36 2.5.19 PWM Fan Power Connector (CPU_FAN1, SYS_FAN1, SYS_FAN2) ...................
-
Page 8: Chapter 1 General Information
Chapter 1 General Information The information provided in this chapter includes: • Features • Packing List • Accessories • Specifications • Product View • Dimensions... -
Page 9: Introduction
General Information 1.1 Introduction The SI-624 is a power-packed industrial AI computer with NVIDIA Ampere MXM GPU that is designed to meet the demands of high-speed multiple tasks for artificial neural network applications. Powered by the 12th/13th Gen Intel® Core™ CPU, this... -
Page 10: Packing List
• 4x USB 3.0 • 2x RJ45 for Gigabit LAN • COM1 & COM2: RS-232/422/485 (jumper-less selection) Interface • 1x Audio connector for Line-in/out/MIC • 1x Power / HDD LED • 1x Power button • 1x Power jack connector SI-624 User Manual... - Page 11 5 ~ 90% at 45 °C (non-condensing) Humidity Vibration SSD: random operation 5 grms, 5~500 Hz Protection Others Certification CE, FCC class-B, UL & CCC Operating Windows 10 / Linux System All specifications are subject to change without prior notice. SI-624 User Manual...
-
Page 12: Product View

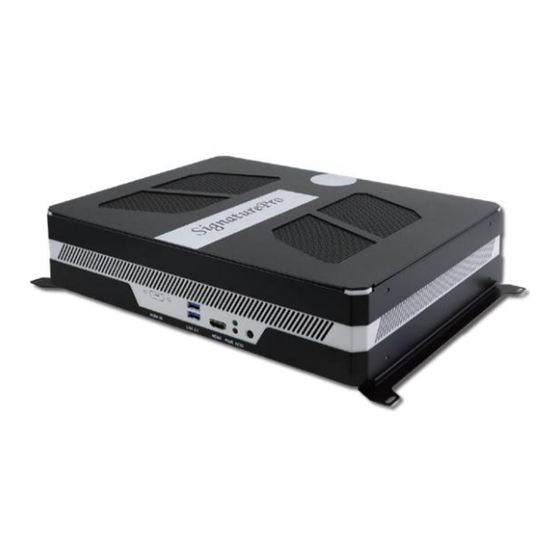

1.5 Product View Front View Rear View SI-624 User Manual... - Page 13 General Information Oblique View SI-624 User Manual...
-
Page 14: Dimensions
1.6 Dimensions Unit: mm SI-624 User Manual... -
Page 15: Hardware Installation & Motherboard Information
Chapter 2 Hardware Installation & Motherboard Information The information provided in this chapter includes: • Installation of memory and M.2 cards • Information and locations of connectors... -
Page 16: Installation / Replacement
To access the parts on the motherboard for the purpose of removal, installation or replacement of components such as memory modules or M.2 cards, remove the two screws and slide the device cover backwards to remove it. SI-624 User Manual... -
Page 17: Memory
To remove the module, press the ejector tabs outwards with your fingertips to eject the module. 2.1.2 M.2 Cards To remove and install the mini PCIe or M.2 card, remove the device cover as mentioned in the previous section and locate that card socket for removal or installation. SI-624 User Manual... - Page 18 3. Push the M.2 card down and fix it with an M3 screw. Remarks: The M.2 card connnectors in the system are: J7: M.2 2280 M-Key Socket J15: M.2 2230 E-key Socket J17: M.2 3053 B-Key Socket J22: M.2 2280 M-Key Socket SI-624 User Manual...
-
Page 19: Wifi / 3G / 4G Antenna Installation
Thread the washer and then fasten the 2. Apply adhesive to the hex nut. specified area on the hex nut. Info: The diameter of the nut is around 6.35 mm (0.25”-36UNC). SI-624 User Manual... -
Page 20: Mounting Installation
1. Turn your device upside down. Attach the wall-mount kit (2 brackets) to the device and secure with the supplied screws. 2. Prepare 4 screws (M3) to install the device on the wall. You can also install the wall mount kit onto the side of the device as shown. SI-624 User Manual... -
Page 21: Setting The Jumpers
Open When two pins of a jumper are encased in a jumper cap, this jumper is closed, i.e. turned On. When a jumper cap is removed from two jumper pins, this jumper is open, i.e. turned Off. SI-624 User Manual... -
Page 22: Jumper & Connector Locations On Motherboard
2.3 Jumper & Connector Locations on Motherboard Motherboard: MBD624 MBD624 – top and I/O SI-624 User Manual... -
Page 23: Jumper Locations
Hardware Configuration 2.4 Jumper Locations 2.4.1 JP1: Clear CMOS Data Function Pin closed Illustration Normal (default) Clear CMOS 2.4.2 JP2: Clear RTC Function Pin closed Illustration Normal (default) Clear CMOS SI-624 User Manual... -
Page 24: Jp3: At/Atx Select
2.4.3 JP3: AT/ATX Select Function Pin closed Illustration (default) Open Close 2.4.4 JP5: Flash Descriptor Security Override Function Pin closed Illustration Disabled (default) Open Enabled Close SI-624 User Manual... -
Page 25: Jp6: Sierra Em9191 5G Card Usb/Pcie Select
Hardware Configuration 2.4.5 JP6: Sierra EM9191 5G Card USB/PCIe Select Function Pin closed Illustration PCIe (default) SI-624 User Manual... -
Page 26: Connectors Locations
Rear Side Connectors No. Name Name DC Power Input (CN8) Audio Jacks (CN1) COM Ports (CN7) Power Button LAN Ports (CN6, CN5) External Power Switch (J1) DP Ports for MXM (CN4, CN3) Antenna Holes USB Ports (CN2) SI-624 User Manual... -
Page 27: Cn8: Dc In Connector
Hardware Configuration 2.5.3 CN8: DC In Connector Pin Signal Name Pin Signal Name +19V +19V Ground Ground 2.5.4 CN10, CN11: SATA Connectors Pin Signal Name Pin Signal Name Ground Ground Ground SI-624 User Manual... -
Page 28: J1: External Power Switch
2.5.5 J1: External Power Switch Pin Signal Name Power BTN- Power BTN+ 2.5.6 J2: Front Panel Audio Connector Pin Signal Name Pin Signal Name MIC IN_L Ground MIC IN_R LINE_R Ground Sense LINE_L Ground SI-624 User Manual... -
Page 29: J4: Oob
Hardware Configuration 2.5.7 J4: OOB Signal Name Signal Name 3.3V 3.3V NC_SI_TXD0 PM_SYSRST# NC_SI_TXD1 PWR_BTN# NC_SI_TX_EN Edge Device Power detetion NC_SI_CLK_IN Uart_TXD NC_SI_RXD0 Uart_RXD NC_SI_RXD1 - NC_SI_CRS_DV Connector type: EPT_403-53020-51 SI-624 User Manual... -
Page 30: J5: Digital I/O Connector (4 In, 4 Out)
2.5.8 J5: Digital I/O Connector (4 in, 4 out) Pin Signal Name Pin Signal Name Ground Out3 Out1 Out2 Out0 2.5.9 J7: M.2 2280 M-Key Socket (supports NVME) SI-624 User Manual... -
Page 31: J8: Reset Button Connector
Hardware Configuration 2.5.10 J8: Reset Button Connector 2.5.11 J9, J11: COM3, COM4 RS232 Serial Ports Pin Signal Name Pin Signal Name DCD# SIN# SOUT DTR# DSR# RTS# CTS# Connector type: HK_DF11-10S-PA66H SI-624 User Manual... -
Page 32: J13: Usb 2.0 Connector
2.5.12 J13: USB 2.0 Connector Pin Signal Name Pin Signal Name Ground Ground SI-624 User Manual... -
Page 33: J14: Usb 3.1 Connector
Hardware Configuration 2.5.13 J14: USB 3.1 Connector Pin Signal Name Pin Signal Name P1_SSRX- P1_SSRX+ P2_SSRX- P2_SSRX+ P1_SSTX- P1_SSTX+ P2_SSTX- P2_SSTX+ P1_U2_D- P1_U2_D+ P2_U2_D P2_U2_D+ Connector type: PINREX_52X-40-20GU52 SI-624 User Manual... -
Page 34: J15: M.2 2230 E-Key Socket
2.5.14 J15: M.2 2230 E-key Socket Supports, PCIe×1, USB 2.0, CNVi 2.5.15 J17: M.2 3053 B-Key Socket Supports 5G/4G/LTE, Sierra LTE module SI-624 User Manual... -
Page 35: J18: Mini Sim Socket
Hardware Configuration 2.5.16 J18: Mini SIM Socket Supports 5G/4G/LTE, Sierra LTE module 2.5.17 J22: M.2 2280 M-Key Socket Supports PCIe & SATA SI-624 User Manual... -
Page 36: J23, J24: Sata Hdd Power Connectors
2.5.18 J23, J24: SATA HDD Power Connectors Pin Signal Name Pin Signal Name Ground Ground +12V 2.5.19 PWM Fan Power Connector (CPU_FAN1, SYS_FAN1, SYS_FAN2) Signal Name Ground +12V Rotation detection Control SI-624 User Manual... -
Page 37: Cn9: Mxm Connector
DP_E_L0# OEM7 Ground DP_F_L1 DP_E_L0 Ground PEX_TX15# Ground Ground PEX_RX15# PEX_TX15 DP_F_L2# DP_E_L1# PEX_RX15 Ground DP_F_L2 DP_E_L1 Ground PEX_TX14# Ground Ground PEX_RX14# PEX_TX14 DP_C_L0# DP_E_L2# PEX_RX14 Ground DP_C_L0 DP_E_L2 Ground PEX_TX13# Ground Ground PEX_RX13# PEX_TX13 DP_C_L1# DP_D_L0# SI-624 User Manual... - Page 38 DP_B_L2 PEX_RX4 Ground DP_A_L1 Ground Ground PEX_TX3# Ground DP_B_L3# PEX_RX3# PEX_TX3 DP_A_L2# DP_B_L3 PEX_RX3 Ground DP_A_L2 Ground Ground Ground DP_B_AUX# DP_A_L3# DP_B_AUX DP_A_L3 DP_B_HPD Ground DP_A_HPD Ground Ground DP_A_AUX# PEX_RX2# PEX_TX2# DP_A_AUX PEX_RX2 PEX_TX2 PRSNT_L# Ground Ground SI-624 User Manual...
-
Page 39: Driver Installation
Chapter 3 Driver Installation The information provided in this chapter includes: • ® Intel Chipset Software Installation Utility • HD Audio Driver Installation • LAN Driver Installation • ® Intel Management Engine Component Drivers Installation • NVIDIA® GeForce® MXM Driver Installation... -
Page 40: Introduction
2. When the Welcome screen to the Intel Chipset Device Software appears, click Next to continue. 3. Accept the license agreement and proceed with the installation process. 4. When the driver is completely installed, restart the computer for changes to take effect. SI-624 User Manual... -
Page 41: Hd Audio Driver Installation
3. Accept the license agreement and click Next to continue. On the Setup Options screen, tick the checkbox to select the desired driver(s) and click Next for installation. When the driver is completely installed, restart the computer for changes to take effect. SI-624 User Manual... -
Page 42: Intel Management Engine Components Drivers Installation
® ® 3.6 NVIDIA GeForce MXM Driver Installation 1. Download the driver from NVIDIA’s website or IBASE’s website. 2. Accept the software license agreement and start installation. 3. Click Close to finish the installation. SI-624 User Manual... -
Page 43: Bios Setup
Chapter 4 BIOS Setup This chapter describes the different settings available in the AMI BIOS that comes with the board. The topics covered in this chapter are as follows: • Main Settings • Advanced Settings • Chipset Settings • Security Settings •... -
Page 44: Introduction
Warning: Making changes to the chipset defaults is strongly discouraged. These defaults, set by AMI and your system manufacturer, are optimized for maximum performance and reliability. Altering these settings could potentially make the system unstable and lead to crashes. SI-624 User Manual... -
Page 45: Main Settings
BIOS Setup 4.3 Main Settings BIOS Setting Description System Date Sets the date. Use the <Tab> key to switch between the date elements. System Time Set the time. Use the <Tab> key to switch between the time elements. SI-624 User Manual... -
Page 46: Advanced Settings
4.4 Advanced Settings This section allows you to configure, improve your system and allows you to set up some system features according to your preference. SI-624 User Manual... - Page 47 Enables or Disables System ability to hibernate (OS/S4 Sleep State). This option may not be effective with some OS. ACPI Sleep State Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed. SI-624 User Manual...
- Page 48 BT Tile Mode Enable/Disable Tile Advanced settings Configure ACPI objects for wireless devices. WWAN Configuration Configure WWAN related options WWAN Device Select the M.2 WWAN device options to enable 4G – 7360/7560 (Intel), 4G – MB0 (MediaTek) Modems SI-624 User Manual...
- Page 49 Active Performance Cores Number of P-cores to enable in each processor package. Note: Number of cores and E-cores are looked at together. When both are [0,0], Pcode will enable all cores. Hyper-Threading Enable or Disable Hyper-Threading Technology SI-624 User Manual...
- Page 50 50°C, 60°C, 70°C or 80°C. Temperatures / Voltages These fields are the parameters of the hardware monitoring function feature of the motherboard. The values are read-only values as monitored by the system and show the PC health status. SI-624 User Manual...
- Page 51 BIOS Setup 4.4.5 F8996x Super IO Configuration SI-624 User Manual...
- Page 52 For example, if setting up a schedule from Wednesday 5 p.m. to Thursday 2 a.m., configure two schedule slots. But if setting up a schedule from 3 p.m to 5 p.m. on Wednesday, configure only a schedule slot. SI-624 User Manual...
- Page 53 BIOS Setup 4.4.7 Network Stack Configuration BIOS Setting Description Network Stack Enables / Disables UEFI Network Stack. 4.4.8 PCH-FW Configuration SI-624 User Manual...
- Page 54 Enable/Disable Intel(R) Speed Shift Intel (R) Speed Shift Technology support. Enabling will expose the Technology CPPC v2 interface to allow for hardware controlled P-states. Enable/Disable processor Turbo Mode Turbo Mode (requires EMTTM enabled too). AUTO means enabled. SI-624 User Manual...
- Page 55 TPM 1.2 will restrict support to TPM 1.2 devices. TPM 2.0 will restrict support to TPM 2.0 devices. Device Select Auto will support both with the default set to TPM 2.0 devices if not found, TPM 1.2 devices will be enumerated. SI-624 User Manual...
- Page 56 The maximum time the device will take before it properly reports itself to the Host Controller. “Auto” uses default value for a Root port it is Device power-up delay 100ms. But for a Hub port, the delay is taken from Hub descriptor. SI-624 User Manual...
- Page 57 BIOS Setup 4.4.12 Network Stack Configuration SI-624 User Manual...
-
Page 58: Chipset Settings
4.5 Chipset Settings 4.5.1 System Agent (SA) Configuration 4.5.1.1. Graphics Configuration: 4.5.2 PCH-IO Configuration SI-624 User Manual... - Page 59 BIOS Setup 4.5.2.1 SATA Configuration: BIOS Setting Description SATA Configuration SATA device options and settings Serial ATA Port Enables / Disables Serial Port Hot Plug Designates the port as Hot Pluggable. 4.5.2.2 USB Configuration: SI-624 User Manual...
-
Page 60: Security Settings
Force system to User Mode. Install factory default Keys Secure Boot key databases. Reset To Setup Delete all Secure Boot key databases from NVRAM. Mode Enables expert users to modify Secure Boot Policy Key Management variables without variable authentication. SI-624 User Manual... -
Page 61: Boot Settings
Enables / Disables Quiet Boot option. FIXED BOOT Sets the system boot order. ORDER Priorities UEFI NVME Drive Specifies the Boot Device Priority sequence from BBS Priorities available UEFI NVME Drives. Boot Option #1 Sets the system boot order SI-624 User Manual... -
Page 62: Save & Exit Settings
Saves the changes done so far as User Defaults. Restores the user defaults to all the setup Restore User Defaults options. Launch EFI Shell from Attempts to launch EFI shell application (Shell.efi) filesystem device from one of the available filesystem devices. SI-624 User Manual... -
Page 63: Appendix
Appendix This section provides the mapping addresses of peripheral devices and the sample code of watchdog timer configuration. • I/O Port Address Map • Interrupt Request Lines (IRQ) • Watchdog Timer Configuration... -
Page 64: I/O Port Address Map
Programmable interrupt controller 0x00000030-0x00000031 Programmable interrupt controller 0x00000034-0x00000035 Programmable interrupt controller 0x00000038-0x00000039 Programmable interrupt controller 0x0000003C-0x0000003D Programmable interrupt controller 0x000000A0-0x000000A1 Programmable interrupt controller 0x000000A4-0x000000A5 Programmable interrupt controller 0x000000A8-0x000000A9 Programmable interrupt controller 0x000000AC-0x000000AD Programmable interrupt controller 0x000000B0-0x000000B1 Programmable interrupt controller SI-624 User Manual... - Page 65 0x000000BC-0x000000BD Programmable interrupt controller 0x000004D0-0x000004D1 Programmable interrupt controller 0x00005000-0x00005FFF Intel(R) PEG10 - 460D 0x00005000-0x00005FFF NVIDIA RTX A4500 Embedded GPU 0x00000040-0x00000043 System timer 0x00000050-0x00000053 System timer 0x00003000-0x00003FFF Intel(R) PCI Express Root Port #8 - 7ABF 0x00002000-0x000020FE Motherboard resources SI-624 User Manual...
-
Page 66: Interrupt Request Lines (Irq)
IRQ 4294967259~65 Intel(R) Ethernet Controller I226-V IRQ 55~511 Microsoft ACPI-Compliant System IRQ 109 Trusted Platform Module 2.0 IRQ 0 System timer IRQ 4294967291 Intel(R) PCI Express Root Port #8 - 7ABF IRQ 4294967266~73 Intel(R) I210 Gigabit Network Connection SI-624 User Manual... -
Page 67: Watchdog Timer Configuration
(SIO == 0) printf("Can not detect Fintek 81966, program abort.\n"); return(1); }//if (SIO == 0) if (argc != 2) printf(" Parameter incorrect!!\n"); return (1); bTime = strtol (argv[1], endptr, 10); printf("System will reset after %d seconds\n", bTime); SI-624 User Manual... - Page 68 //--------------------------------------------------------------------------- void DisableWDT(void) unsigned char bBuf; Set_F81966_LD(0x07); //switch to logic device 7 bBuf = Get_F81966_Reg(0xFA); bBuf &= ~0x01; Set_F81966_Reg(0xFA, bBuf); //disable WDTO output bBuf = Get_F81966_Reg(0xF5); bBuf &= ~0x20; bBuf |= 0x40; Set_F81966_Reg(0xF5, bBuf); //disable WDT //--------------------------------------------------------------------------- SI-624 User Manual...
- Page 69 (ucDid == 0x07) //Fintek 81966 { goto Init_Finish; F81966_BASE = 0x00; result = F81966_BASE; Init_Finish: return (result); //--------------------------------------------------------------------------- void Unlock_F81966 (void) outportb(F81966_INDEX_PORT, F81966_UNLOCK); outportb(F81966_INDEX_PORT, F81966_UNLOCK); //--------------------------------------------------------------------------- void Lock_F81966 (void) outportb(F81966_INDEX_PORT, F81966_LOCK); //--------------------------------------------------------------------------- void Set_F81966_LD( unsigned char LD) SI-624 User Manual...
- Page 70 #define F81966_DATA_PORT (F81966_BASE+1) //--------------------------------------------------------------------------- #define F81966_REG_LD 0x07 //--------------------------------------------------------------------------- #define F81966_UNLOCK 0x87 #define F81966_LOCK 0xAA //--------------------------------------------------------------------------- unsigned int Init_F81966(void); void Set_F81966_LD( unsigned char); void Set_F81966_Reg( unsigned char, unsigned char); unsigned char Get_F81966_Reg( unsigned char); //--------------------------------------------------------------------------- #endif // F81966_H SI-624 User Manual...
