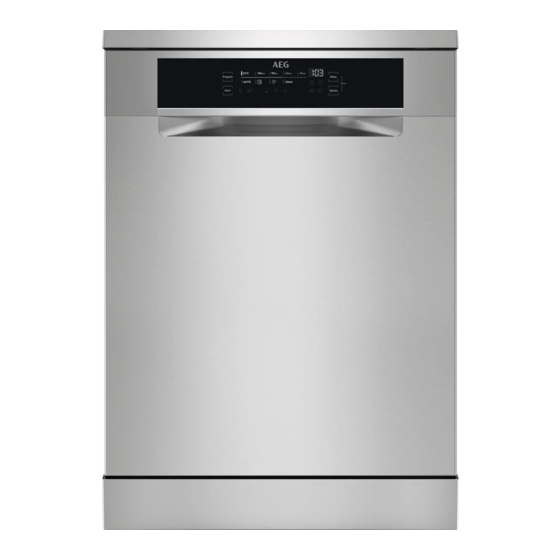

- Page 1 EN User Manual | Dishwasher FFB74707PM aeg.com\register...
-
Page 2: Table Of Contents
Welcome to AEG! Thank you for choosing our appliance. Get usage advice, brochures, trouble shooter, service and repair information: www.aeg.com/support Subject to change without notice. CONTENTS 1. SAFETY INFORMATION................2 2. SAFETY INSTRUCTIONS................4 3. PRODUCT DESCRIPTION................6 4. CONTROL PANEL..................7 5. - Page 3 • Children of less than 3 years of age should be kept away from the appliance unless continuously supervised. • Children should be supervised to ensure that they do not play with the appliance. • Keep detergents away from children. •...
-
Page 4: Safety Instructions
• If the appliance has ventilation openings in the base, they must not be covered e.g. by a carpet. • The appliance is to be connected to the water mains using the new supplied hose-sets. Old hose sets must not be reused. - Page 5 and aquastops, structural and interior WARNING! parts related to door assemblies, printed circuit boards, electronic displays, Dangerous voltage. pressure switches, thermostats and sensors, software and firmware including 2.4 Use reset software. Please note that some of • Do not put flammable products or items these spare parts are only available to that are wet with flammable products in, professional repairers, and that not all...
-
Page 6: Product Description
3. PRODUCT DESCRIPTION Worktop Air vent Ceiling spray arm Rinse aid dispenser Upper spray arm Detergent dispenser Lower spray arm Lower basket Filters Upper basket Rating plate Cutlery drawer Salt container ENGLISH... -
Page 7: Control Panel
4. CONTROL PANEL On/off button Option touch button Program touch button Indicators Programme indicators Start touch button Display Delay touch button 4.1 Indicators Indicator Description Salt indicator. It is on when the salt container needs refilling. It is always off while the pro‐ gramme operates. -
Page 8: Programmes
Indicator Description ExtraHygiene indicator. 5. PROGRAMMES The order of the programmes in the table may not reflect their sequence on the control panel. Programme Dishwasher Degree of Programme phases Options load soil Crockery, cut‐ Normal, lightly • Prewash • ExtraPower lery, pots, pans dried-on •... - Page 9 Programme Dishwasher Degree of Programme phases Options load soil None Cleaning the • Cleaning 70 °C appliance inte‐ • Intermediate rinse rior • Final rinse • AirDry • Prewash Crockery, cutlery Normal soil • Prewash • Dishwashing 60 °C • Intermediate rinse •...
-
Page 10: Options
Water (l) Energy (kWh) Duration (min) Programme 1)2) 11.9 0.980 The pressure and the temperature of the water, the variations of the mains supply, the options, the quantity of dishes and the degree of soil can change the values. The values for programmes other than ECO are indicative only. 5.2 Information for test institutes To receive the necessary information for conducting performance tests (e.g. -
Page 11: Settings
6.3 ExtraHygiene How to activate ExtraHygiene This option provides better cleaning results Press Option until the indicator is on. by keeping the temperature between 65 and The display shows the updated programme 70 °C for at least 10 minutes during the last duration. - Page 12 German de‐ French de‐ mmol/l mg/l (ppm) Clarke de‐ Water softener grees (°dH) grees (°fH) grees level 19 - 22 33 - 39 3.3 - 3.9 325 - 394 23 - 27 15 - 18 26 - 32 2.6 - 3.2 255 - 324 18 - 22 11 - 14...
- Page 13 How to set the water softener level Make sure the appliance is in user mode. 1. Press Program. • The indicator still flashes. • The remaining indicators are off. • The display shows the current setting: e.g. = level 5. 2.
-
Page 14: Before First Use
8. BEFORE FIRST USE 1. Make sure that the current level of the 5. Remove the salt around the opening of water softener agrees with the the salt container. hardness of the water supply. If not, adjust the level of the water softener. 2. -
Page 15: Daily Use
1. Open the lid (C). 2. Fill the dispenser (B) until the rinse aid reaches the marking ''MAX''. Fill the rinse aid dispenser when the 3. Remove the spilled rinse aid with an indicator (A) is clear. absorbent cloth to prevent excessive foam formation. -
Page 16: Hints And Tips
2. Press Delay repeatedly until the display 1. Open the appliance door. shows the desired delay time (from 1 to 2. Press simultaneously Delay and Option 24 hours). until the appliance is in programme 3. Press Start to begin the countdown. selection mode. - Page 17 results, arrange items in the baskets as • Always use the correct quantity of instructed in the user manual and do not detergent. Insufficient dosage of detergent overload the baskets. can result in poor cleaning results and • Do not pre-rinse dishes by hand. It hard-water filming or spotting on the items.
-
Page 18: Care And Cleaning
• Make sure that glass items do not touch • There is enough salt and rinse aid (unless each other. you use multi-tablets). • Put light items in the upper basket. Make • The arrangement of the items in the sure that the items do not move freely. - Page 19 11.4 Cleaning the filters The filter system is made of 3 parts. 5. Make sure that there are no residues of food or soil in or around the edge of the sump. 6. Put back in place the flat filter (A). Make sure that it is correctly positioned under 1.
- Page 20 CAUTION! An incorrect position of the filters can cause bad washing results and damage to the appliance. 11.5 Cleaning the lower spray arm We recommend to clean the lower spray arm regularly to prevent soil from clogging the holes. Clogged holes can cause unsatisfactory washing results.
- Page 21 4. To install the spray arm back, press the spray arm upwards and simultaneously turn it counterclockwise until it locks into place. 2. Move the upper basket to the lowest level to reach the spray arm more easily. 3. To detach the spray arm (C) from the 11.7 Cleaning the ceiling spray arm delivery tube (A), turn the mounting element (B) counterclockwise and pull the...
-
Page 22: Troubleshooting
12. TROUBLESHOOTING Refer to the below table for information on WARNING! possible problems. Improper repair of the appliance may With some problems, the display shows an pose a danger to the safety of the user. alarm code. Any repairs must be performed by qualified personnel. - Page 23 Problem and alarm code Possible cause and solution Technical malfunction of the appli‐ • Switch the appliance off and on. ance. The display shows iC0 or iC3. The level of water inside the appli‐ • Switch the appliance off and on. ance is too high.
- Page 24 WARNING! We do not recommend using the appliance until the problem has been completely fixed. Unplug the appliance and do not plug it in again until you are certain that it operates correctly. 12.1 The dishwashing and drying results are not satisfactory Problem Possible cause and solution Poor washing results.
-
Page 25: Technical Information
Problem Possible cause and solution There are residues of detergent in the • The detergent tablet was stuck in the dispenser and was not washed dispenser at the end of the pro‐ away by water. gramme. • Water cannot wash away the detergent from the dispenser. Make sure that the spray arms are not blocked or clogged. -
Page 26: Environmental Concerns
Capacity Place settings Refer to the rating plate for other values. If the hot water comes from alternative source of energy (e.g. solar panels), use the hot water supply to de‐ crease energy consumption. 13.1 Link to the EU EPREL database For more detailed information about the energy label, visit www.theenergylabel.eu. - Page 28 117840061-A-442023...
