Tripp Lite SRLTRISUPPORT Installation Manual

Triangular support bracket

Available languages

Download this manual

Triangular Support Bracket

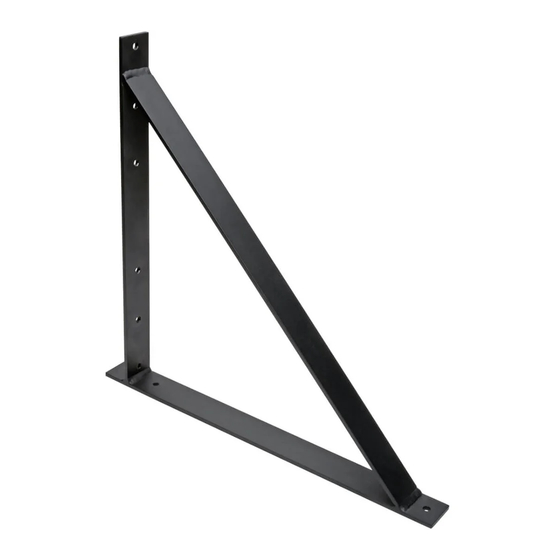

Constructed of ¼" x 2" aluminum, the SRLTRISUPPORT Triangular Support Bracket provides wall support for cable runway.

Parts List

Bracket (x1)

Assembly

Bracket weight capacity is 100 lb. (45 kg). The mounting surface must be able to safely support the combined load of the equipment.

Use appropriate fasteners (not included) to secure the bracket to the wall. Use suitable mounting means when installing to cinder block,

concrete, drywall or wood studs.

Installation Guide

Model: SRLTRISUPPORT

Español 2 • Français 3 • Русский 4

M8 J-Bolt (x2)

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

M8 Lock Washer (x2)

Cable Ladder Not Included

M8 Hex Nut (x2)

Cable Ladder Not Included
