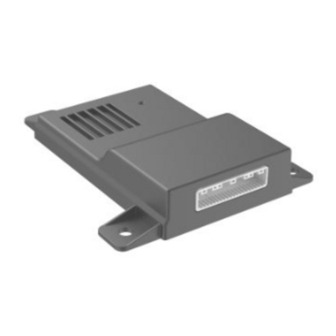

- Page 1 G40 Industry Dashcam • User Manual Panoramic Auxiliary System User Manual...
- Page 2 The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision website ( https://www.hikvision.com/...
- Page 3 Panoramic Auxiliary System • User Manual Regulatory Information EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU, RE Directive 2014/53/EU.
- Page 4 Panoramic Auxiliary System • User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text. Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results.
-
Page 5: Table Of Contents
Panoramic Auxiliary System • User Manual TABLE OF CONTENTS Chapter 1 Package Check ......................1 Chapter 2 Product Introduction ....................2 Product Introduction ........................ 2 Product Features ........................2 Overview ..........................3 Chapter 3 Product Installation ....................5 Chapter 4 Basic Operations ......................8 Calibration Preparation ...................... -
Page 6: Chapter 1 Package Check
Panoramic Auxiliary System • User Manual Chapter 1 Package Check Please check the package for damages. After opening the package, please check the whether all the items are complete according to the table shown bellow. If all items are complete, then devices are ready for installation. -
Page 7: Chapter 2 Product Introduction
Panoramic Auxiliary System • User Manual Chapter 2 Product Introduction Product Introduction The panoramic auxiliary system adopts the panoramic image stitching algorithm and image equalization algorithm to perfectly stitch 4-ch 720p/1080P ultra-wide-angle pictures, and conduct 360-degree panoramic surveillance video around the vehicle. By looking at the display inside the vehicle, the driver can easily tell the surrounding condition of the vehicle. -
Page 8: Overview
Panoramic Auxiliary System • User Manual Overview Dimensions Main Cable interface... - Page 9 Panoramic Auxiliary System • User Manual TF Card Slot and Indicator Indicator Status Status Definition Red and green flashes alternately The device is booting The camera is not connected normally, or the camera is The red light flashes abnormal The TF card is not inserted properly, or the TF card is The green light is solid abnormal During a device upgrade, the green light flashes when the...
-
Page 10: Chapter 3 Product Installation
Panoramic Auxiliary System • User Manual Chapter 3 Product Installation You need to securely fix all the screw holes, in particular the recorder itself. It is recommended to use the M6 Screw and please choose the appropriate length. Screw Position Gently break the silicone plug on the TF card slot, connect the host to the TF card, and then press the silicone plug back. - Page 11 Panoramic Auxiliary System • User Manual Attach the cables to the corresponding peripheral or vehicle interface. Cable Descriptions Interface Descriptions Definition Name Function Front Camera F Connect to Front View Camera Back Camera B Connect to Back View Camera Camera Connection Interface Left Camera L...
- Page 12 Panoramic Auxiliary System • User Manual RS485 (Green: positive; White: RS485 Interface Reserved negative) Connect to A pin sequence display，without powering the display Video Output Interface Connect to A pin sequence display ， and A-DC Note: choose one among powers the display the four types of cable and refer to the actual cable Connect to B pin sequence display，without...
-
Page 13: Chapter 4 Basic Operations
Panoramic Auxiliary System • User Manual Chapter 4 Basic Operations Calibration Preparation Before operating the panoramic auxiliary system (recorder), make sure you have connected the main cable, 4 channels of camera, display and other needed cables to the recorder. Also make sure that you have inserted the accompanying TF card. - Page 14 Panoramic Auxiliary System • User Manual Remote Control Functions Name Function Long press to restart Menu 2D/3D view swithcing “Up” in the menu Play the previous video in the playback interface Back to previous action “Page Up” in the menu “Slow motion”in the playback interface “OK”...
-
Page 15: Gui Interface
Panoramic Auxiliary System • User Manual For date/time setting For date/time setting For date/time setting For date/time setting For date/time setting Press the “MENU” button of the remote control to show the menu option. GUI Interface Level 1 Level 2 Level 3 Distortion Correction ON/OFF... -
Page 16: Image Stich Calibration
Panoramic Auxiliary System • User Manual Image Stich Calibration Mode one: press the “menu” button of the remote control, and then press the number “6” for 6 times, and then press the number “3”, and you enter the calibration mode choice interface. Mode two: connect to mobile APP, and tap setting to enter the calibration mode choice interface. -
Page 17: Dynamic Road Calibration
Panoramic Auxiliary System • User Manual The distance between the Note: This generally refers to the horizontal distance between left camera and the front of the left-looking camera and the forward-looking camera, not the the car straight-line distance. The distance between the Note: This generally refers to the horizontal distance between right camera and the front of the right-looking camera and the forward-looking camera, not... -
Page 18: Upgrade
Panoramic Auxiliary System • User Manual distance Note: This generally refers to the horizontal distance between the right- between looking camera and the forward-looking camera, not the straight-line right camera distance and the front of the car Confirm Click to enter the calibration interface. Note: Do not perform other operations while calibration.
