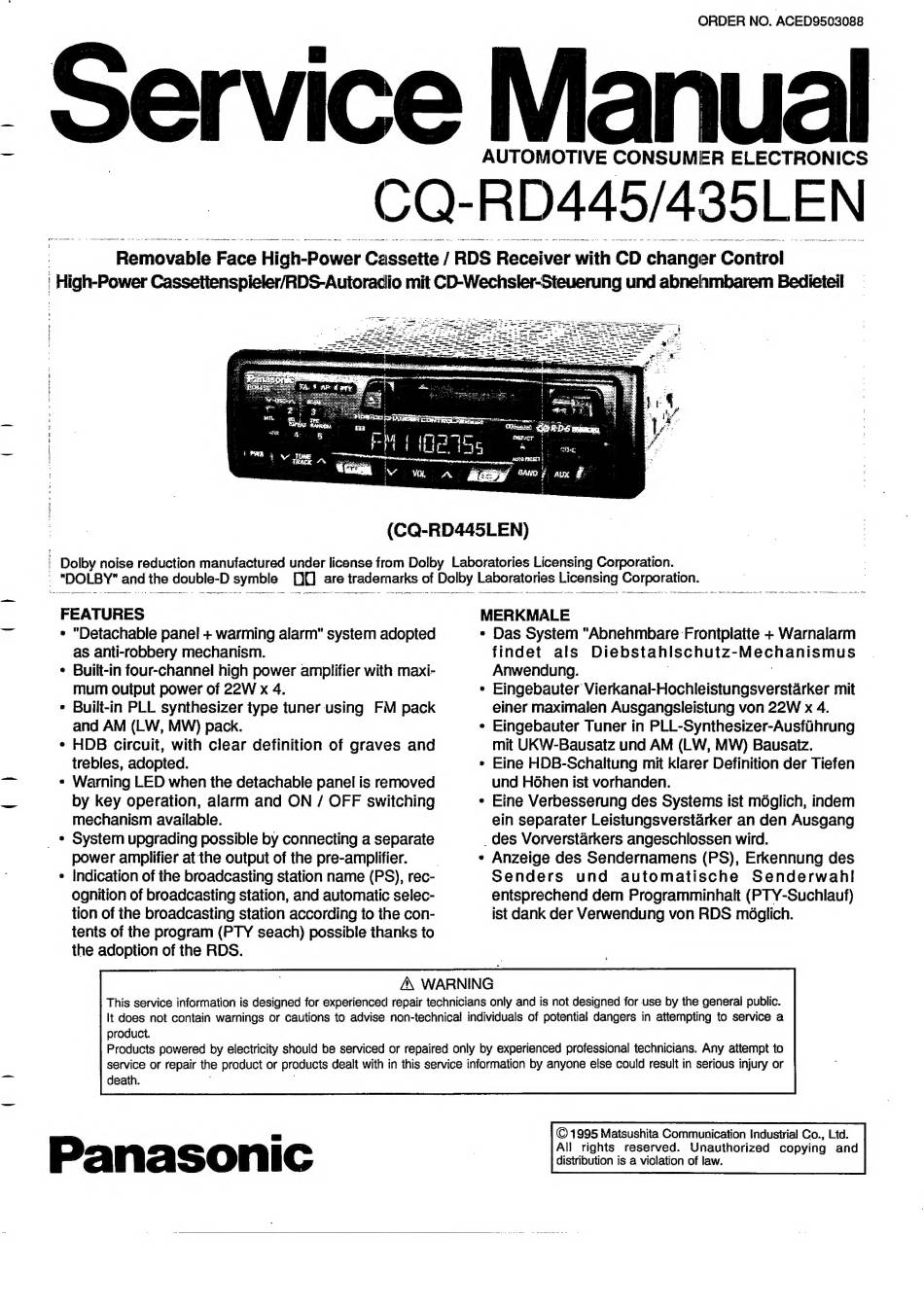

Panasonic CQ-RD445LEN Service Manual

ORDER NO. ACED9503088
- Service Manual
AUTOMOTIVE CONSUMER ELECTRONICS
CQ-RD445/435LEN
~ Removable Face High- -Power Cassette / RDS Receiver with cp changer Control
'High-Power Cassettenspieler/RDS-Autoracio mit CD-Wechsler-Steuerung und abnehmbarem Bedieteil

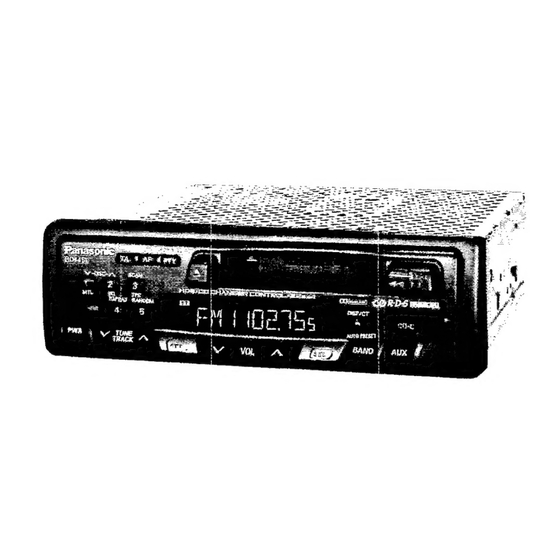

(CQ-RD445LEN)
Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
- "DOLBY" and the double-D symble (J are tradernarks of Dolby Laboratories Licensing Corporation.
FEATURES MERKMALE
¢ "Detachable panel + warming alarm" system adopted * Das System "Abnehmbare Frontpiatte + Warnalarm
as anti-robbery mechanism. findet als Diebstahischutz- Mechanismus
¢ Built-in four-channel high power amplifier with maxi- Anwendung.
mum ouiput power of 22W x 4. * Eingebauter Vierkanal-Hochleistungsverstarker mit
¢ Built-in PLL synthesizer type tuner using FM pack einer maximalen Ausgangsleistung von 22W x 4.
and AM (LW, MW) pack. « Eingebauter Tuner in PLL-Synthesizer-Ausfihrung
¢ HDB circuit, with clear definition of graves and mit UKW-Bausatz und AM (LW, MW) Bausatz.
trebles, adopted. ¢ Eine HDB-Schaltung mit klarer Definition der Tiefen
* Warning LED when the detachable panel is removed und Héhen ist vorhanden.
by key operation, alarm and ON / OFF switching ¢ Eine Verbesserung des Systems ist mdglich, indem
mechanism available. ein separater Leistungsverstarker an den Ausgang
_ © System upgrading possible by connecting a separate _ des Vorverstarkers angeschlossen wird.
power amplifier at the output of the pre-amplifier. « Anzeige des Sendernamens (PS), Erkennung des
¢ Indication of the broadcasting station name (PS), rec- Senders und automatische Senderwahl
ognition of broadcasting station, and automatic selec- entsprechend dem Programminhalt (PTY-Suchlauf)
tion of the broadcasting station according to the con- ist dank der Verwendung von RDS méglich.
tents of the program (PTY seach) possible thanks to
the adoption of the RDS.
A, WARNING
This service information is designed for experienced repair technicians only and is not designed for -use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a
product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to
service or repair the product or products dealt with in this service information by anyone else could result in serious injury or
death.
© 1995 Matsushita Communication Industrial Co., Ltd.
All rights reserved. Unauthorized copying and
distribution is a violation of law.
Panasonic
