Speci cations
NH-EH90JD1WA
NH-EH90JD1WM
Rated voltage
Rated frequency
Rated input power
Refrigerant
Dimensions
Net weight
Rated drying capacity
9.0 kg
NH-EH10JD1WA
NH-EH10JD1WM
NH-EH10JD1WS
220 V- 240 V
50 Hz
750 W
R134a (310g)
598×654×841 (mm)
50 kg
10.0 kg
User Manual
Heat Pump Tumble Dryer
(Household)
Model
NH-EH90JD1WA(NZ)
NH-EH10JD1WA(NZ)
NH-EH90JD1WM
NH-EH10JD1WM
NH-EH10JD1WS
Thank you very much for purchasing our products!
Please read this manual carefully before using the product so that it can be used
●
correctly.
Please make sure to read the "Safety information" (pages 2~7) before using to
●
ensure safe use.
This manual is subject to technical changes without notice.
●
Please keep this manual properly.
●
This dryer contains reusable materials, so please provide support for proper
●
disposal or recycling upon end of life, so as to protect the environment.
Advertisement
Table of Contents
Related Manuals for Panasonic NH-EH90JD1WA
Summary of Contents for Panasonic NH-EH90JD1WA

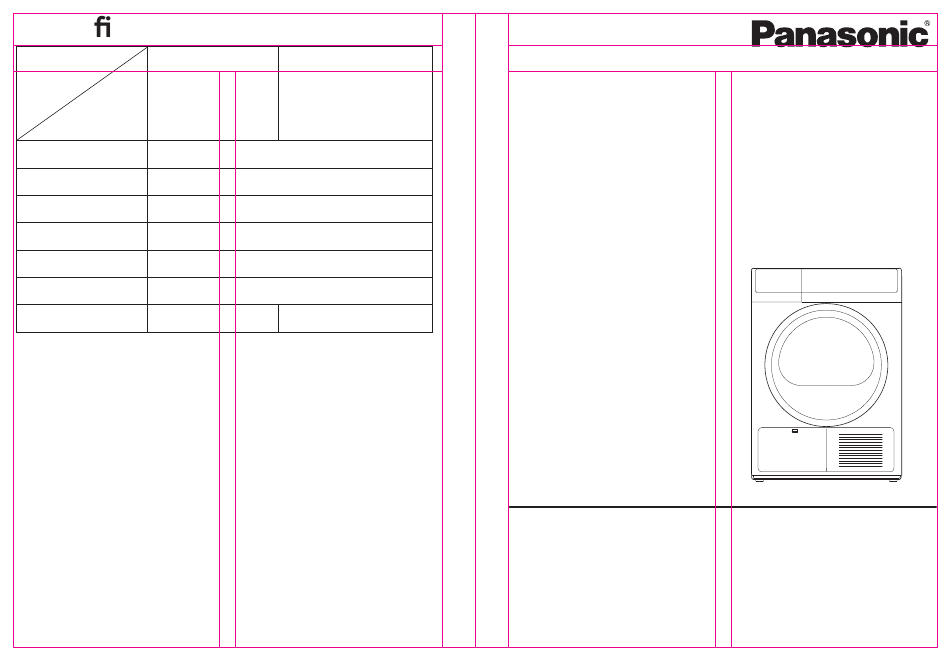

- Page 1 Speci cations User Manual NH-EH10JD1WA NH-EH90JD1WA NH-EH10JD1WM NH-EH90JD1WM Heat Pump Tumble Dryer NH-EH10JD1WS (Household) Rated voltage 220 V- 240 V Model NH-EH90JD1WA(NZ) NH-EH10JD1WA(NZ) Rated frequency 50 Hz NH-EH90JD1WM Rated input power 750 W NH-EH10JD1WM NH-EH10JD1WS Refrigerant R134a (310g) Dimensions 598×654×841 (mm)
-
Page 2: Table Of Contents
If clothes shrink Please stop use immediately when the following situations occur. Use method Remove the power plug and contact Panasonic for inspection and repair! Operation method ……………………………………………………………… 17 This dryer does not start up even after the power is turned on. - Page 3 Continued use in a damaged state may result in electric shock, short cleaning and maintenance! circuit, or re. Please consult Panasonic for repair of power cord or plug. Violation of the requirement may lead to short circuit and electric ●...
- Page 4 Violation of the requirement may lead to re, abnormal operation, then Disassembly is prohibited circuit. injury. Please consult Panasonic for repair. ● Do not use if the socket hole is loose or if the power cord or plug is damaged! Prevent kids from entering the drum, please absolutely prohibit kids from climbing or peering inside the drum.
-
Page 5: Name Of Parts
Name of parts Attention During use Condensed water box (refer to page 21) Ensure that no clothes are entrapped by the dryer door when closing the door! Please make sure to remove loose threads and foreign objects from the door gasket! Operation panel Prohibited Violation of the requirements may a ect the drying e ect because the... -
Page 6: Installation Placement
- Before using this dryer, all packaging (including the foam pad under the package) - If the Panasonic stacking kit is not installed, it is absolutely prohibited to stack the must be removed, otherwise it will cause damage during use. -
Page 7: Installation
Post-installation inspection Level adjustment Panasonic is not responsible for the accidents or damages caused by failure to install, inspect and test-run this dryer in accordance with the following methods. - When the four feet stand on the ground, this dryer must be level and balanced without swaying. -
Page 8: Description Of The Operation Panel
Description of the operation panel Ready-to-wear: the fabric is dry and suitable for wearing or use. Storage: the fabric is completely dry and suitable for cabinet storage. 8. Remaining time indication It shows the approximate time left before the program ends. ※Subject to in uence of factors such as the type of clothes, temperature conditions and program selection, the time displayed during operation may be changed at any time, and the actual running time may be slightly di erent from the displayed time. -
Page 9: Pre-Operation Inspection
Pre-operation inspection Operation method Tips on clothes care First-time use - Fold the clothes into a shape that will t the dimension inside the drum and place the Please check the following items when the dryer is operated for the rst time or the clothes atly into the drum. -
Page 10: Instructions For Use
Instructions for use Operation method Drying rack Attention - When you choose the Wool program, it is require to use the drying rack, otherwise it - Please do not put too much clothing in the drum. ※Too much clothing may a ect the drying e ect. may cause pilling or shrinkage of wool clothes. -
Page 11: Program Overview
Program overview Dry Level Dry Level Recommended capacity Recommended capacity Applicable clothing types Default Applicable clothing types Default NH-EH10JD1WA NH-EH10JD1WA Program Program NH-EH90JD1WA NH-EH90JD1WA and conditions time and conditions time NH-EH10JD1WM NH-EH10JD1WM NH-EH90JD1WM NH-EH90JD1WM NH-EH10JD1WS NH-EH10JD1WS 4-in-1 bed clothes and... -
Page 12: Maintenance And Service
Maintenance and service Condensed water box Dryer case Condensed water will be generated when drying clothes, and this dryer will automatically store condensed water in the upper condensed water box. If indicator 1. For safety sake, please pull out the plug after light ashes and reports U15 during the drying process, it indicates that the turning o the power. - Page 13 Maintenance and service Humidity sensor Upper lter screen In order to reduce the drying time and save energy, please clean the upper lter before Unplug the dryer before cleaning and clean the surface of the sensor (metal strip) inside and after each drying cycle. the dryer with a soft cloth.
-
Page 14: Lower Lter Screen And Heat Exchanger
Maintenance and service When the clothes drying e ect is not good Lower lter screen and heat exchanger Under such It is recommended to clean the lower lter once per week and the heat exchanger once What to do circumstances per month. -
Page 15: Trouble Shooting
When the clothes drying e ect is not good Trouble shooting Problem Possible solution Under such What to do circumstances - Power failure, blown fuse, or circuit breaker tripped. - The power plug is potentially not properly inserted into power socket. The dryer does not work - Some clothes can be washed but are not suitable for - Whether power supply is turned on? -
Page 16: Error Codes
Error codes Trouble shooting Problem Possible solution Whether the condensed water box is full? ● → Empty the condensed water out of the condensed water box and restart the dryer. - When the dryer door is opened, the light in the inner (Refer to page 21) drum will be lit for 30 seconds, then automatically o .
